XXL - Two tray/utility/ box - two cantilever trays by BHMarten

BHMarten

Tools>Organizers

Print Profile(1)

All

P1S

P1P

X1 Carbon

X1E

0.2mm layer, 3 walls, 35% infill

Designer

33.5 h

5 plates

4.5(2)

Boost

134

220

156

Released

Description

Please consider a Boost Token reward, if you like the model, thank you.

This box is 50 mm higher than the previous version of the XL box

The weight of filament needed : 1050g

You need to use M3 size nuts and bolts to assemble the box.

Information can be found in the attached image.

For the hinges and the buckles, it is possible to drip instant glue into the screw hole before screwing to fix it.

All printable parts take up 3 heating pads, I recommend to print a combination of e.g. tray and lid for printing.

dimensions : 229x189x158 mm without handle

here is a link to my smaller box : https://makerworld.com/en/models/225569#profileId-243585

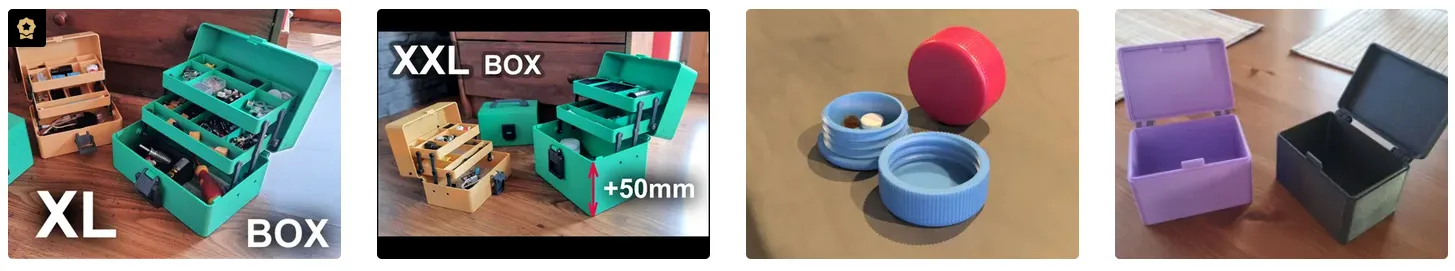

here is a link to my XL box : https://makerworld.com/en/models/475478#profileId-386265

Building the box is fun, enjoy everything.

Comment & Rating (12)

@explodes

Print Profile

0.2mm layer, 3 walls, 35% infill

Excellent build quality, great style. Good for small knickknacks. A bit top-heavy. Will not stand up when open unless full.

The designer has replied

@BHMarten

Great ! Thank you.

@BHMarten

Yes. The box needs to be weighted down... this is because the shelves open way back for access, I didn't want to limit this.

@explodes

Replying to @BHMarten :

Can we make the box deeper, keeping the trays in a forward position? I think that could help balance it. If you have a proto-type I wouldn't mind to try printing it out myself.

@user_3416363025

全局降低速度。导致打印时间大大加长，这样做是为了什么？

The designer has replied

@BHMarten

如果您在 25 分钟内打印 Benchy 或在 40 分钟内打印 Benchy，这两个模型中哪个的质量会更好？

@carey.gene.brow

Boosted

I love the size of this. It's perfect for helping organize the miscellaneous bits I've acquired thanks to several maker projects I've done.

The designer has replied

@BHMarten

Thanks !

@dleone617

Print Profile

0.2mm layer, 3 walls, 35% infill

Printed very well. Supports were a little snug and in places they really did not need to be (My opinion). Took me longer than it should have to put it together, and 10mm screws did not work most of the time (use 12 as suggestion) Instructions could have been a little better (for example Put the handle on the Lid prior to putting it together), and the Small Arms put on Lid and then connect top shelf.

@user_3729419837

Hi there, very cool tool box! And additionally very awesome colors you have chosen! Can you tell me the name and/or number of the green-turquoise color you have used for the tool box in your photo? And maybe a website name where you have ordered it, if at all online ;). Thanks a lot and keep on designing, printing and of course sharing cool stuff!
