Honeybadger Fan Upgrade for Bambulab P1/X1

Remixed by

Honeybadger Fan Upgrade for Bambulab P1/X1

Remixed by
Boost
24
41
10

Print Profile(1)

All
P1S
P1P
X1
X1 Carbon
X1E
A1

Asa print profile
Asa print profile
Designer
53 min
1 plate
5.0(2)

Boost
24
41
10
5
24
8
Released

Description

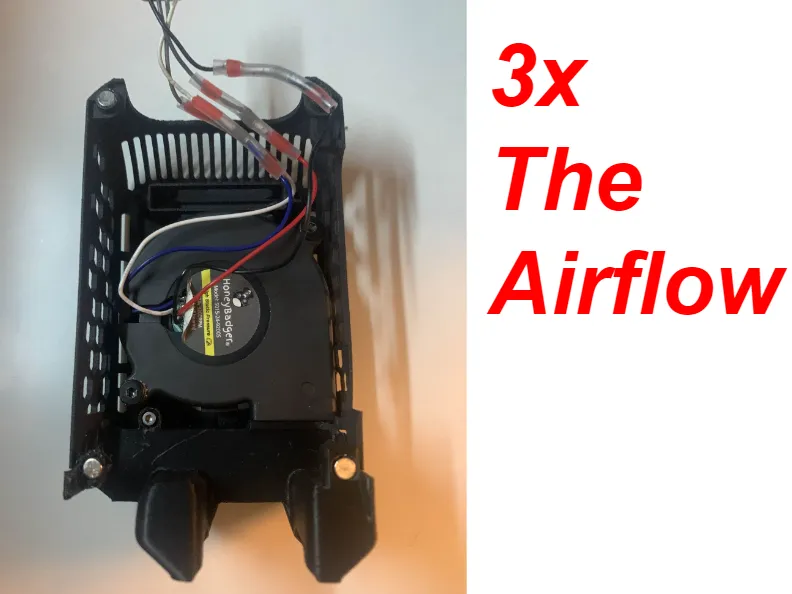

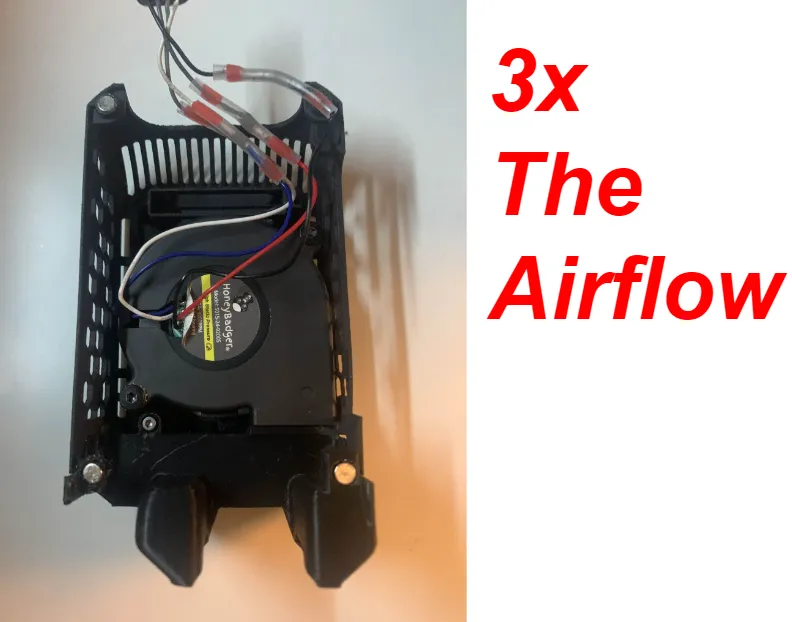

This is a modification that allows you to use a upgraded fan inside of the Bambulab p1/x1, The honeybadger 5015 fan, without a lot of effort, just splice, solder and heatshrink as follows,



P1

Original Wiring Function Fabreeko wiring

White PWM signal to the fan Blue

Light Grey RPM signal from the fan White

Dark Grey +24v Red

Black GND Black



X1

Original Wiring Function Fabreeko wiring

White PWM signal to the fan Blue

Light Grey RPM signal from the fan White

Black +24v Red

Dark Grey GND Black
