AMS Silica Beads Backpack box desiccant container by eds_3d_shop

eds_3d_shop

3D Printer>3D Printer Accessories

GIF

Print Profile(4)

All

A1 mini

P1S

P1P

X1 Carbon

X1E

1x Backpack AMS Dryer Box 0.2mm layer, 3 walls, 50% infill

Designer

35 min

1 plate

5.0(38)

1x BL-LOGO Backpack AMS Dryer Box 0.2mm l., 3 wls., 50% inf.

Designer

44 min

1 plate

4.9(19)

2x BL-LOGO Backpack AMS Dryer Box 0.2mm l., 3 wls., 50% inf.

Designer

1.2 h

1 plate

5.0(6)

2x Backpack AMS Dryer Box 0.2mm layer, 3 walls, 50% infill

Designer

1 h

1 plate

5.0(6)

Boost

175

298

175

336

275

Released

Description

⚠️Working on this complicated model takes a lot of time and if you like my work and want to support me and this design - please BOOST this design (click on the small Rocket 🚀 or „BOOST“ button) 🙏👍 Thank you in advance!🙏

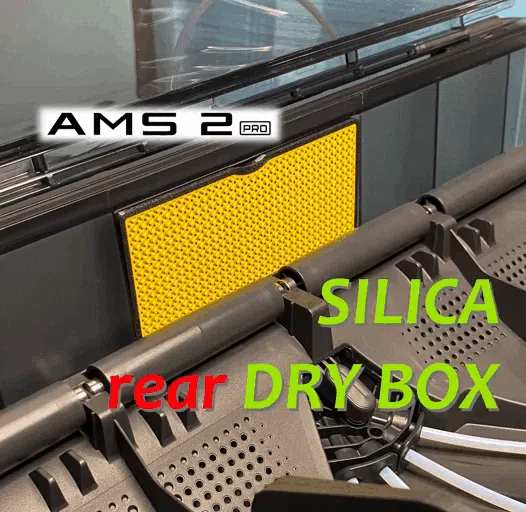

AMS Silica Backpack box / desiccant container for the niche behind the rollers

I think these popular Silica Dry Boxes for AMS are really brilliant and the last time I recharged Silica Beads I asked myself why there isn't a box for the niche behind the rollers yet? For example, one like this one here! 🤩😅 This Box fits perfectly into the niche, is easy to print, to refill and looks cool too! 🦾😎 The lid fits the box perfectly and is easily pushed in. It is securely held in place by a tab on the bottom. 😊

Print Instructions:

Quality:

layer height: 0.2mm

Strength:

wall loops: 3
top shell layers: 0
bottom shell layers: 0
sparce infill density: 50% (for 3mm silica gel beads is top!)
only one wall on top surfaces: off
only one wall on first layer: off
sparce infill pattern: Triangles
Infill/wall overlap: 20%
Infill combination: off

Speed:

first layer: 20 mm/s
first layer infill: 50mm/s
outer wall: 200 mm/s
inner wall: 300 mm/s
small perimeters: 50%

⚠️Filament: PLA is good enough!

👌Just take a look at this video, here you can see how you can easily fill this Backpack with Silica and install in AMS properly! 😍👍

Cool funnels for AMS silica/dry pods:

These funnels are very easily put on instead of the lid (but specifically not as tight as the lid!) and stay on the pods by themselves and can be comfortably held together with the pod on the funnel handle! In addition, the pods can be easily filled to the brim because they are clipped on from the outside. 👌😍👍

— ! —

Thanks for downloading, rating in advance and please don't forget to like👍and to BOOST 🚀 this model! ;-)

Take a look at my other very helpful designs for X1/P1P/P1S/A1/A1mini:

🔗**Eds_3D_Shop designs on MakerWorld** 🔗

If you like my work and want to support me - please follow me here and on Instagram. If you want - you can buy me a coffee! https://linktr.ee/eds_3d_shop

Thank you for your support and.. happy printing!

Ed ;-)

Comment & Rating (175)

@maroow

Boosted

I'm having a bit trouble printing the Model. I did try to use the best rated print profile on my P1S. It printed as a whole Area without the triangle shaped spacing. Later i saw that it showed it that way in Preview here on Makerworld. Does any one have an Idea what went wrong?

The designer has replied

@eds_3d_shop

Hello! 🖐️😃 I think you haven’t set the Settings from Print Instructions in the Description.. There are such important ones like Top Layer and Bottom Layer = 0 and 50% Triangle infill, etc… then you would get these triangles holes. Or better print my Print Profiles directly from App - there are all settings in! I hope you will like it and if you will support me and this design, you can boost it (small Rocket 🚀 button) Thank you in advance! 🙏😍👍

@maroow

Boosted

Replying to @eds_3d_shop :

Weired, when i print it from the mobile App it works fine. When i import the settings into Bambu Studio it fails, double checked the settings from the description. Might be a Version related Problem of Bambu Studio, will have a closer look at it. Thanks for your Help!

@eds_3d_shop

Replying to @maroow :

Thanks! 🙏 I’m sure - you will see the difference - just slice it with these parameters and look in preview - the triangle-holes will be there! Magic! 😅👍

@Unforgivenll

Print Profile

1x Backpack AMS Dryer Box 0.2mm layer, 3 walls, 50% infill

Bambu Lab PLA Basic Black. Nice model! Can't have enough dessicant! Thank you!

The designer has replied

@eds_3d_shop

😂😅 How much AMS do you own? 🤩👍 Thank you for your awesome rating, feedback and cool make! 🙏😍👍 If you like this design and want to support me - please boost this design (click on the small Rocket 🚀 or „BOOST“ button) 🙏👍 Happy printing and feel free to check my other BambuLab designs! 🖐️😃

@Unforgivenll

Replying to @eds_3d_shop :

I have 5 AMS units. 4 set-up as normal and 1 set-up for TPU.

(Edited)

@eds_3d_shop

Replying to @Unforgivenll :

WOW! 🤩Sounds awesome! 🦾😎

@user_3756824799

perfect ！

The designer has replied

@eds_3d_shop

🦾😍👍Thank you for your awesome make , feedback and rating! 🙏😍👍 If you like this design and want to support me - please boost this design (click on the small Rocket 🚀 or „BOOST“ button) 🙏👍 Happy printing and feel free to check my other BambuLab designs! 🖐️😃

@Matthewtrains

Boosted

Print Profile

1x BL-LOGO Backpack AMS Dryer Box 0.2mm l., 3 wls., 50% inf.

A great way to use the unused space.

The designer has replied

@eds_3d_shop

I’m happy to see it! 🤩Thank you for your awesome make, feedback and rating! 🙏😍👍 If you like this design and want to support me - please boost this design (click on the small Rocket 🚀 or „BOOST“ button) 🙏👍 Happy printing and feel free to check my other BambuLab designs! 🖐️😃

@ByteFax

Print Profile

1x BL-LOGO Backpack AMS Dryer Box 0.2mm l., 3 wls., 50% inf.

very nice

The designer has replied

@eds_3d_shop

My favorite color combination!😍👍 Thank you for your awesome make, feedback and rating! 🙏😍👍 If you like this design and want to support me - please boost this design (click on the small Rocket 🚀 or „BOOST“ button) 🙏👍 Happy printing and feel free to check my other BambuLab designs! 🖐️😃

@FrancescoM

Print Profile

2x BL-LOGO Backpack AMS Dryer Box 0.2mm l., 3 wls., 50% inf.

perfect

The designer has replied

@eds_3d_shop

Thank you for your awesome make and rating! 🙏😍👍 If you like this design and want to support me - please boost this design (click on the small Rocket 🚀 or „BOOST“ button) 🙏👍 Happy printing and feel free to check my other BambuLab designs! 🖐️😃

@Sagittaire

Print Profile

1x Backpack AMS Dryer Box 0.2mm layer, 3 walls, 50% infill

Printed nicely in PLA-CF. Slide door works well.

The designer has replied

@eds_3d_shop

Thank you for your awesome make, feedback and rating! 🙏😍👍 If you like this design and want to support me - please boost this design (click on the small Rocket 🚀 or „BOOST“ button) 🙏👍 Happy printing and feel free to check my other BambuLab designs! 🖐️😃

@glenngoodnight

Print Profile

1x Backpack AMS Dryer Box 0.2mm layer, 3 walls, 50% infill

Quality work again

The designer has replied

@eds_3d_shop

I’m happy to hear that! 🖐️🤩Thank you for your awesome feedback snd rating! 🙏😍👍 If you like this design and want to support me - please boost this design (click on the small Rocket 🚀 or „BOOST“ button) 🙏👍 Happy printing and feel free to check my other BambuLab designs! 🖐️😃

@tollgedruckt

Print Profile

1x Backpack AMS Dryer Box 0.2mm layer, 3 walls, 50% infill

Pass perfekt, endlich noch mehr silica zum trocknen.

The designer has replied

@eds_3d_shop

Freut mich sehr das zu hören und zu sehen! 😍👍 Mit einem Klick auf das Boost-Button (oder kleine Rakete auf Website) werden Sie meine Arbeit an solchen Designs sehr unterstützen! 🙏😍 Vielen Dank im Voraus! 🖐️😃

@ImperiousFox

Print Profile

1x BL-LOGO Backpack AMS Dryer Box 0.2mm l., 3 wls., 50% inf.

Printed perfectly even though my power blinked in the middle 😅

The designer has replied

@eds_3d_shop

WOW, really cool and clean print! 🤩👍 Thank you for your awesome feedback, rating and make! 🙏😍👍 If you like this design and want to support me - please boost this design (click on the small Rocket 🚀 or „BOOST“ button) 🙏👍 Happy printing and feel free to check my other BambuLab designs! 🖐️😃

License

This work is licensed under a Standard Digital File License.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
