Adjustable and portable table saw outfeed system
Do you own a contractor saw? Do you have an outfeed table for your saw?

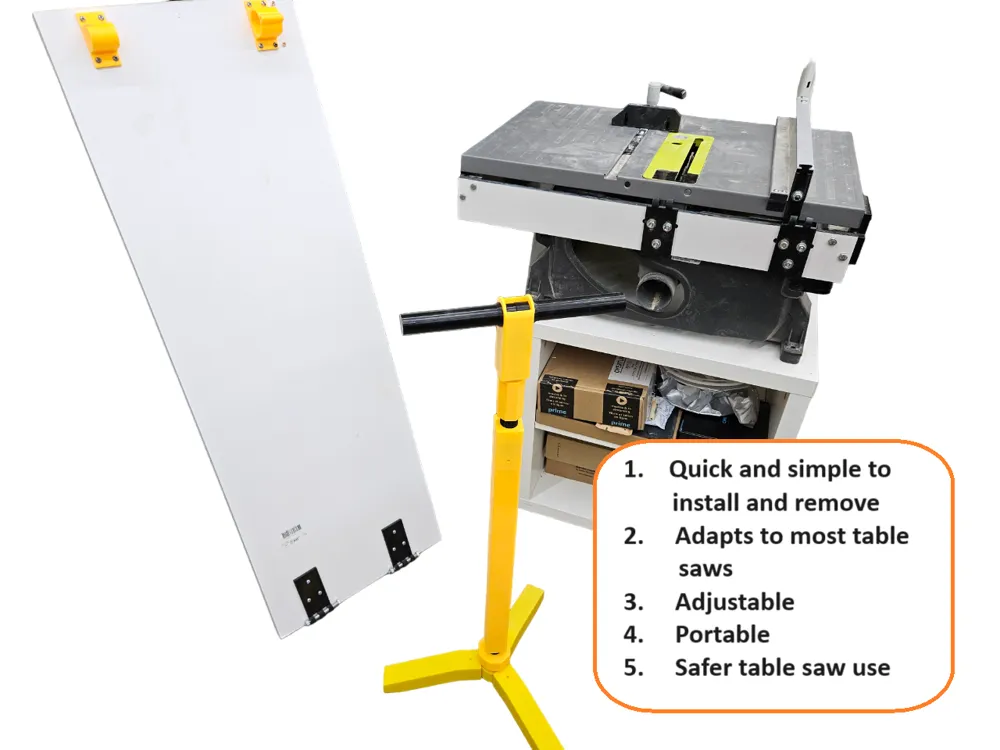

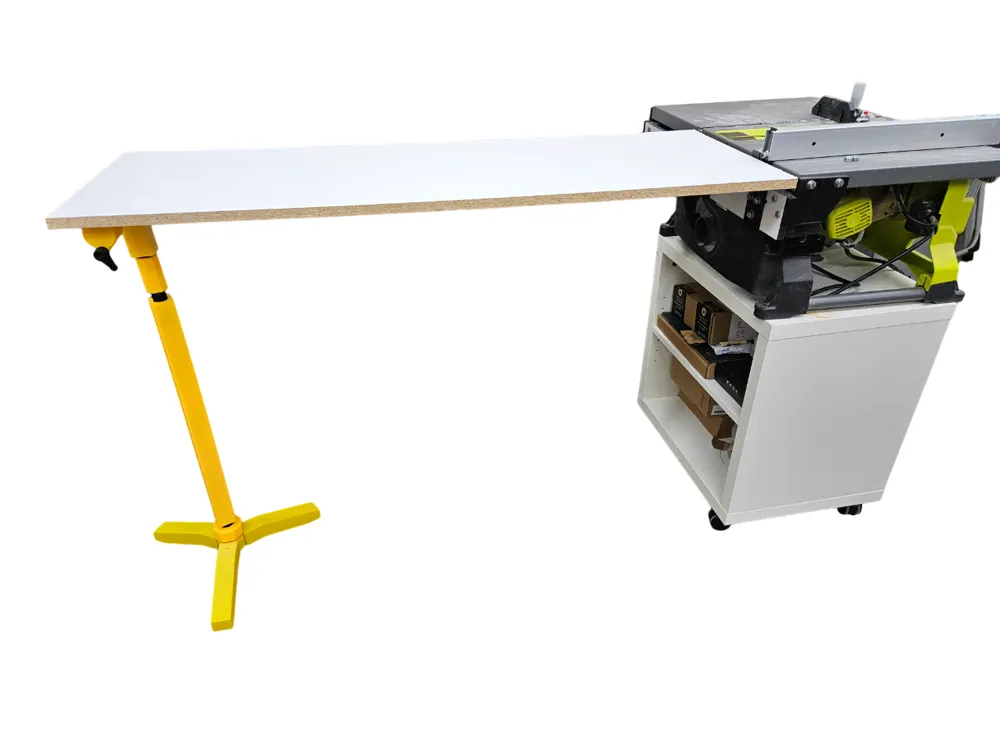

This model is for a complete outfeed system. It is modular, adaptable, adjustable and portable. It is also quick to assemble and remove.
Outfeed system
Have you ever seen an outfeed system for a contractor saw? They are common for cabinet saws but these fixed, costly and they take up lots of floor space. I have yet to see a portable one for contractor saws.
What do you do to cut long pieces of wood or moldings? Do you ask your spouse or hope to find a helper? I often find myself this in situation and I am certain many are like me. I tried using a stand with a roller but often got frustrated. Unless I got the plane and height nailed down it would tip, move or cause my cut to veer off course. Usually, I would cross my fingers and either put a lot of pressure on the infeed side or stop halfway through the cut and lean or rush to grab the outfeed side. I was lucky. I only ended up with burn marks, uneven cuts or ruining the workpiece but I risked kickback or a more serious injury.
I set about designing an outfeed table system for contractor saws. The system had to offer the following:
- Adaptable to the different makes of contractors table saws that are sold.
- Lightweight and portable;
- Easy and quick to install and remove;
- Adjustable in height, slope and adaptable to multiples environments (uneven floors, uneven heights, etc.)
- Affordable.
The design

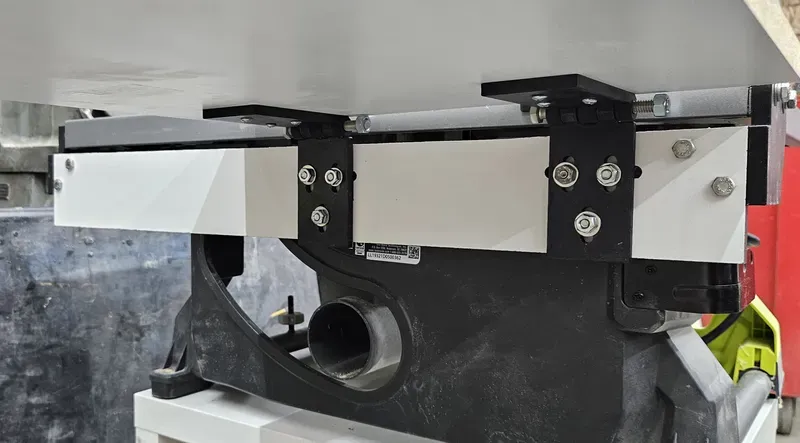

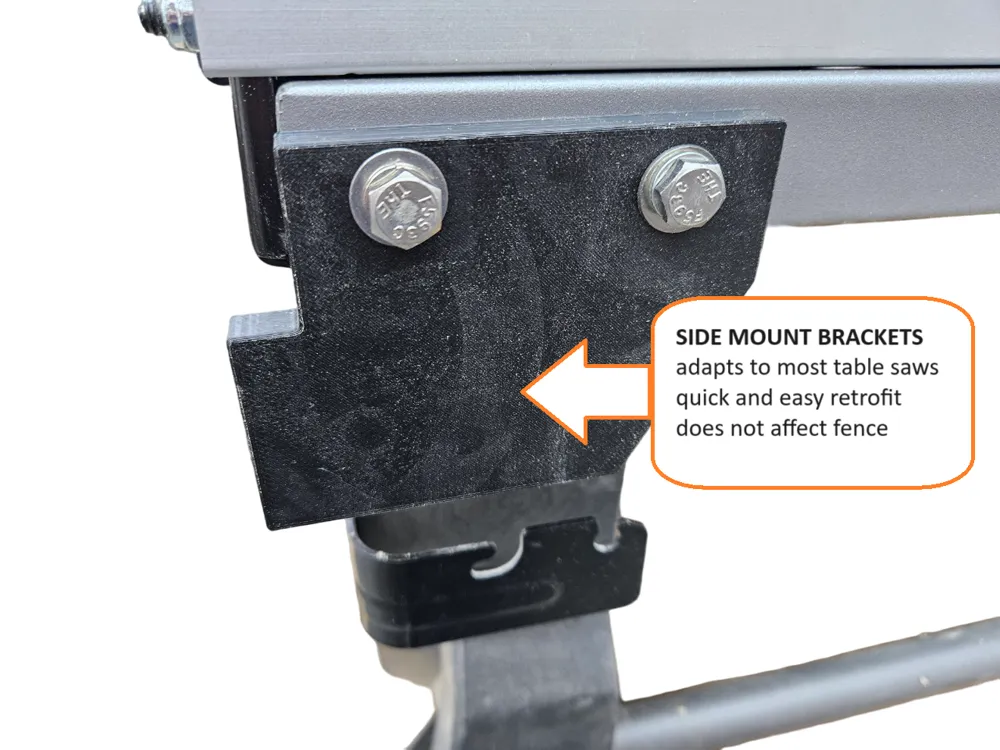

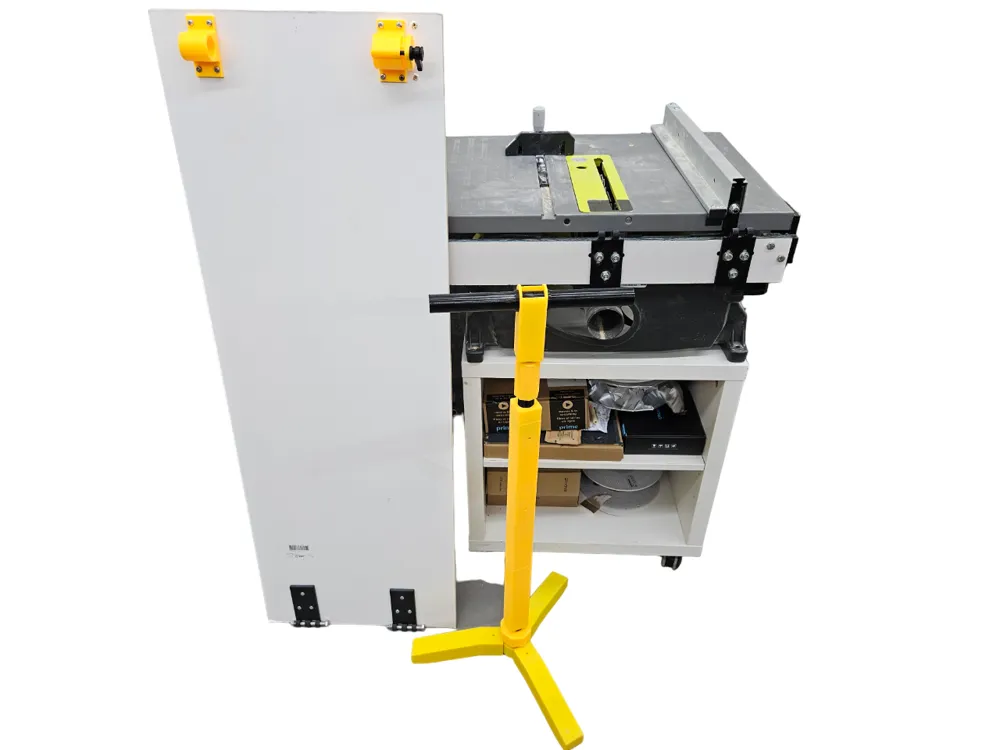

The adaptability issue was somewhat of a challenge as most contractor saw fences latch at the front and back of the table and you cannot simply screw a hinge to the back of the table. My solution uses side brackets to which is attached a board and hinges.
My design is adaptable to most contractor table saws:

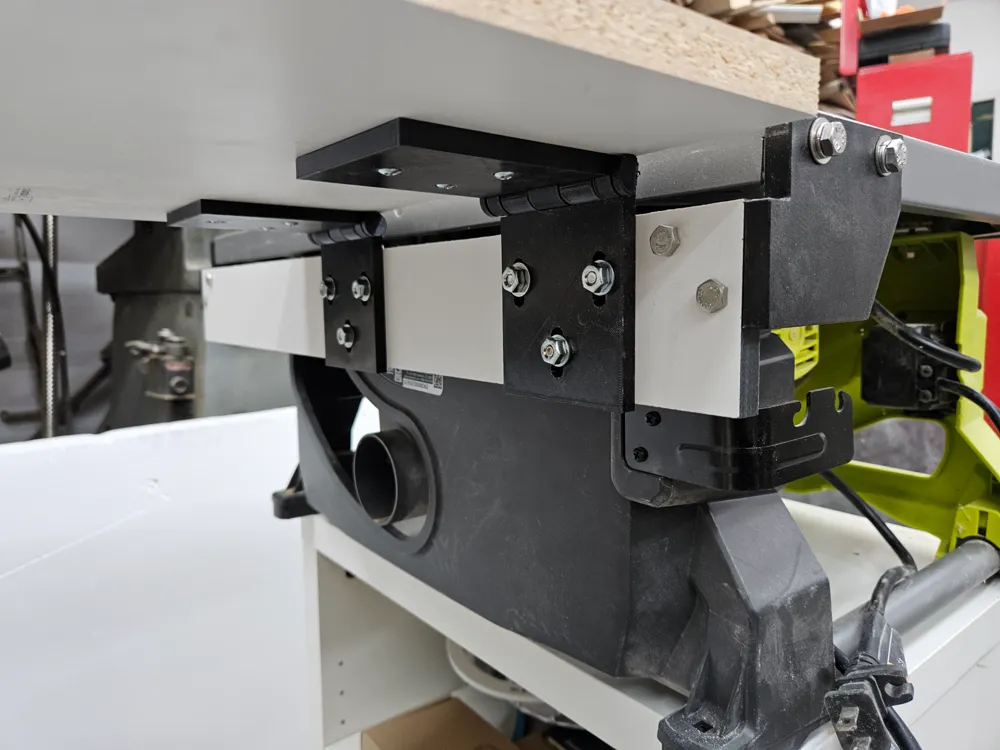

- It can be easily retrofitted to existing contractor table saws
- It can be adjusted for different thicknesses of outfeed boards;

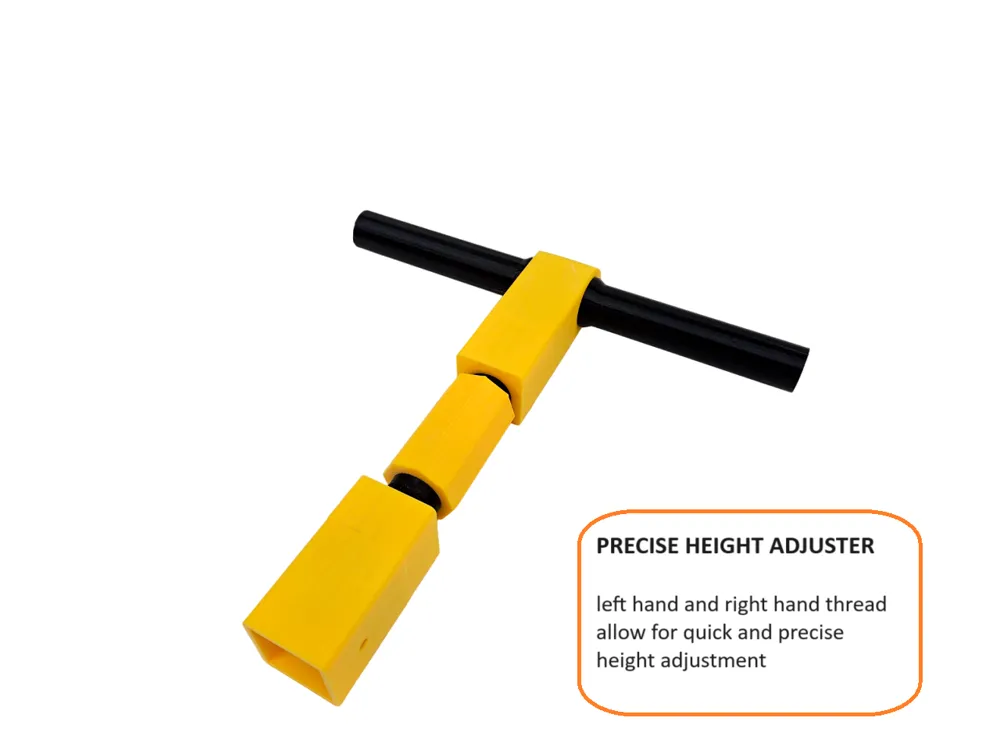

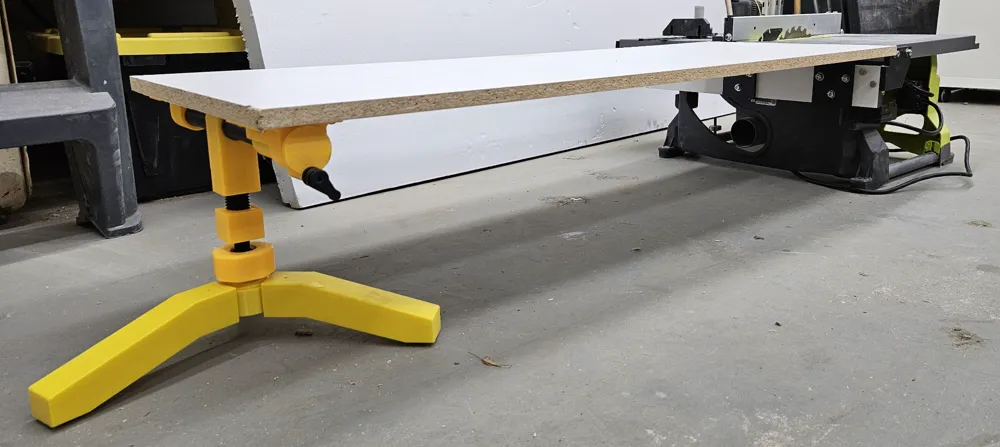

- You can adjust the slope, height and distance of the outfeed support as needed using the mounting brackets, hinges and adjustable stand.
- It will work in the workshop, on the jobsite and even on the tailgate of a pick-up.
- It is portable, lightweight, can be easily and quickly installed and is affordable to make.

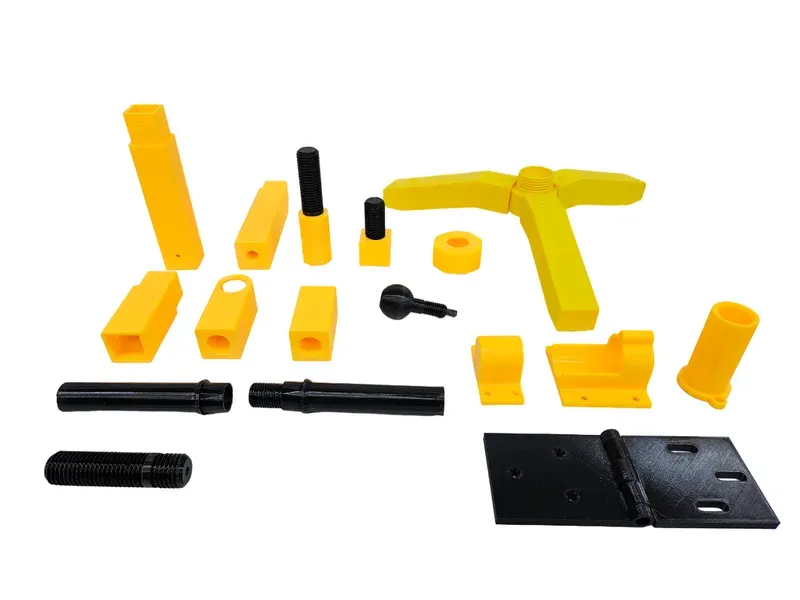

- The design has been optimised for 3d printing. All parts are less than 200 mm to allow for printing on most 3d printers. The hinges are print in place.
- It is modular and offers different configuration options.
- The system is quick and easy to use.
- It will make cutting long boards safer and much easier.
Installations
A downloadable pdf installation guide is included. It is detailed with pictures and component lists.
Required non 3d printed materials

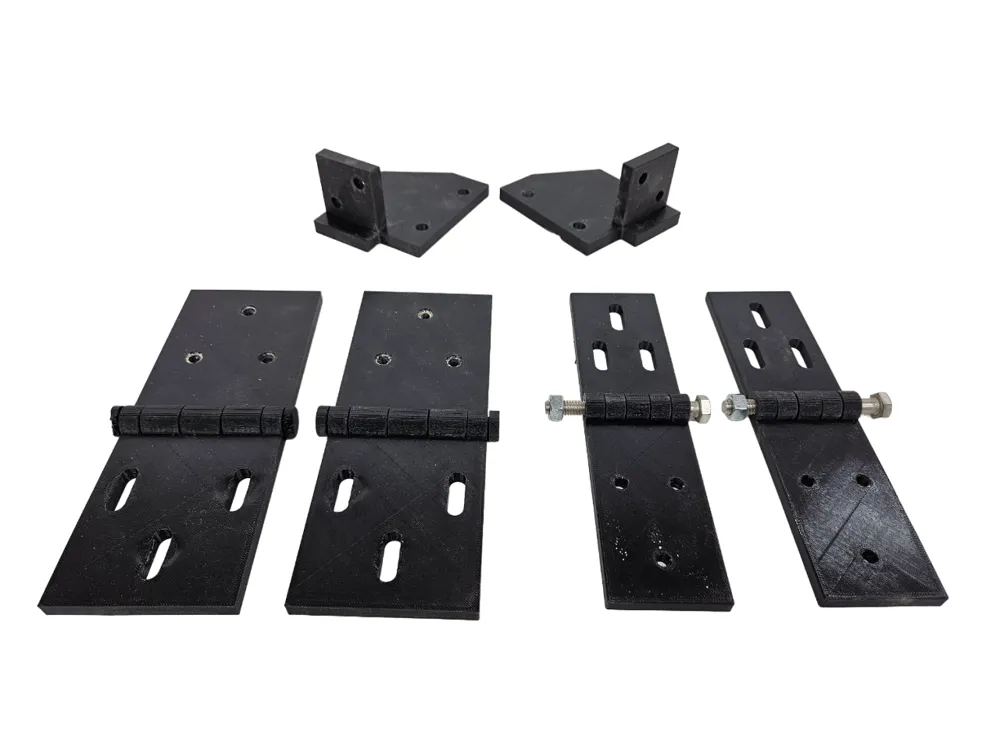

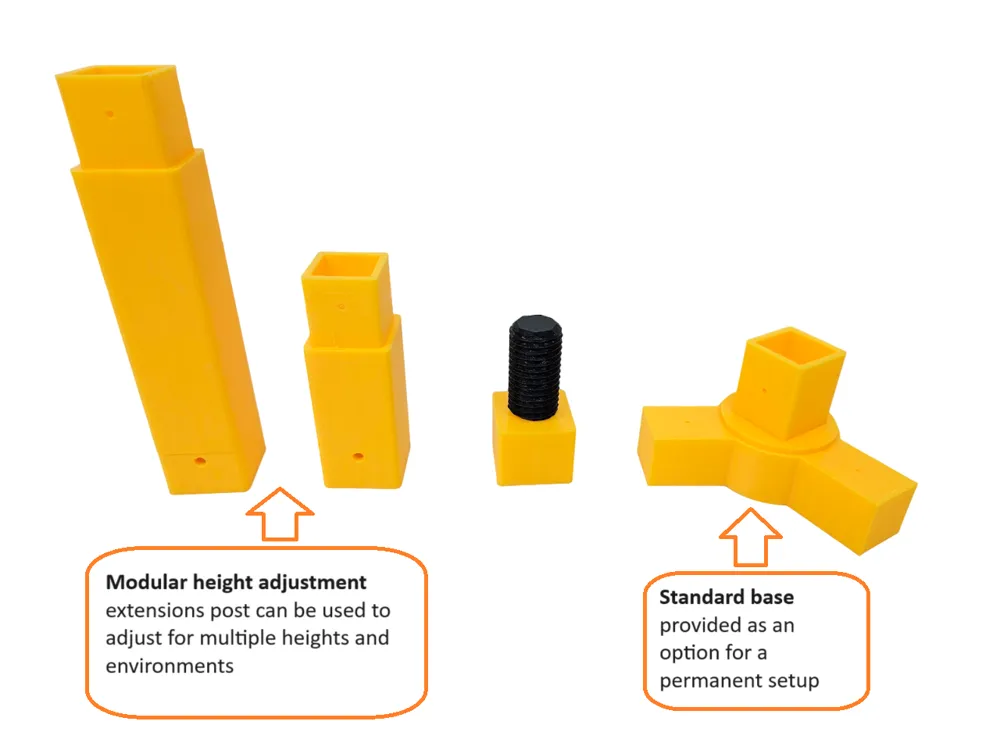

- 10 ¼-20 inch or M6 bolts and nuts (add 6 more for a dual outfeed support) to attach the mounting plates and hinges
- One 5/16 x 2 ½-3 inch bolt or M8 x 60-75 mm bolt – to reinforce the ball joint
- Wood screws (no. 6 and no. 8 ½ inc to ¾ inch (12 to 19 mm) in length or metric equivalent) to join the posts and secure the hinges and stand to the outfeed support board
- Plywood, particle board or phenolic mounting board (3-4 inch (75-100 mm) wide x width of your table saw) – to attach the hinges to the table saw
- Outfeed support board(s) width and length as you require.
Optional

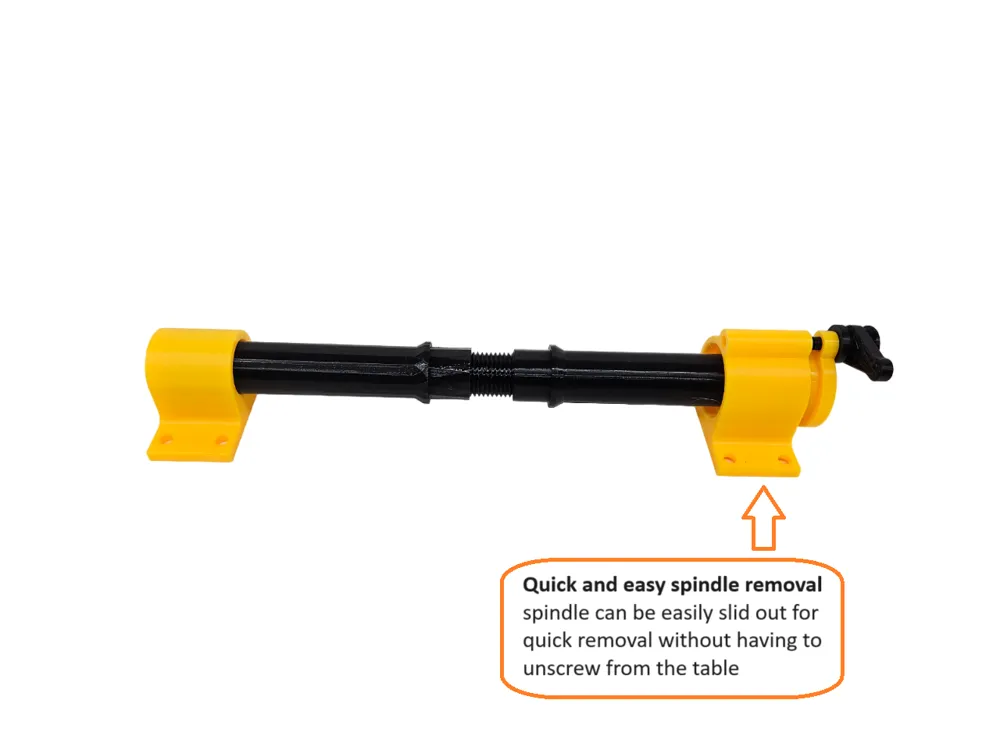

- One ¼-20 x 1 or M6 x 25 mm bolt for the quick assembly spindle holder.
Printing

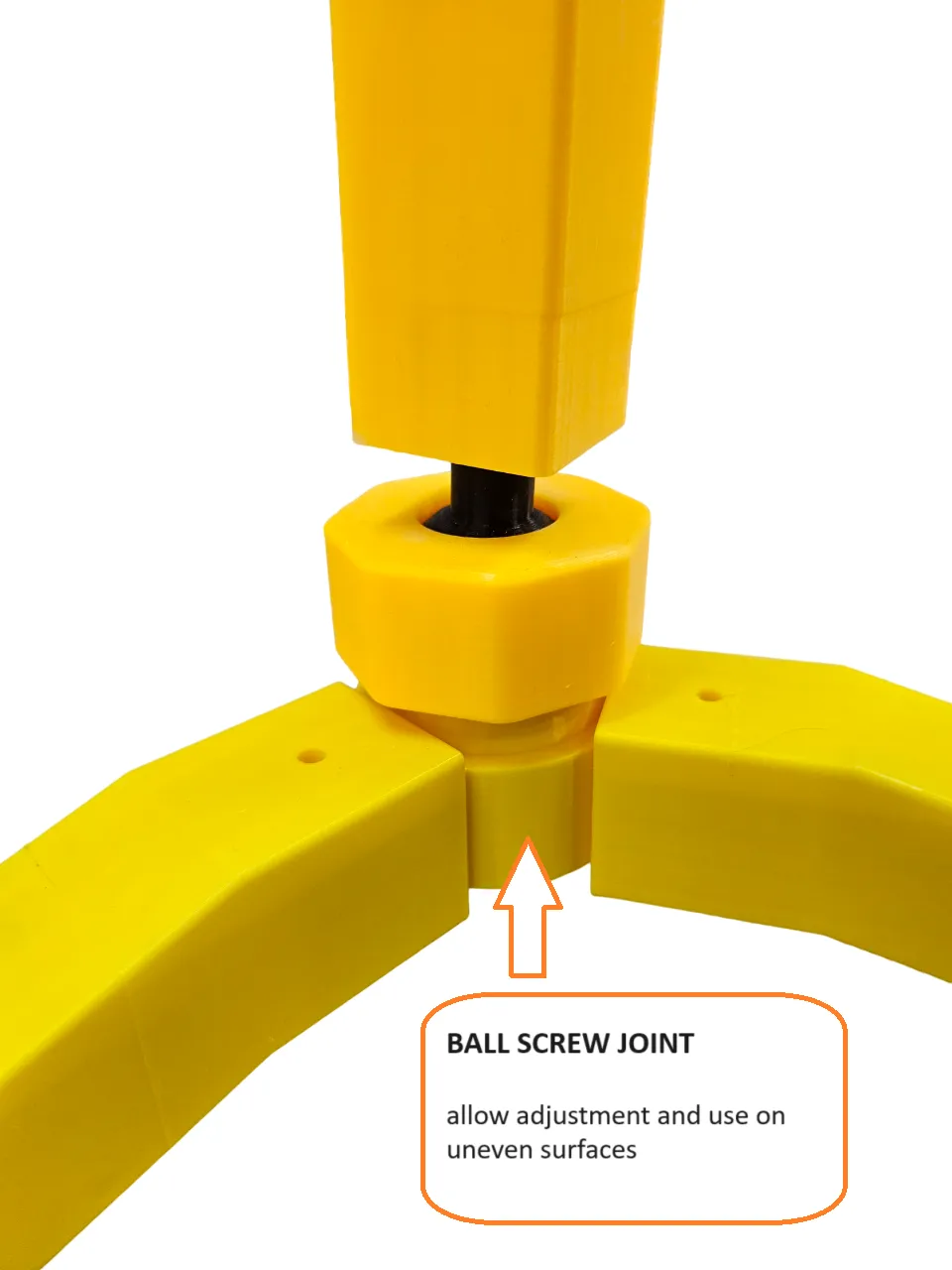

Print the ball joint with at least 6 layers and 50% infill.
The hinges and mounting brackets should preferably be printed with 50% fill.
