VERSA MOUNT

The modular car Headrest hook and hanger system

Design

I often need to hang my suit jacket, shirt or my dry cleaned clothes in my car to avoid them becoming wrinkled.  My hyper shedding German shepherd/Malinois often rides in the back seat so setting these down on the back seat is really not an option.  I noticed a number of head rest hook systems that are featured in the contest.  The designs are very well made and quite innovative.  Unfortunately I could not find one that feature a coat hanger.  I simply wish to have a place to hang a coat hanger as I already have plenty of those and don’t really see the need to 3d print another.

So I decided to design a head rest with a coat hanger.  I also thought it interesting to make it modular to add extra features and options.

My design features the following:

• Slide on head rest hook system with “Print in place rotating bushing”

My car requires me to remove the emergency key from the FOB to remove the headrest.  I wanted a quicker and simpler mounting method. A slide on hook with a locking mechanism was the better option.

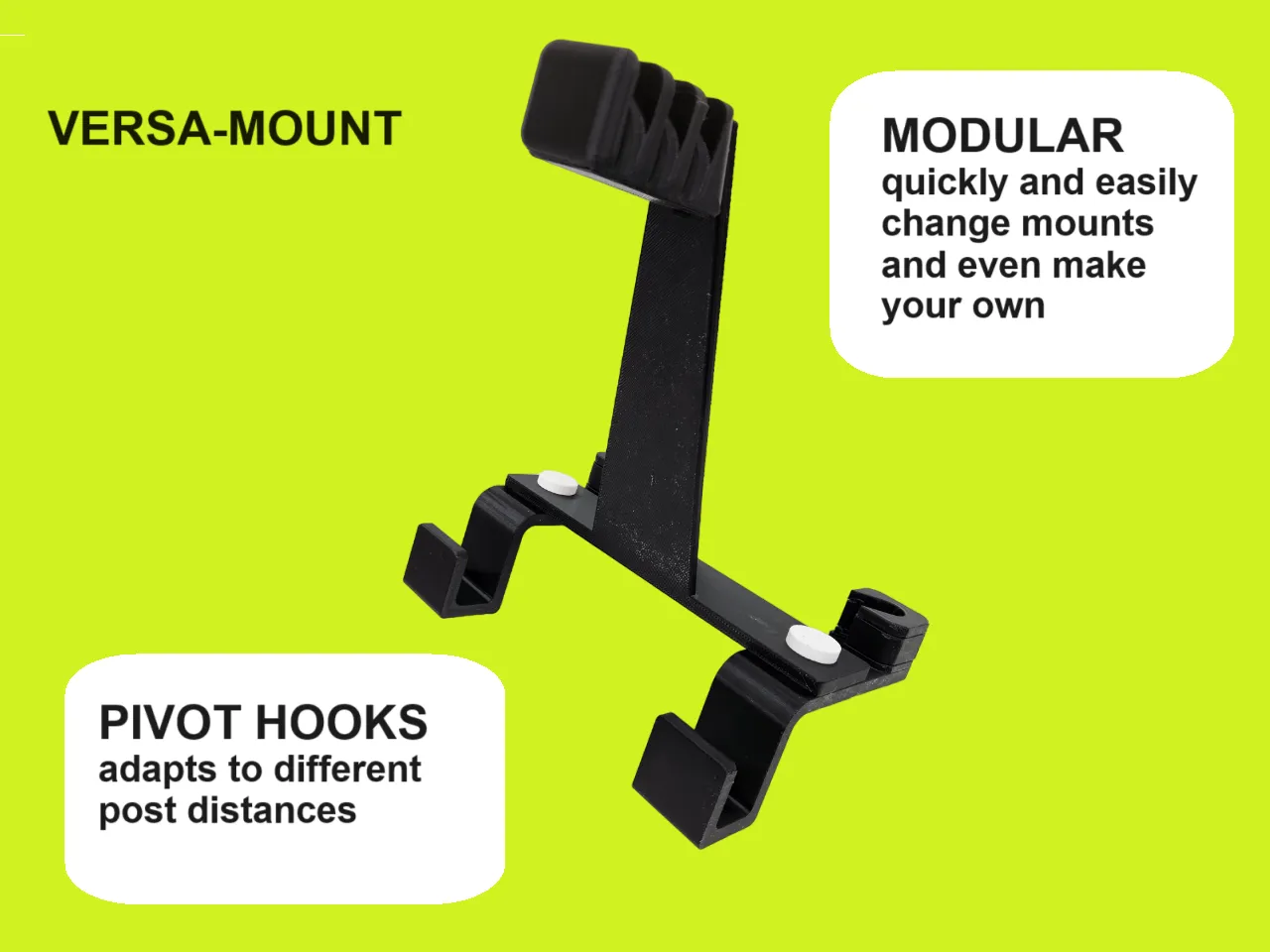

• Adjustable for different post distances.

My design uses a pivot mechanism and can be used with a wide range of post distances.

• A slide-on modular mounts and holders

It can accommodate different holder options including:

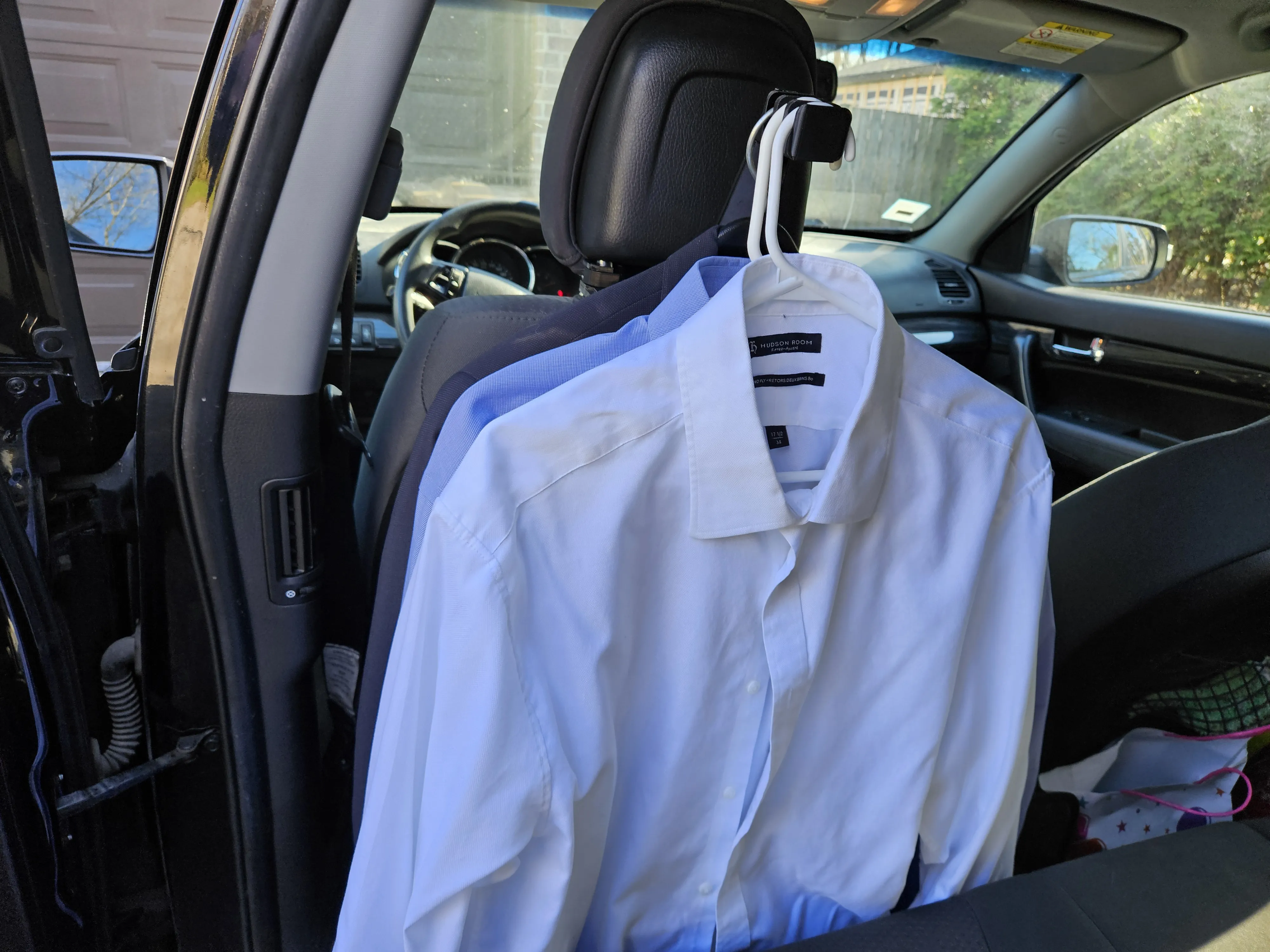

• Coat hanger ( I opted for 3 standard hangers);
• Phone holder;
• Nintento Switch

I have also included blank slide-on holders (short and long) that can be used to quickly make your own custom holders. If you do let me know and I can post a link to your model so all can benefit;

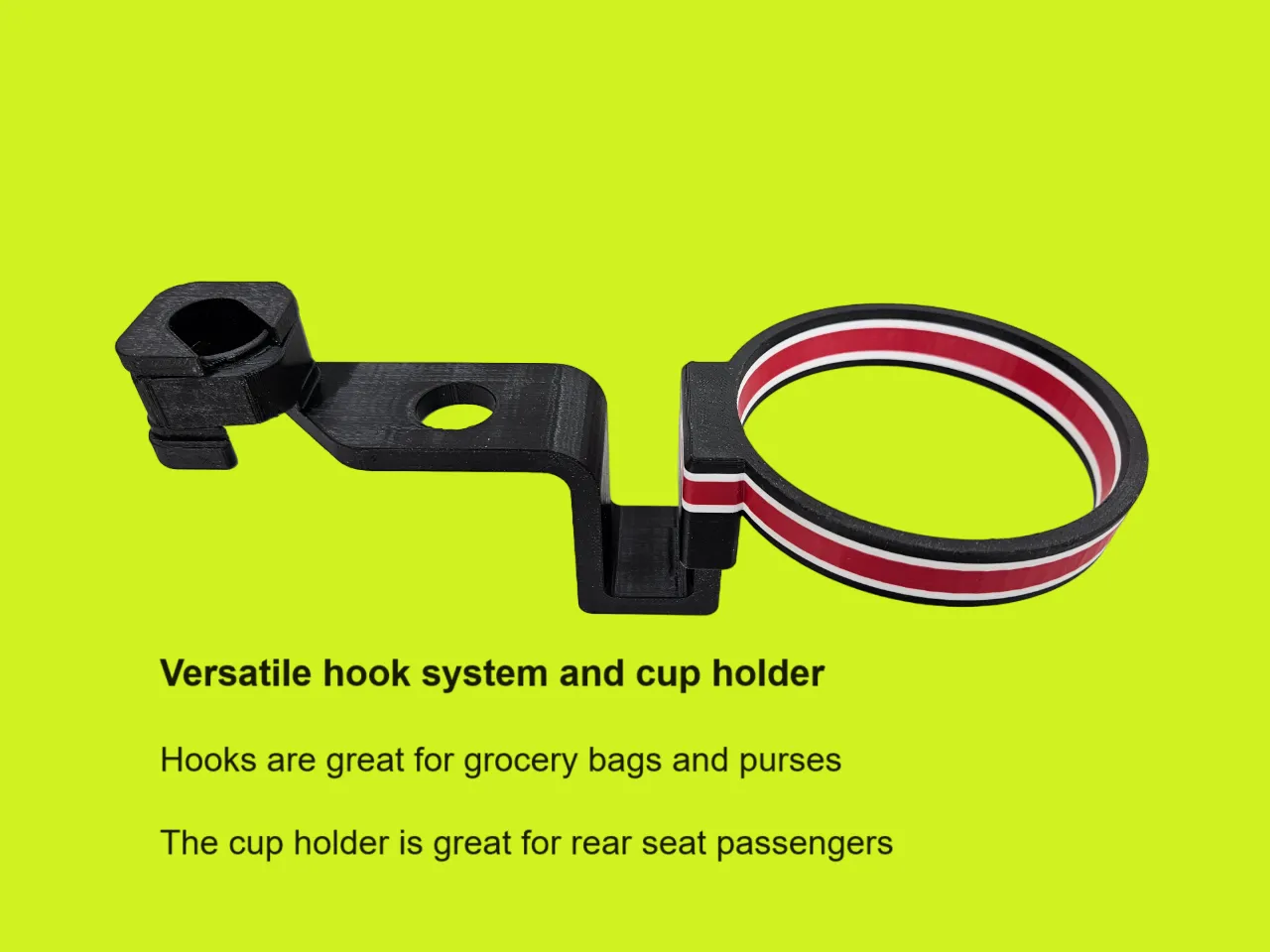

• Two heavy duty hooks

They can be used for grocery bags and other items.  My wife uses it to hang her purse.

• Cup holder

Securely attaches to the hooks. If there is an interest (please let me know in the comments) I could model and upload a can and red bull holder.

3D PRINTING

For convenience I have provided printing profiles for the A1, X1 and P1.

You can print the vertical bracket upright or laying down on the X1 and P1.  Laying down saves half the time.  I printed mine without any support so you can disregard warnings for support.

IMPORTANT:

Print the nuts and bolts with 0.20 mm strength and 50% infill.  Printing profile is provided.

The bolt screws from the top and the nut has a bushing that allows them to pivot easily.
