Description
Model
- Model is 37 cm long, consists of 119 pieces and needs about 820 g of PLA filament (and some TPU for tyres). Total print time is 1 day and 15 hours.
- Tyres need to be printed from TPU. I'm using Colorfabb Varioshore TPU
- Biggest part is 210 mm long and it DOES NOT fit A1 mini build plate.
- Worm gear must be printed with 0.1 mm layer height.
Postprocessing
- Remove supports.

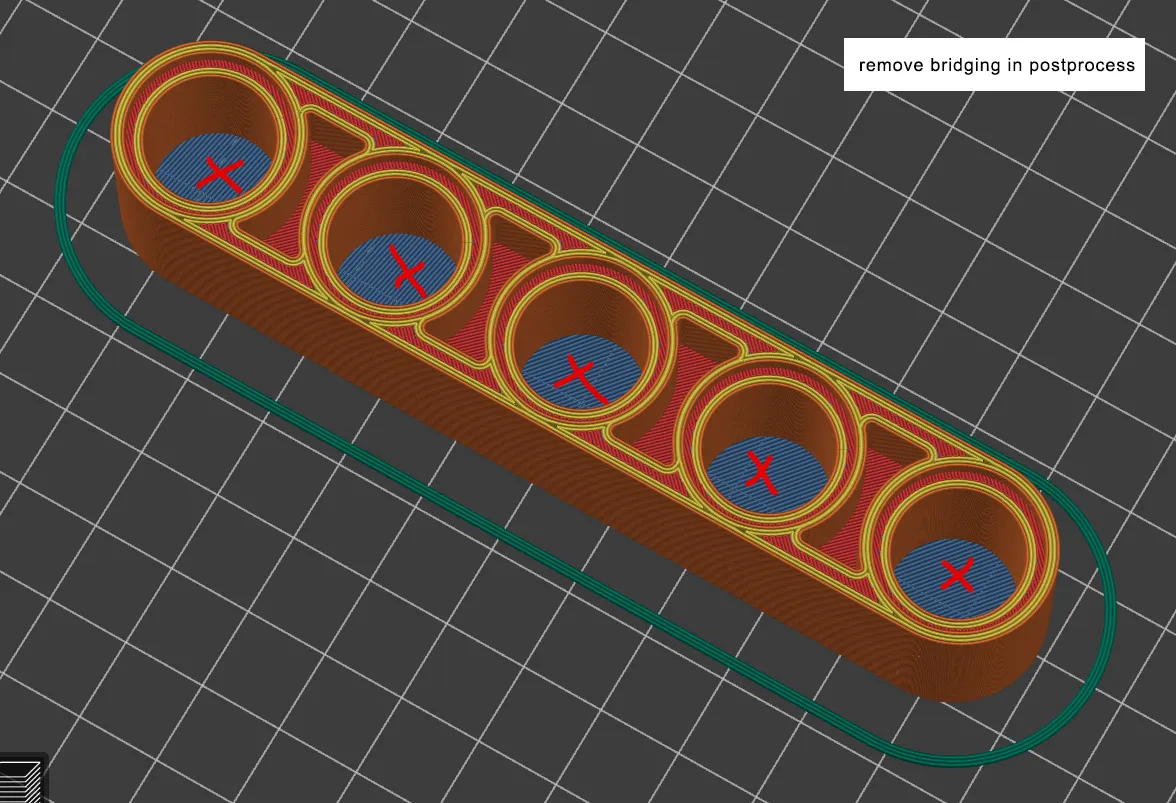

- Use deburring tool to remove sacrificial bridging inside the holes.
Assembly
- See attached assembly guide.
- Due to the printer tolerances and nature of FDM printing, sometimes you'll need to apply more strength to assemble, some parts will be little loose and need a glue to secure it in position and whole drive train will need a lubrication in order to make it work smoothly (PTFE lubrication or silicion oil in spray recommended).
