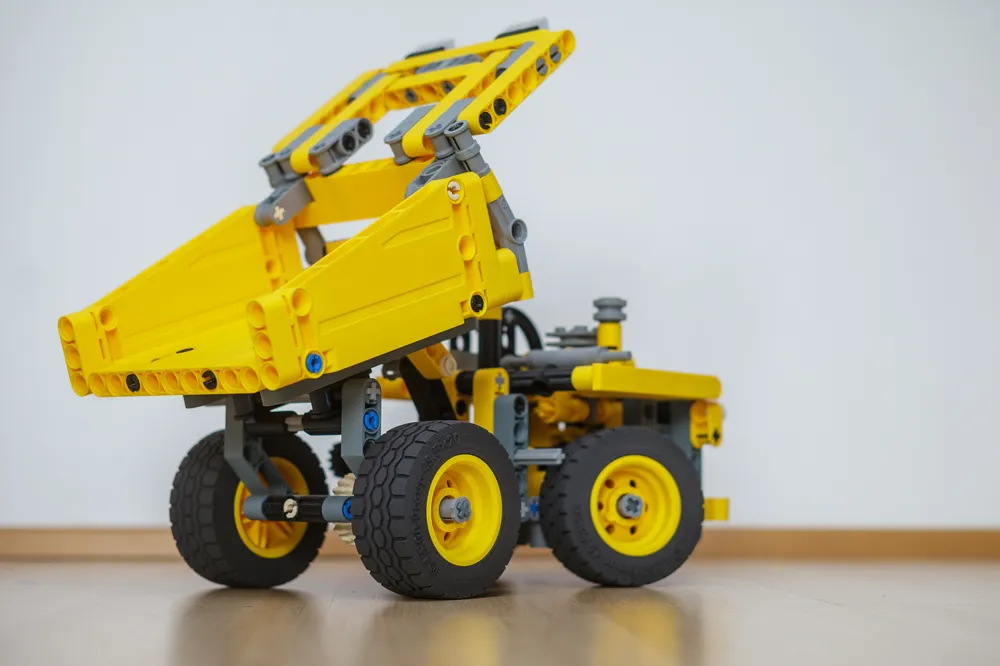

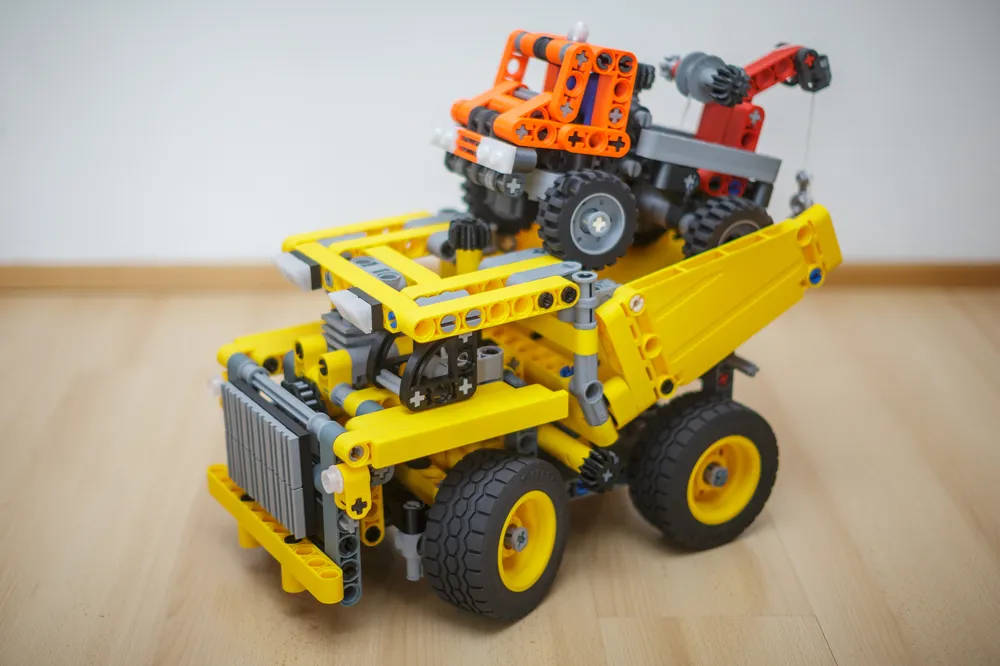

Disclaimer 1: This is NOT a Lego Technic.

Disclaimer 2: Model is huge, 57 cm long and needs almost 5 kg of filament. PLA recommended.

Postprocessing

Remove supports.

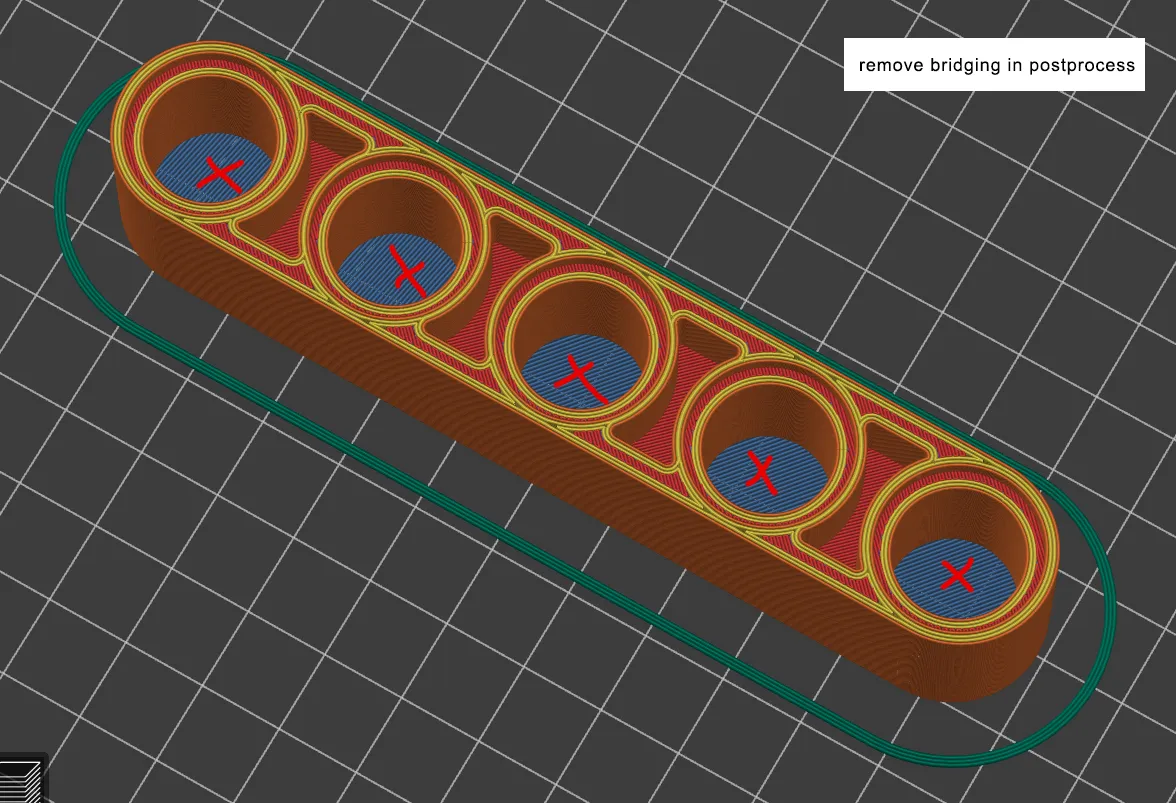

Use deburring tool to remove sacrificial bridging inside the holes.

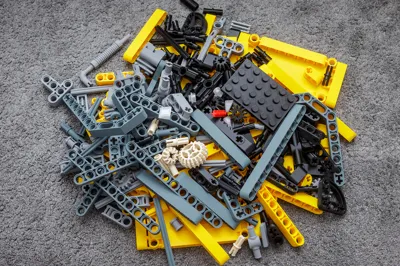

Assembly

See attached assembly guide.
Due to the printer tolerances and nature of FDM printing, sometimes you'll need to apply more strength to assemble, some parts will be little loose and need a glue to secure it in position and whole drive train will need a lubrication in order to make it work smoothly (PTFE lubrication or silicion oil in spray recommended).
