Double the fun with this new dual fidget ring! If you like the standard fidget ring and grew too accustomed to it, this one will give you some good alternative to play with. Be aware that you need to switch on support in your slicer, as seen below.



You can use the customizer here!



You get many sizes (inner diameter in mm from 14mm for kids to 22.6mm for big fingers. Please use the conversion table below in case you are used to your local ring size. There will be different ring widths as well ("normal" - as seen in the picture, "thin" and "wide"). The STL filenames have both the style (normal/thin/wide) and the inner diameter in mm in the filename.
Note: Press “download STL” above to see all available STL files for the different sizes!


In case you need even more different sizes, please install OpenSCAD on your own computer and follow these instructions to customize your ring.

Unfortunately, the uber fidget ring was deleted due to a design claim, so its no longer available.

Thanks go out to aubenc for the knurledFinishLib_v2.

If you could take a picture of an actual print, please “add a make” and attach the picture. - I am curious to see your uses in the wild! Please let me also know how you rate the design.

If you like it, please have a look at all my customizable creations


Print instructions

You will need support:

  • In PrusaSlicer,
  • switch on support material,
  • set overhang threshhold to 0 for automatic detection,
  • set style to seamless. This is the most important, as it will reduce support material considerably and just creates a thin support ring around the main ring. The support is then easy to remove, just peel it off.

The ring still prints very fast, in 30mins.
Other standard settings will be fine, like infill of 20%, layer height of .2mm, 2 perimeters.

After printing, remove the support material and turn the rings a few times to make them spin better.

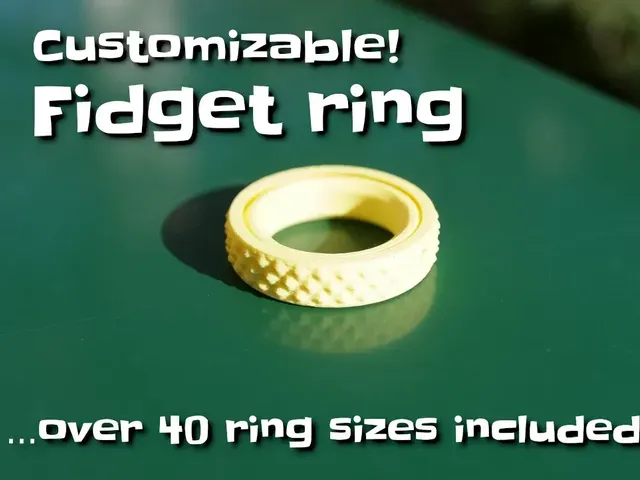

If you like it, check out the original print-in-place fidget ring:

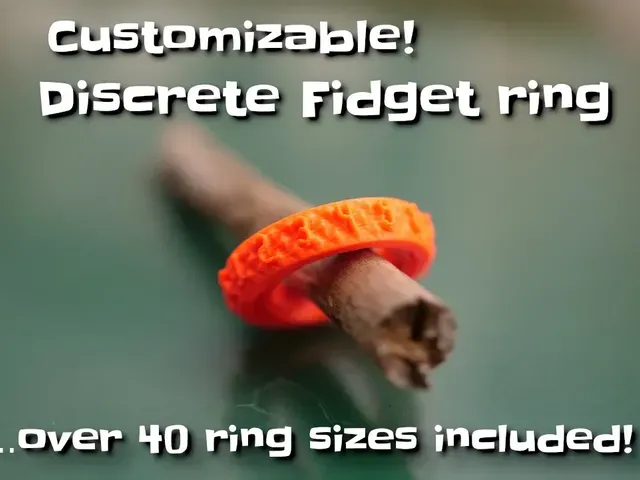

And the discrete (as in discontinuous/quantized) fidget ring:

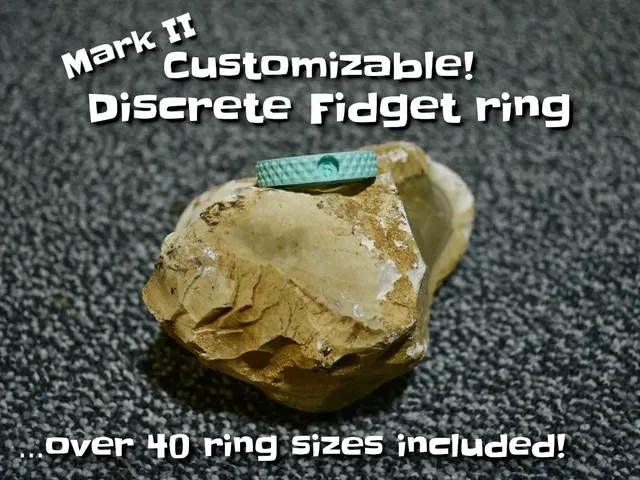

And the discrete fidget ring - Mark II:

Then the slim fidget ring:

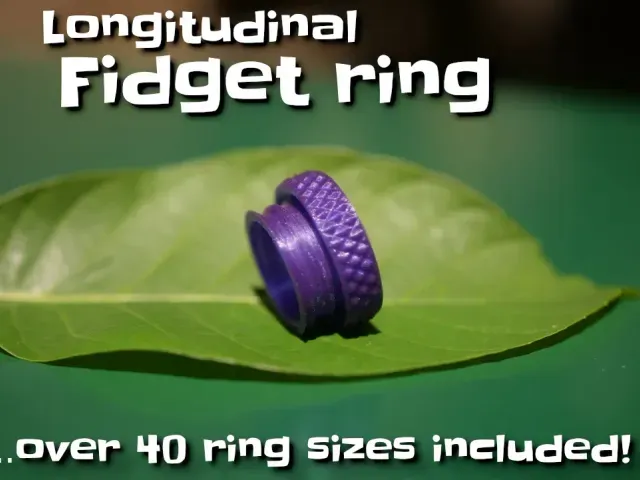

The Longitudinal fidget ring:

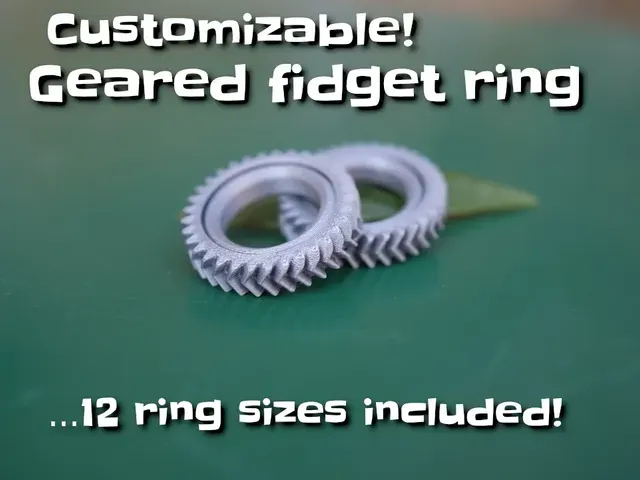

And the geared fidget ring:

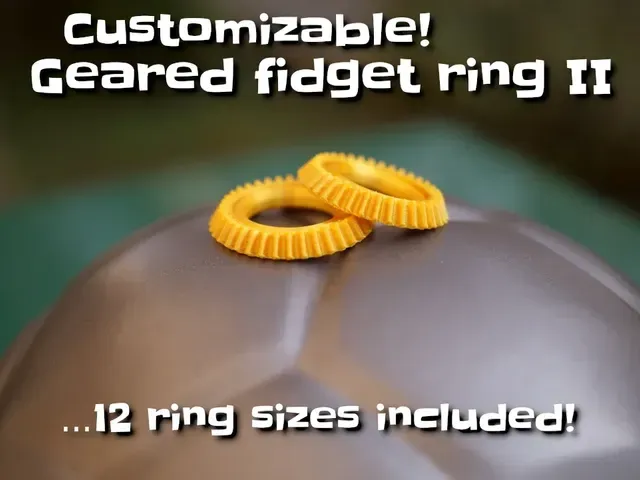

The alternative geared fidget ring II:

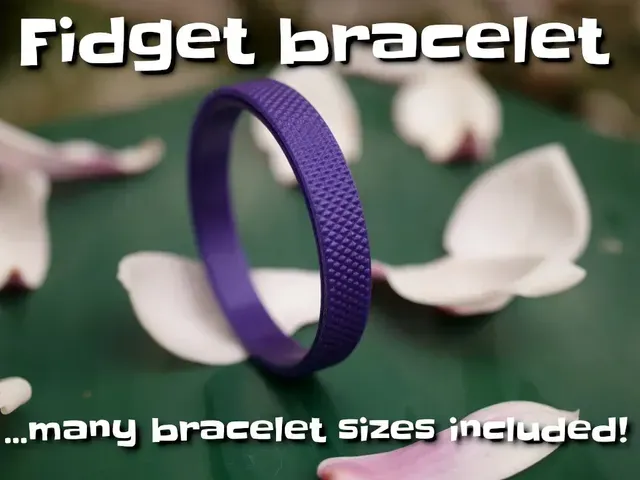

And there are bracelets available as well:

Ring size conversion table:

Ring inner diameter in mmUSA
Canada
United KingdomFranceGermany
14.0 mm3F4414
14.4 mmG45¼14½
14.8 mm446½15
15.2 mm47¾15¼
15.6 mm54915¾
16.0 mmL50¾16
16.5 mm6M51½16½
16.9 mmN52¾17
17.3 mm7O5417¼
17.7 mmP55¼17¾
18.2 mm8Q56¾18
18.6 mm5818½
19.0 mm959¼19
19.4 mm60¾19½
19.8 mm1061¾20
20.2 mm10½62¾20¼
20.6 mm1164¼20¾
21.0 mm11½6621
21.4 mm12Y67¼21¼
21.8 mm12½Z6821¾
22.2 mm13-6922
22.6 mm13½---
