Auto Coupler V1 - Dragon Railway
IP Report
Print Profile(3)
0.16mm layer, 2 walls, 15% infill
16 min
1 plate
0.16mm layer, 2 walls, 15% infill MULTI COLOR
23 min
2 plates
Sequence Printing - AMS Multicolor - 0.16mm layer, 2 walls
26 min
1 plate
Open in Bambu Studio
Boost
42
67
4
1
186
88
Released
Description

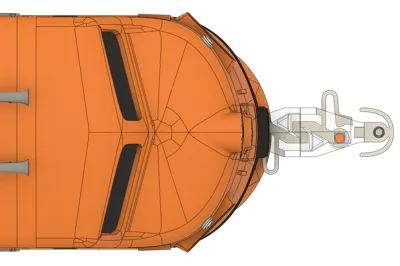

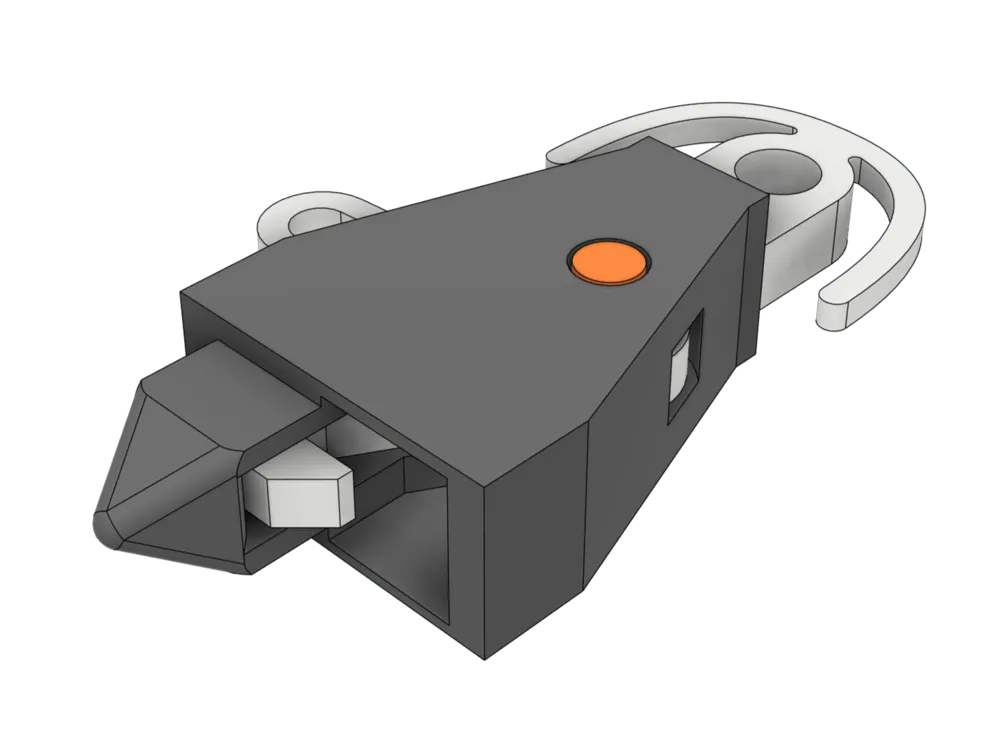

AutoCoupler - Dragon Railway
1/64 Scale

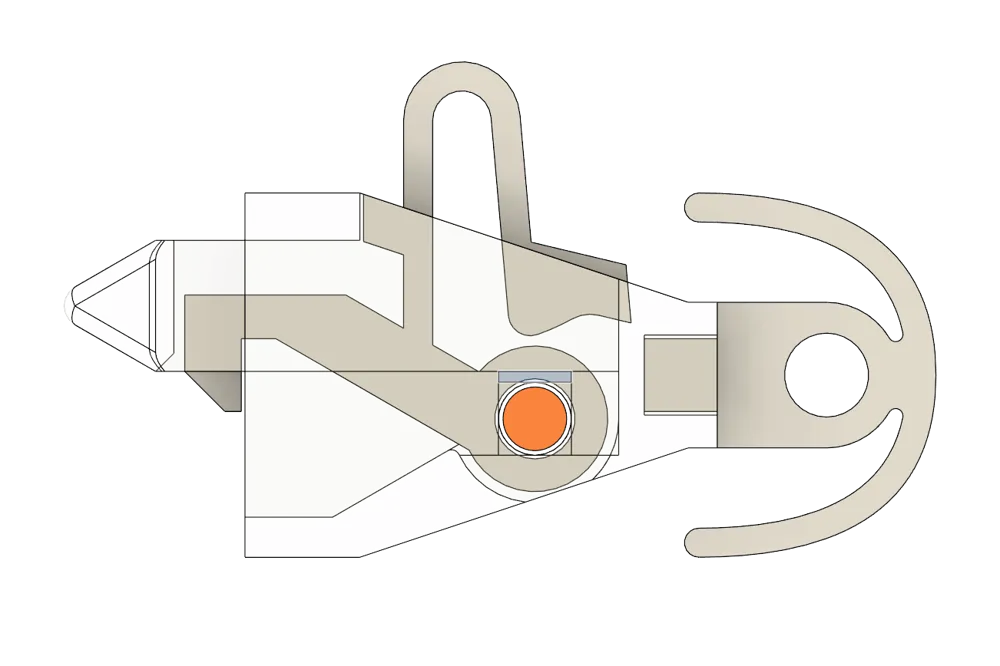

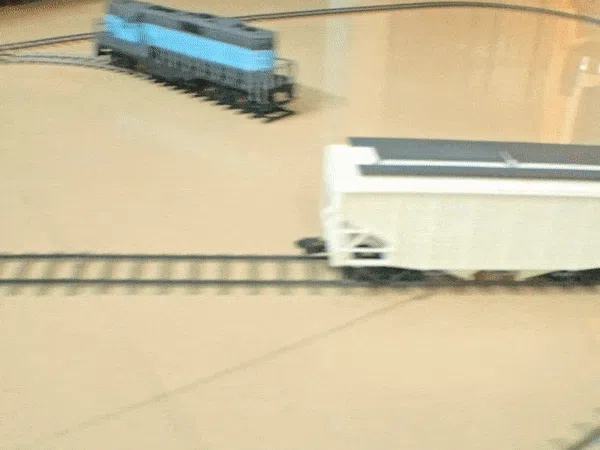

Automatic coupler designed for 3D printed model trains. The coupling can be disengaged with very little force.

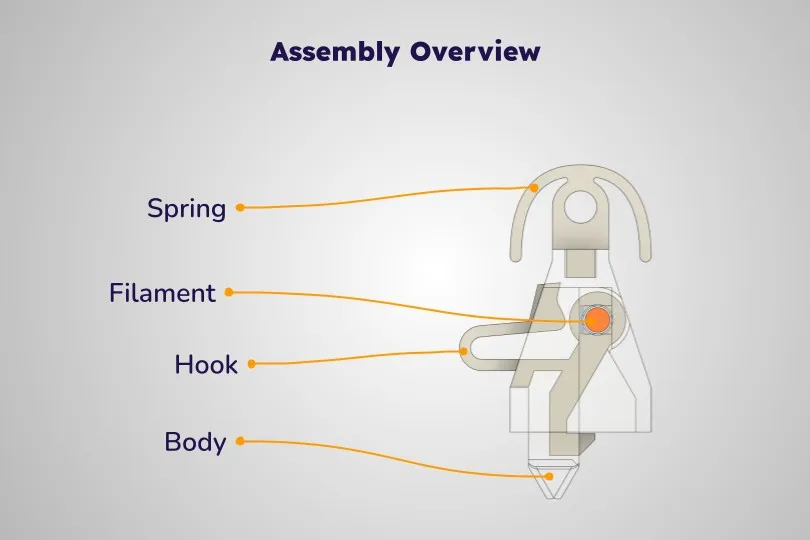

Assembly Manual:
Hardware required:
- M2 4mm screw per each coupler
Used by:
All Dragon Railway Locomotives and Wagons
Check out the Dragon Railway ecosystem!
Join our :Discord
Print Settings:
Cura Files (or)
- Layer Height - 0.1mm
- Wall Thickness - 0.4mm
- Top Bottom Thickness - 0.8mm
- Build Plate Adhesion - Raft
- Supports - Buildplate only
- Bridging Enabled
- Colling 100%
