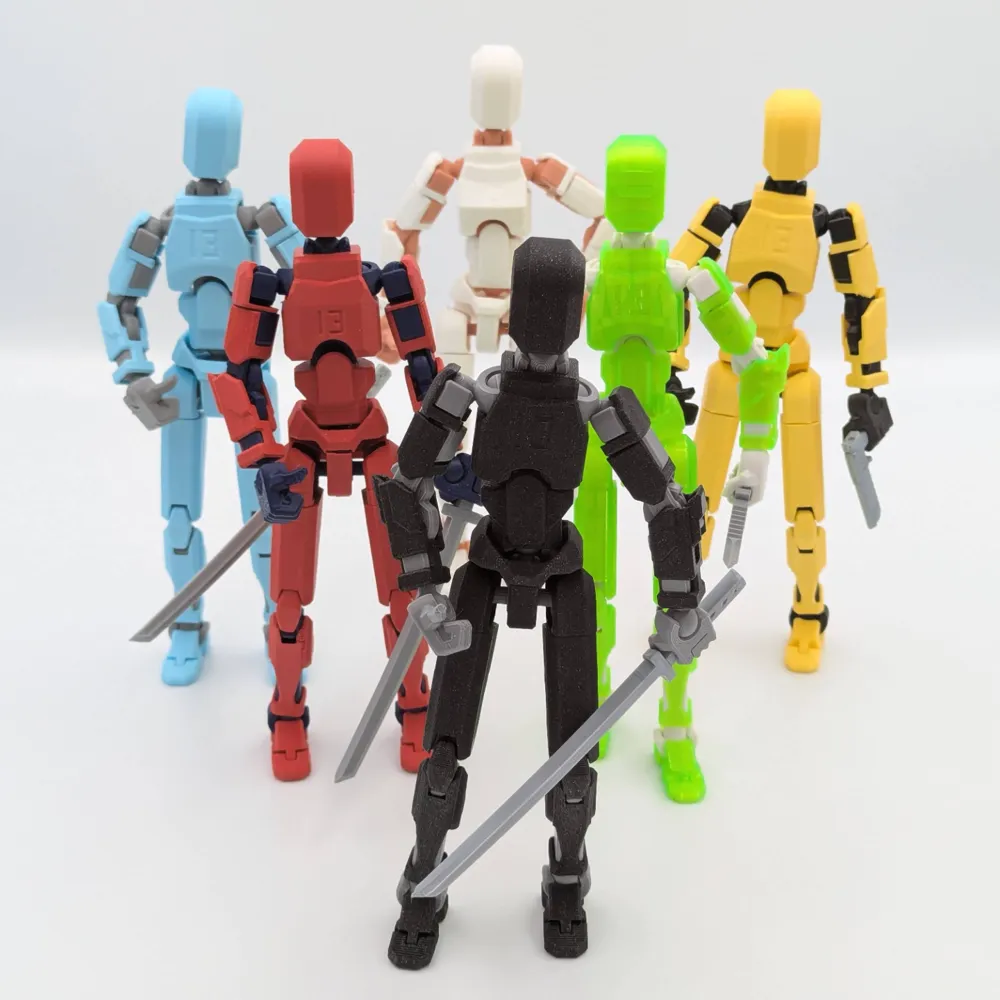

This is model of Dummy 13 V1.0 Release runners modified to fit A1 mini in 150% scale.

I like Dummy 13, i've printer it a lot. Most of them in size 150%. I believe it's best size for dummy to be played by child or adult.

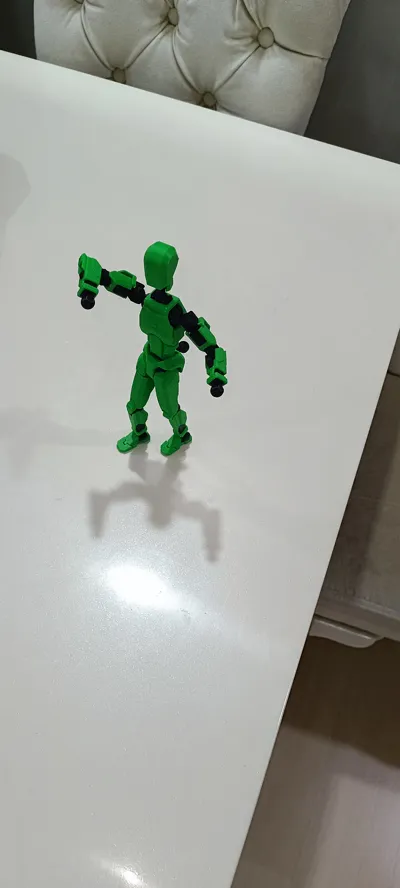

Size of standing figure is 20cm, it takes 50gr.+50gr. of plastic.

But there is a problem. Original runner won't fit on A1 mini. So, it's not possible to print 150% size runner on A1 mini.

Separate parts often failed to print due to it's small size.

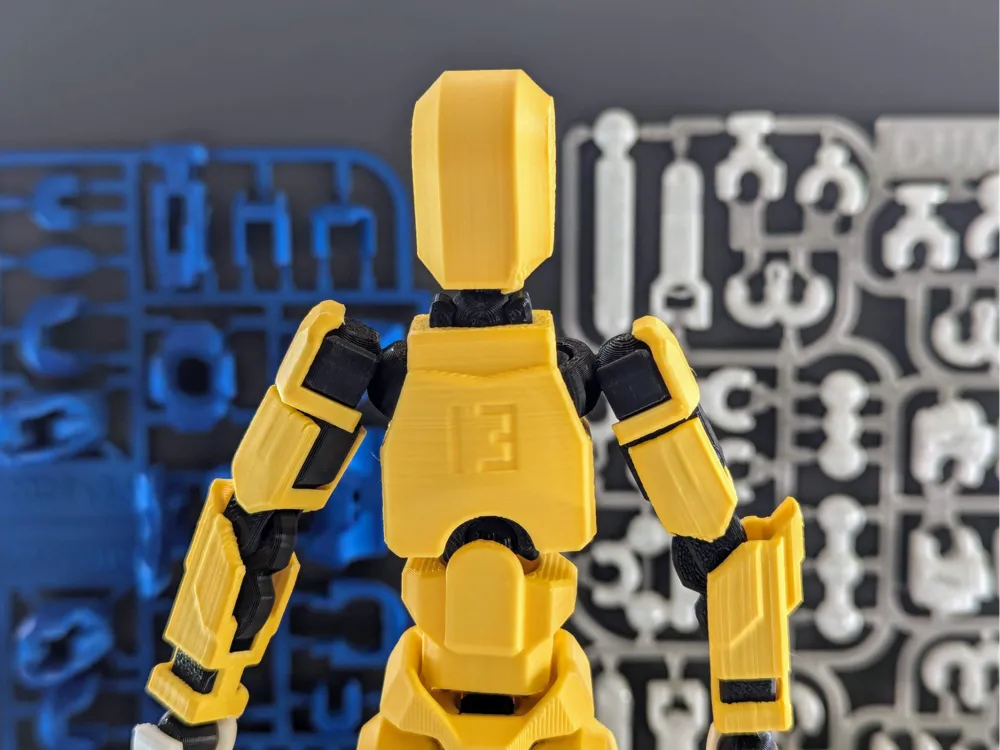

So, I've picked original runner files and modified parts placement and runner, to get more compact layout. Parts itself are not modified, only runners affected.

Model in 150% size. To get original size, scale to 75%.

Modifications:

Female:

Created runners in same style as original (Frame and Armor).
Modified to fit A1 mini in 150% size.
Replaced male's parts with female.
Added sign “DUMMY F” for frames
Parts itself not changed.

Male:

Modified frame runner to fit A1 mini in 150% size.
Armor runner left intact (for consistency)

Print tips:

For frame - use PETG or ASA filament.

Why no PLA?

PLA has three properties that make it a poor fit for the movable joints of Dummy 13's frame.

PLA is stiff, so it can take a lot of force to snap the joints together.
PLA is brittle, so the parts may break when subjected to that force.
PLA will creep under stress, so the joints will become loose over time.

Armour could be printer with any filament.

Share you make and don't forget to boost me, if you like my work.

Boost Me (for free)

Thank you !

Source used (posting here, since source field doesn't work correctly with printables): https://www.printables.com/model/981111-dummy-13-version-10

dummy 13

dummy13

Documentation (1)

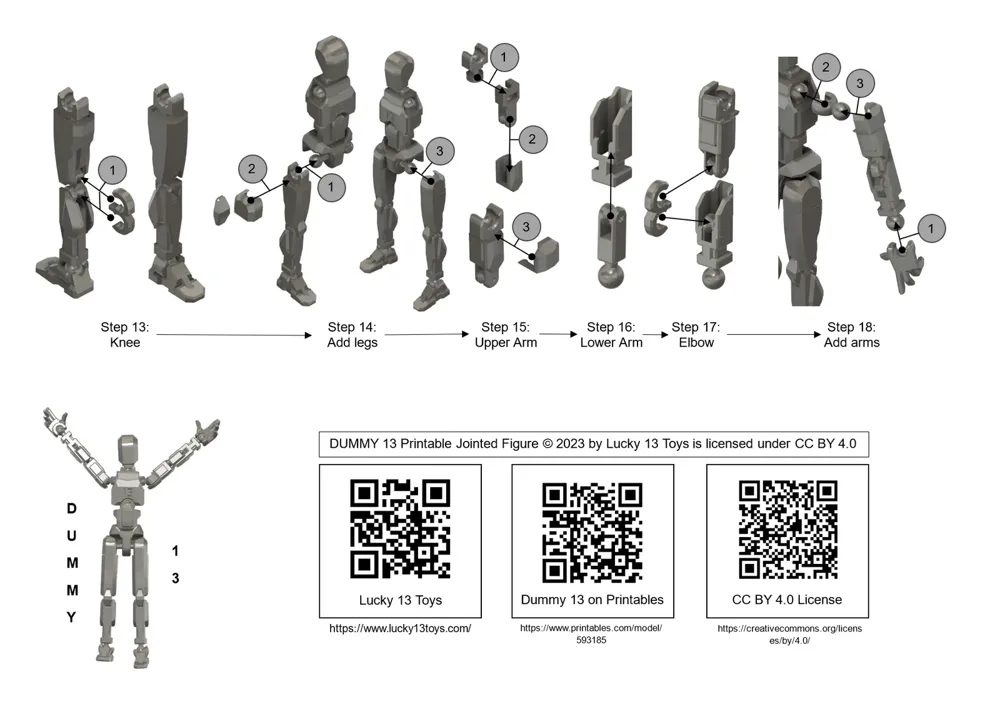

Assembly Guide (1)
