Description

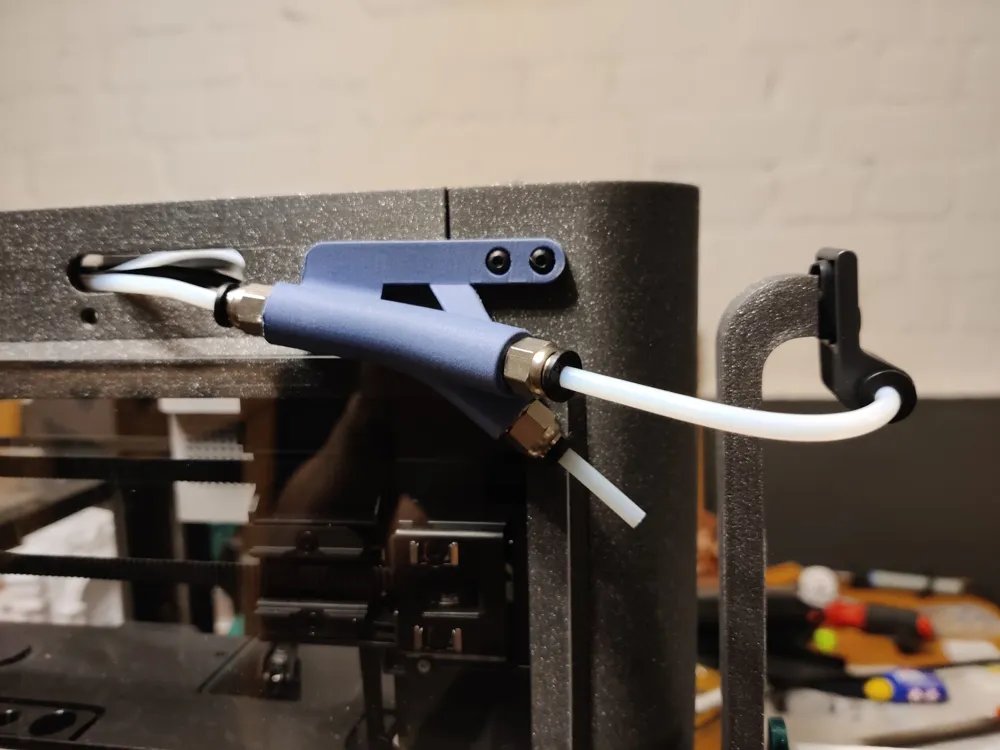

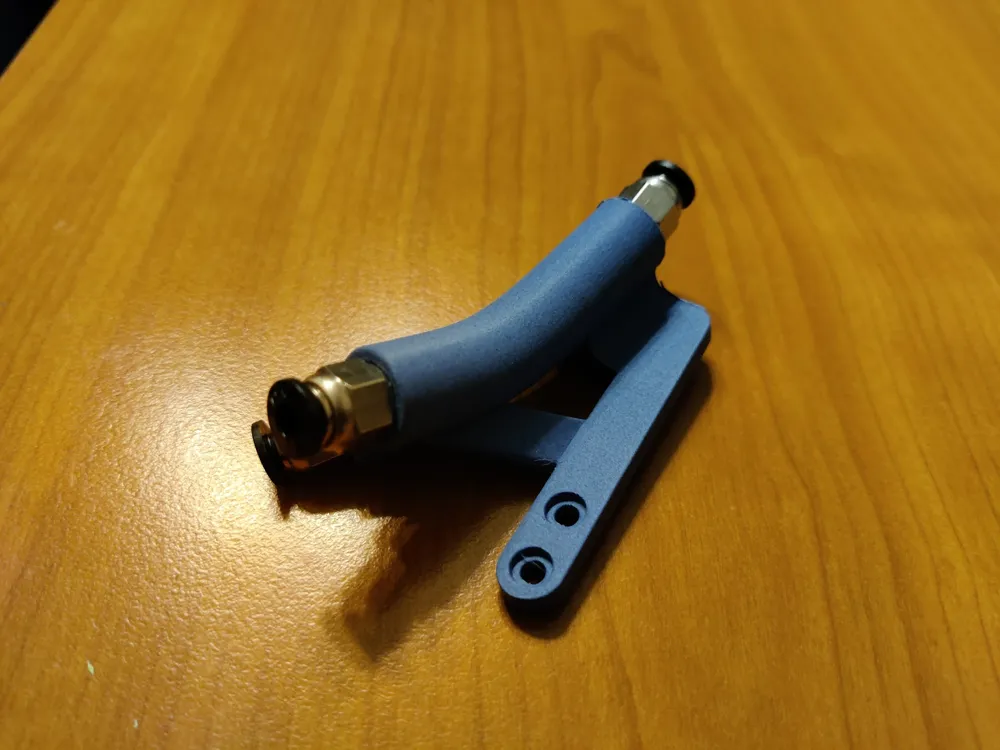

I remixed the best Y-Splitter for Bambu to fit it to my needs. Maybe someone else want a similar solution.
I changed the screw holes to move the splitter more away from the edge, that I can fit the sidespool holder.
I only mixed the Version with M10 connector and angle.
You need:
- 3x PC4-M10 pneumatic connector, inner diameter: 4 mm
- 2x M3 6mm
If you need the screws also for a sideload for the PTFE Tube, look to my combined item:
Comment & Rating (40)
All
Great design, but I see one weak point. Are you able to strengthen the model here? It's best to pull the bracket all the way up near the screws.
The designer has replied
1
Reply
Did you had issues with breaking at this point, or is it a guess?
My Idea was to not have it all the way. But I am working on a new version, because with my P1S upgrade kit its no longer fits very good.
0
Reply
Replying to @cv6Channel
Yes, I have a problem with breaking here. It spreads at the junction of the layers after applying even a slight force.
1
Reply
Currently I used more walls and printed with ASA. It's a little better, but I don't have the heart to put more force into it.
1
Reply
“PC4-M10”国内搜“气动接头PC4-01”尺寸一样写法不同
1
Reply
Great!
1
Reply
Print Profile
0.12mm layer, 3 walls, 20% infill Gyroid
Not bad but it is too close to the rubber guide.
0
Reply
Print Profile
0.12mm layer, 3 walls, 20% infill Gyroid
The designer has replied
1
Reply
great Print!
0
Reply
Print Profile
0.12mm layer, 3 walls, 20% infill Gyroid
Ist leider in der stehenden Position schön zum drucken aber dadurch schleift das filament dann aber auch an den layern..
Sollte man evtl liegend drucken..
The designer has replied
0
Reply
Liegent brauchst du Support. Das mit den Layern kommt stark auf das Filament an.
0
Reply
Print Profile
0.12mm layer, 3 walls, 20% infill Gyroid
printed very well. going to pick up the parts and add to the printer
1
Reply
Print Profile
0.12mm layer, 3 walls, 20% infill Gyroid
great design flawless print!
0
Reply
Print Profile
0.12mm layer, 3 walls, 20% infill Gyroid
Nice design, helped me use AMS plus side spool.
0
Reply
Print Profile
0.12mm layer, 3 walls, 20% infill Gyroid
bonne finition
0
