Description
I got tired of manually tweaking my labels every time I needed a new one, so I built this little parametric label generator. Hit Customize, write your text, setup font, sizes… and you're done. No fiddling with external software, no hand-editing STL files.

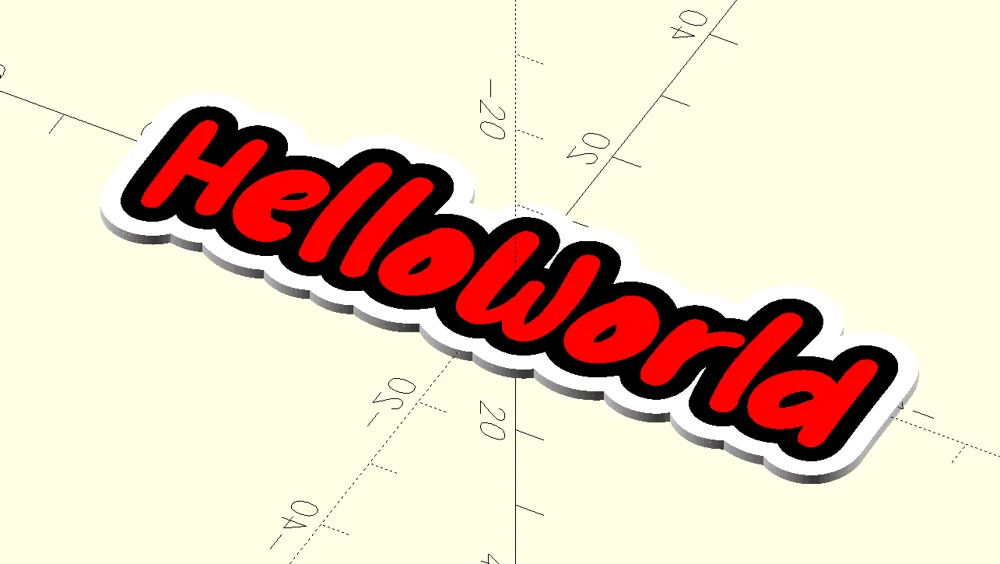

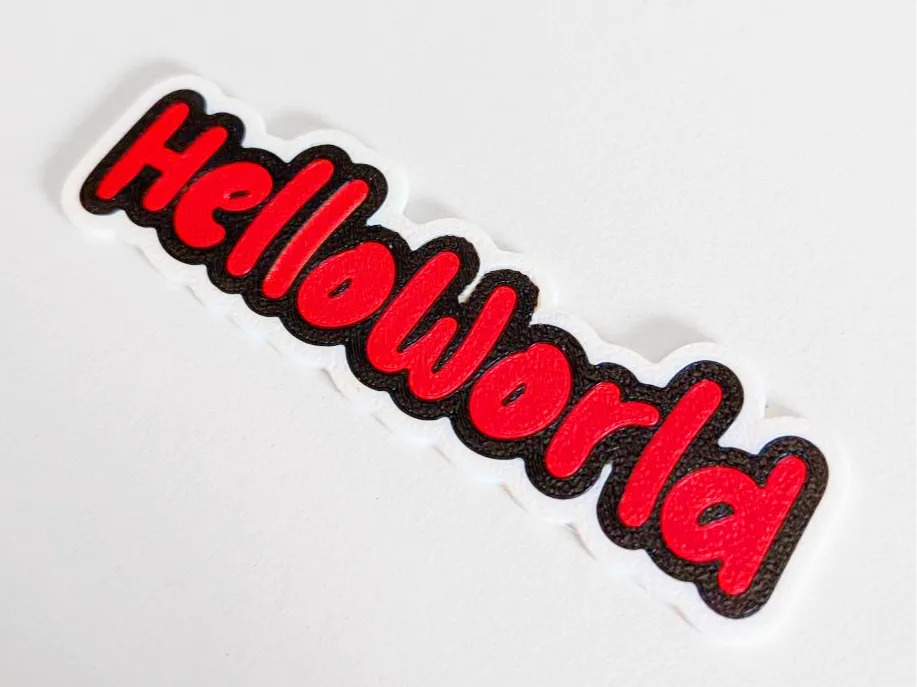

The result is a clean 3-layer label that can be customized at your liking — base, inner outline, and main text.
As requested, V2 now includes a dropdown - picker for the font family!
Boost Me (for free)
I spent way more time on this than I'd like to admit so you could spend zero time on your labels.
A boost is the least you can do 😄 (seriously though, it helps a ton, thank you!)
What you can customize:
- Text
- Font size
- Font family (dropdown selectable)
- Inner and outer outlines thickness
- Whole label thickness

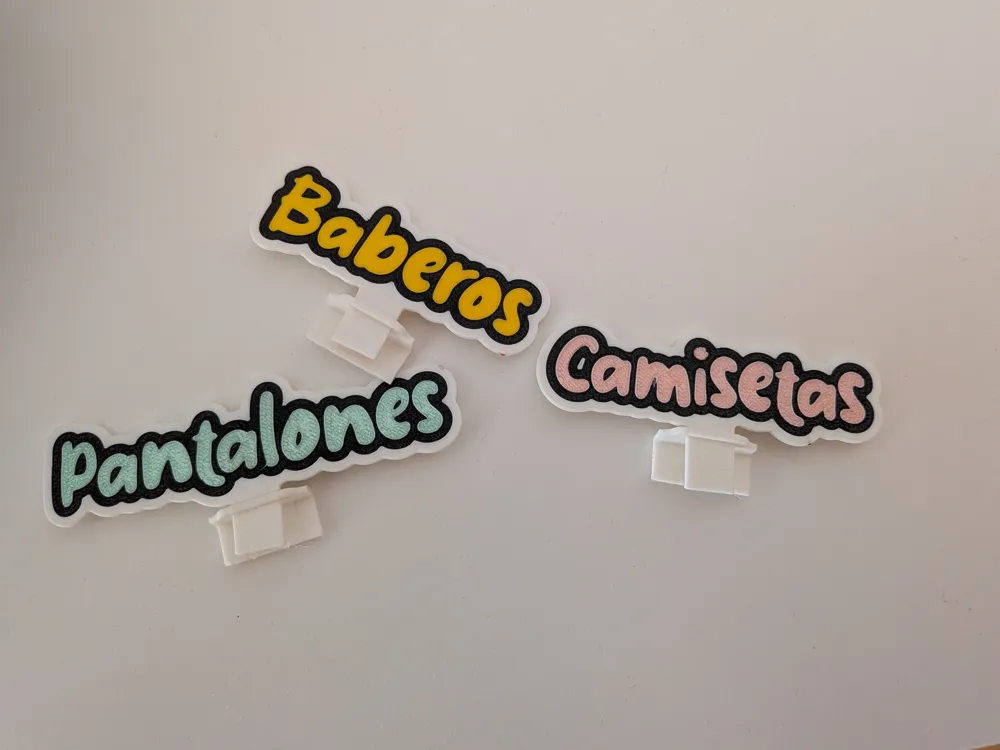

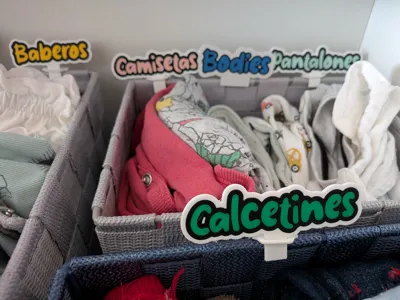

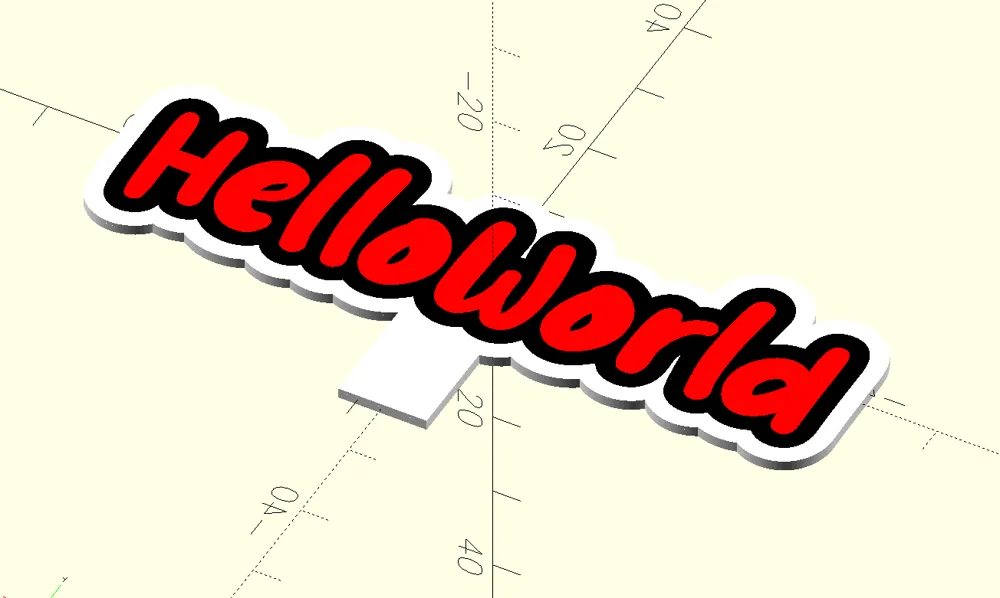

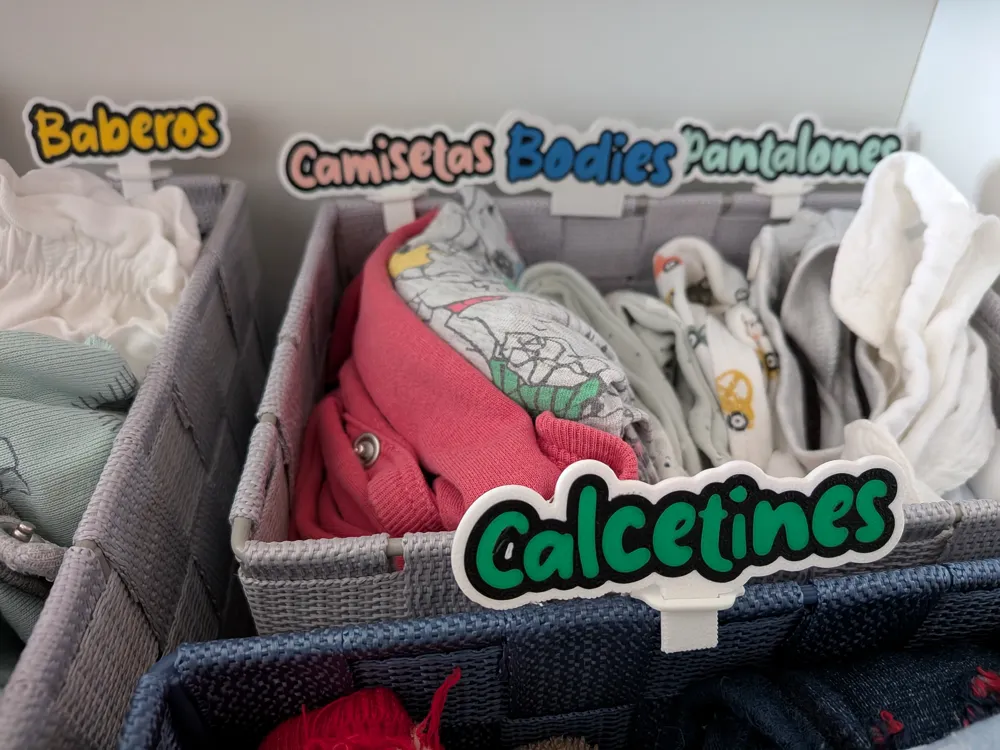

Tabs can be included if you want to use them like in the pictures or stick them to things:
Print notes:
- No prime tower needed.
- Examples printed with 0.4 nozzle, line thickness lowered to 0.36 for everything (important if you want details).
- If printing the tab holders, either print them on their own or by object (I've had better results like this, no supports needed).
The project file includes the small tab holders, a sample label with tab and another without tab, as well as the used print profile.
