Precision Tolerance Test
Print Profile(1)
Description
Optimize your 3D printing precision with this tolerance gauge!

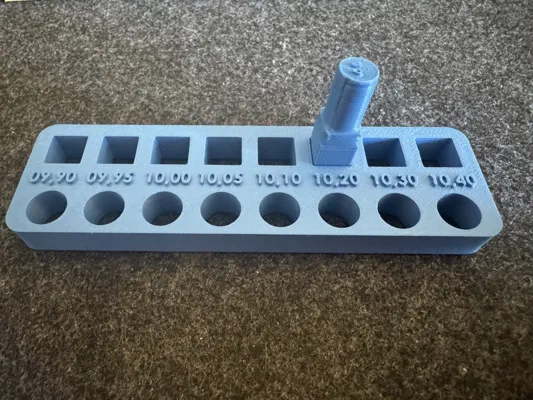

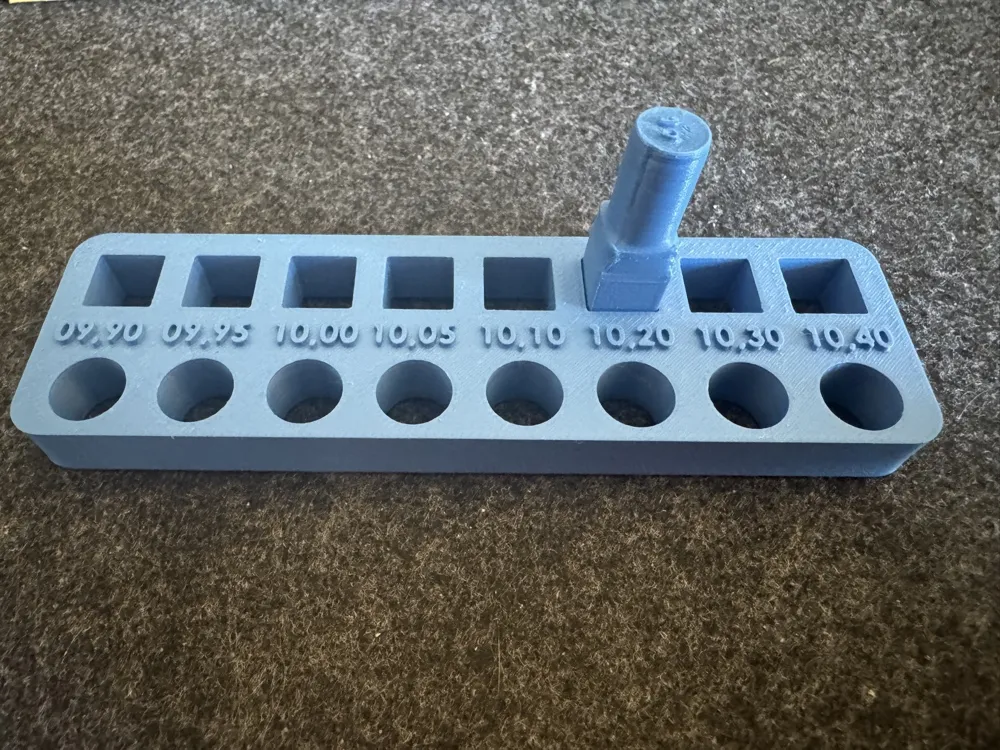

Are you having trouble with printed parts not fitting together? This handy tolerance test helps you quickly and easily determine your printer's dimensional accuracy. The set includes a test body with a range of circular and square openings, stepped from 09.90 mm to 10.40 mm.

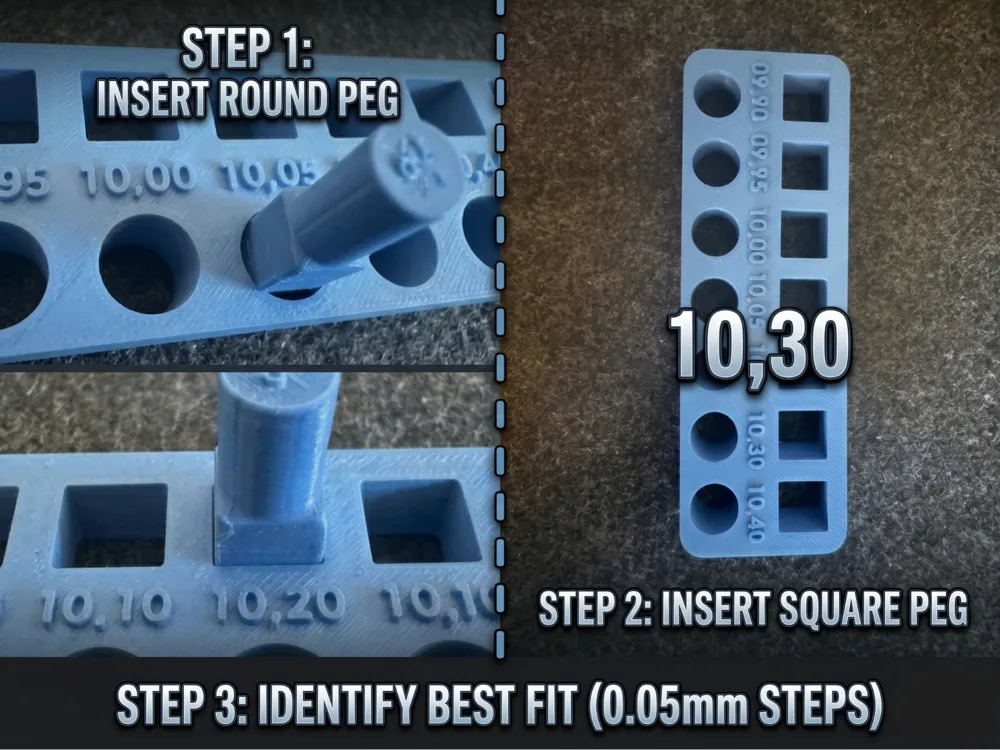

How it works:
- Print the test block (preferably in a striking color).
- Print the matching round/square test pin.
- Push the pin into the openings. The one it just fits snugly into indicates your printer's actual tolerance for that dimension.
Details:
- Measurement range: 09.90, 09.95, 10.00, 10.05, 10.10, 10.20, 10.30, 10.40 mm.
- Shapes: Both circular and square tests in one model.
- Compatible: Designed for common 3D printers (e.g., Bambu Lab, Prusa, Ender).
- Perfect for: Prototyping, mechanical parts, and anything that requires precise fitting.
Print instructions:
- Best printed in the material you normally use for mechanical parts (e.g., PETG or PLA+).
- No supports required.
- Ensure good print bed adhesion.
Share your results! Which dimension fits best for you? Leave a comment and a thumbs up if you like the tool!
