0.2mm standard profile - updated 2026

Designer

28 min

1 plate

4.7(107)

Standard settings, 0.2mm layer, 2 walls, 15% infill

26 min

1 plate

4.8(1.1 k)

PETG 0.2mm layer, 2 walls, 15% infill

32 min

1 plate

5.0(43)

With BRIM for better adhesion

26 min

1 plate

5.0(27)

Open in Bambu Studio

Boost

1092

3432

1455

155

20.4 k

13.6 k

Released

Description

02.06.2026 update - minor adjustments to fix slicing issues, the model should print more reliably now

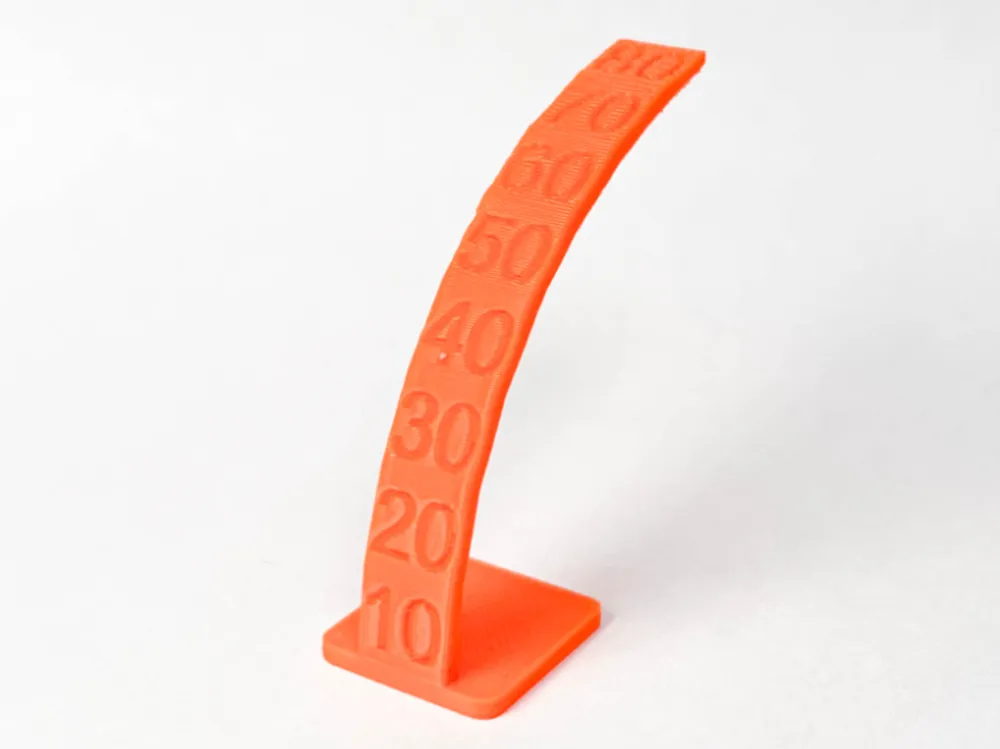

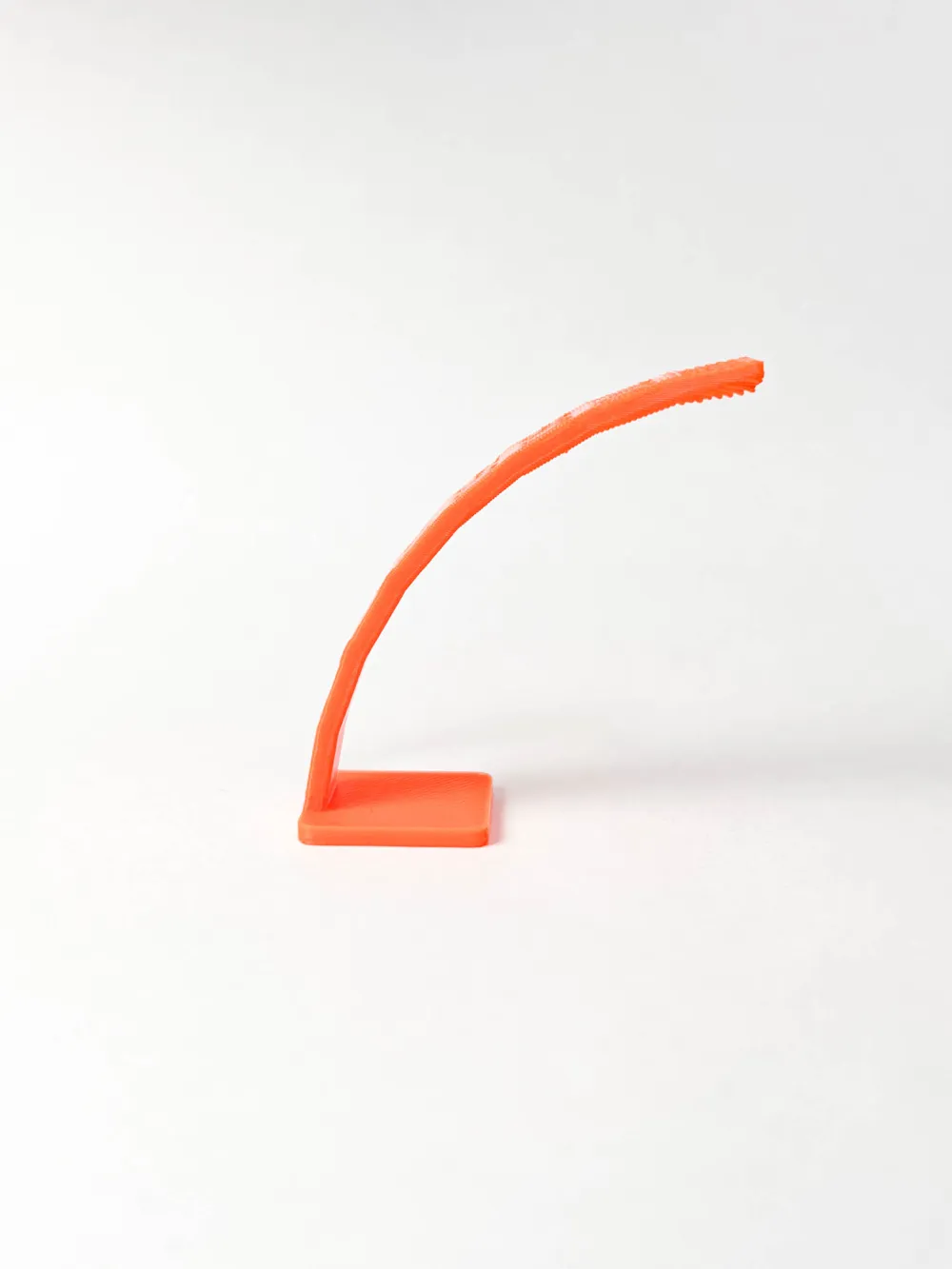

A simple test model to help you determine the maximum printable overhang.

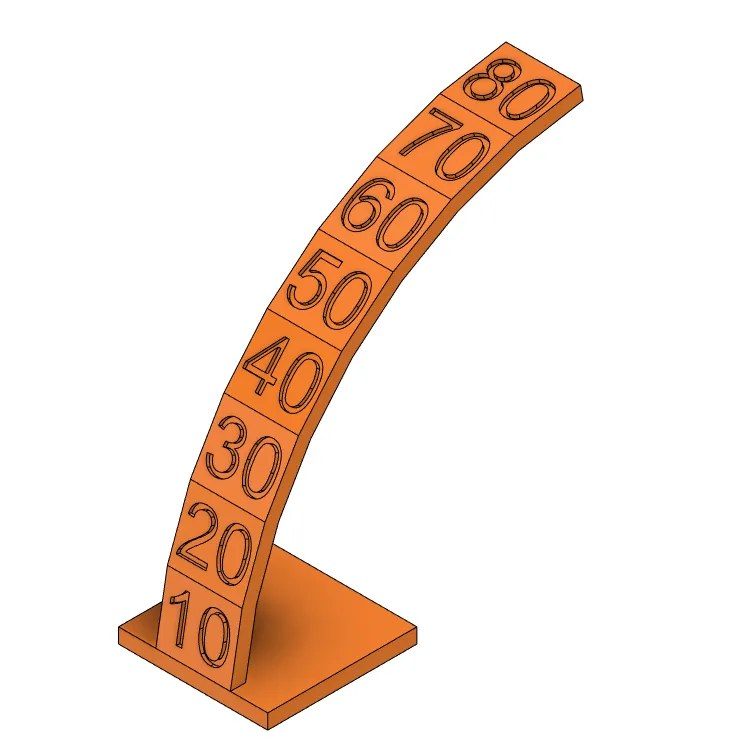

The overhang increases in 10 degree increments - from 10 to 80 degrees away from vertical. The 90 degree overhang is skipped as it would be unprintable.

Designed in Fusion 360.
