Windmill v00
Remixed by
Print Profile(1)
A1 mini: 0.2mm layer, 2 walls, 15% infill
Designer
11.2 h
4 plates
Open in Bambu Studio
Boost
42
127
17
6
72
32
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
List other parts
- Glue x 1:
Description

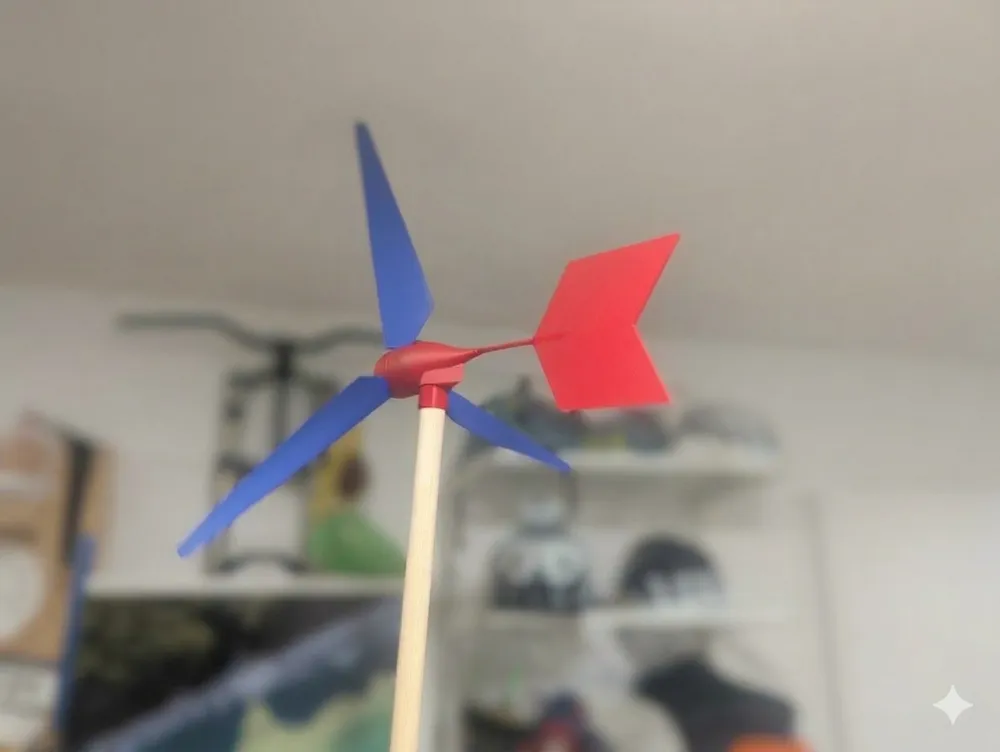

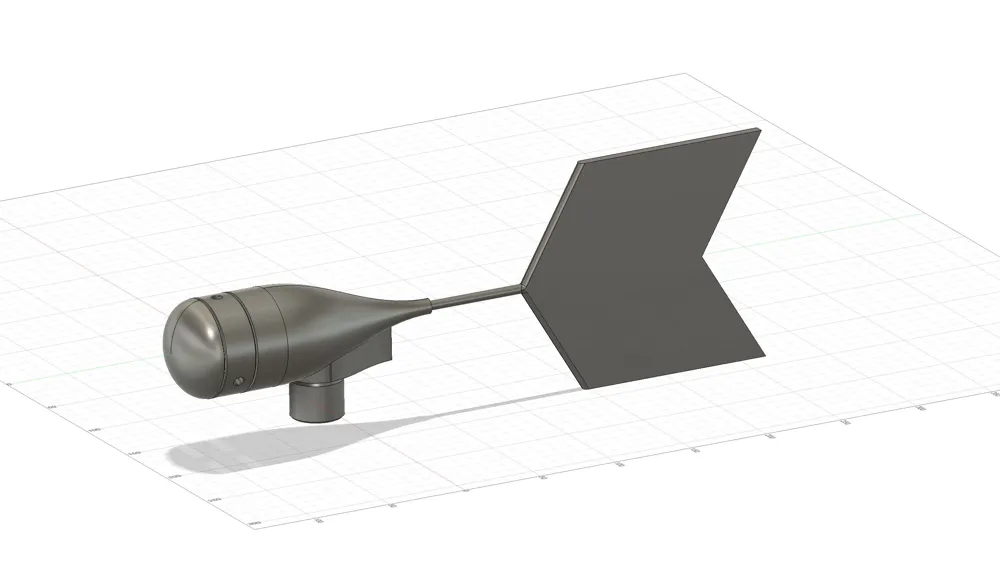

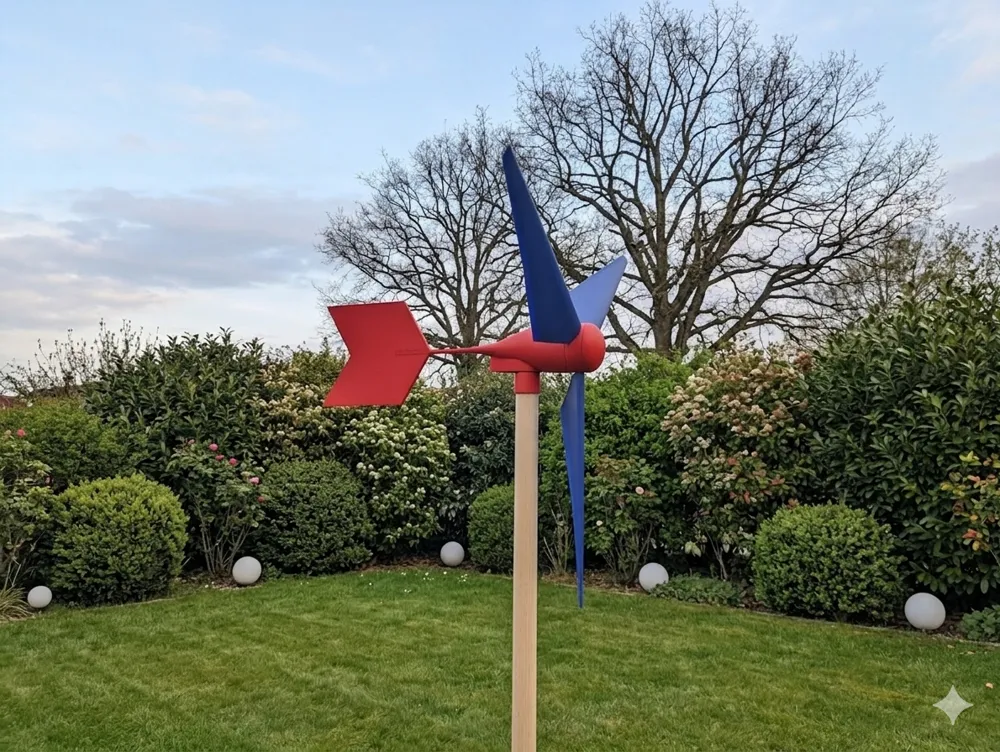

I redesigned this windmill and added some proper turbine blades with winglets. I also redesigned the tail wing and its fixation.
------------------------------------------------------------------------------------------------------------------------------------------

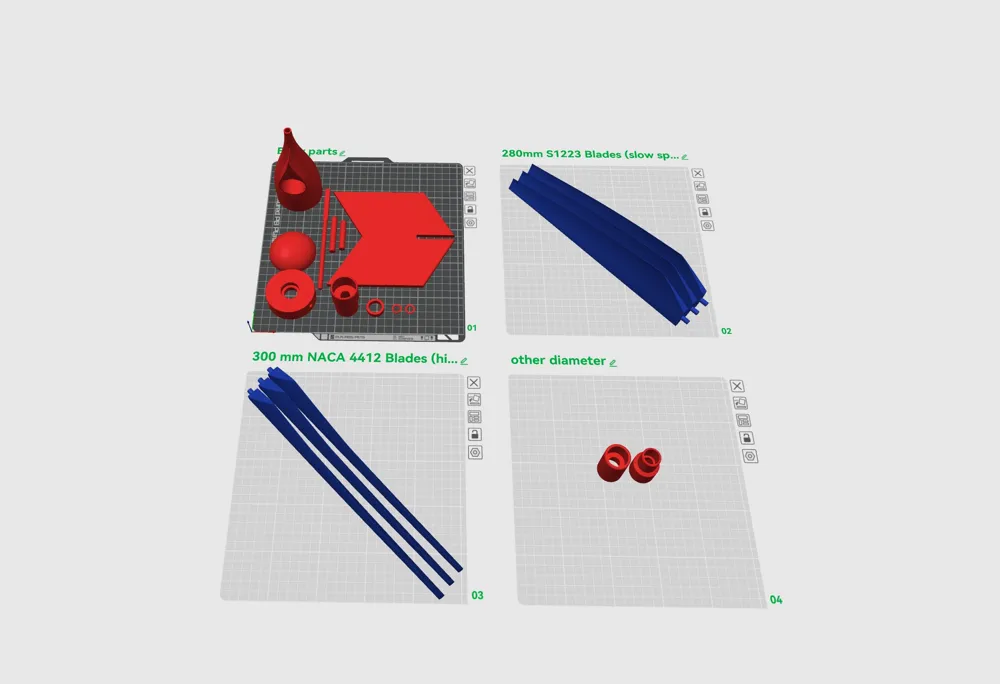

Based on the model of Liquid L. I redesigned all parts except the blades (S1223 and NACA 4412).

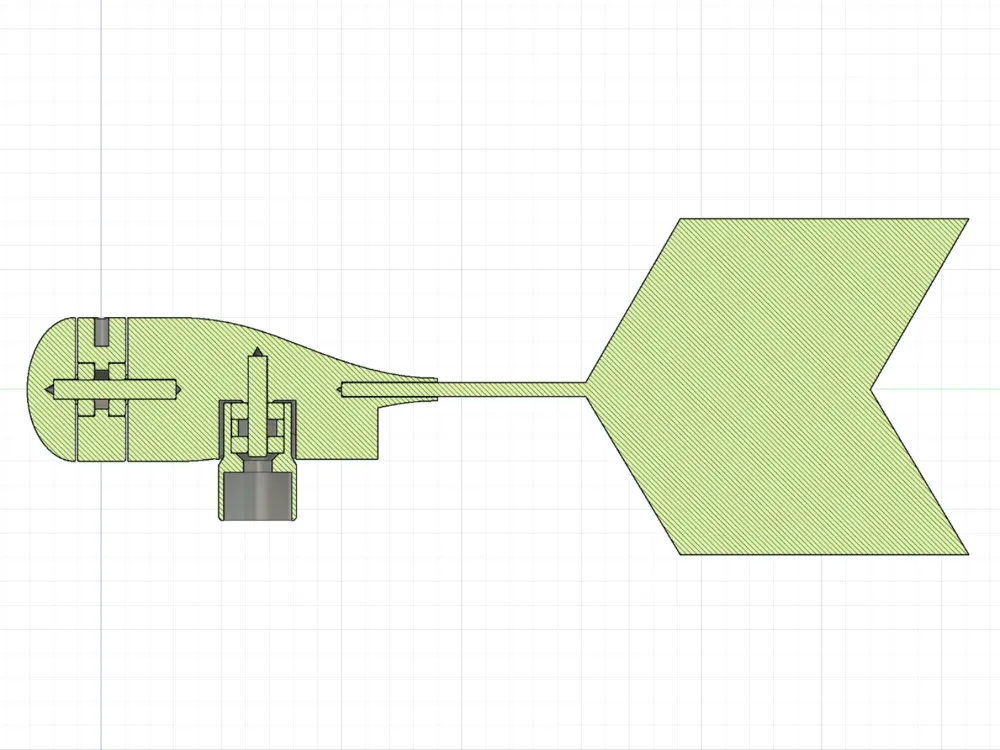

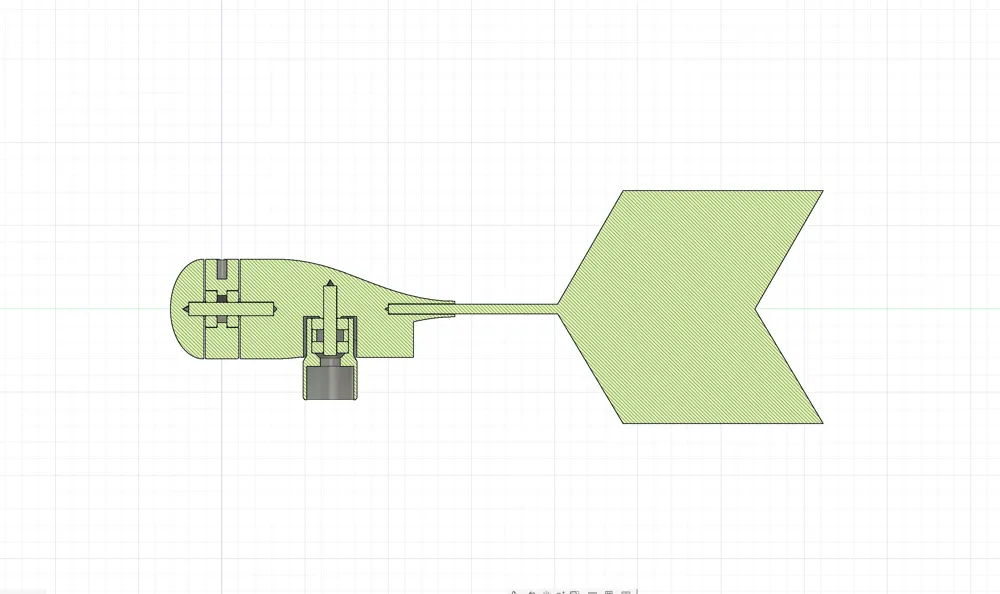

- Bearing assembly always includes two roller bearings
- The bearings are not submerged in water
- Improved aerodynamics
- Three different adapters for different mounting diameters (Ø 16, 22 or 28) - If you need another dimensions, tell me.
I've used 4x sealed Inline skate bearings (size 608), quality ABEC 9 - Runs perfectly!
As the entire fin is too big for me to print, I separated the rod and the the fin and glued them together.
Worked with PLA, PETG and ASA.
