Description
Hello there!
I have modified this model so that you do not need an electric motor.

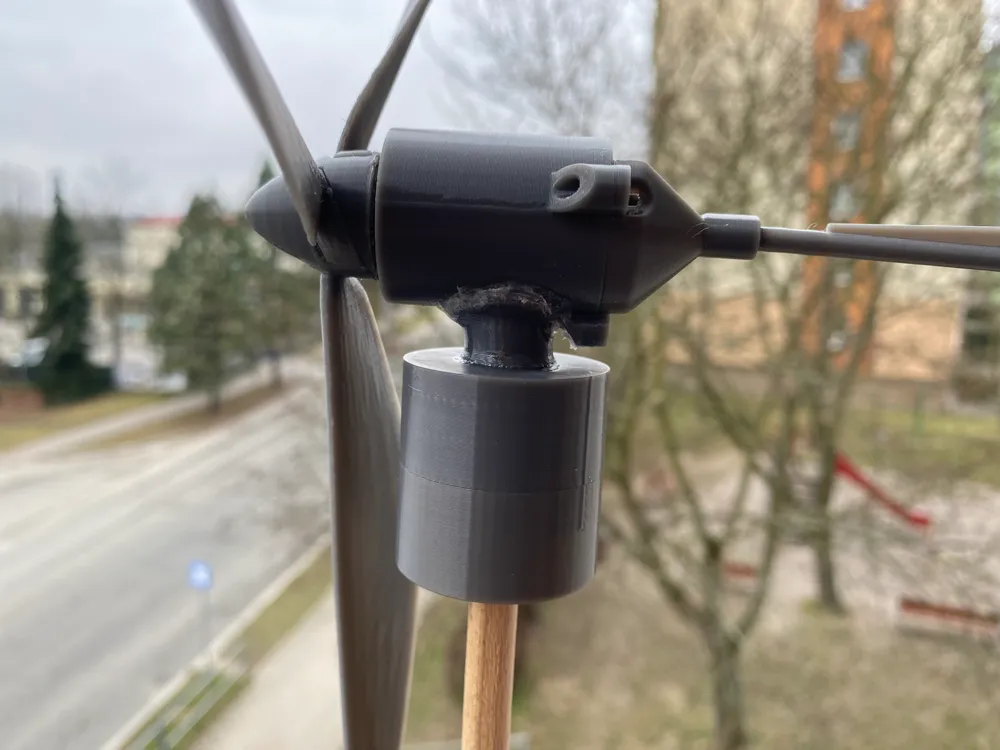

- Adjusted the bearing size for the entire fuselage to rotate.

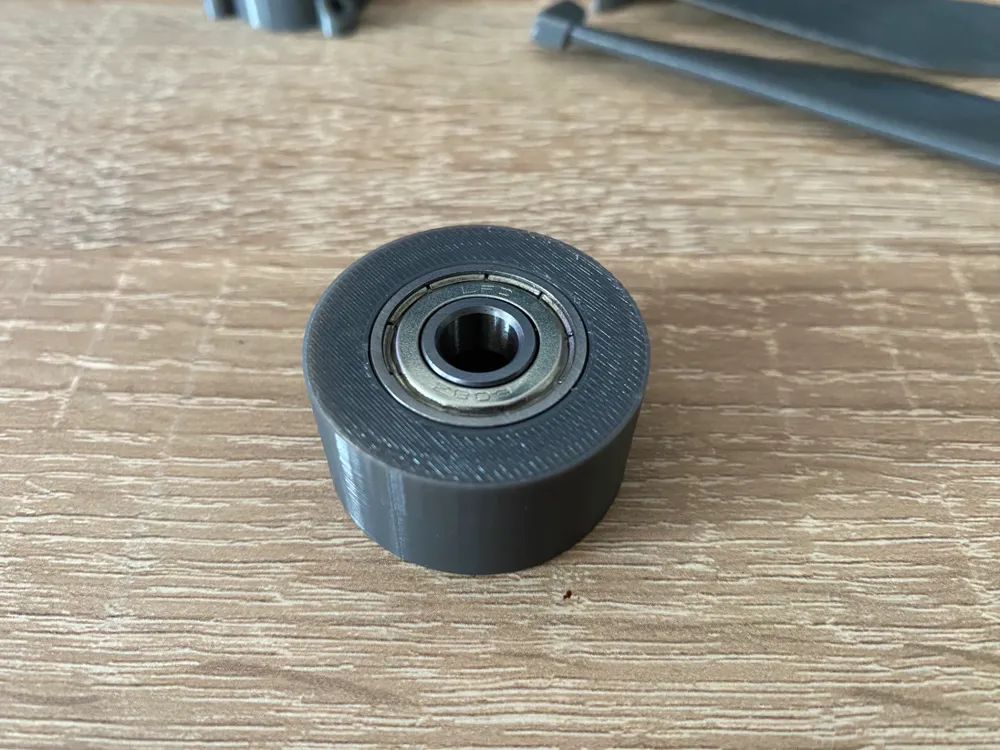

- Adjusted the fuselage to fit a 608Z bearing.

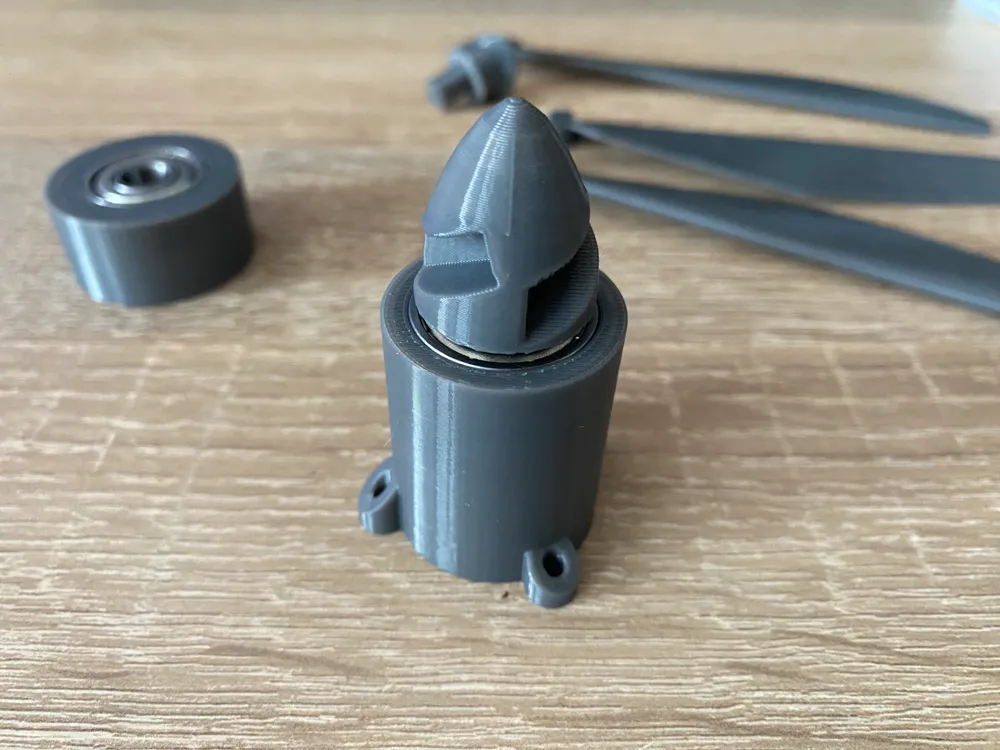

- Added one 608Z bearing to the rotor for easy propeller rotation.

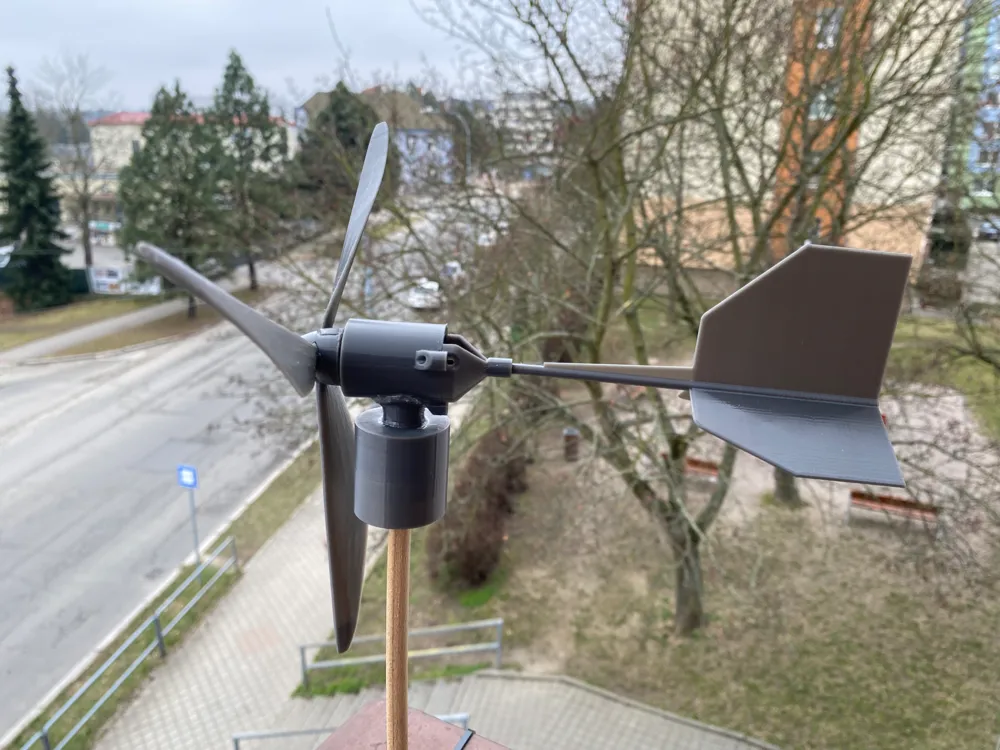

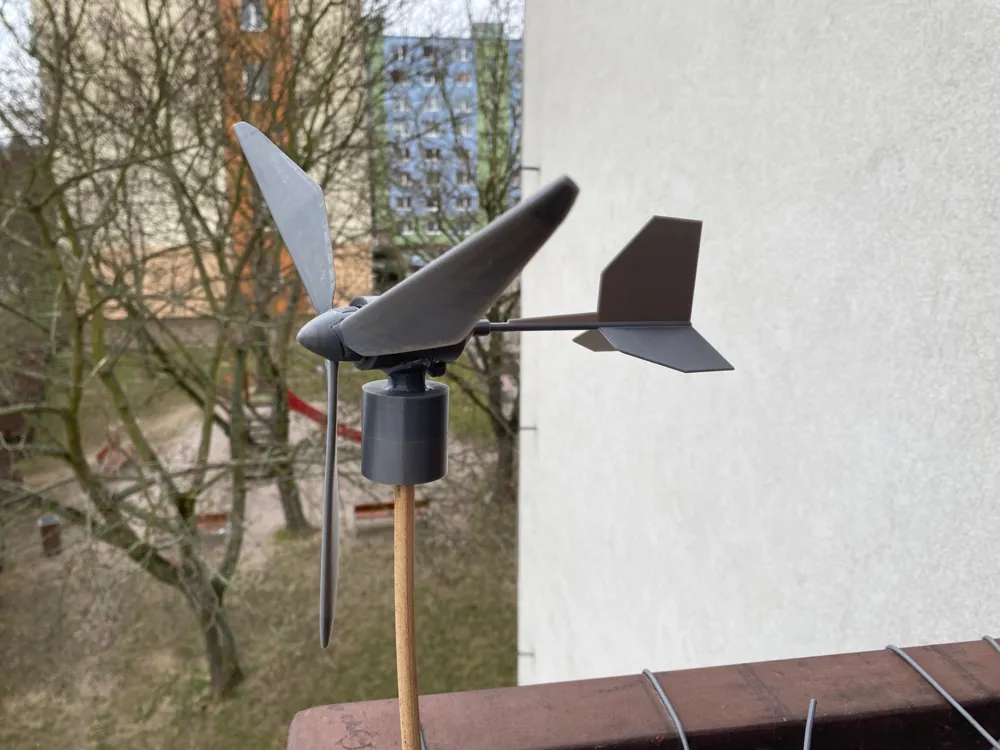

A simple windmill that will decorate your garden or balcony.
Everything except Main_Pivot and Rotor_Hub can be printed without supports.
I recommend using PETG material or something more heat-resistant for printing so that this Windmill doesn't melt in the summer.
Parts needed:
- x3 Short M3 Screws or glue
- x1 8mm rod
- x1 22x8mm 608Z Bearing
- Glue
