テストピースなので、基本は「印刷できればOK」です。 普段使っている設定のまま出力して、1〜5 mm の各部分を軽く確認してください。<ul><li>レイヤー高さ：0.2 mm（例）</li><li>壁（外周）：2周（例）</li><li>インフィル：15%（例）</li><li>サポート：不要</li></ul>This is a simple test piece — any settings that print successfully are fine. Print it with your usual profile and quickly check the 1–5 mm sections.<ul><li>Layer height: 0.2 mm (example)</li><li>Walls/perimeters: 2 (example)</li><li>Infill: 15% (example)</li><li>Support: not required</li></ul>

This is a simple test piece — any settings that print successfully are fine. Print it with your usual profile and quickly check the 1–5 mm sections.<ul><li>Layer height: 0.2 mm (example)</li><li>Walls/perimeters: 2 (example)</li><li>Infill: 15% (example)</li><li>Support: not required</li></ul>

0.2mm layer, 2 walls, 15% infill

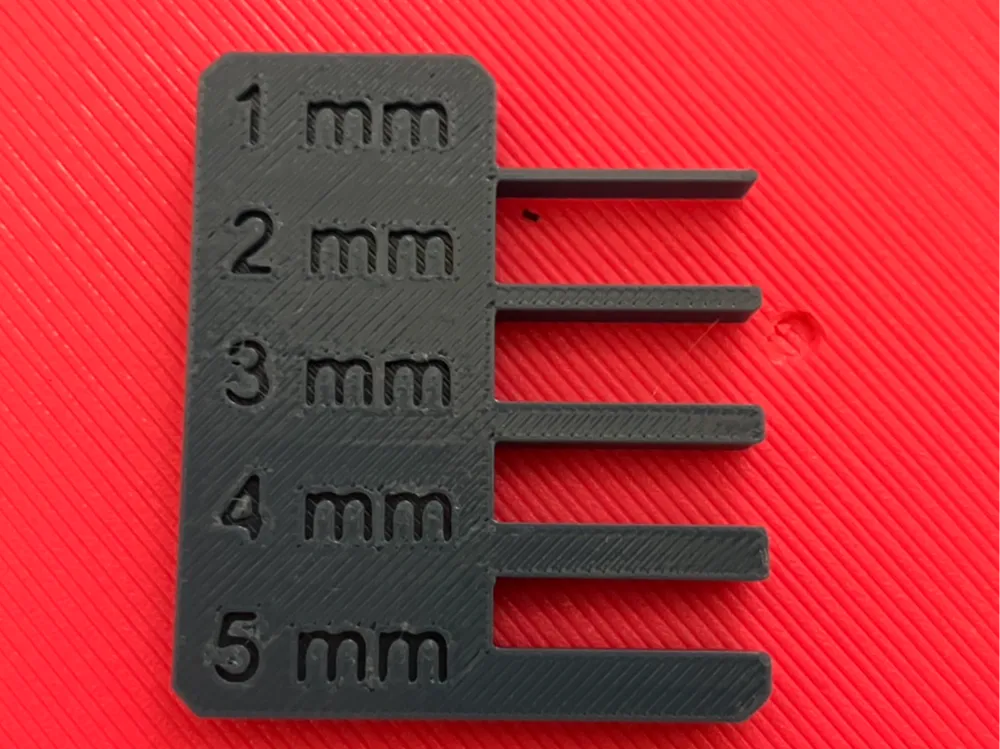

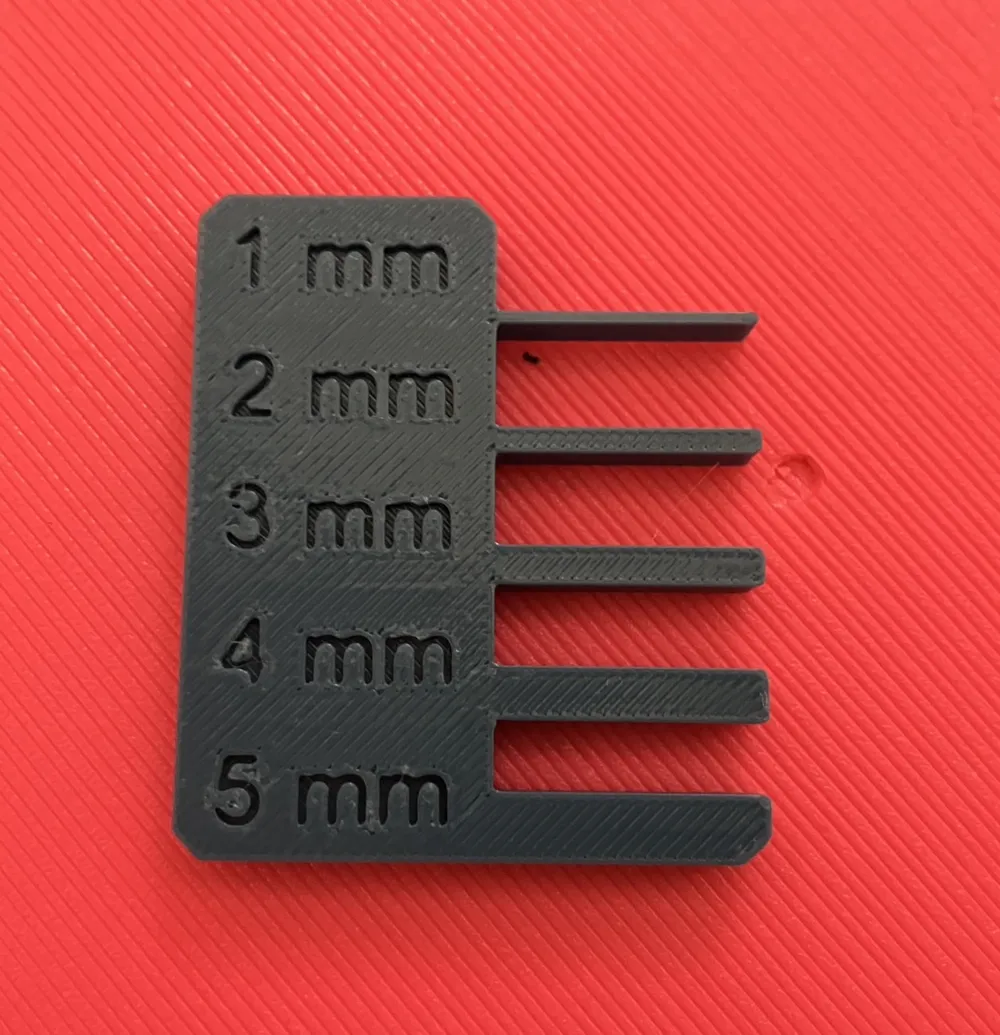

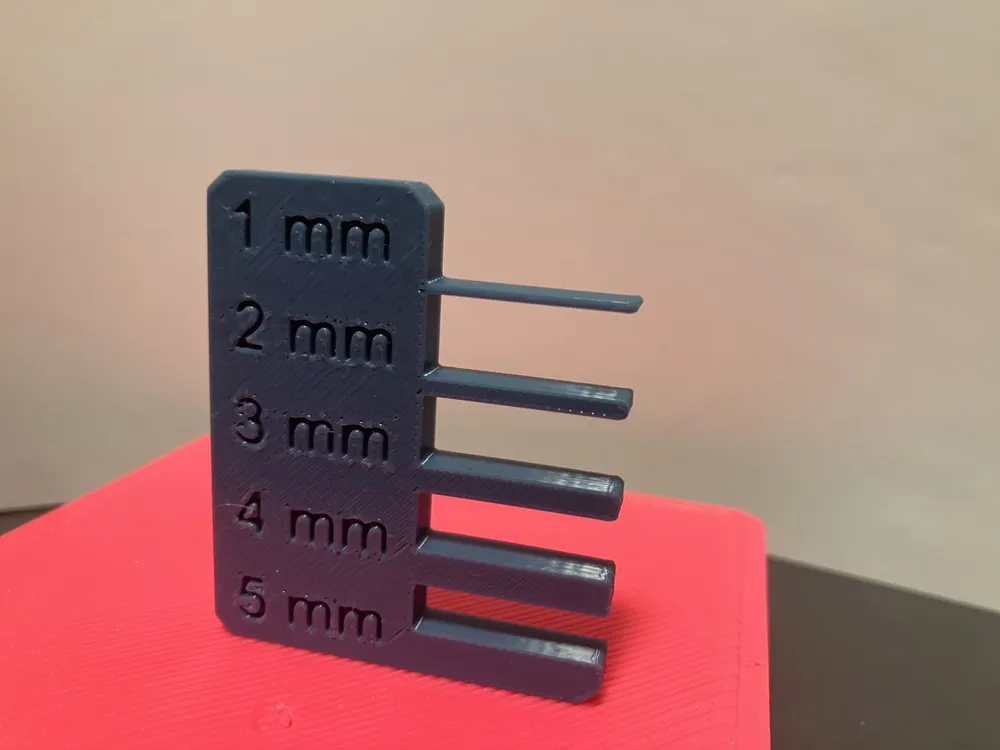

壁厚確認用テストモデル（1〜5 mm）このモデルは、**印刷したときの「実際の厚さ」**を確認するためのシンプルなテストピースです。 1 / 2 / 3 / 4 / 5 mm の厚み部分があり、普段のプロファイルで出力して ノギス等で実測することで、狙い値との差を手早く確認できます。主目的は壁厚チェックですが、結果の傾向から 寸法精度や押出の調整具合をざっくり把握できる場合もあります。<ul><li>サポート：不要</li><li>いつもの設定で印刷するのがおすすめ</li><li>各厚みを測って、表示値との差をメモすると比較しやすいです</li></ul>Wall Thickness Check Test (1–5 mm)This model is a simple reference print to check the actual printed thickness. It includes 1 / 2 / 3 / 4 / 5 mm thickness sections. Print it with your usual profile and measure each section with calipers to quickly see the deviation from the labeled value.The main purpose is wall thickness confirmation, but it may also give you a rough indication of dimensional accuracy and extrusion tuning, depending on your printer/settings.<ul><li>Support: Not required</li><li>Print with your normal settings for meaningful results</li><li>Measure each section and note the deviation for easy comparison</li></ul>

Wall Thickness Check Test (1–5 mm)This model is a simple reference print to check the actual printed thickness. It includes 1 / 2 / 3 / 4 / 5 mm thickness sections. Print it with your usual profile and measure each section with calipers to quickly see the deviation from the labeled value.The main purpose is wall thickness confirmation, but it may also give you a rough indication of dimensional accuracy and extrusion tuning, depending on your printer/settings.<ul><li>Support: Not required</li><li>Print with your normal settings for meaningful results</li><li>Measure each section and note the deviation for easy comparison</li></ul>
