Description

This is my own work, originally uploaded to Printables.

A new and redesigned display base for Lucky 13 and friends. Featuring a locking telescoping arm that won't droop over time.

As always I recommend printing in PETG or ASA for stronger and longer lasting joints. Especially for the “upper arm” part and any extender pieces.

The main parts assemble as shown. Make sure the locking tab is oriented with the “tooth” pointing inward to engage with the gear rack. It can then pivot to engage and disengage the lock at different heights.

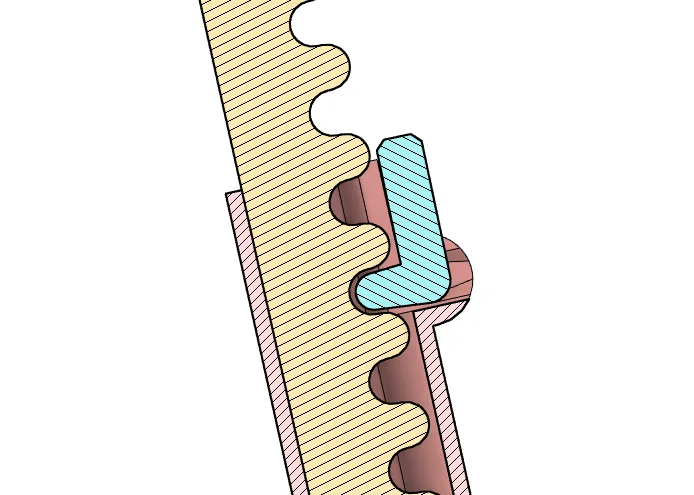

Cutaway view:

For Lucky 13: Use the abdomen parts with the extra ball joint included with the Lucky 13 files.
For Mini 13: Replace Mini 13's waist armor part with the adapter included here.
For Easy 13: Replace Easy 13's abdomen body part with the adapter included here.
For Dummy 13: Plug the “stand adapter” part from the “extra bits” section of Dummy's files into the hole in its waist armor.

Simply pop the ball on the figure into the socket on the stand and you're ready to go! You can also add one of the extenders between the figure and stand for more range of motion - good for standing poses that need a little extra support.

This design is now under a CC BY 4.0 license. This means that you are free to share these files however you like, including selling prints, provided that you give proper attribution. You can give proper attribution by including this notice on your product page:

Please help me build my identity as a creator by referring to this design by its original name. Don't pass off my work as your own product.

Want to support future projects with a one-time donation? Make a PayPal donation here!
