Smart Mouse Trap
Print Profile(2)
0.2mm layer, 2 walls, 15% infill
Designer
1.2 h
1 plate
0.6mm nozzle, 0.3mm layer, 2 walls, 15% infill
Designer
1 h
1 plate
Open in Bambu Studio
Boost
4
21
1
2
7
4
Released
Description
A few months ago, we had a mouse problem. There were lots of them, and they crawled into the walls and ate through the insulation. So I set traps to catch the mice. Since a mouse didn't get caught in the trap every day, I didn't check the traps regularly. Then I found a model here on Makerworld that makes a classic mousetrap smart. Great idea! That way, I would always be notified via my smart home if something moved the trap, and a trapped mouse would no longer have to suffer. Unfortunately, the model didn't fit my traps.

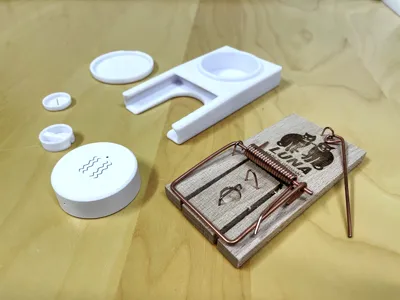

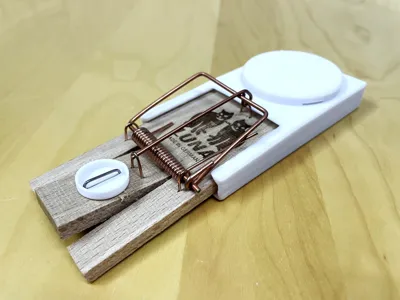

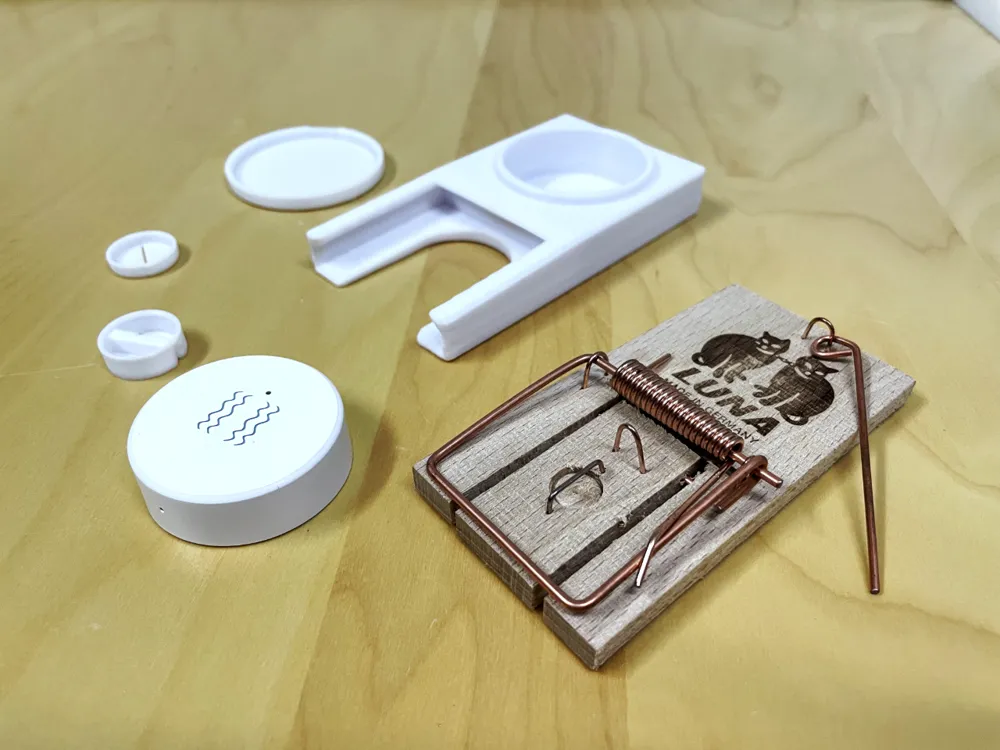

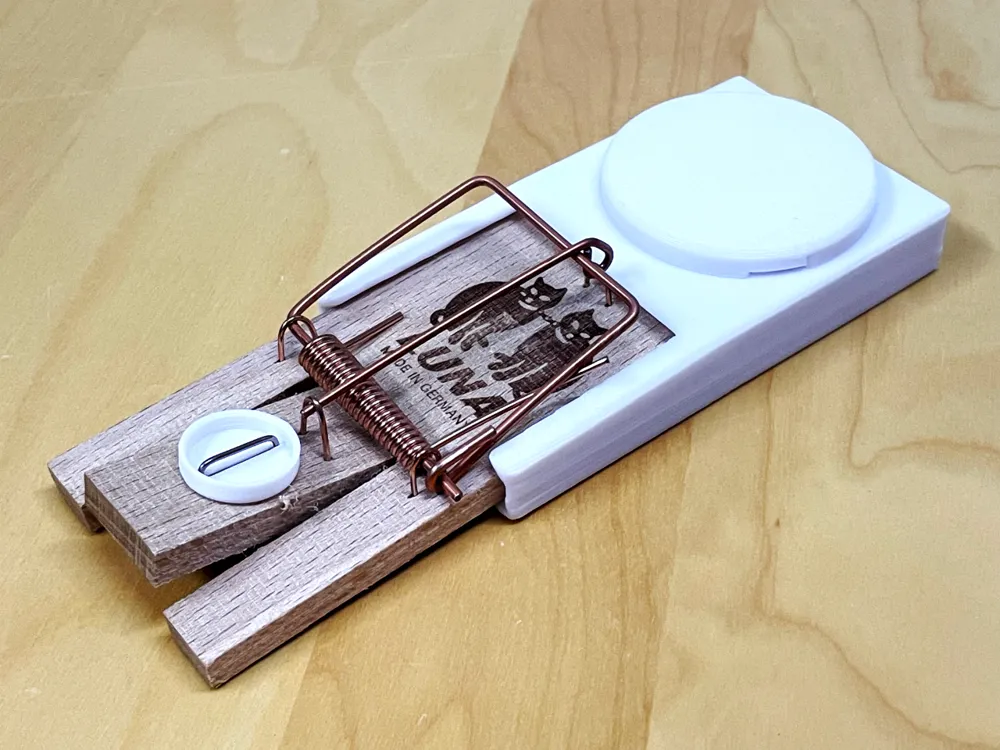

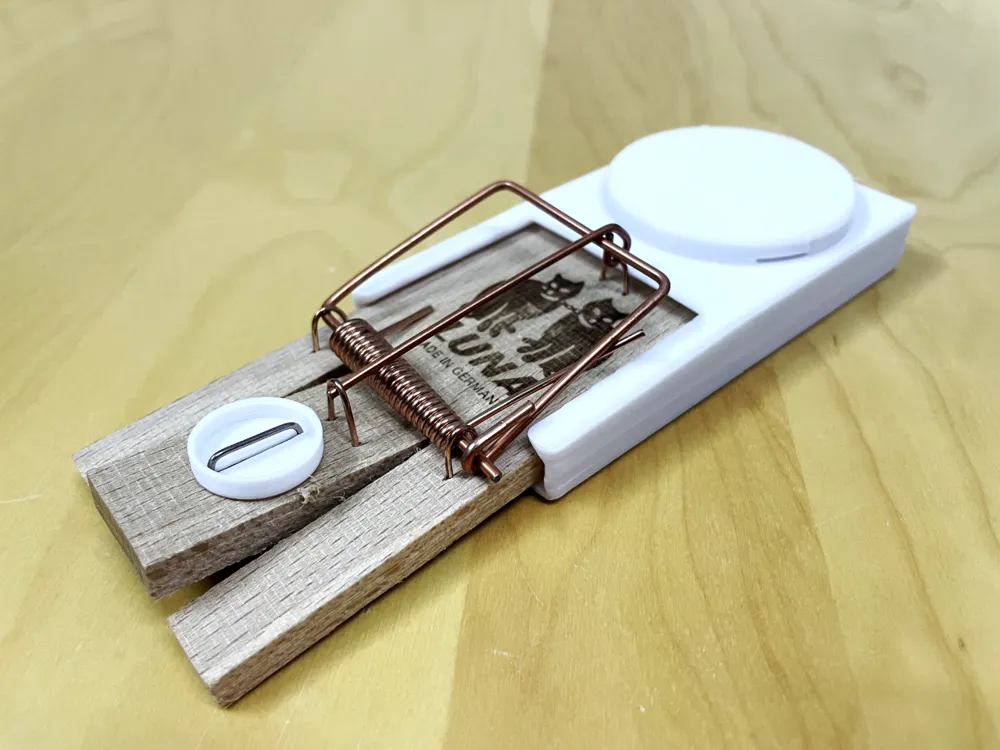

So I designed my own model, bought a few Zigbee vibration sensors, and put everything together. And here it is, my smart mouse trap:

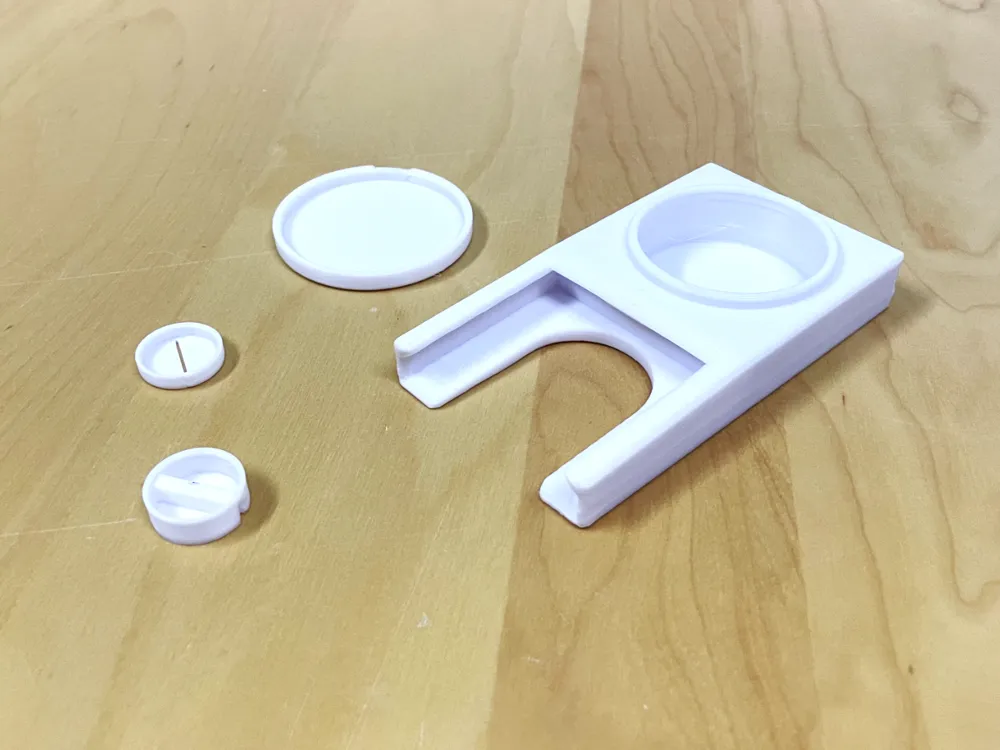

- designed to fit a mouse trap measuring around 100 x 50 x 7-8 mm

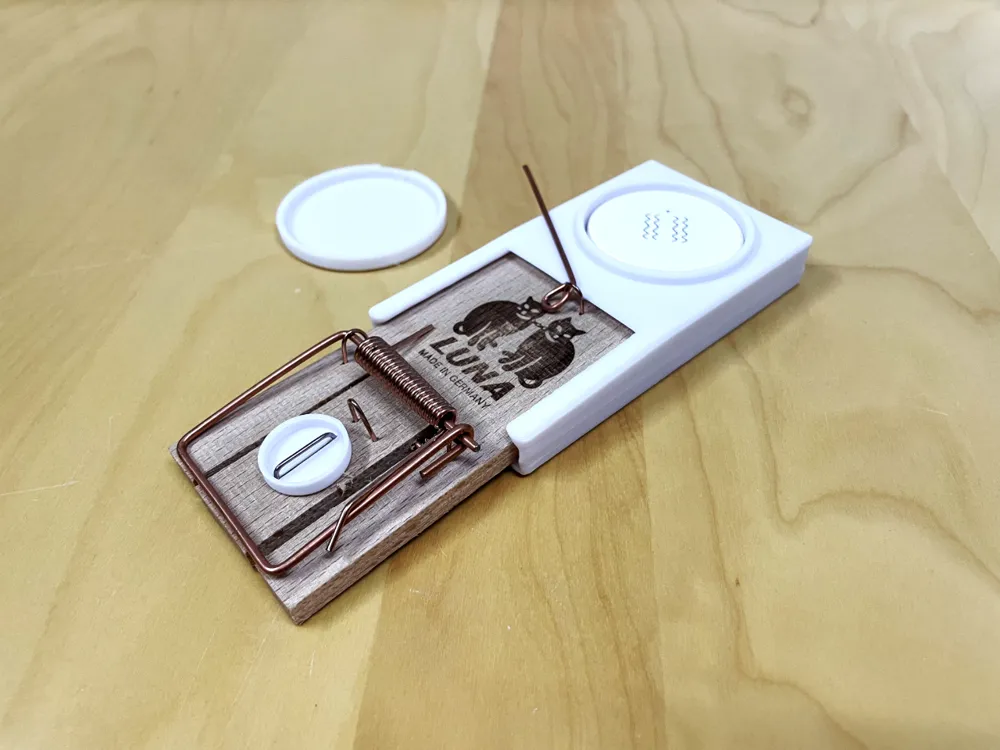

- the TUYA ZG-103Z (round, 40 mm diameter) is suitable as a vibration sensor or there's even a round version of the TUYA TS0210 which also fits
- additional small interchangeable plate for bait (e.g., for Nutella)
