Rack4all EVA Foam Feet´s

What it is / What it does?

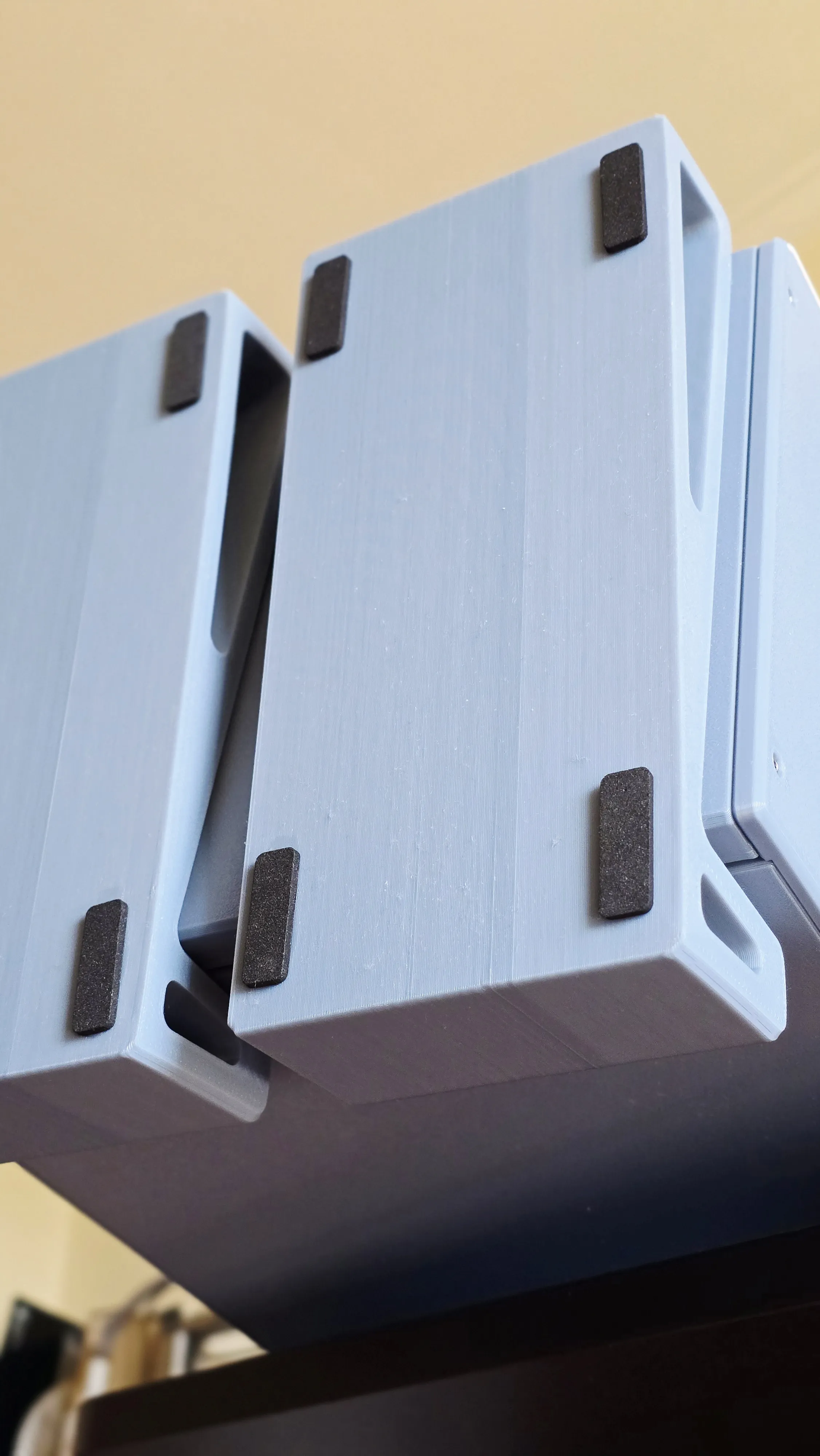

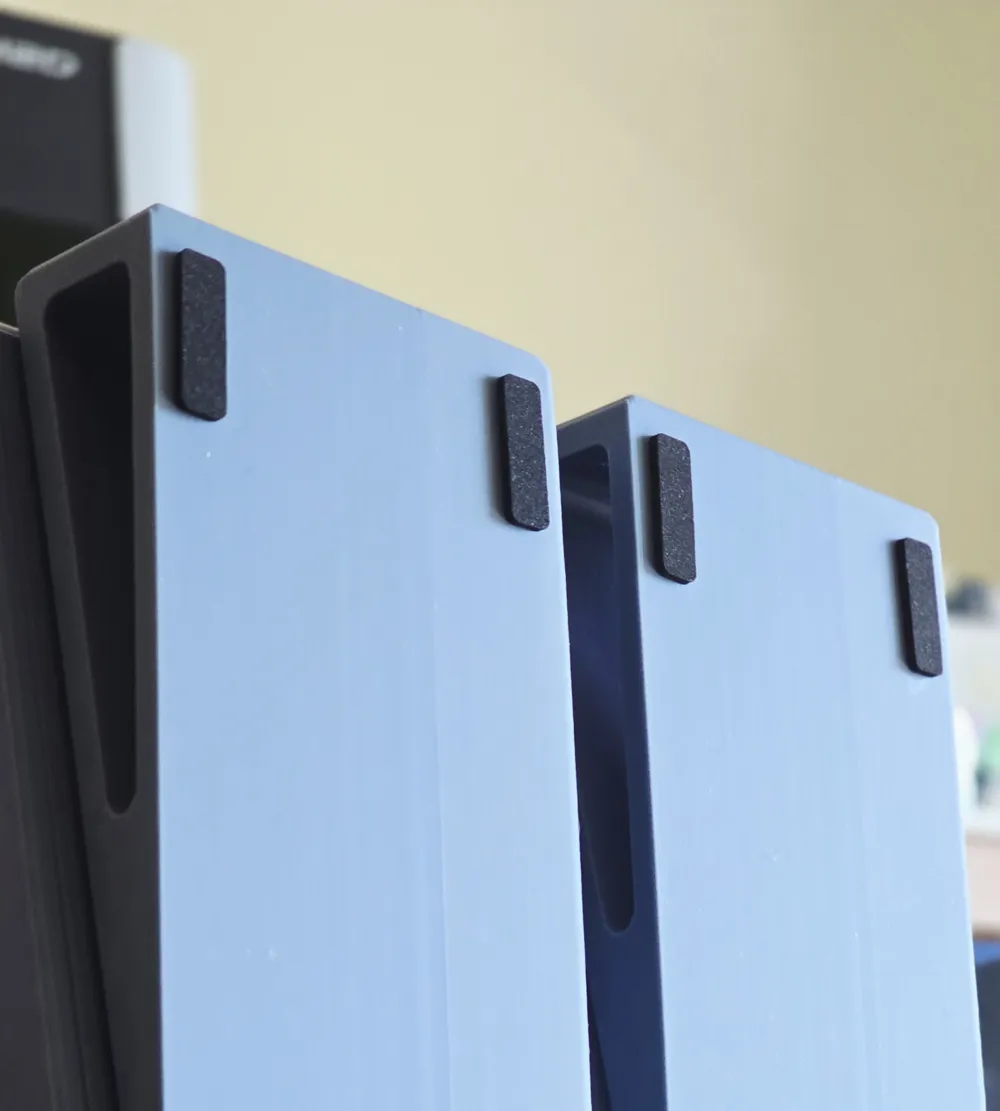

• These feet are an extra option designed to be placed on the bases of the Rack4All modules.

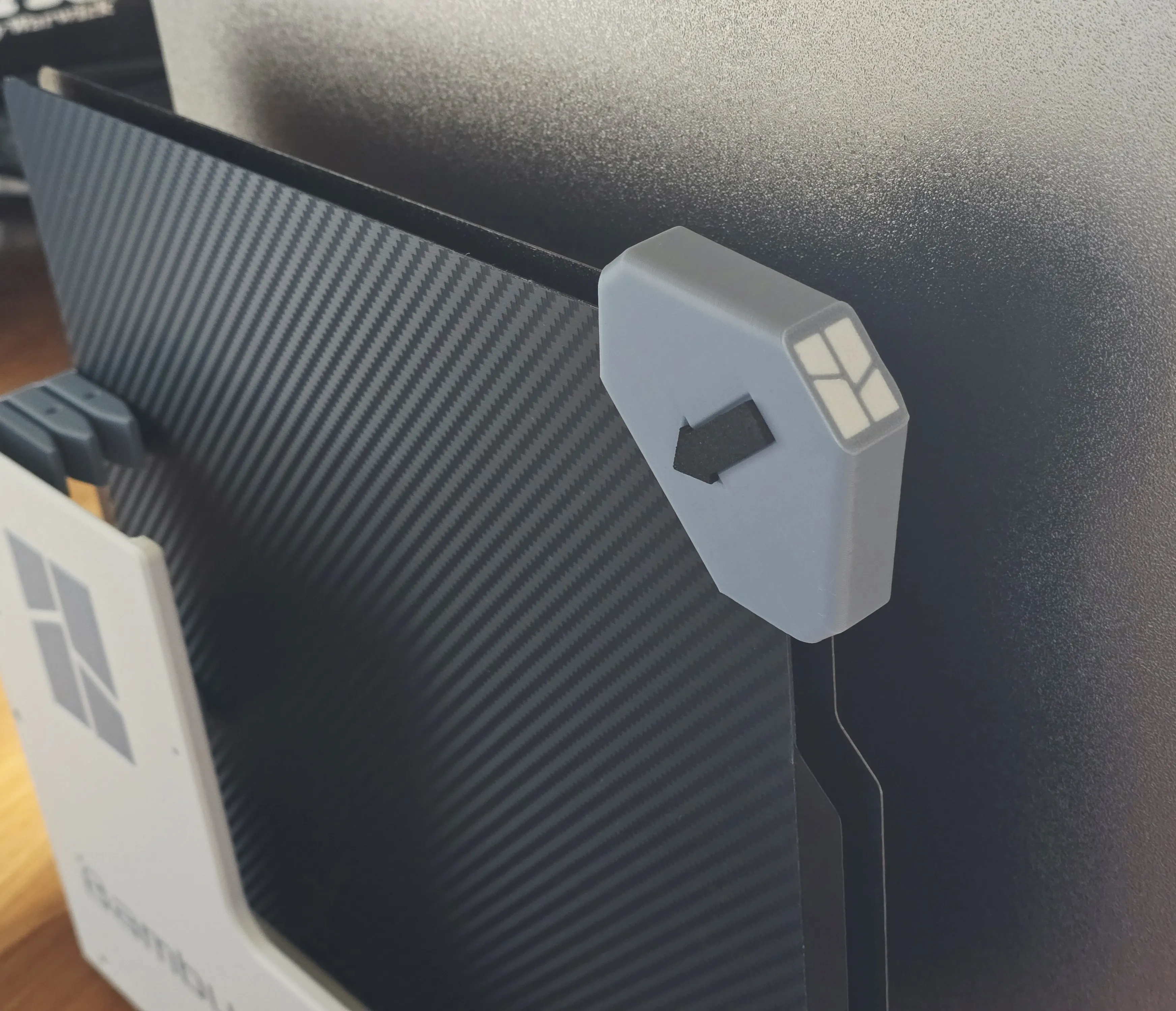

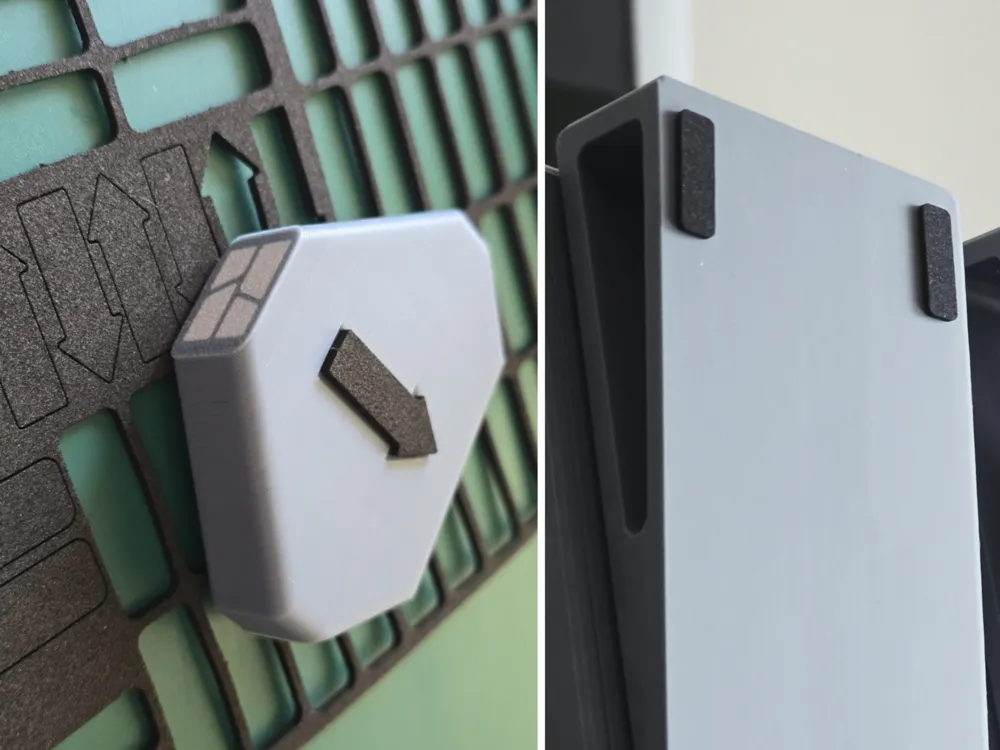

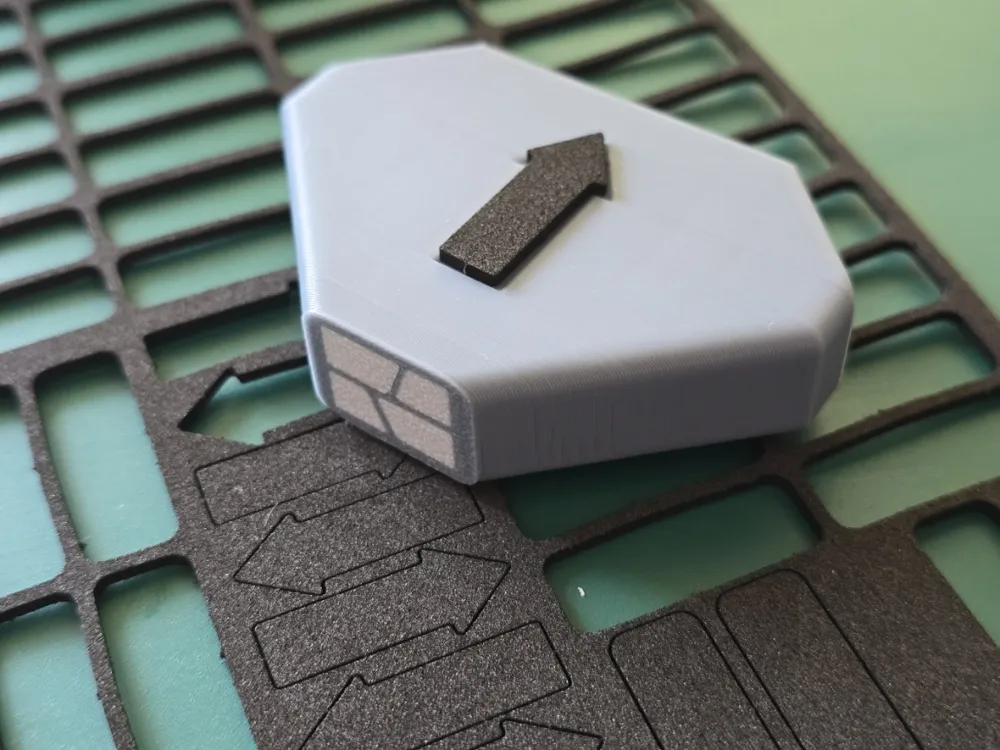

The arrows, can be applied on the lateral spacers of the Rack4All - Builplates

Key Features:

• They are made using EVA foam, a material that can be easily laser cut.

Materials Needed:

• The specific material used is A4 sheets of 2mm EVA foam.
• It is noted that EVA is not a material offered by Bambu Lab.
• The foam should be glued afterwards, implying that non-adhesive foam is used. I've choose not to use pre-adhesive foam.
  • The choice to use non-adhesive foam was due to subproducts that are released during the cutting process, when using adhesive foam. Use non-adhesive EVA for laser cutting for a cleaner process.

Tools Needed:

• A laser cutter is required.
• Printing/Cutting Details/Recommendations::
  • The laser profile tuning was done for a 10W laser.

  • If using a 40W laser, you should increase the feed rate to compensate for the higher power, or lower the power.



Assembly Instructions:

• After cutting the foam, it should be glued onto the bases of the modules.



  Dimensions:

  • The only dimension mentioned relates to the source material size (A4 sheets).

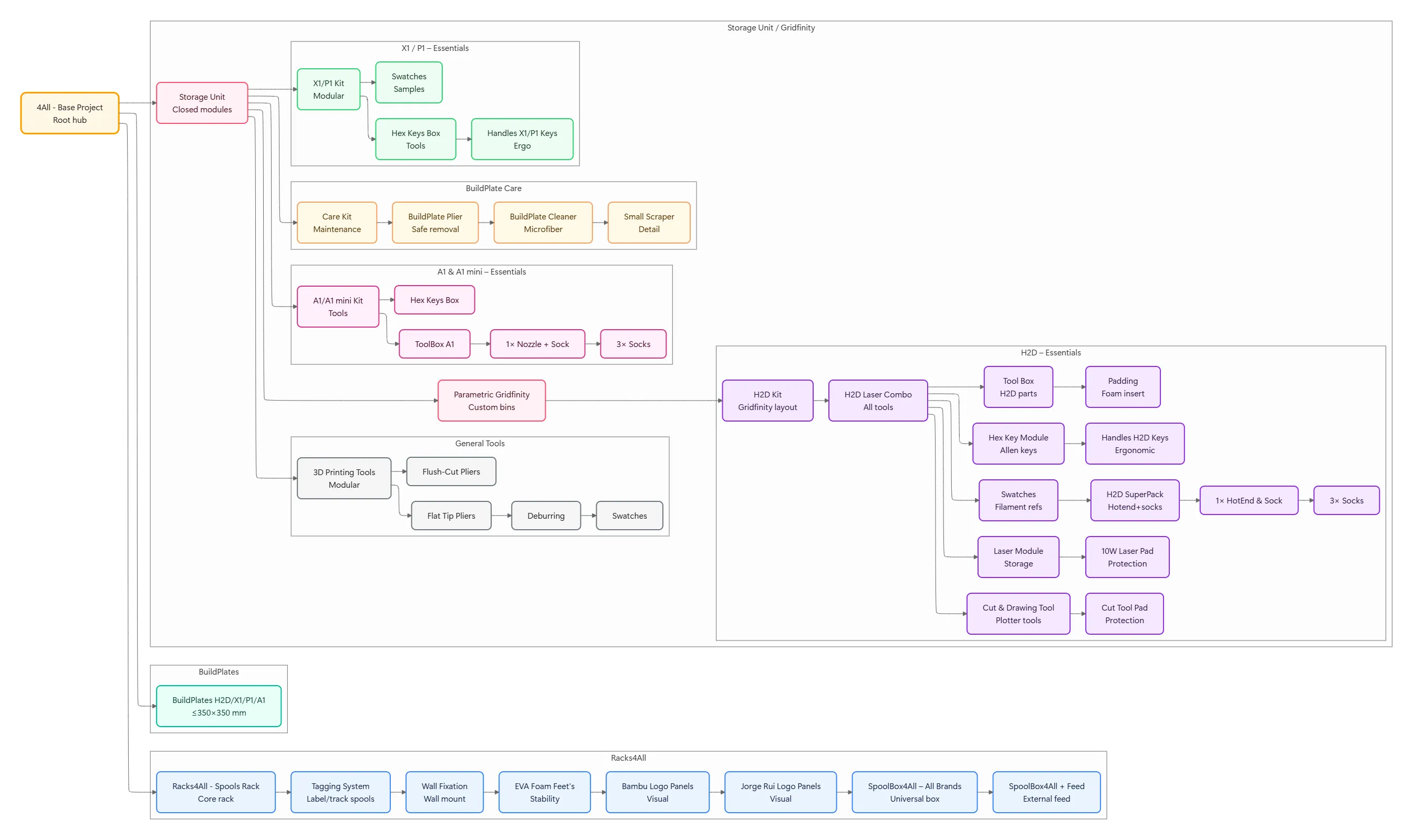

Modules available for the 4All Ecosystem
