A1 Mini - Panda Knomi Enclosure

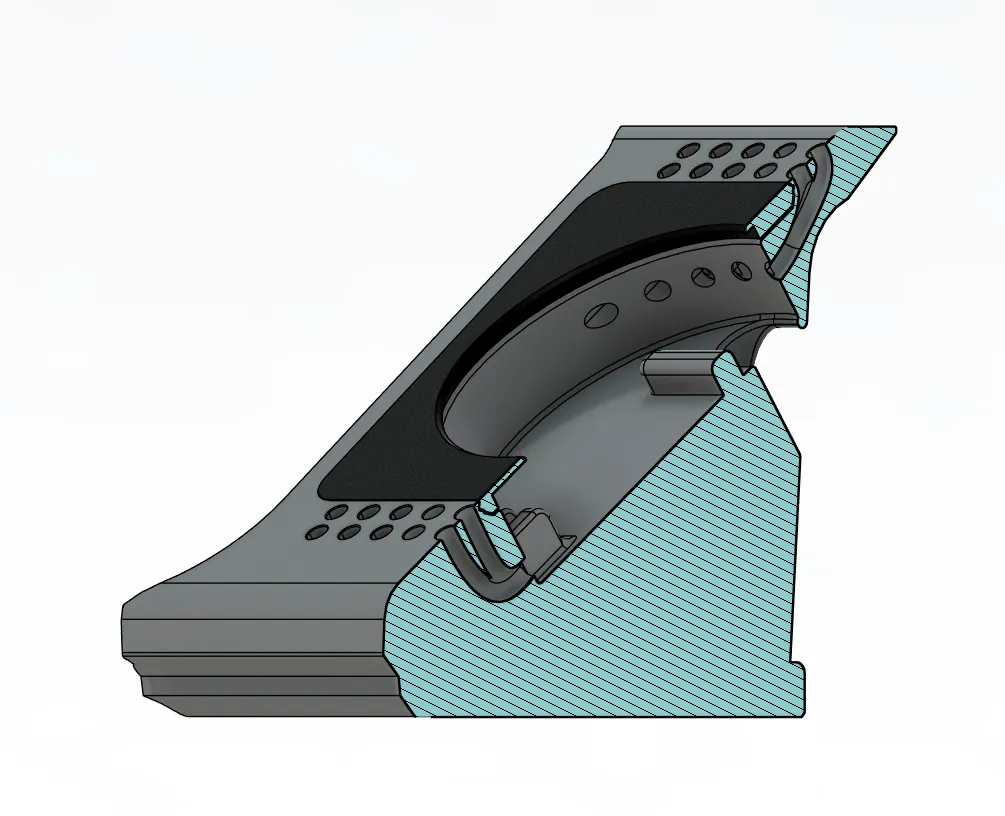

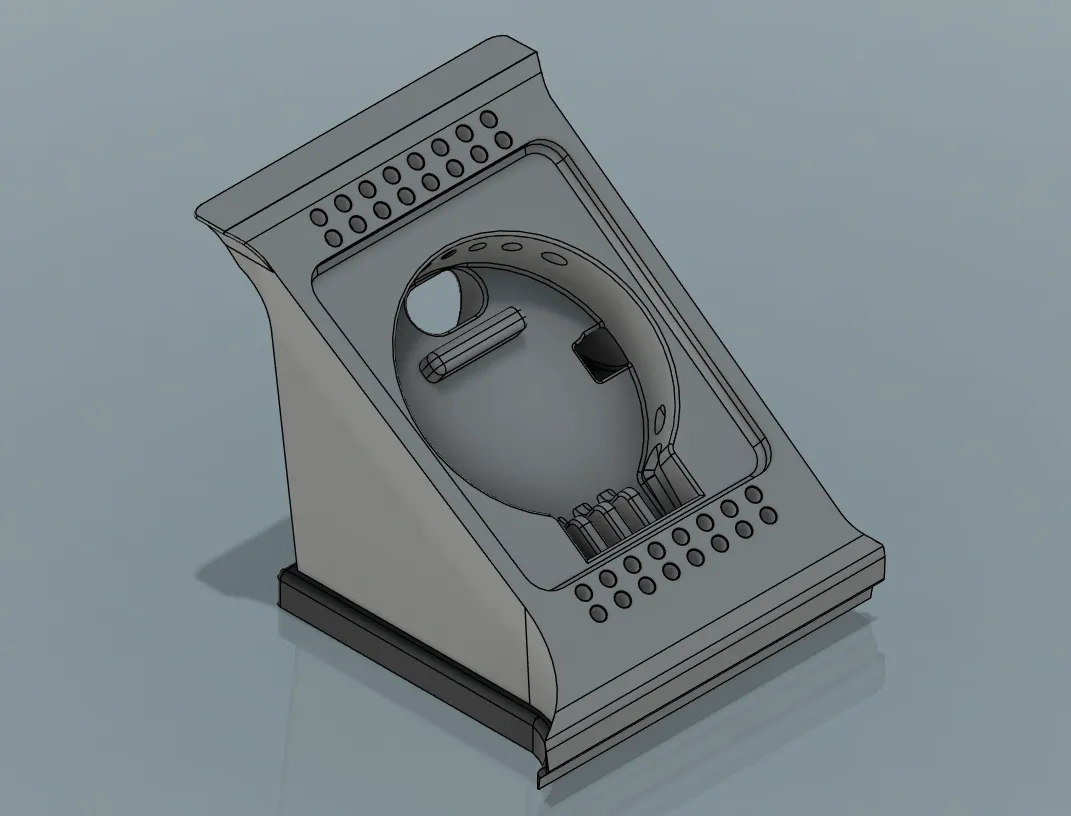

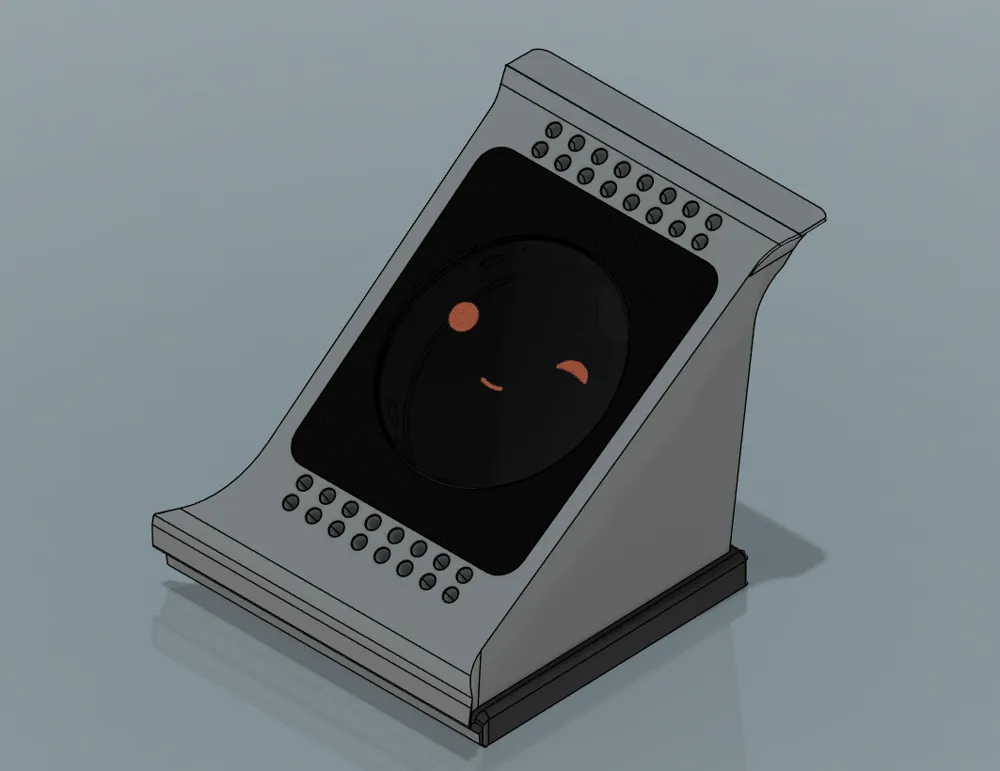

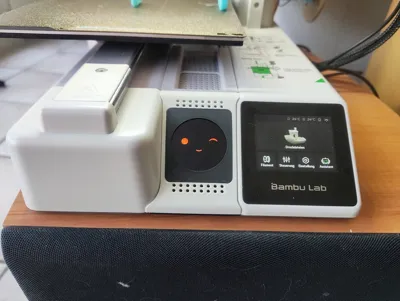

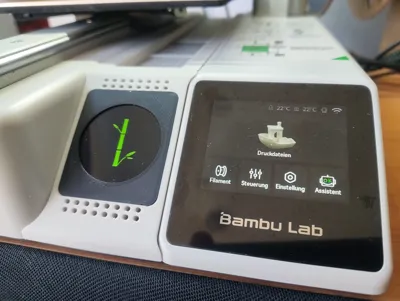

This is an enclosure for the Panda Knomi display

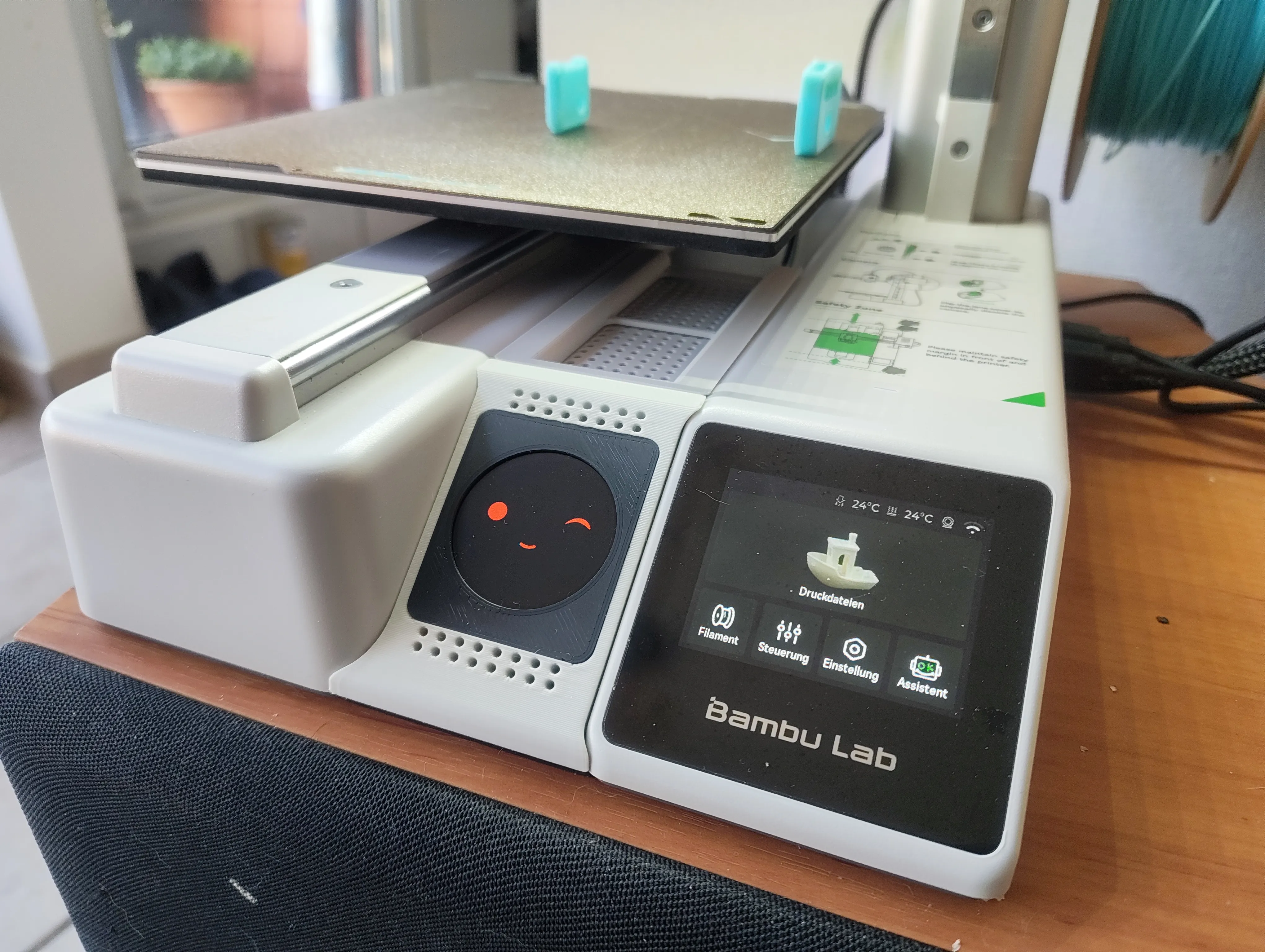

It conforms to the contours of the A1 Mini and fits into the recess on the front

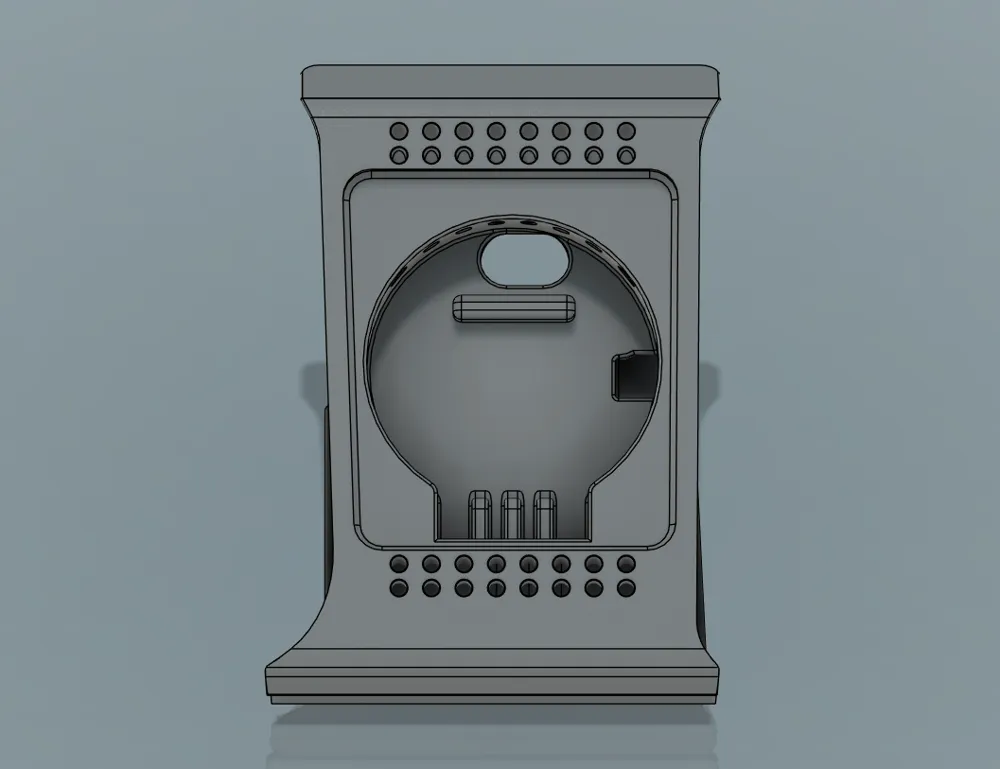

The enclosure features a cutout for the USB port

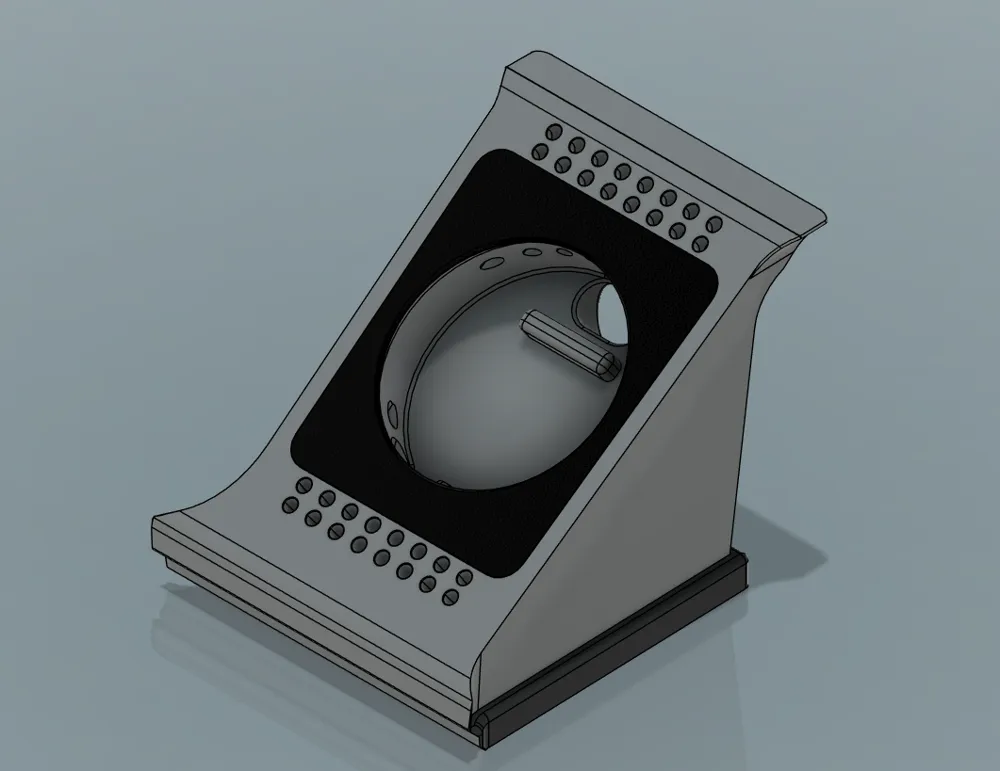

Furthermore, I have incorporated air channels to dissipate heat

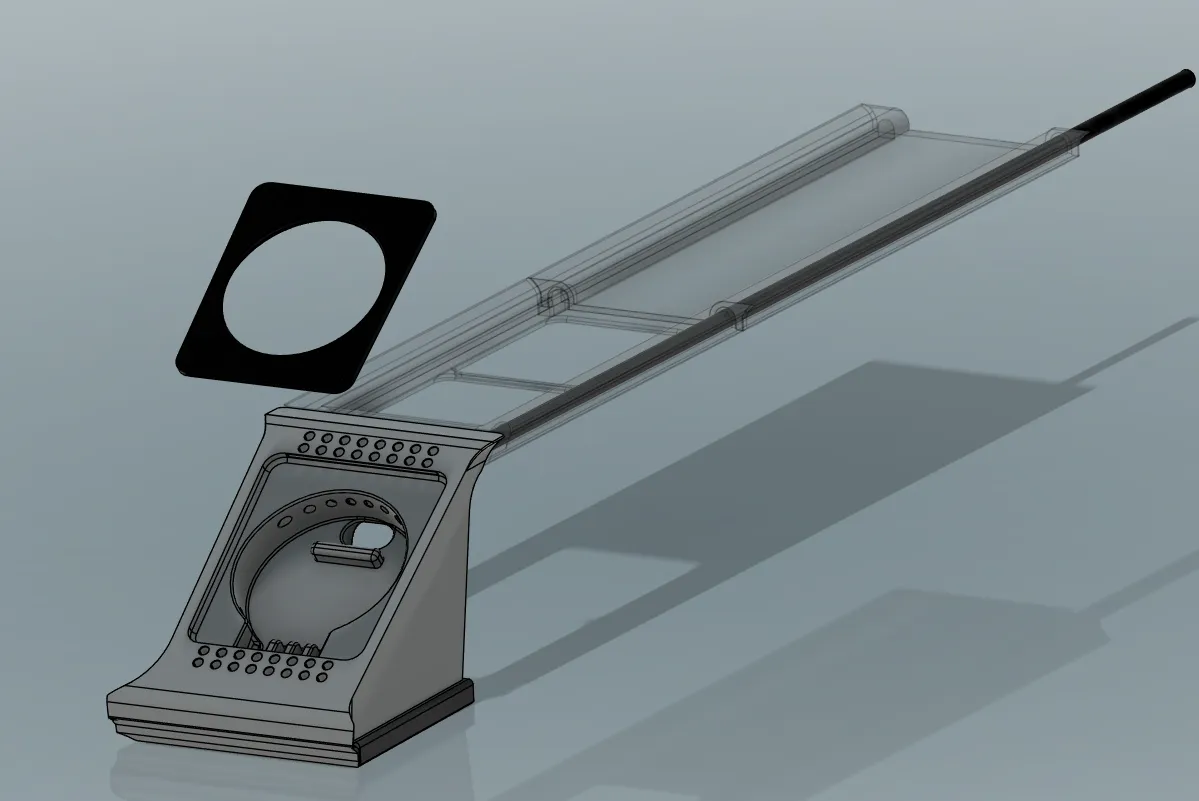

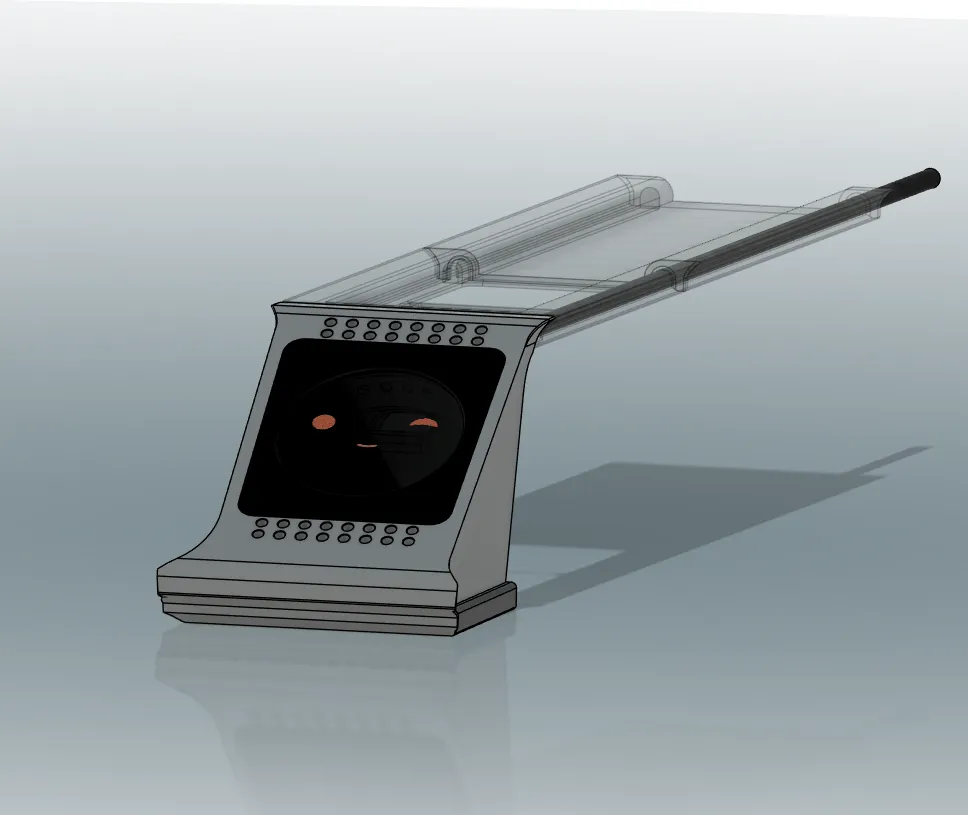

The set comprises four parts
- the enclosure - Case
- the Blackplate

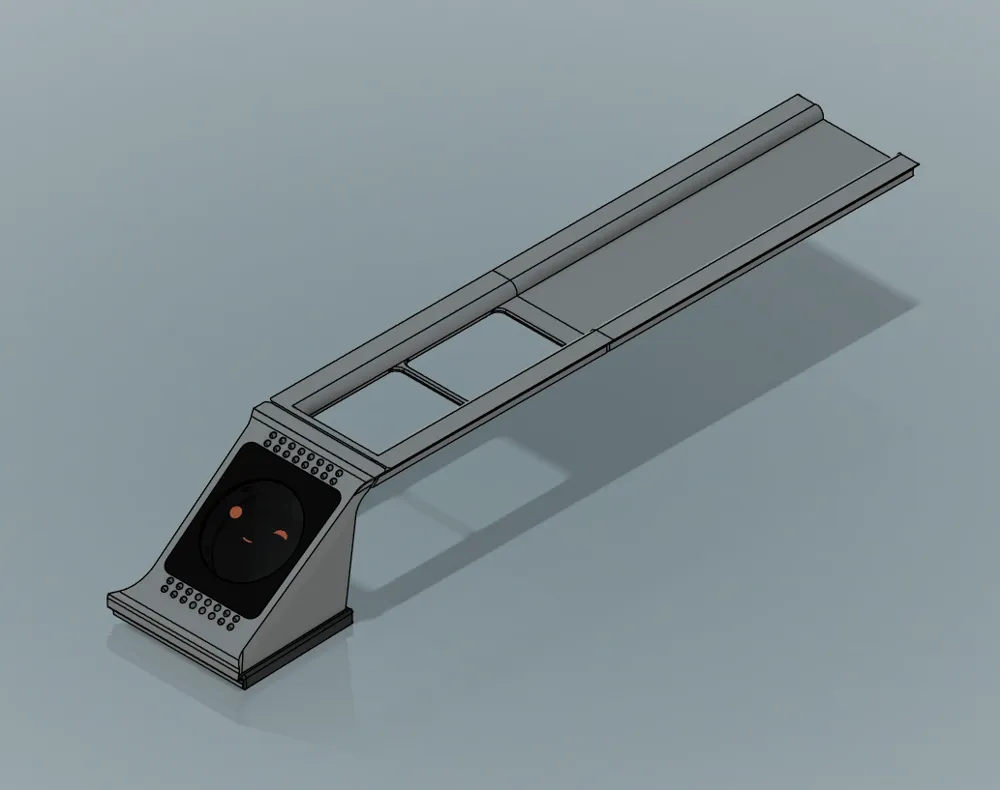

- cable cover 1
- cable cover 2
Instructions:
- Feed the cable from the rear through the lateral opening
- Connect the cable to the display
- Insert the display into the enclosure
- Press the Blackplate onto the display within the enclosure
- Route the cable upwards at the rear of the enclosure
- Slide the enclosure into the recess of the A1 Mini – paying attention to the cable
- Guide the cable behind the A1 Mini
- Attach cable cover 1
- Attach cable cover 2
- Connect the cable to the right side of the A1 Mini
Recommendation:

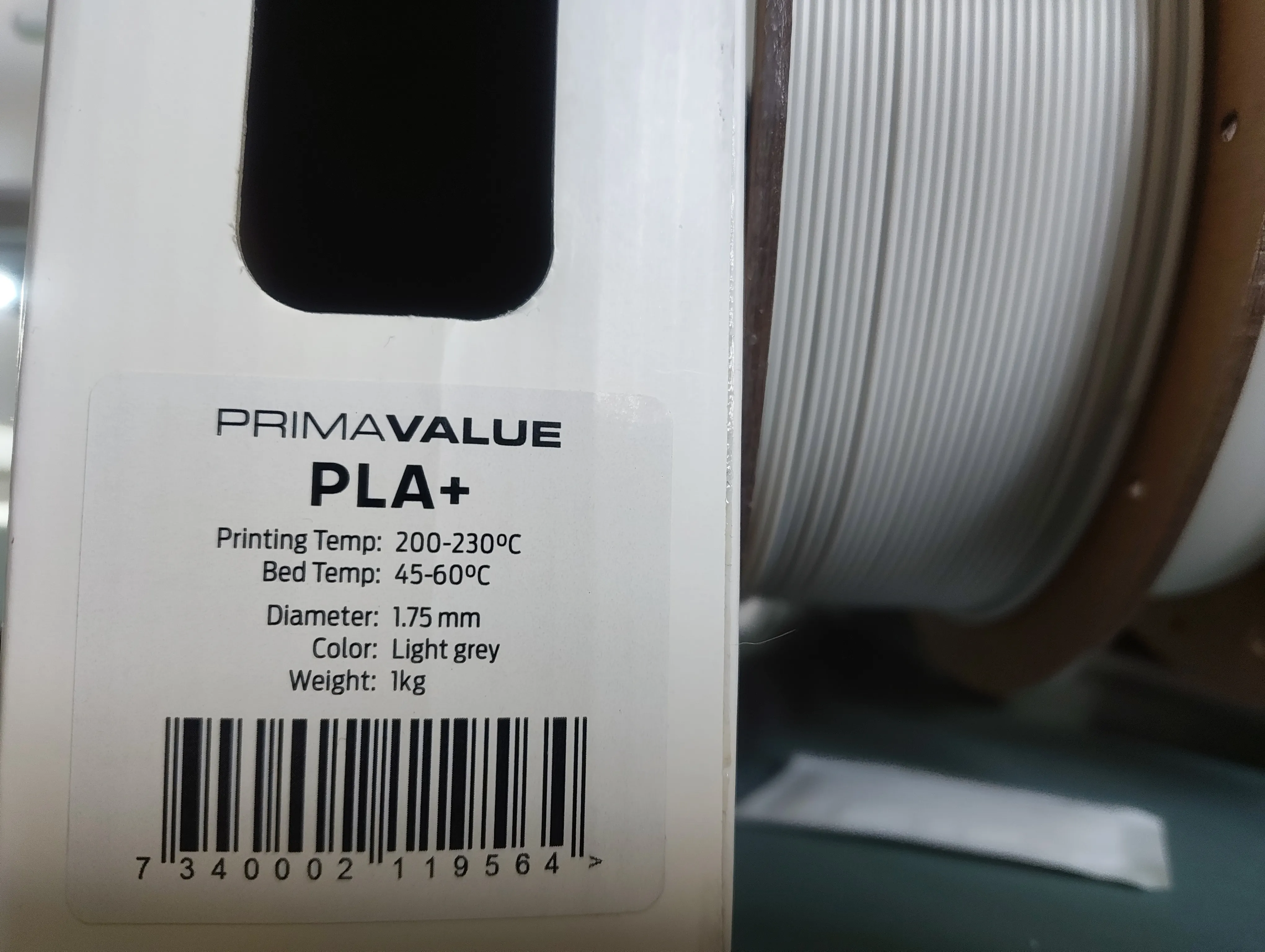

I recommend PRIMA VALUE's PLA+ in Light Grey for the enclosure color
This closely matches the color of the A1 and A1 Mini
Furthermore, I suggest a filament change at 5.4mm (Layer 27) for the enclosure
For the first 26 layers, I recommend dark grey or black filament
I have included a corresponding print profile See print profiles
