A1 - Panda Lux LED Cover
Print Profile(5)
Description
Cover for the BIQU Panda Lux LED Upgrade Kit
with 14 LEDs for the Bambu Lab A1
https://biqu.equipment/products/biqu-panda-lux-led-upgrade-kit-bambu-lab-a1
I personally found the LEDs a bit too bright, hence this cover
IMPORTANT!!! Version V1.1

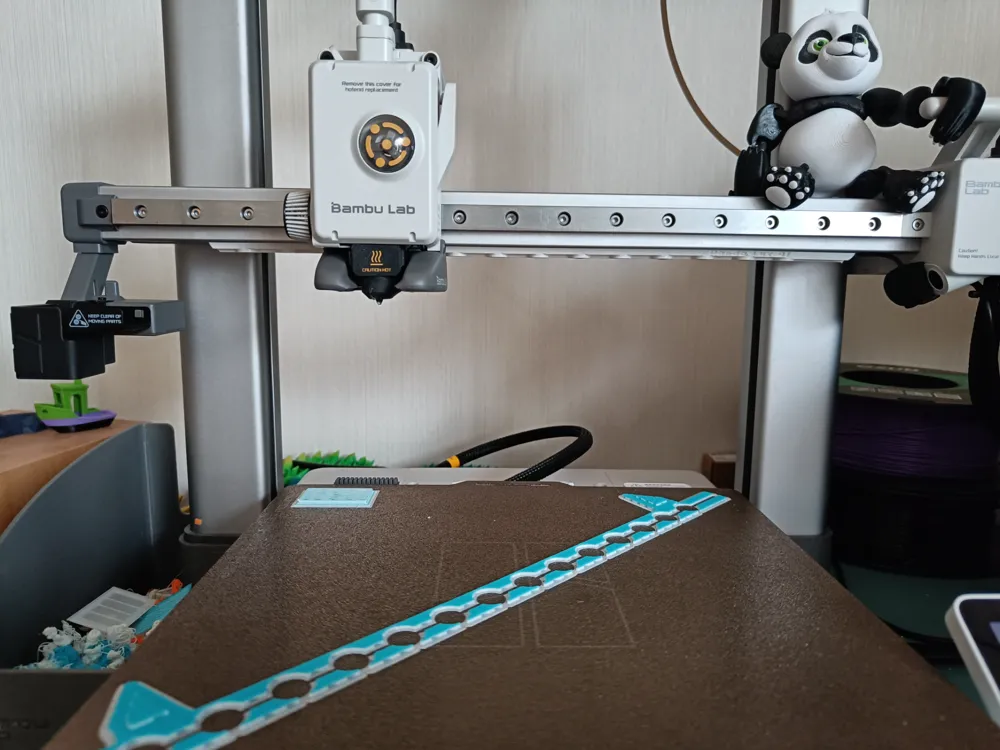

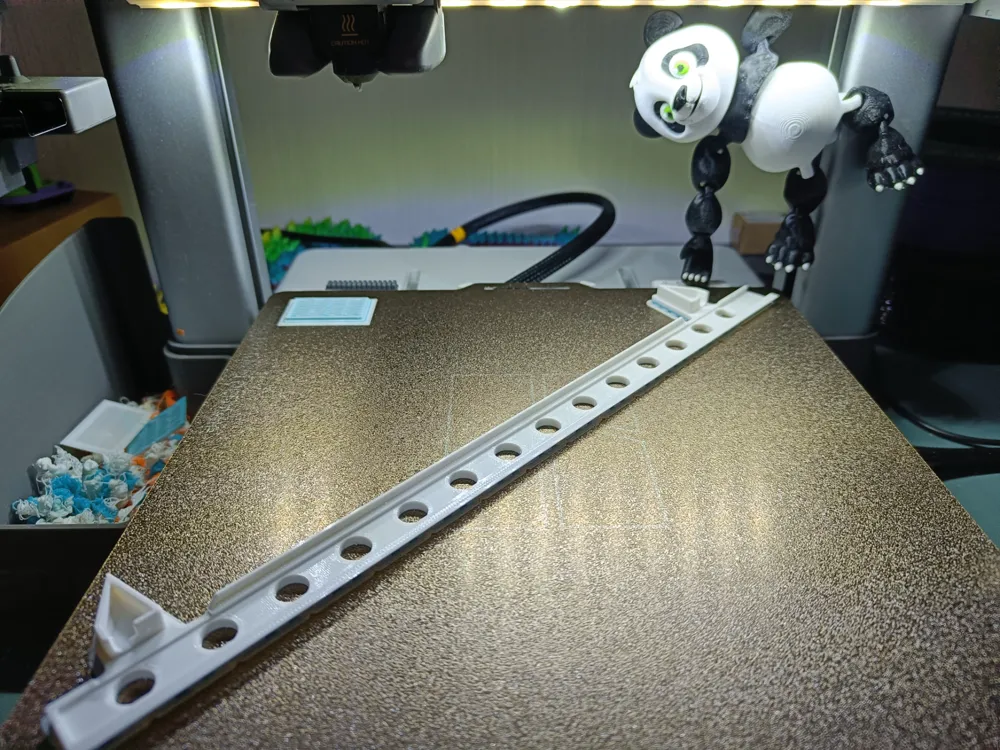

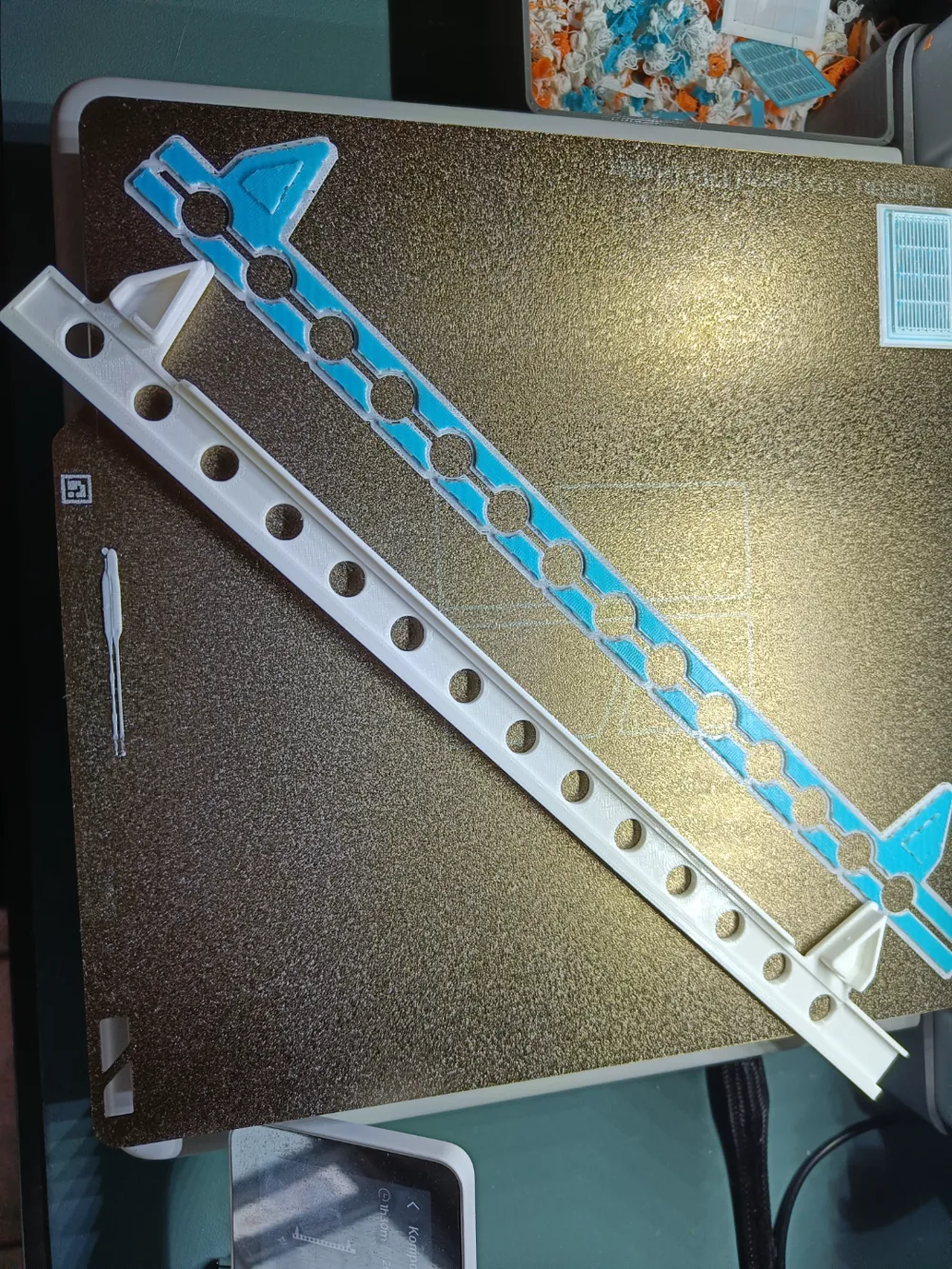

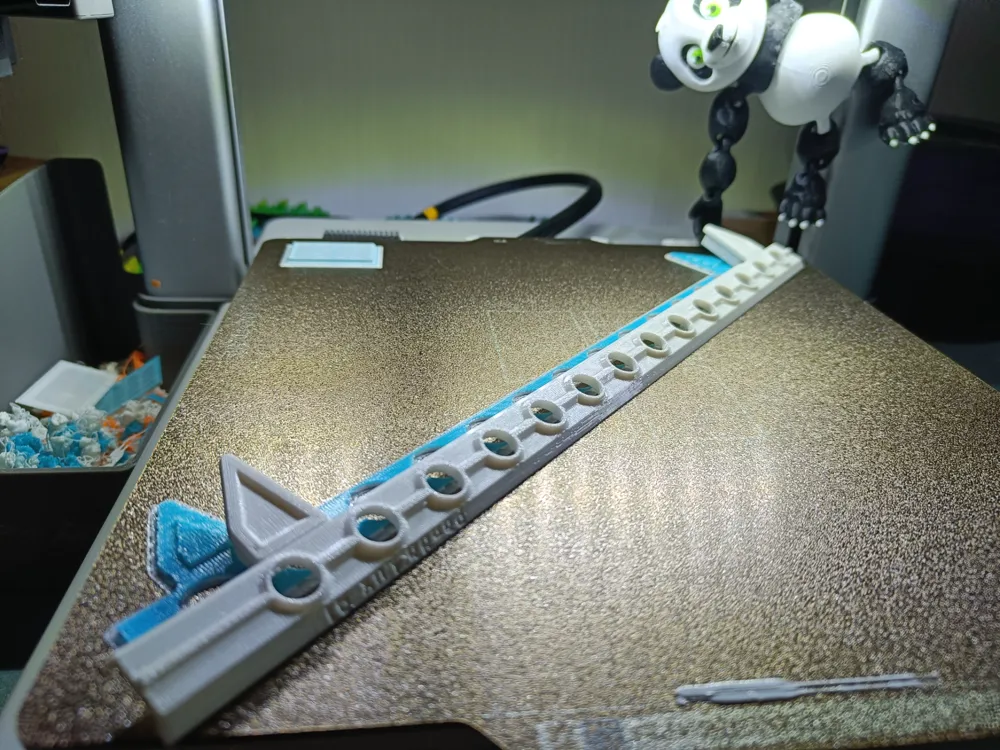

- Cover V1.1 printed in PETG
- Supports also printed in PETG
- Only the interfaces are printed in PLA
- AMS-LITE required PETG and PLA
See print profile - description and images

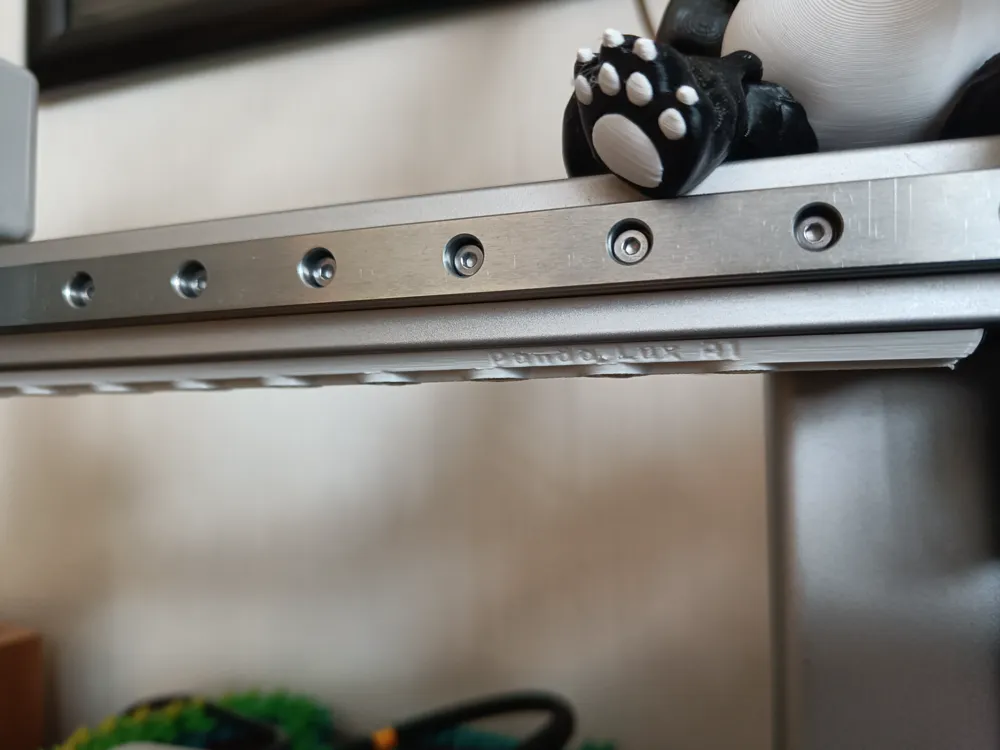

Simply press the Panda Lux LEDs into the cover, then press the cover evenly from below into the aluminum profiles
The adhesive strip is not required

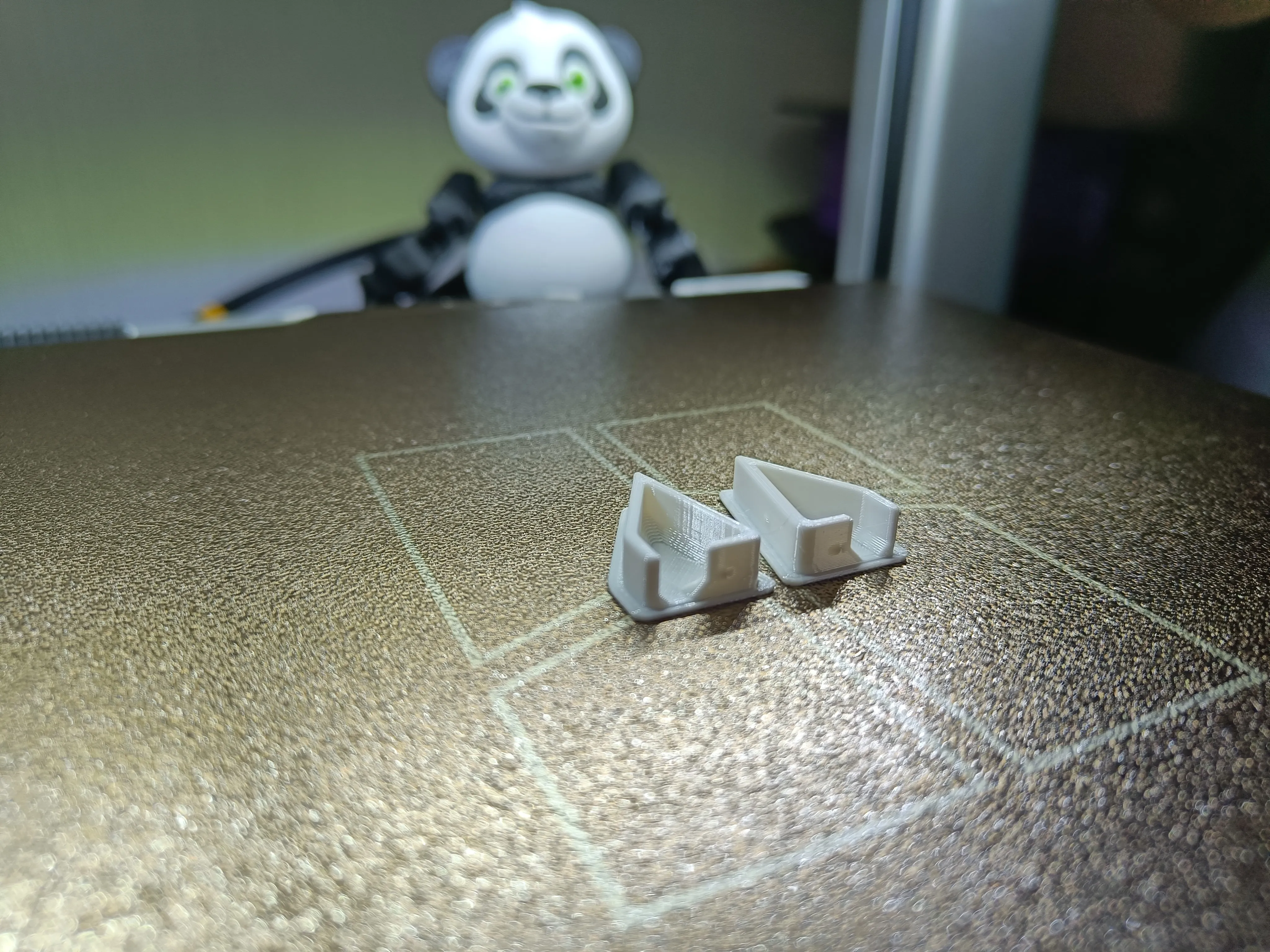

Matching top covers in the print profiles
These can also be used to test the attachment, they are quick to print

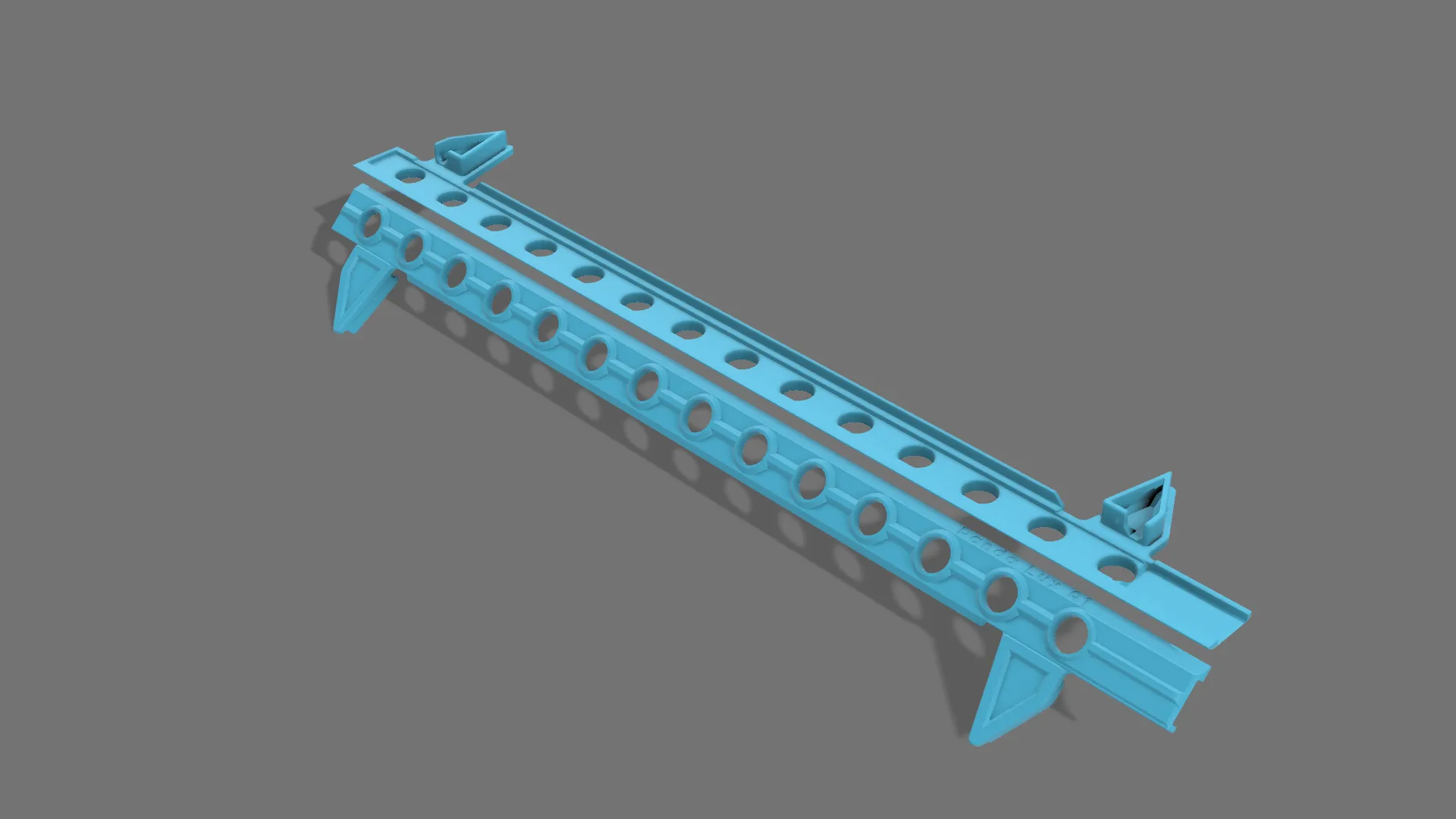

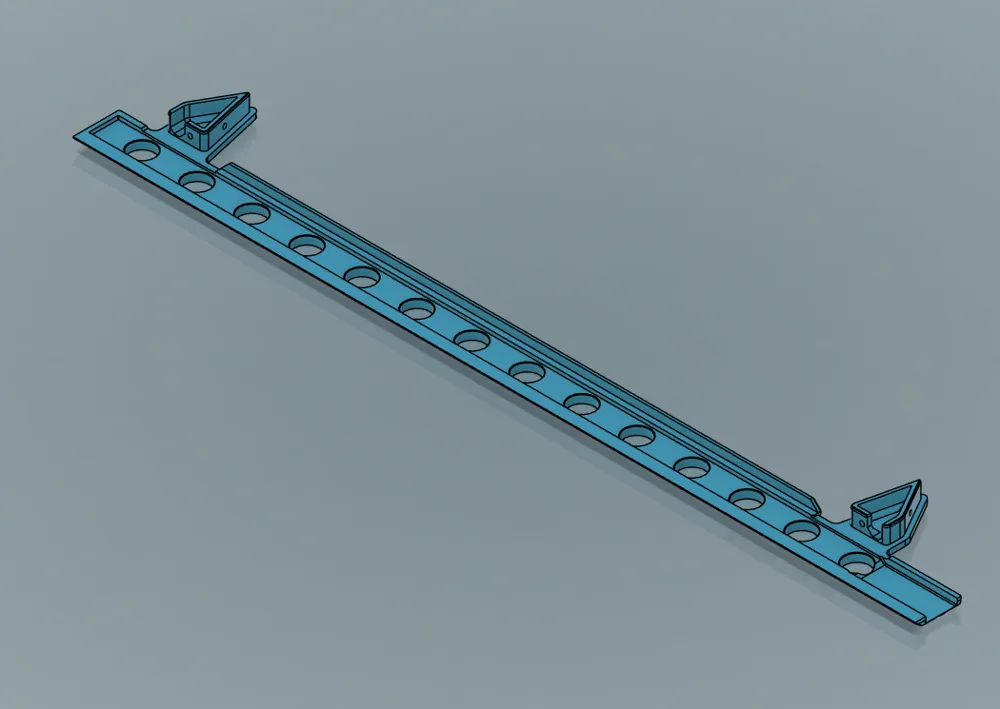

LED COVER - V1.1 - See instructions in the print profiles
AMS-LITE required

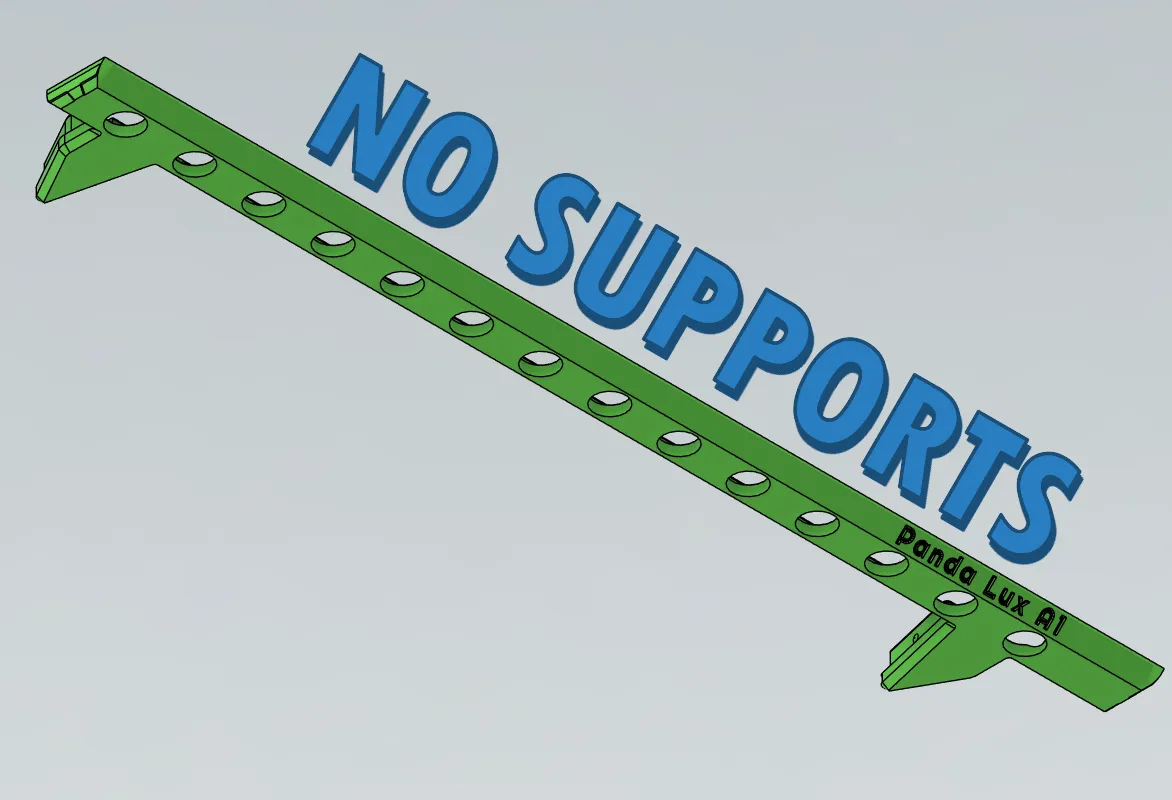

I have added another version
This can be printed without supports
No AMS-LITE required - See print profiles
LED COVER - no supports
In the downloads there is another version without the PANDA LUX A1 lettering
and a version with a 5mm lateral offset (if the cable is a little too short)
Due to manufacturing tolerances of the LED lenses, I have set the
X-Y hole compensation to 0.2mm in both print profiles = The holes are now 0.4mm larger in diameter
