Bambu Fan by Dr. J. Ma

Dr. J. Ma

Household>Other House Models

IP Report

Print Profile(3)

All

X1 Carbon

P1S

P1P

X1E

0.2mm layer, 2 walls, 15% infill

Designer

1.4 h

1 plate

4.8(29)

better handle. 0.2mm layer, 2 walls, 15% infill

1.4 h

1 plate

5.0(2)

0.2mm layer, 2 walls, 15% infill

3.6 h

3 plates

5.0(1)

Open in Bambu Studio

Boost

196

139

Released

Description

Model

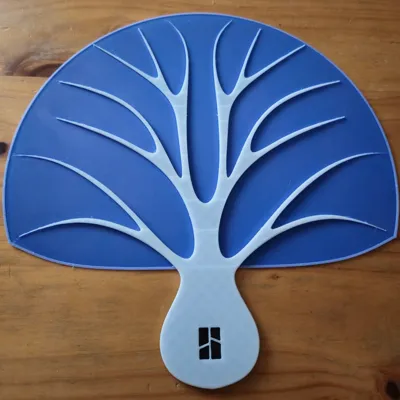

A small fan width 240mm.

Model designed with Onshape, available in https://cad.onshape.com/documents/6edea336178226a7eb2792df/w/57a3614702c821e5bf9432b6/e/f18792434e65ef8f0eac1cf0

Recommended!

0.2mm layer or smaller.

A perfectly leveled bed or mesh ABL is required because it has a large thin surface.

The 3mf is painted with Bambu Studio, 2 or 3 colors print is highly recommended. Looks much better.

bambu

fan

Comment & Rating (41)

@lilykatwaffles

Print Profile

0.2mm layer, 2 walls, 15% infill

moves a lot of air and easy to use!

@canolabuns

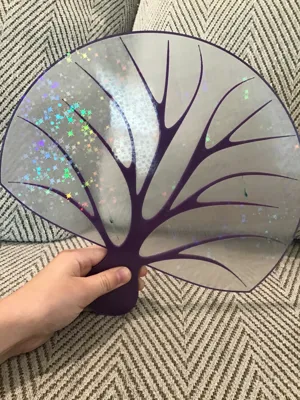

Love the use of the sparkly print bed!

@lilykatwaffles

Replying to @canolabuns :

thanks!

@Dafla_107

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

great design, very strong and makes lot of air movement, only pet peeve is I removed the leaf part below the branches at the bottom to allow for better handling

@canolabuns

Could you upload this as a remix, I prefer it to the original.

@Dafla_107

Boosted

Replying to @canolabuns :

mine happened more as an accident, but done! you should be able to see it.

@canolabuns

Replying to @Dafla_107 :

thank you!

@Gadge814

Print Profile

0.2mm layer, 2 walls, 15% infill

Good design and was easy to print.

@lalou

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

Superb fan and very efficient.

@canolabuns

Print Profile

better handle. 0.2mm layer, 2 walls, 15% infill

A bit of stringing on the white parts but easy to clean up. Good model.

@Chirugi

Print Profile

0.2mm layer, 2 walls, 15% infill

This is sturdy and looks good. This can cool you or can save you from dogs' bad-smelling farts. As a survivor, I hope you're not too late in printing this for your own sake.

@Noooommm

a more long hand hold

@Willkdross

Print Profile

0.2mm layer, 2 walls, 15% infill

a little thin (as necessary) and results in slight transparency in back of fan

@Screech24

Print Profile

0.2mm layer, 2 walls, 15% infill

Printed using generic PETG filaments turned out pretty good some small issues with stringing mostly due to wet filament. but the print profile still works with Petg no problem.
