Description

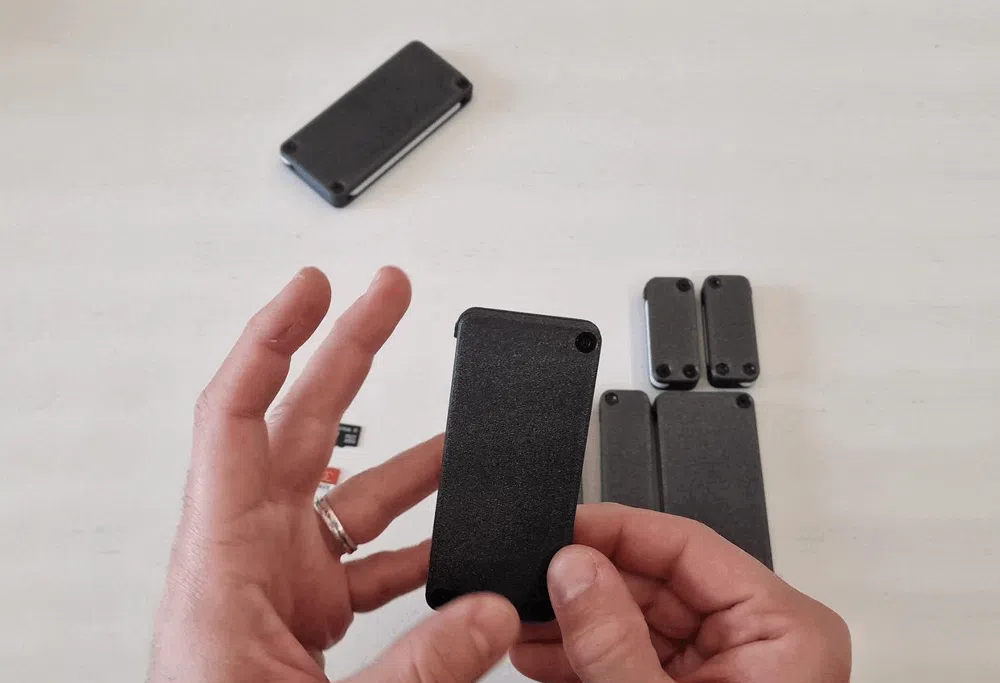

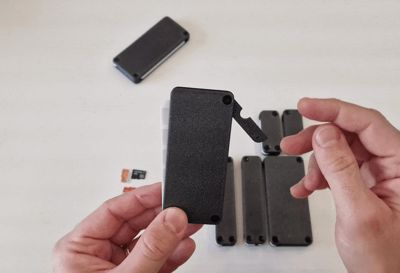

This is a 3D-printed MicroSD card holder featuring rotatable trays in a knife-style (bayonet) mechanism.

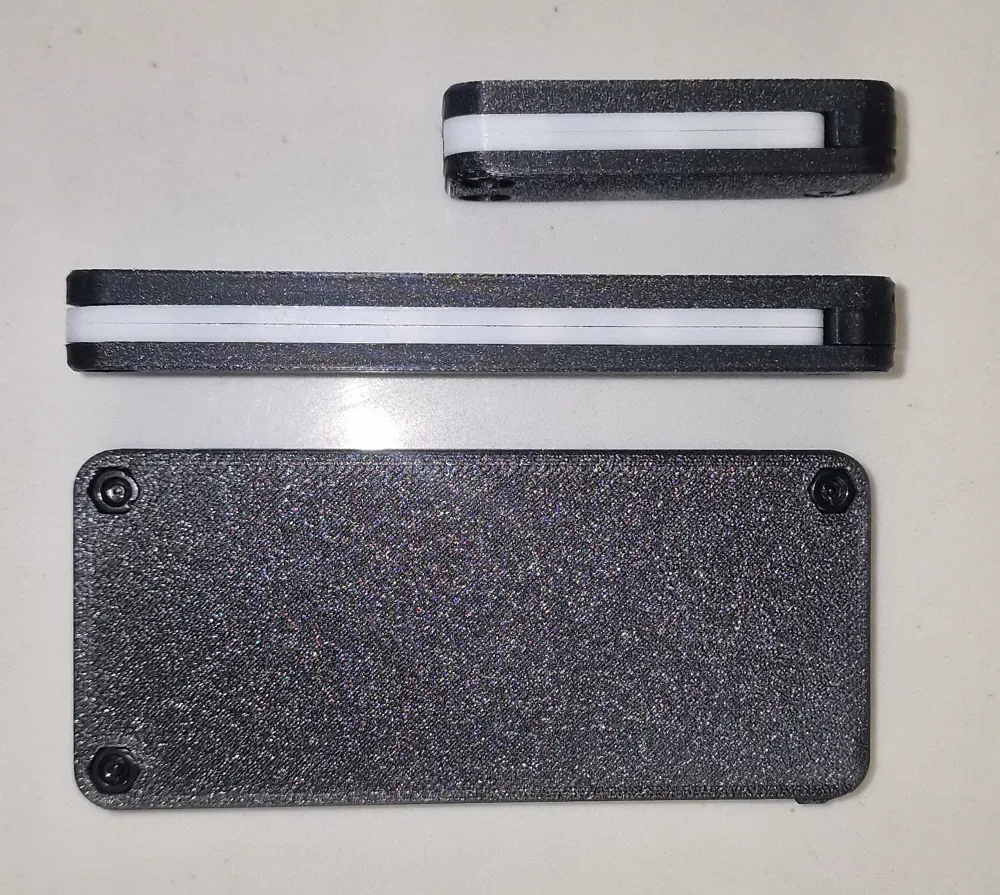

The trays are stackable, allowing for a modular storage system that efficiently holds MicroSD cards while using minimal material.
This secure system helps prevent the loss of your MicroSD cards.
The assembly requires only:
- 3x M3 screws (M3x8 for 1 tray, M3x10 for 2 trays, M3x12 3 trays etc..)
- 3x M3 nuts
- 2 neodymium magnets (6mm diameter, 2mm height)

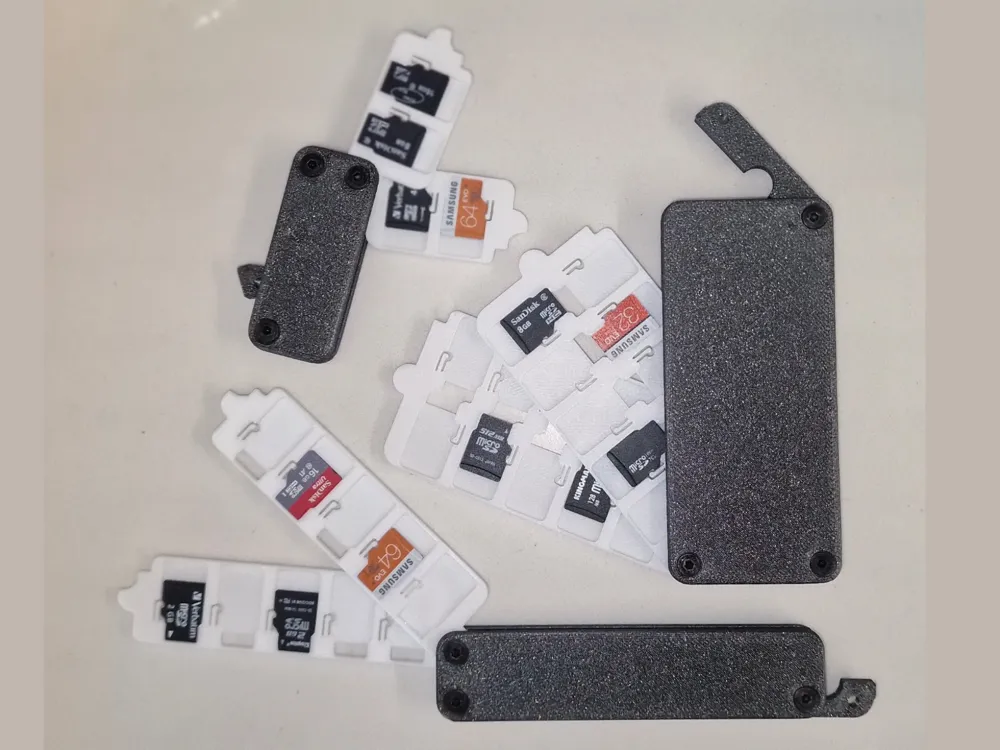

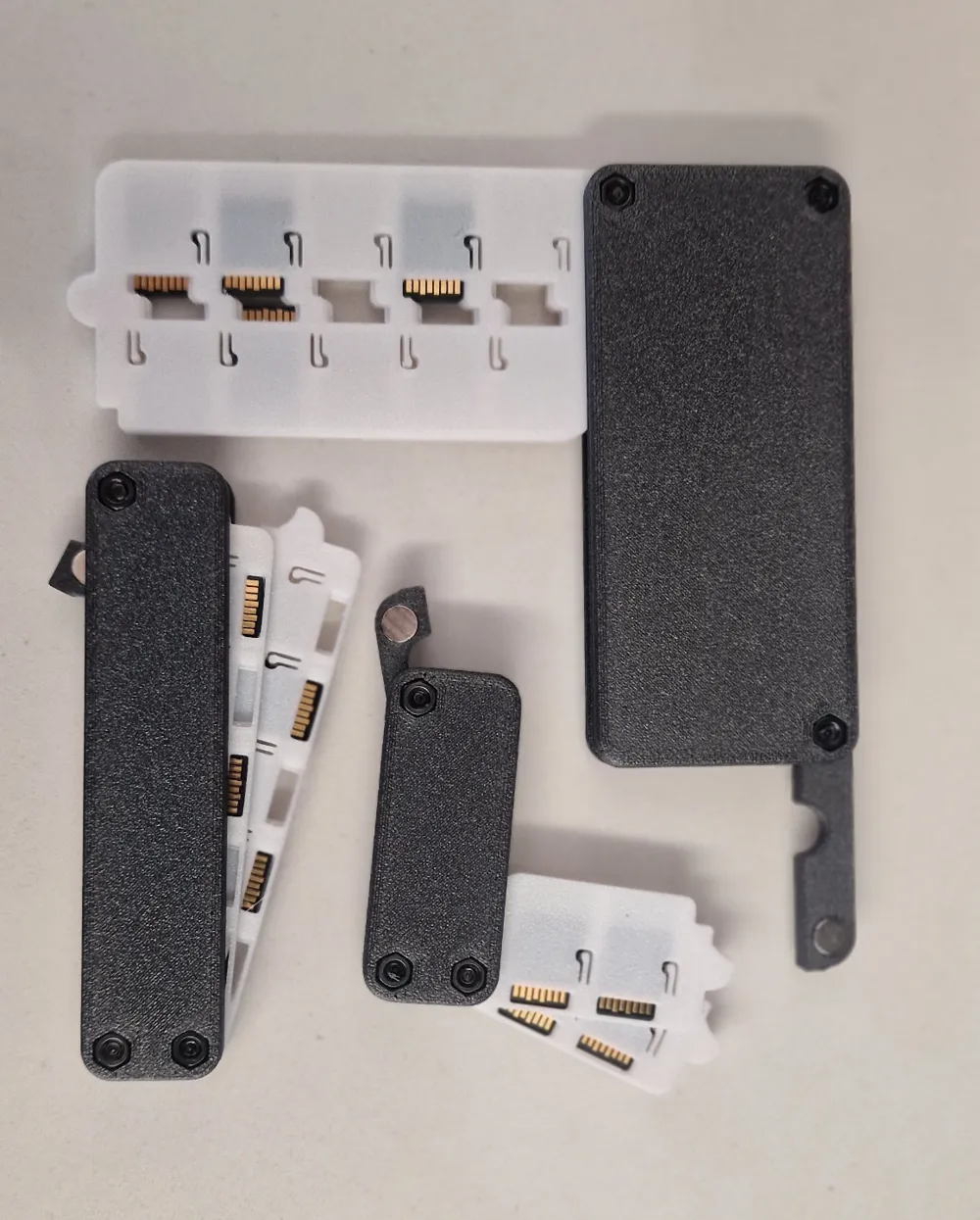

The trays are available in different orientations (R1, R2, R3, R4) to suit various needs.
Magnet-equipped levers are published for configurations with 1, 2, 3, and 4 trays,
and can be provided for additional tray configurations upon request.
The spacers are stackable, but solid spacer blocks are also available for x2, x3, and x4 configurations.
# Updates 2025-04-12

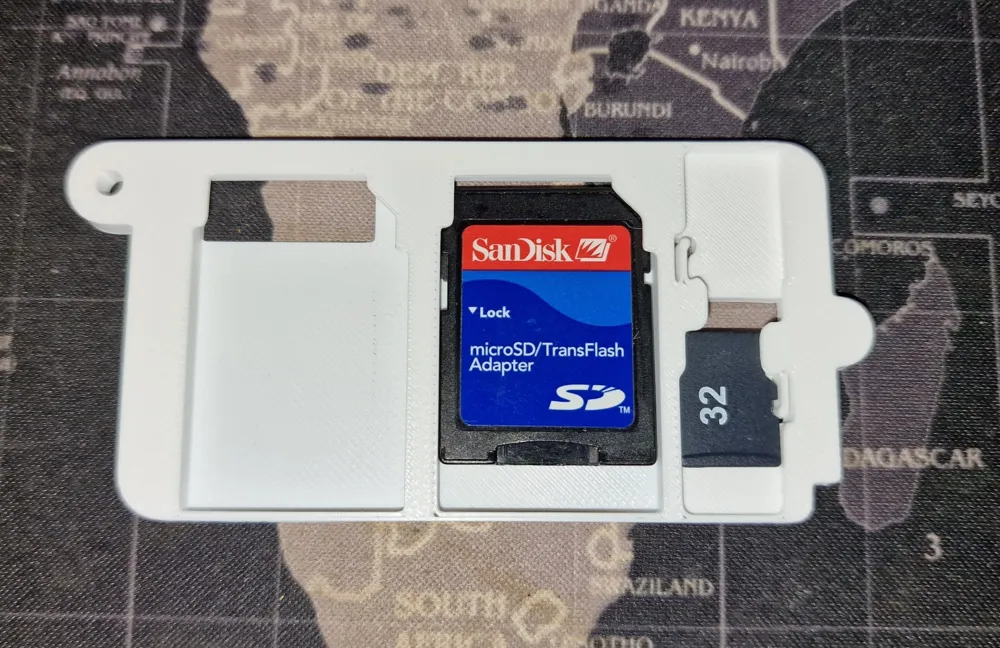

Added SD holder (2xSD + 2xMicroSD) for x10 Holder
