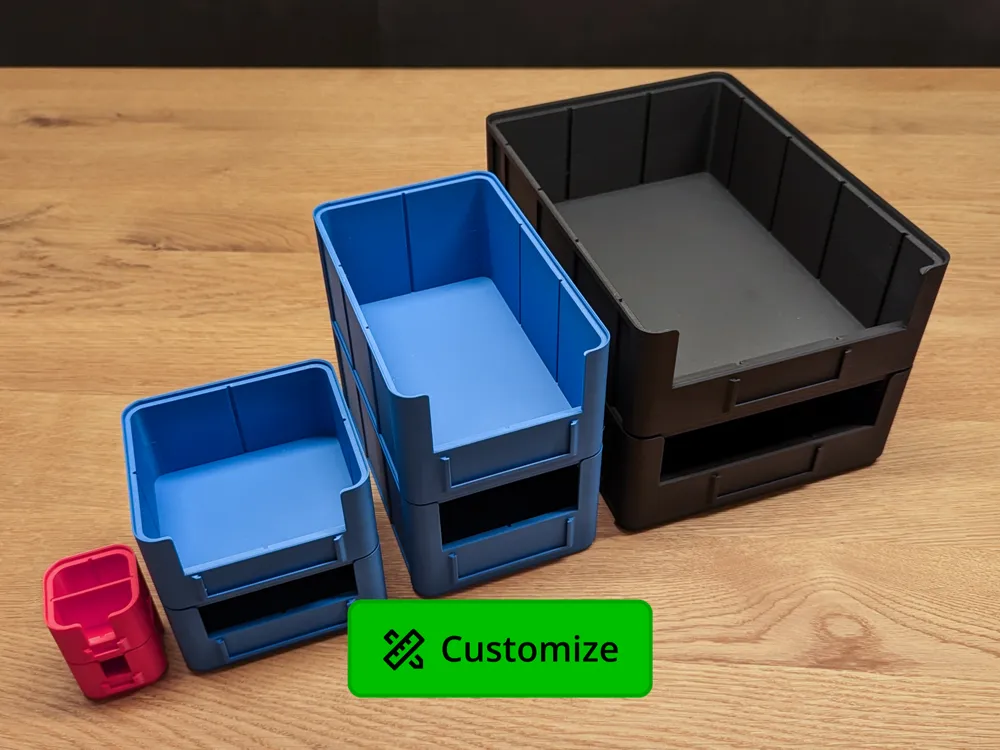

Storage Box Stackable

This model was designed using coffee, filament, and questionable life choices.

If it earned a spot on your printer, it might deserve a 👍 Like too. 😄

Checkout my newest release:


Stackable Storage Bin/Box (Fully Parameterized) with Fusion 360 Source Files.

Use the available print profiles if you want to have a specific size, if you are more into tinkering fetch the Fusion 360 file and enjoy all the customizable parameters. The model is designed so that all dividers are auto-calculated and evenly spaced, this also applies to an auto-calculated label size. There is no need to fiddle around with manual settings, define the basic parameters, and watch the magic math 😊.

Features

• Dividers for width and length
• Insert for a label
• No support

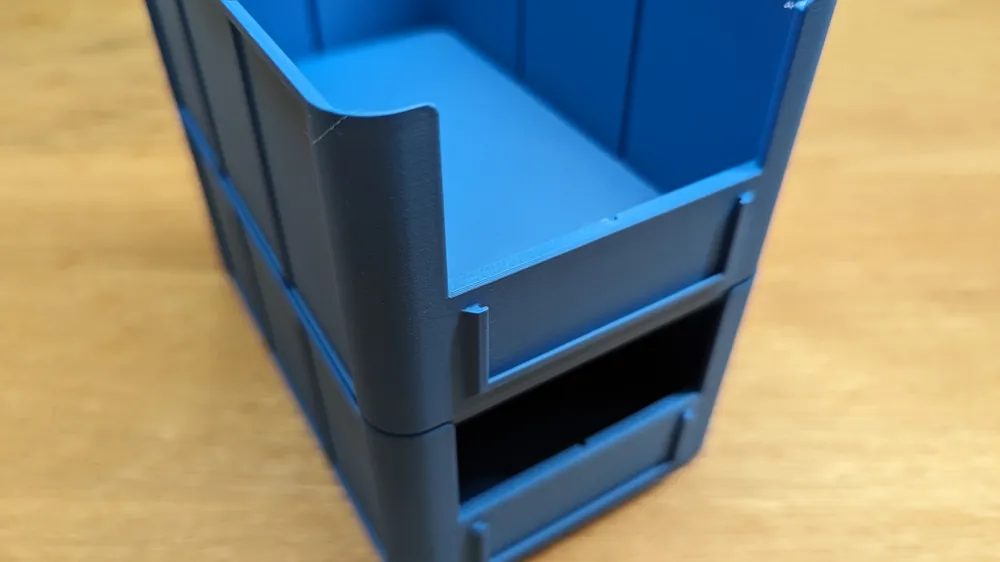

• Reinforced Corners for better stability

Customizable Parameters

• Length
• Width
• Height
• Corner Radius
• Wall Thickness (recommend 1.2mm for smaller / 2mm for big boxes)
• Divider Size
• Baseplate Height

Print recommendations

If you are not using the provided print profiles, set the bottom layers to 5 - otherwise, the base can be too fragile. Do not scale the model up and down in the slicer, if you need a different size - ask for it or use the Fusion 360 Raw file to customize it yourself.

There are 3 build plates per print profile:

• Box
• Divider 1 With (left to right)
• Divider 2 Length (front to back)

Only print the dividers if you need them, and duplicate them on the plate so you get the amount you need.

Print your labels

The label sizes are noted in the print profiles. If you are 3D Printing your labels, the height of the baseplate of the label needs to be 1mm. Use Make My Sign to create your own: https://makerworld.com/de/makerlab/makeMySign

But maybe a piece of paper is enough 😉.

Why another Stackable Storage bin model?

It is the same issue with most other models; the designs are static.

I need a model flexible, that can easily adapt to any size I need without slicer scaling compromises.

I like to build stuff and love solving problems 😅.

Timelapse

More Fusion 360 Parameterized Models

• Organizer Box
  https://makerworld.com/en/models/103266
• Organizer Box Diamond Edition
  https://makerworld.com/en/models/147775
• Modern Vase 1
  https://makerworld.com/en/models/108166
• Under Desk Drawer
  https://makerworld.com/en/models/145324

I hope you enjoy the design! Please leave a comment or rating if you like it and share your feedback!
