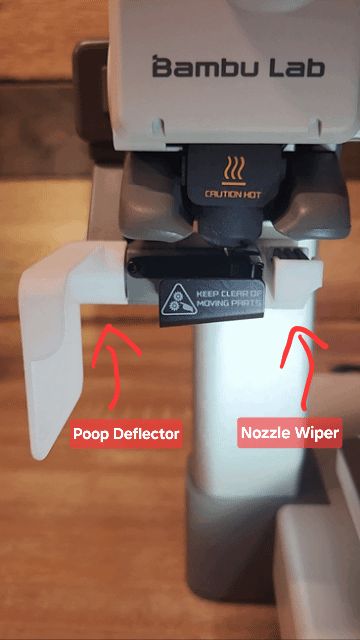

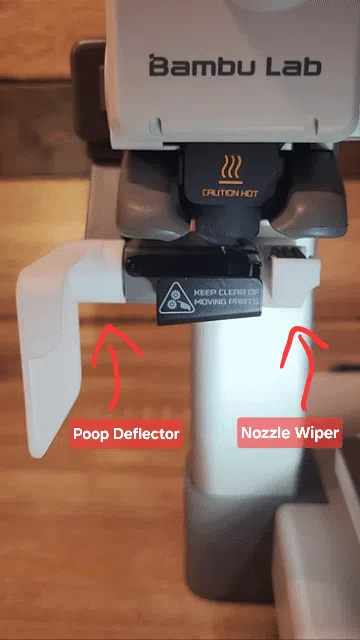

A1 Poop Deflector and Nozzle Purge Wiper Combo

If you prefer a version with a poop bucket, see linked model here.

https://makerworld.com/en/models/2543657-a1-poop-bucket-nozzle-wiper-front-poop-deflector#profileId-2800679

Version without Poop Deflector

https://makerworld.com/en/models/1112636#profileId-1109510

If you need A1 Mini see here.

https://makerworld.com/en/models/1109722#profileId-1106056

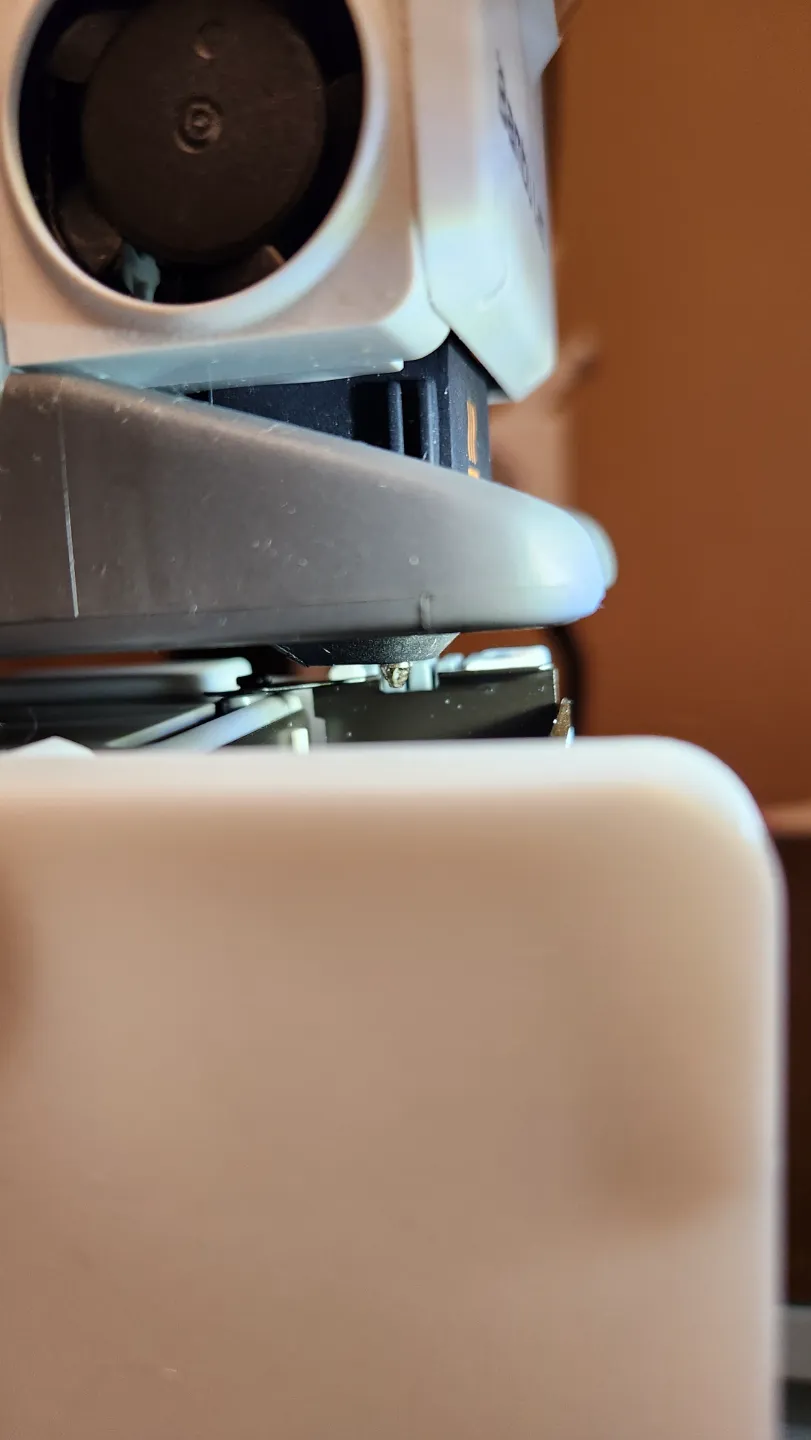

This is a critical modification to my last model to make big improvements.  If you get small strings stuck in this wiper, it means its working.  It's meant to clean the nozzle during filament changes, so be sure to clear filament from the wiper similar to the heatbed wiper at the back of the plate.

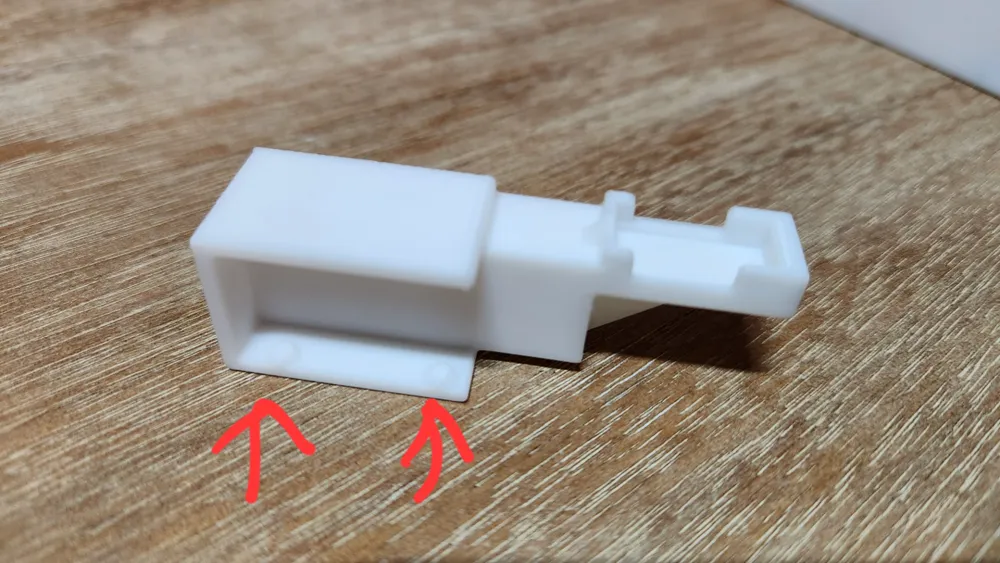

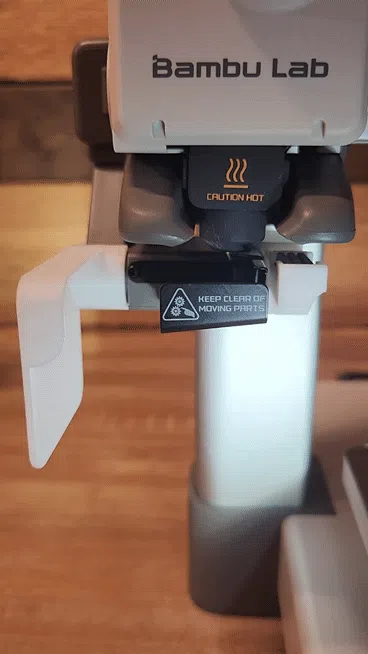

EDIT2: I modified the nozzle wiper portion to include guide bumps to keep the wiper secure at all times.  Still use the connector and poop deflector though. Watch the gif to see how it attaches.

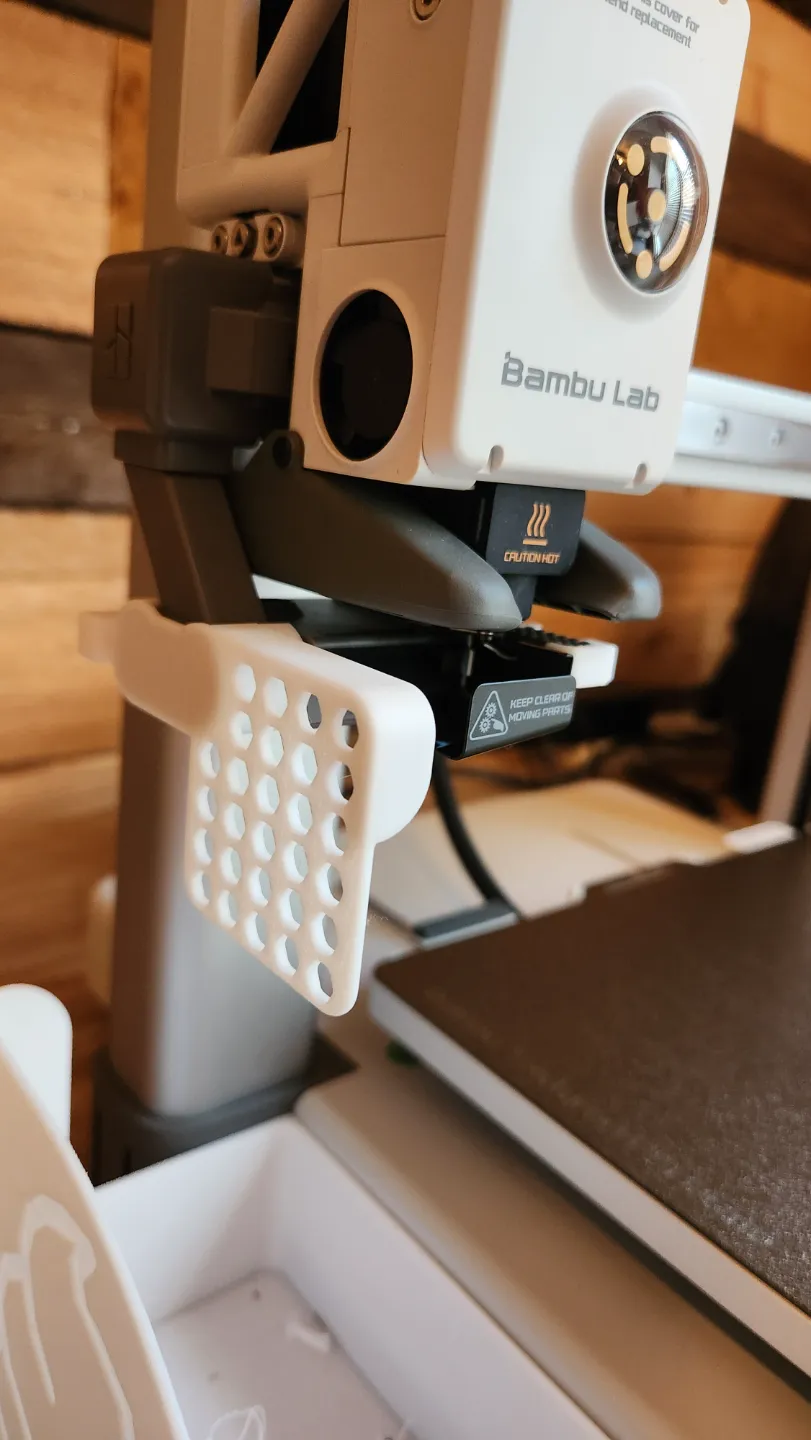

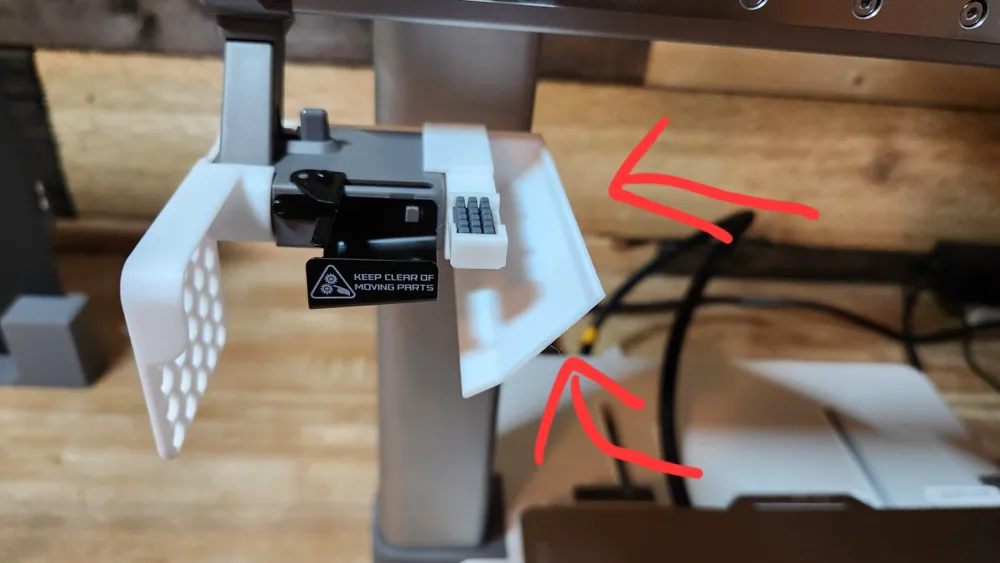

EDIT1: There are multiple profiles for different style deflector plates.  There is also an add-on for a deflector plate on the front side to make sure no strings go near the plate!

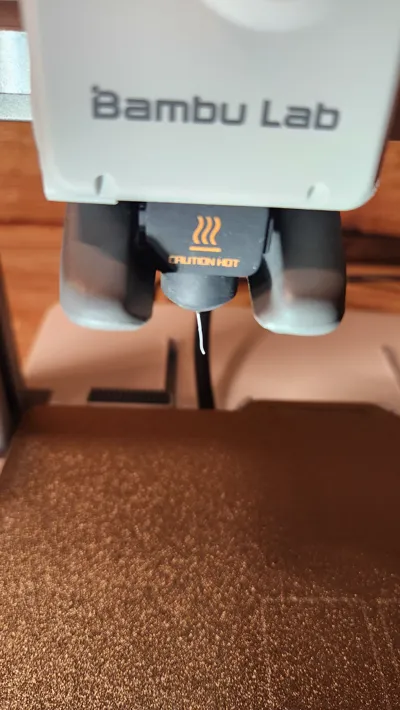

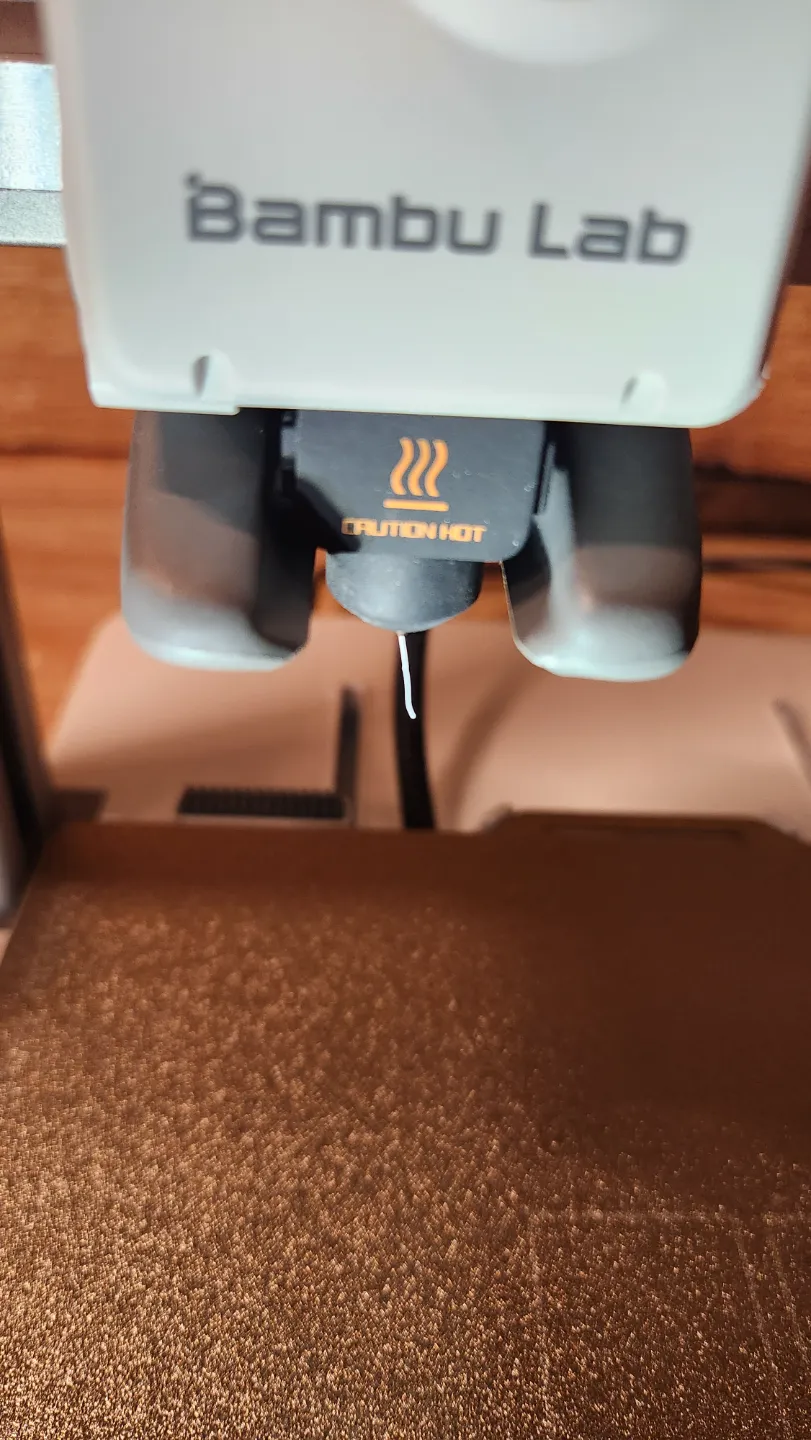

I kept having an issue with my A1 nozzle having little strings off of it when changing filament and after wiping.  So here is a nozzle wiper attachment for the Bambu Lab A1 nozzle purge wiper.

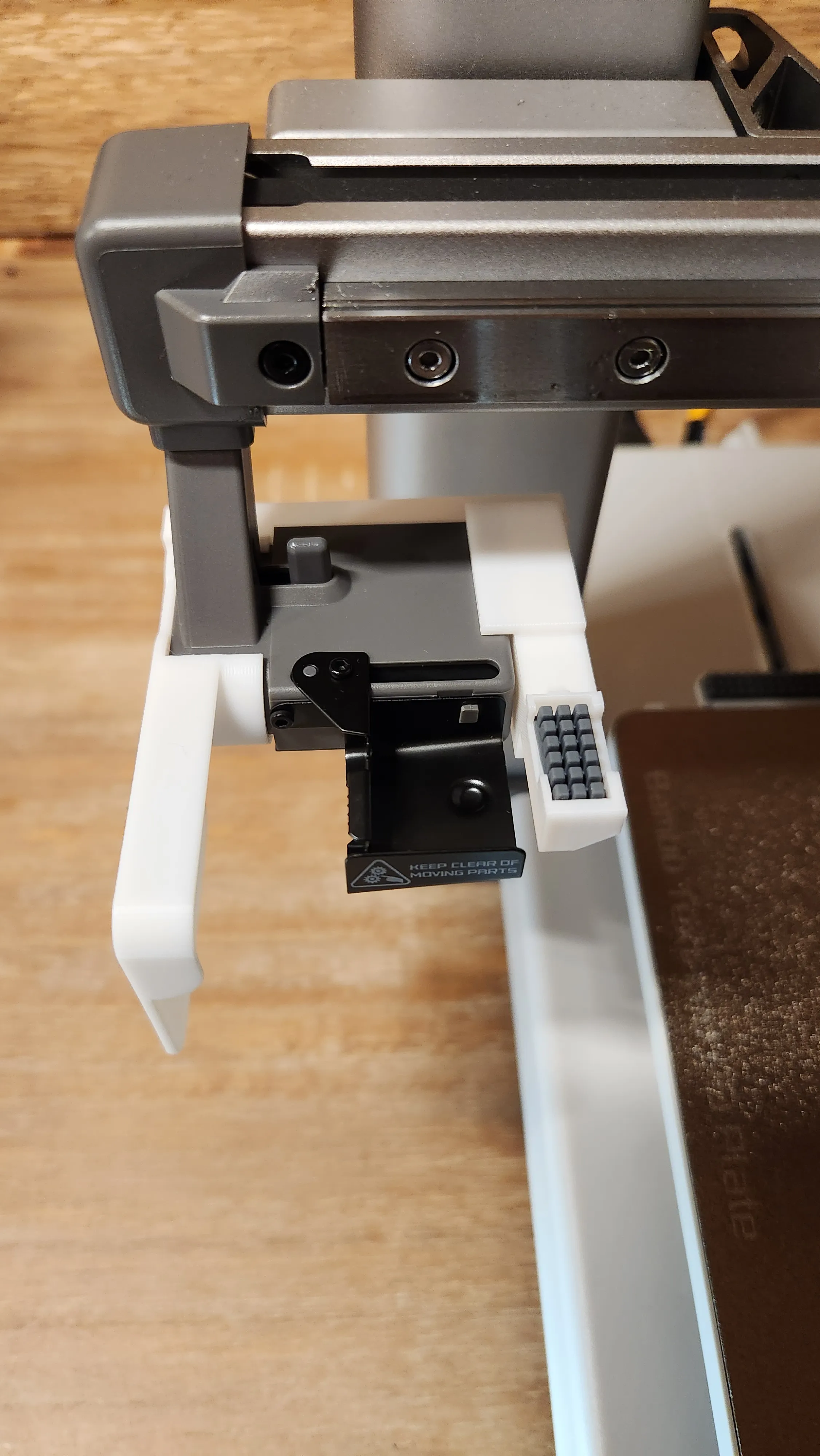

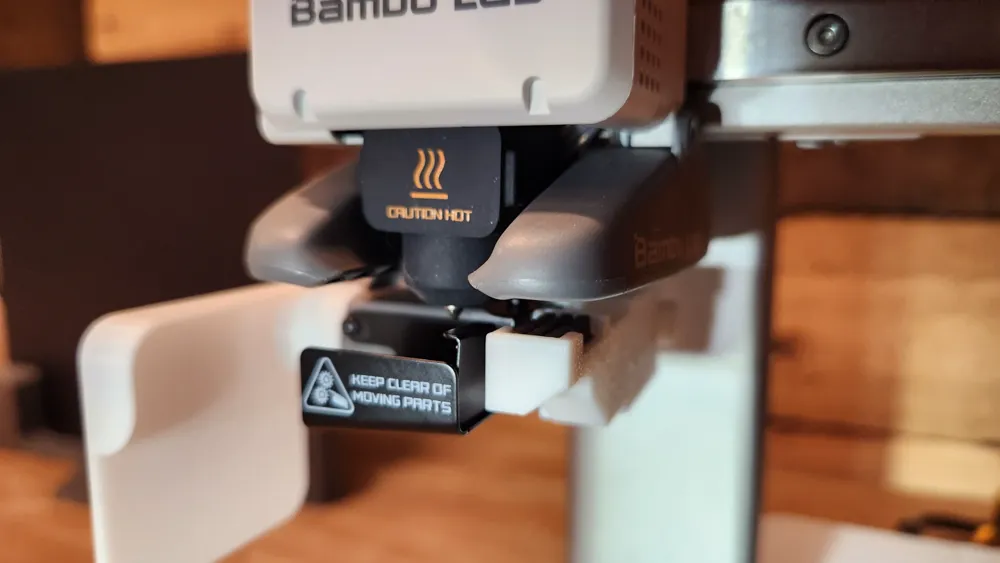

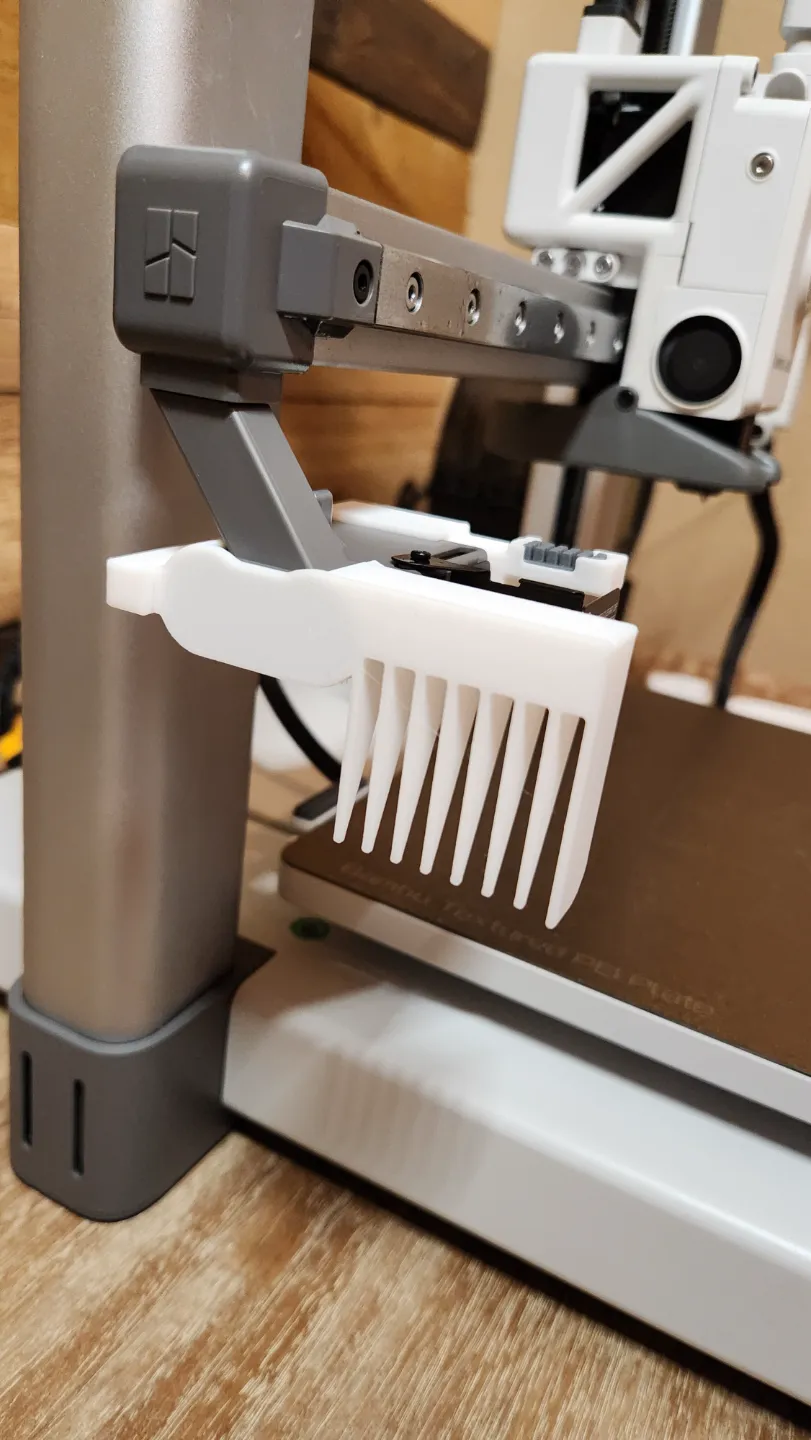

See pictures and instructions below.  All you do is print it, attach a cut piece of an A1 heatbed nozzle wiper, slide your new A1 Poop Deflector and Nozzle Purge Wiper onto the purge attachment, and enjoy!

Print with tree supports on build plate only for the couple of overhangs.  The snap connections are a tight fit on purpose to fit snug. If you go to remove it, I recommend unscrewing the wiper assembly from the underside, then you can remove it more easily without jerking on the printer. I wanted the snaps to be super tight to not risk it jiggling loose during a print.

Print the 3 pieces

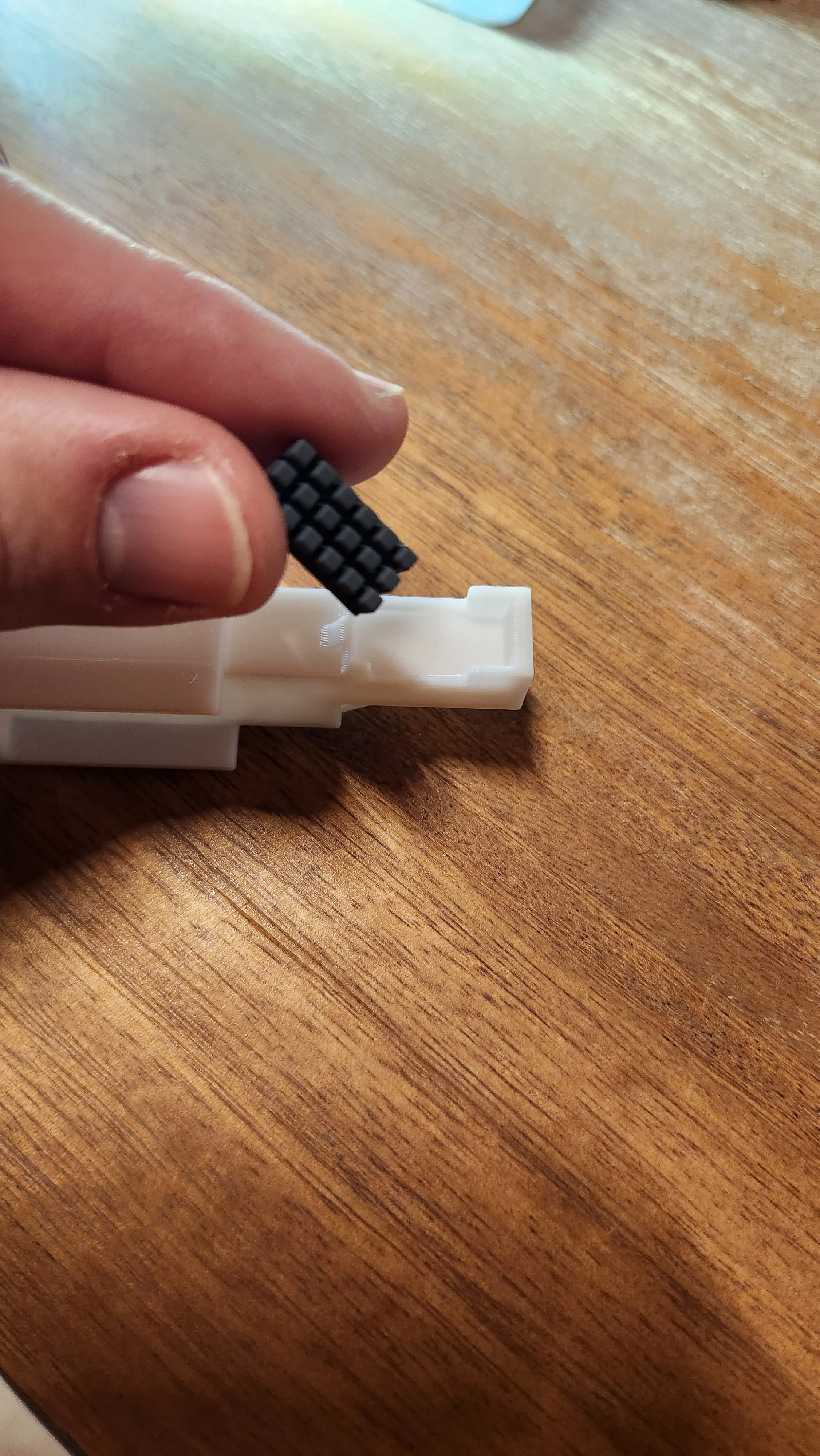

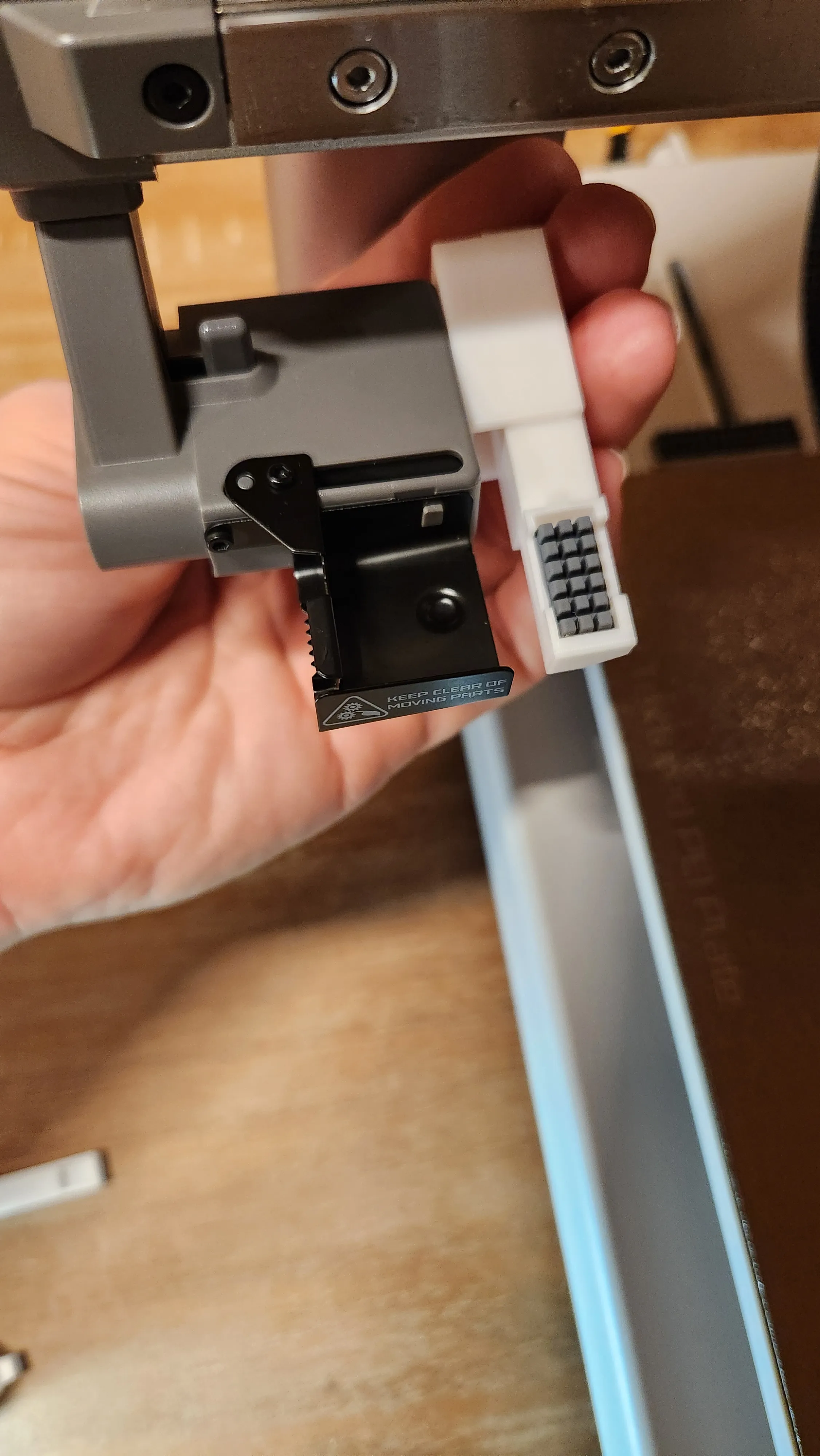

Attach a cut piece of an A1 Heatbed Nozzle Wiper

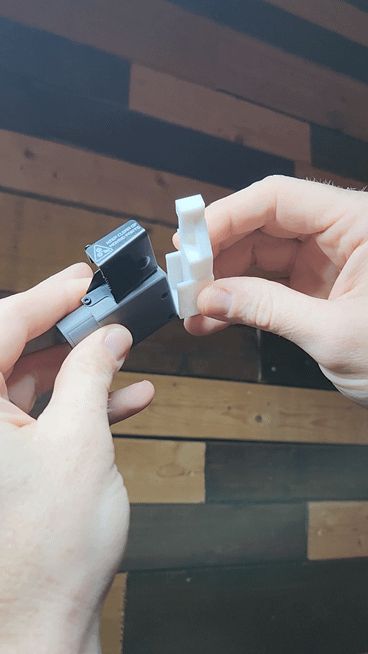

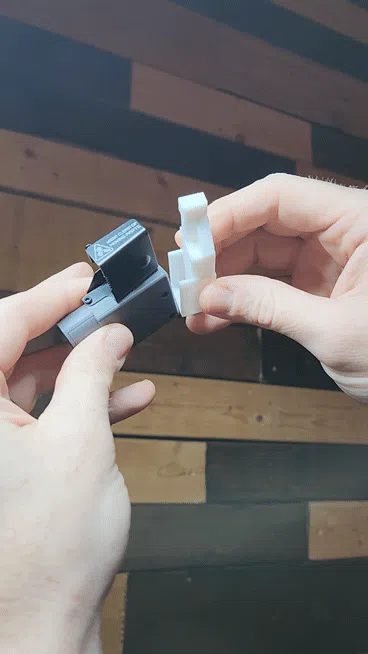

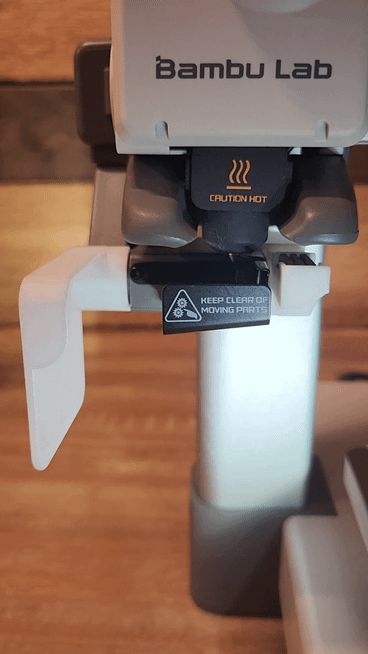

Attach the Nozzle Wiper (see gif in photos)

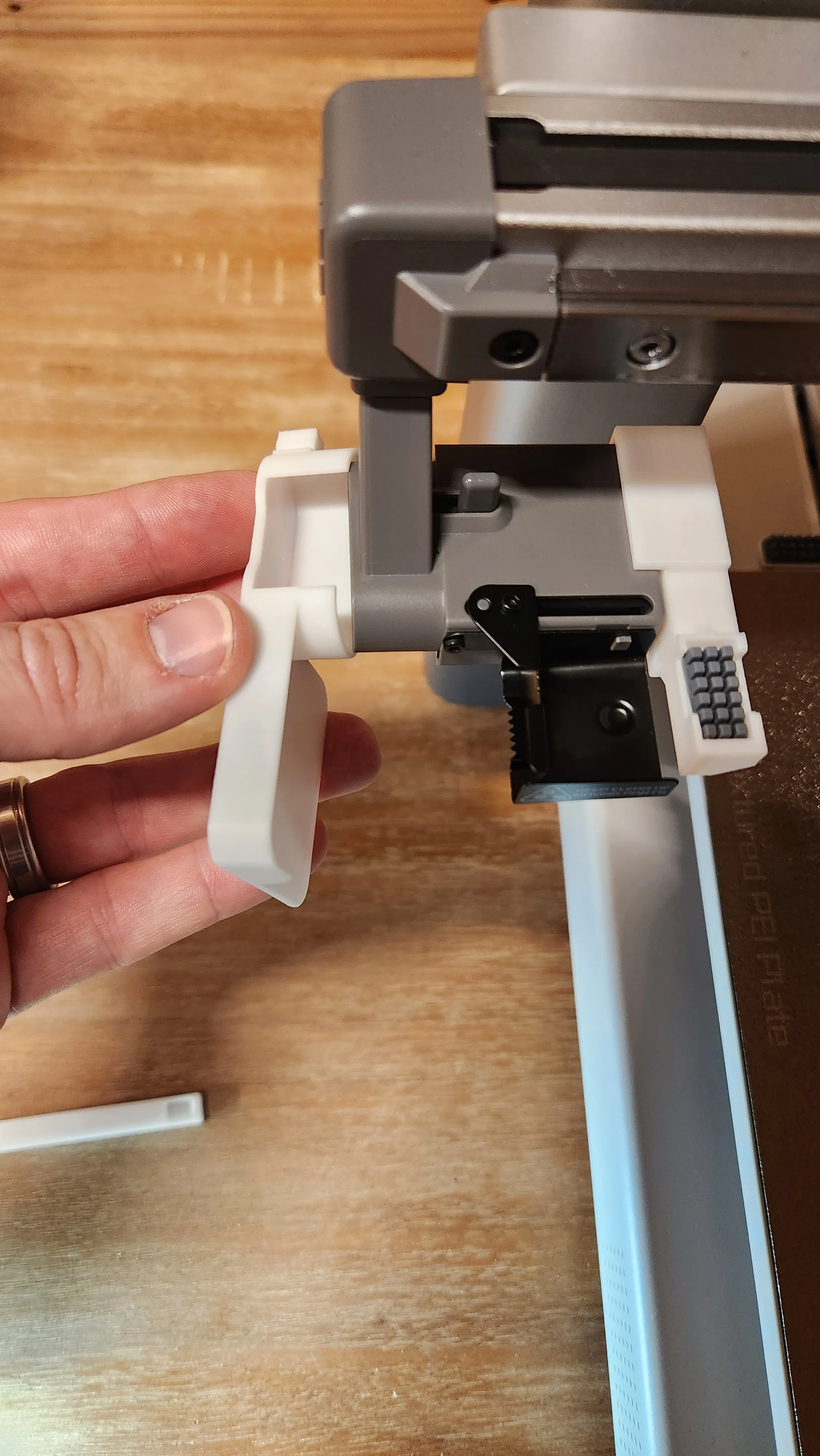

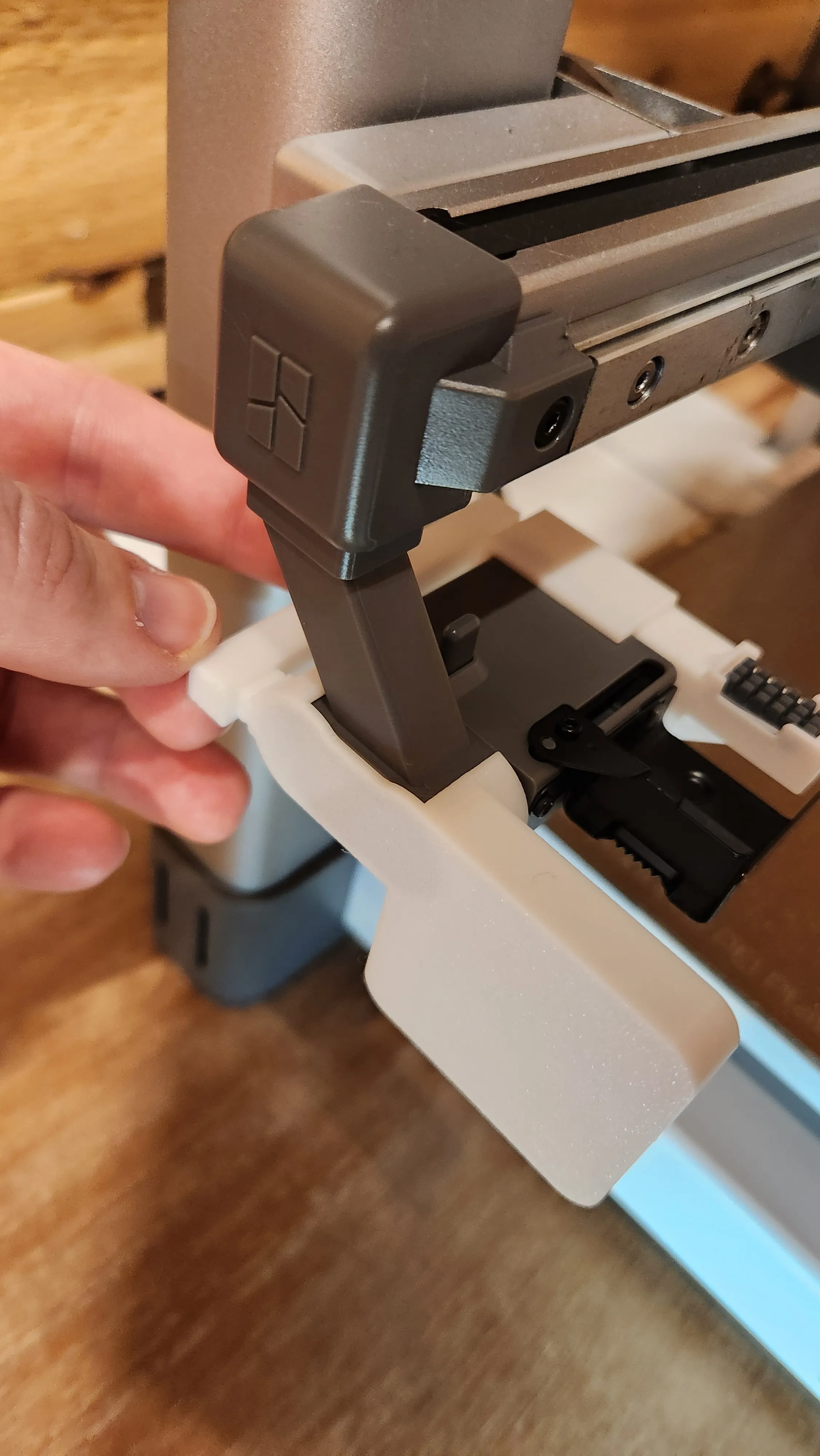

Attach the Poop Deflector

Attach connector link

Viola
