A1 Nozzle Purge Wiper and Front Poop Deflector

A1 Nozzle Purge Wiper and Front Poop Deflector

Boost
789
1530
315
GIF
GIF
GIF

Print Profile(4)

All
A1
P1S
P1P
X1 Carbon
X1E
X1
A1 mini

All Variations with Front Poop Deflectors - Different Plates
All Variations with Front Poop Deflectors - Different Plates
Designer
9.1 h
6 plates
5.0(14)

Wiper Only - Logo Options
Wiper Only - Logo Options
Designer
53 min
2 plates
5.0(3)

Purge Wiper PLUS Front Poop Deflector
Purge Wiper PLUS Front Poop Deflector
Designer
1.4 h
1 plate
4.9(146)

Purge Wiper ONLY
Purge Wiper ONLY
Designer
26 min
1 plate
4.8(36)

Open in Bambu Studio
Boost
789
1530
315
220
1.5 k
1.1 k
Released

Description



Boost Me (for free)

Thanks for the support!



Be sure to snap on the wiper starting with the bottom. Please watch the gif in the photos for how to attach so it goes on properly and doesn't break.  PLEASE, WATCH IT.  Also, this is NOT for the A1 Mini.



If you need A1 Mini see here.

https://makerworld.com/en/models/1109722#profileId-1106056



This has an improved front poop deflector and added logo options.  People were asking for an option that had Bambu Lab logos on it and to make the “front poop” deflector have a cleaner look, so I made a few options for you to choose from.  All combinations of the options are on the various plates in the print profiles I provided.  But remember, please watch the gif in the photos and I will also attach below for reference in the description of how to snap on the wiper.  If you want one of my previous models that includes a rear poop deflector or a bucket that still works great, see here or check out my profile.

https://makerworld.com/en/models/1078283#profileId-1071221

https://makerworld.com/en/models/1090599#profileId-1084016



I kept having an issue with my nozzle having little strings off of it when changing filament and after wiping.  So here is a wiper attachment for the Bambu Lab A1 (NOT MINI) nozzle purge wiper.

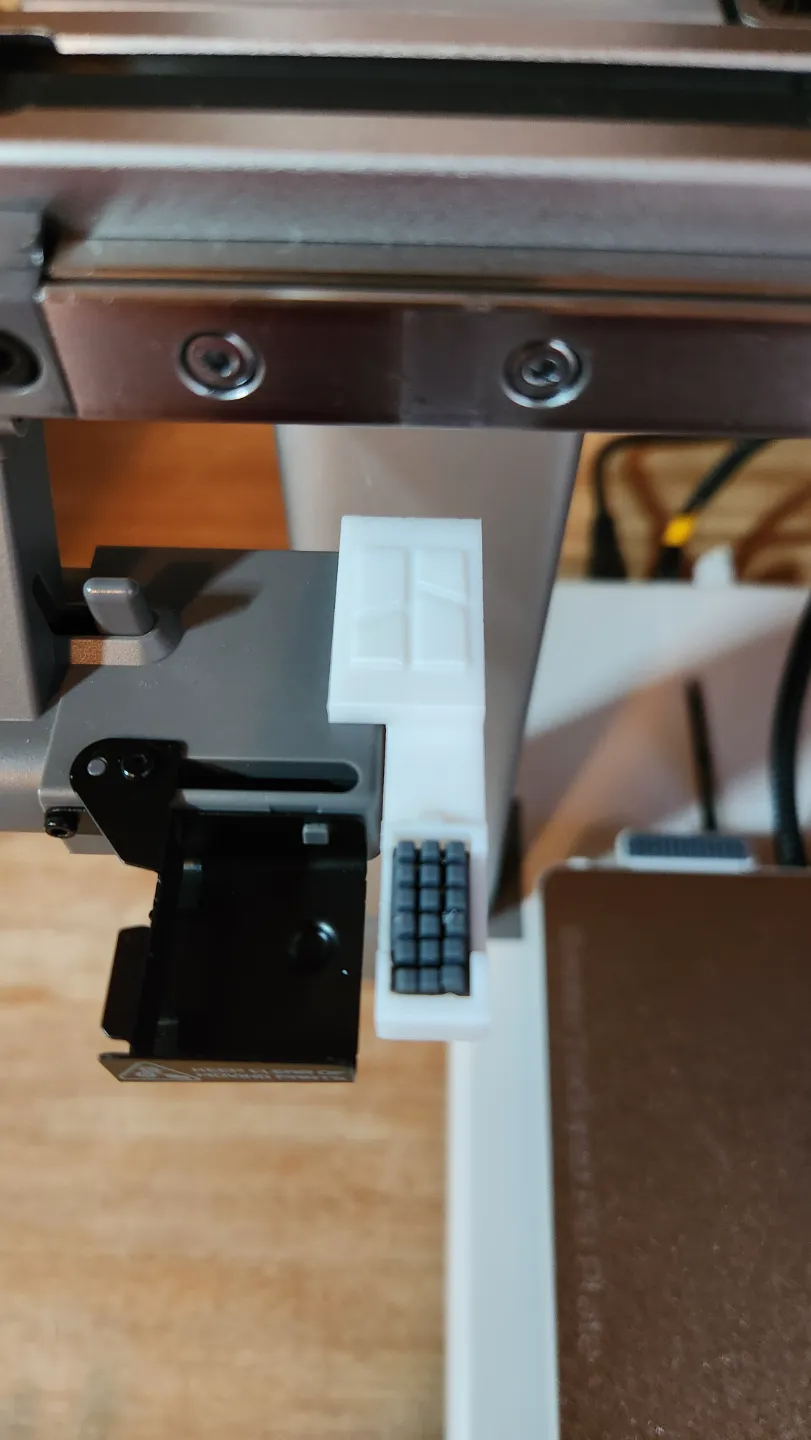

See pictures and instructions below.  All you do is print it, pop on your new A1 Nozzle Purge Wiper with a nice logo onto the purge wiper assembly by inserting the bumps from the bottom into the screw holes, attach a cut piece of an A1 heatbed nozzle wiper pad, snap on the optional “front poop” deflector, and enjoy!  See the GIF in the photos and below for an example. You can also print a version without the optional “front poop” deflector if you like it better, included in the print profiles.



Print with tree supports (minimal) on build plate only for the couple of overhangs.





Attach the wiper from the bottom with the bumps in the holes, and then snap on the top



Attach a cut piece of silicone A1 heatbed nozzle wiper



Snap on the optional “front poop” deflector



Bill of Materials

List other parts
  • A1HeatbedNozzleWiper x 1

Download BOM
