Micro AMS Lite

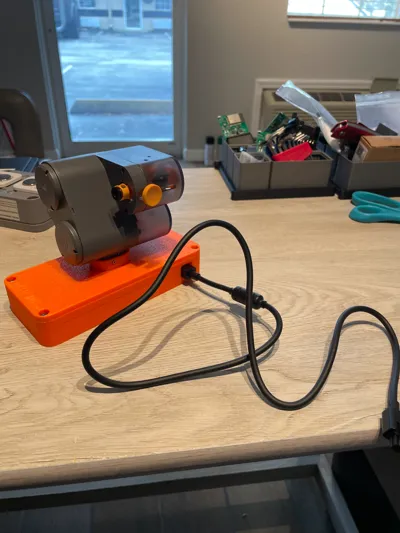

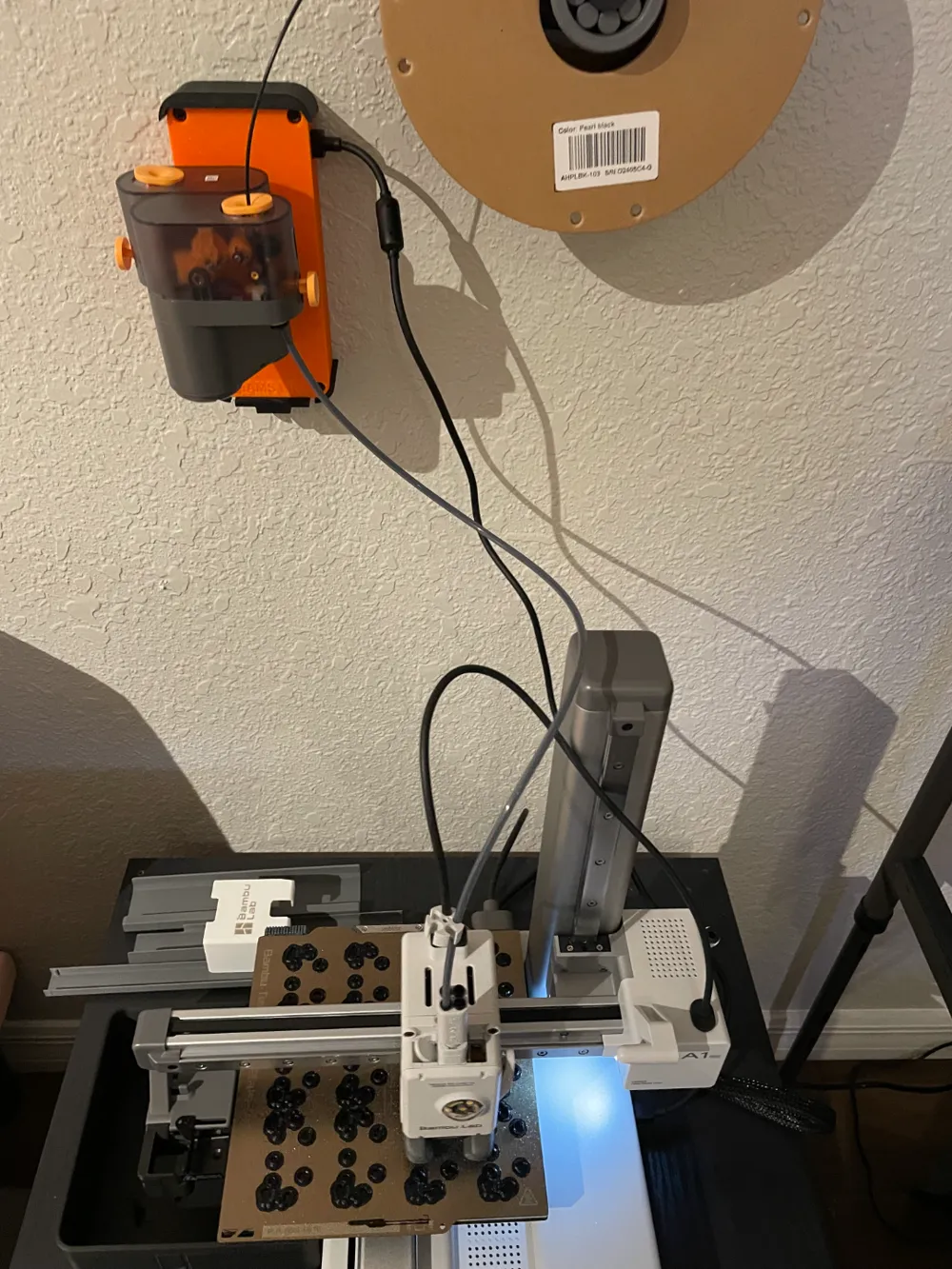

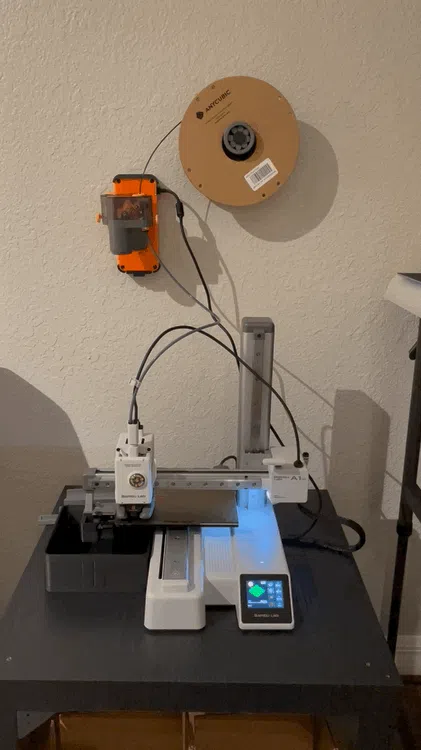

This project is an effort to reuse a broken AMS Lite and make it much smaller. By mounting it on the wall I regain a bunch of space that was used by the broken AMS unit.

**********************************************************************************

Simply install the board on the bottom using the original screws.

Push the mount print into the top from above, this can be a little though but don't be afraid to push. Make sure the screw holes remain above the top.

Mount extruder motors on the mount, and wire the motor to the board.

Using M4X8mm screws close the entire enclosure together.

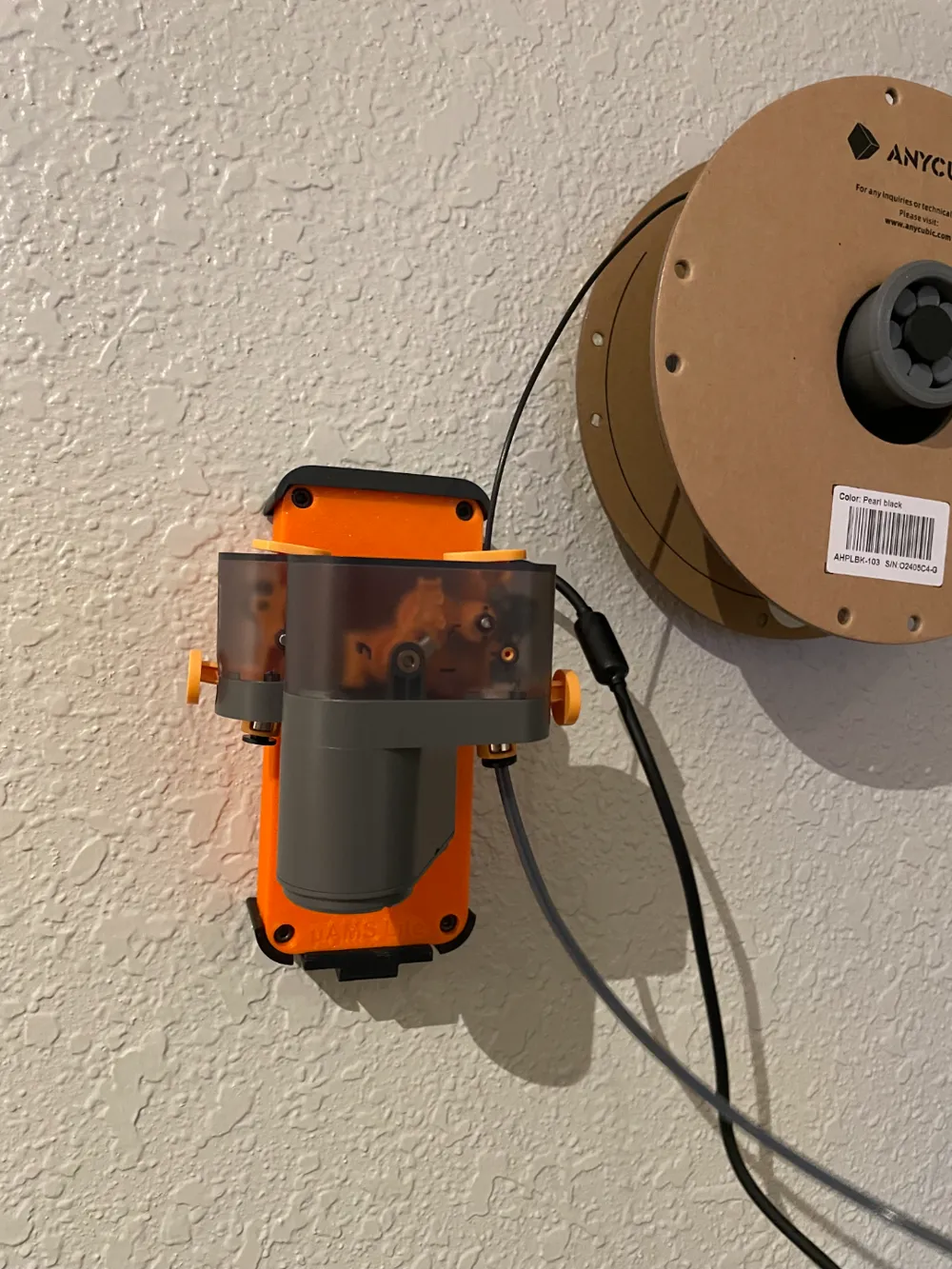

Using the install jig mount the brackets to the desire spot on the wall. I used #8 wood screws. But any #8 screw that is countersunk will work.

************************************************************************************

I am using the Low Friction Spool designed by rogerquin (https://makerworld.com/en/models/565215)
