Xiaomi Aqara Six-Button Scene Switch Shell (Magnetic Detachment)
Print Profile(1)
Description

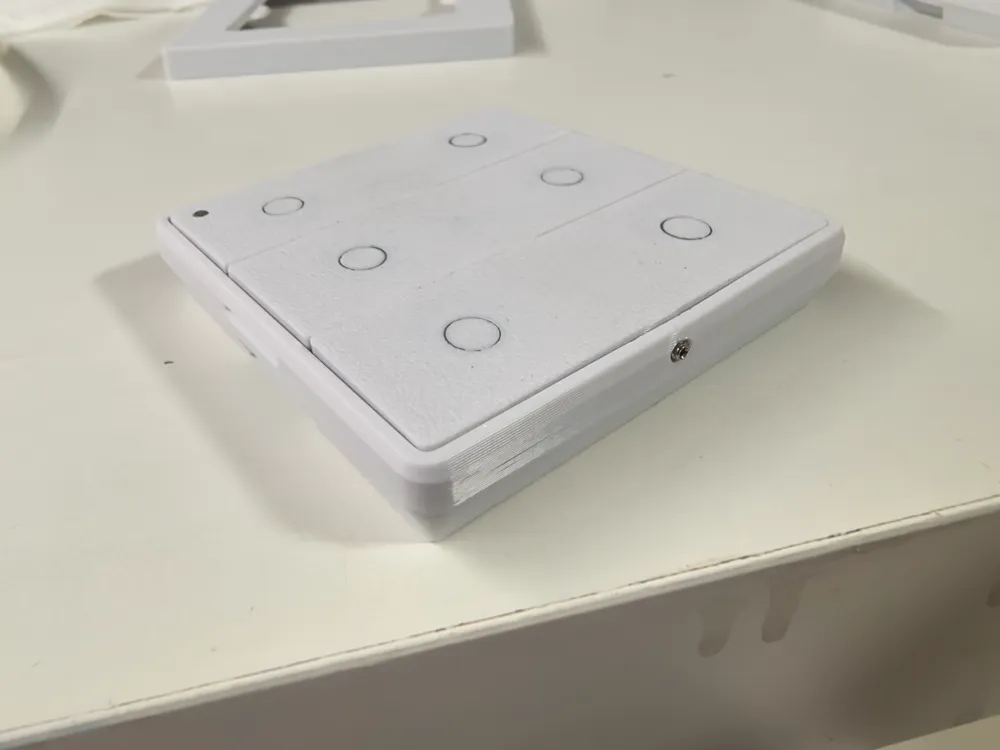

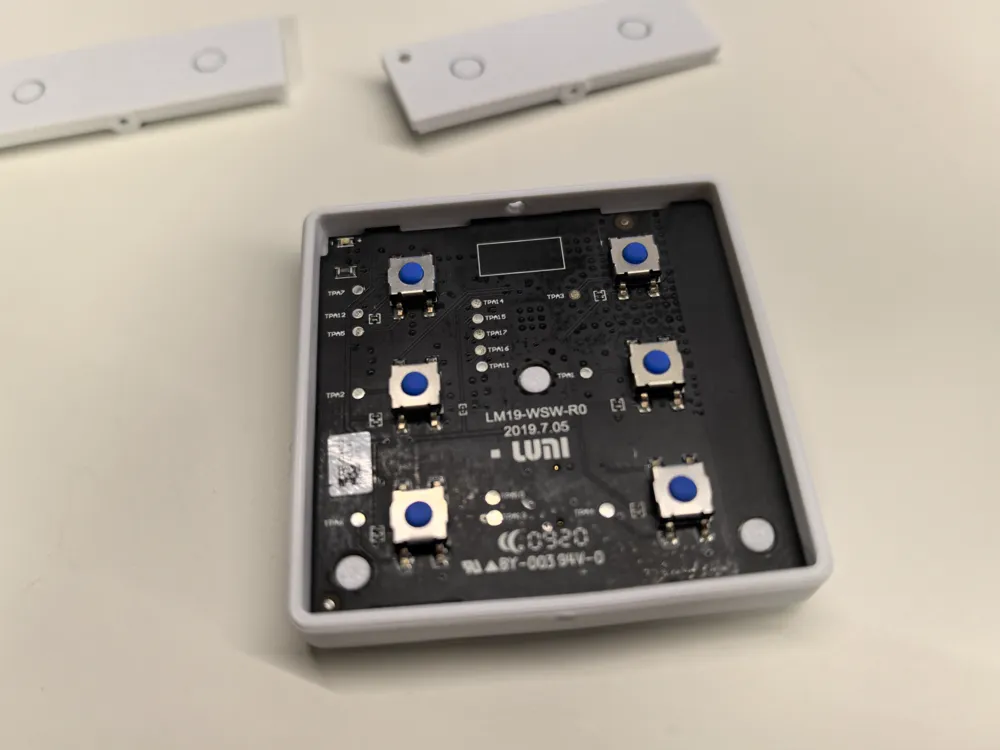

The Lumi six-key scene switch is an excellent product, and Lumi's quality is also guaranteed, but unfortunately, it has been discontinued. Online listings are mostly secondhand, showing significant wear, leaving one unsatisfied. Recently, I found individual circuit boards for sale online, so I bought two and 3D-modeled and printed several sets of housings. The result is fantastic, and I'm sharing it with you.

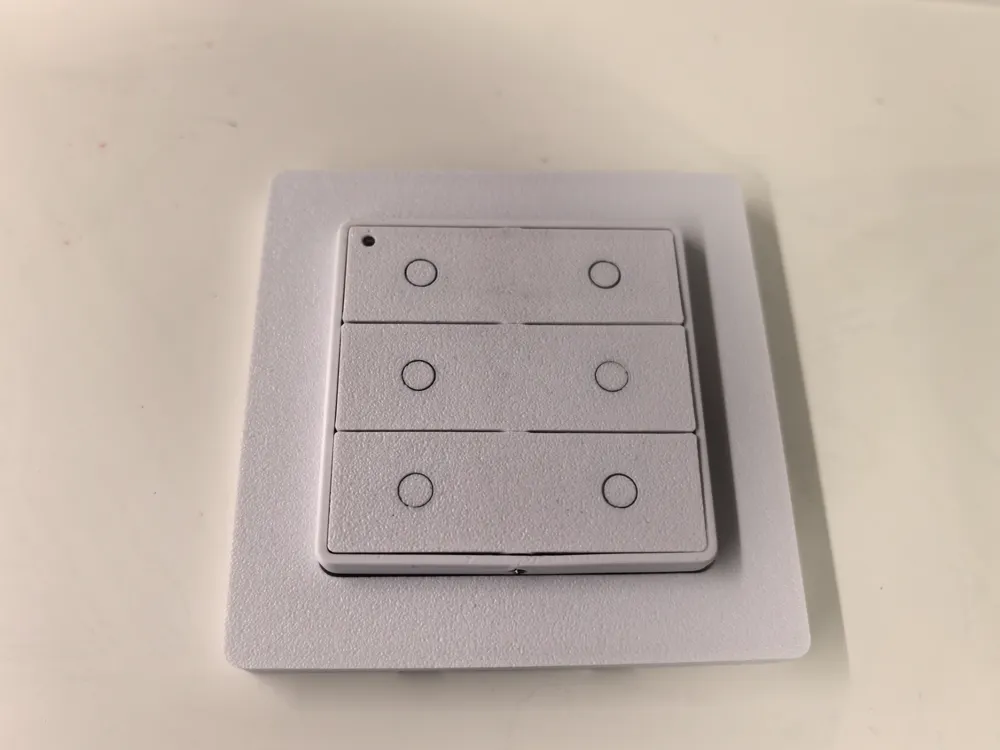

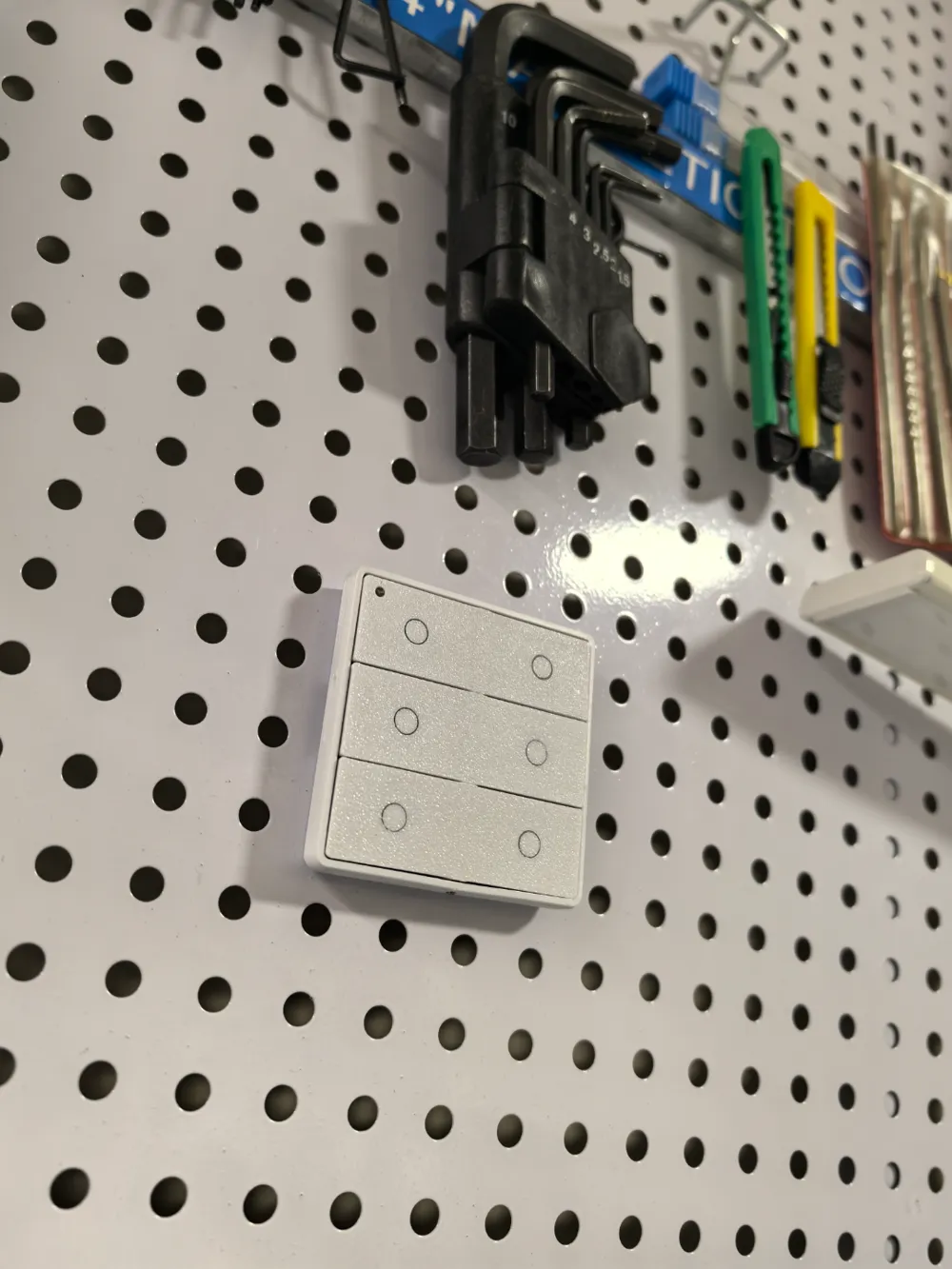

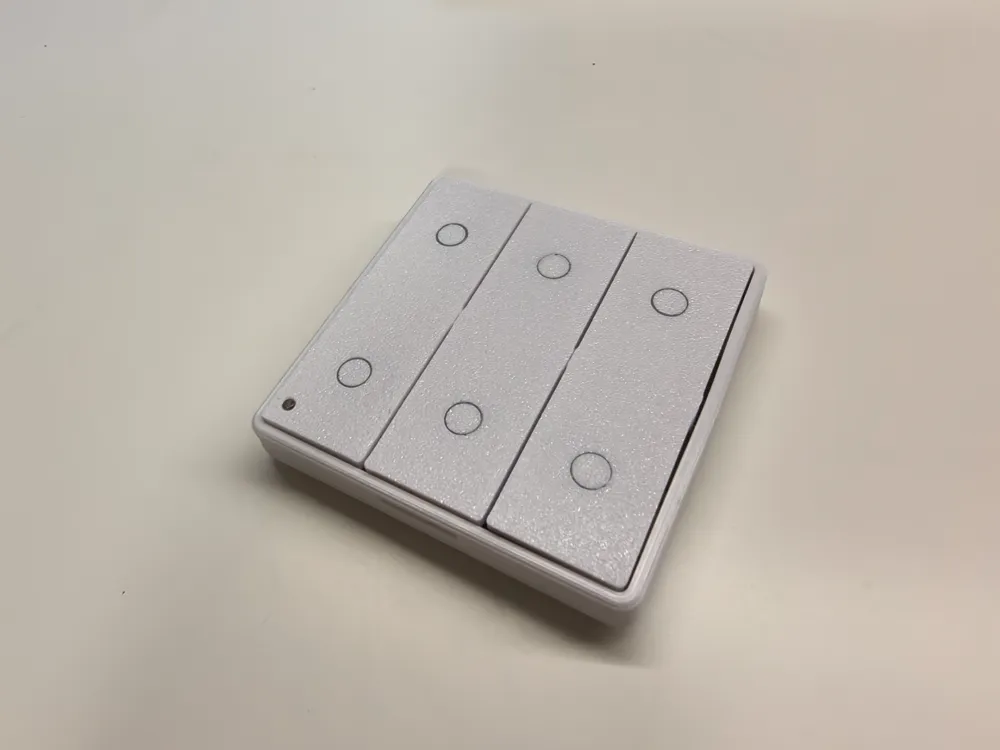

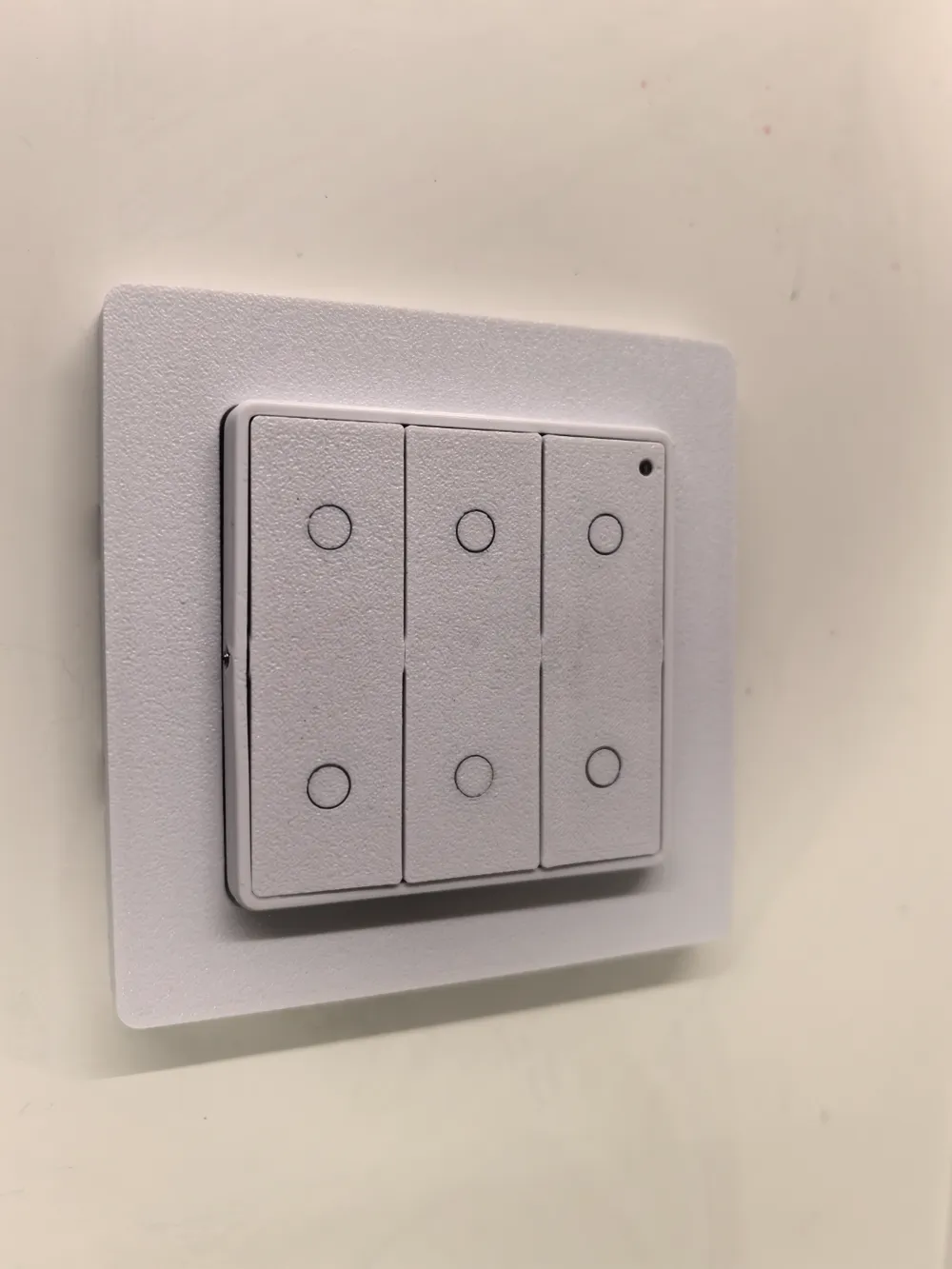

This is a magnetically detachable model, just like the original. The small controller can be removed and placed on a bedside table, desktop, or even attached to a refrigerator. It's even more compact than the original.

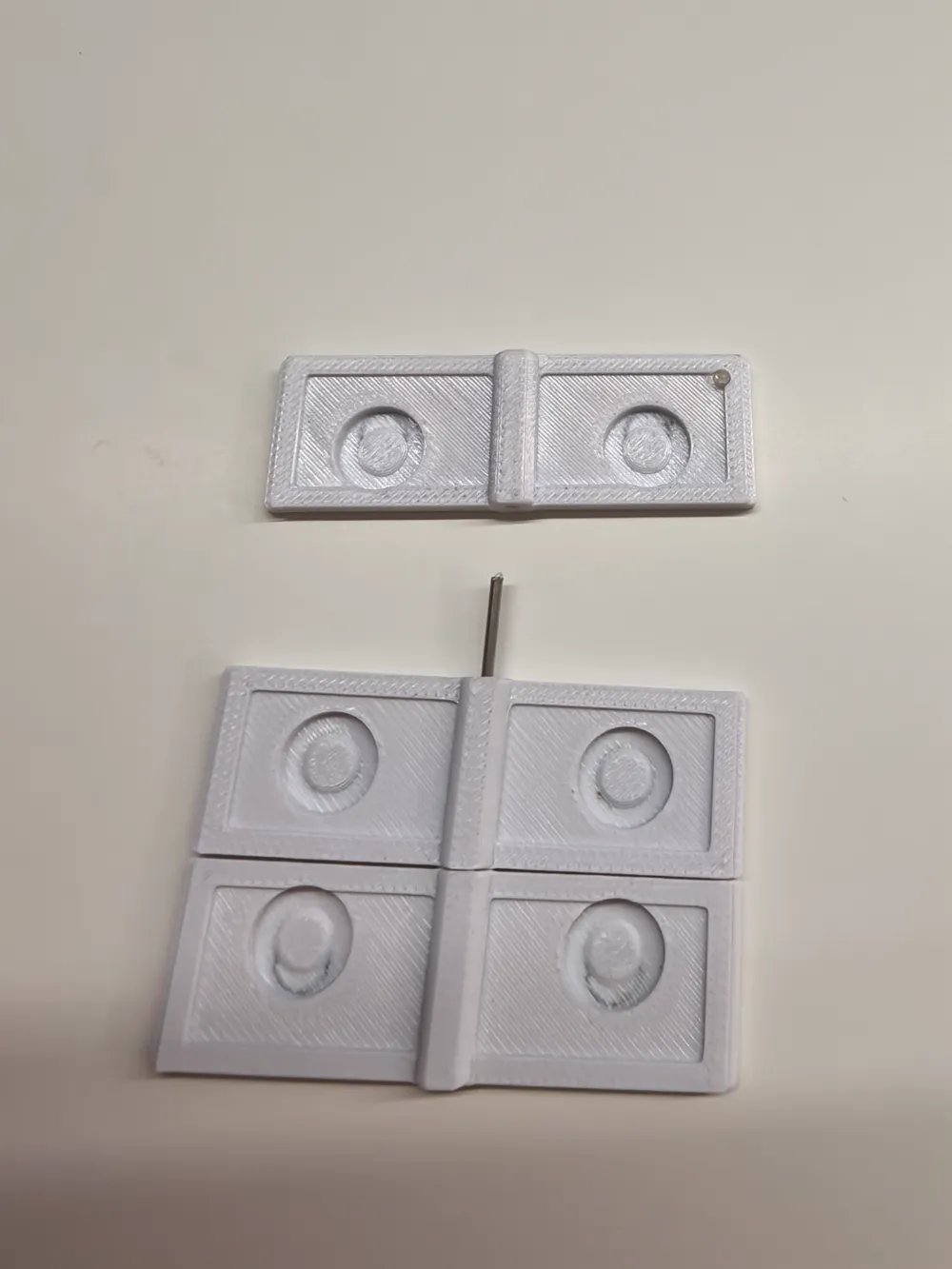

You will need two 1.2mm diameter metal pins and two 2mm flat-ended set screws.

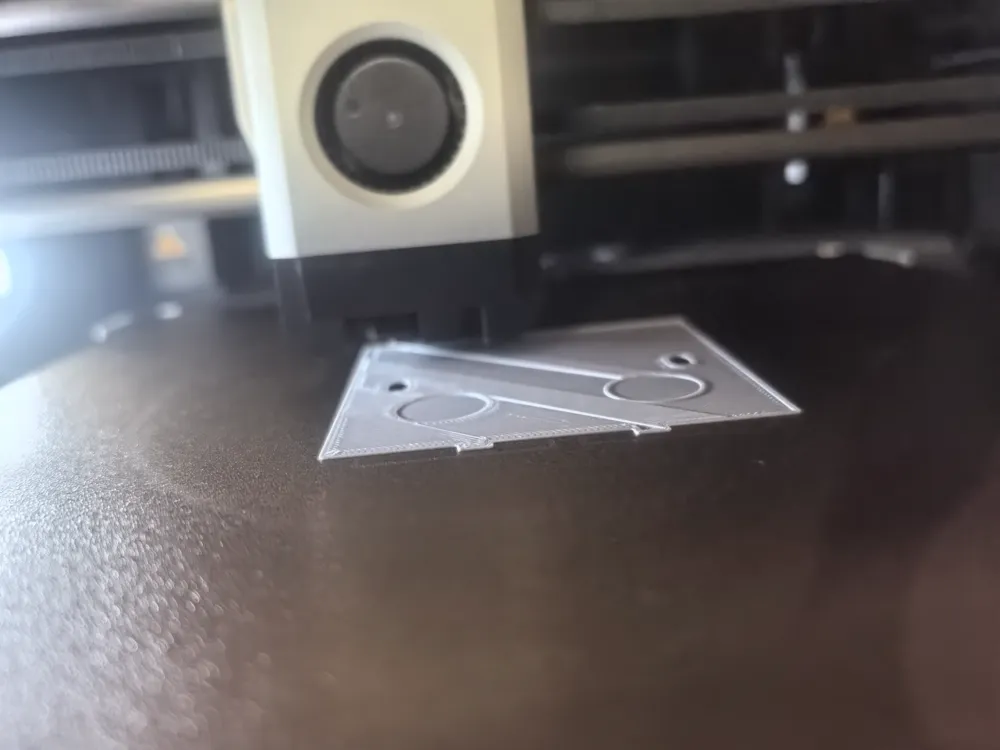

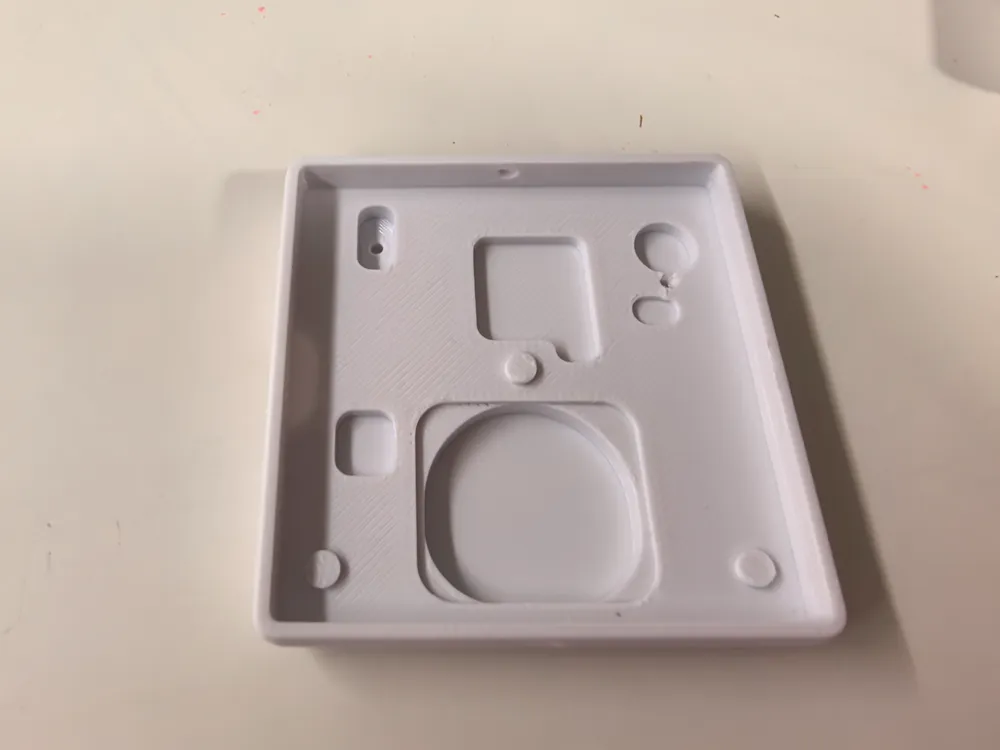

The print includes two pause points: the first for inserting two iron sheets (Φ15*.6mm), and the second for four magnets (Φ8*3mm).
For the large button version, see: Lumi six-key scene switch housing (large button version) from Youyou - MakerWorld
