Pegboard Mounting Solution (Aluminum Extrusion and Linear Shaft)
Print Profile(3)
Description
This solution is for my designed 'Infinitely Assembled Pegboard': https://makerworld.com/zh/models/932107
Specific dimensions for aluminum extrusions can be found at the link below: https://makerworld.com/zh/models/1092603
2020 with Φ6mm smooth rod, M4x15 countersunk screw
3030 with Φ8mm smooth rod, M4x20 countersunk screw
4040 with Φ8mm smooth rod, M4x25 countersunk screw
Smooth rods can be fixed using the following models:
Bearing strip: https://makerworld.com/zh/models/1113671
Smooth rod spacer: https://makerworld.com/zh/models/1354579
Two installation solutions are provided, both require additional purchase of M4 screws and nuts for use

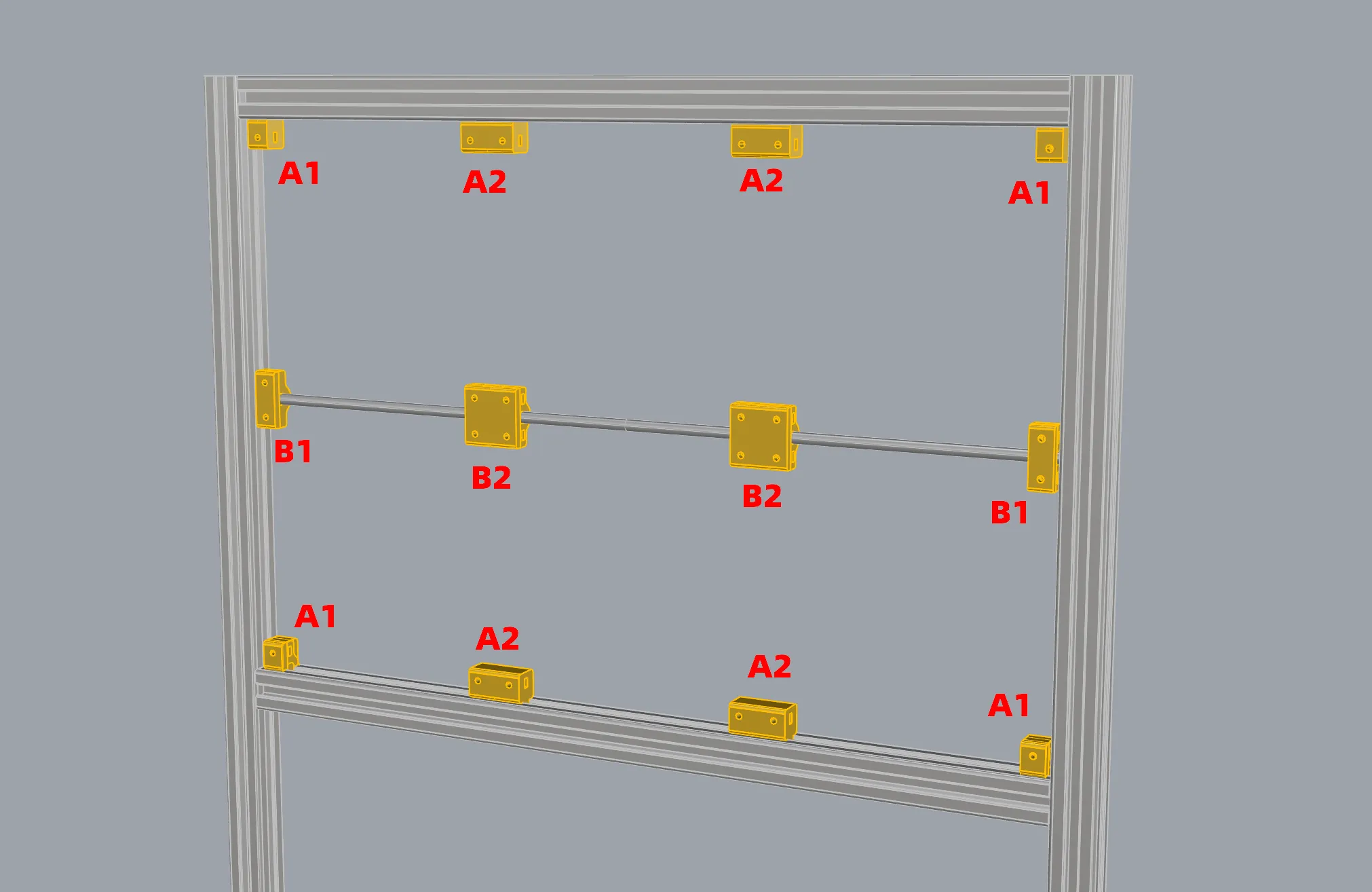

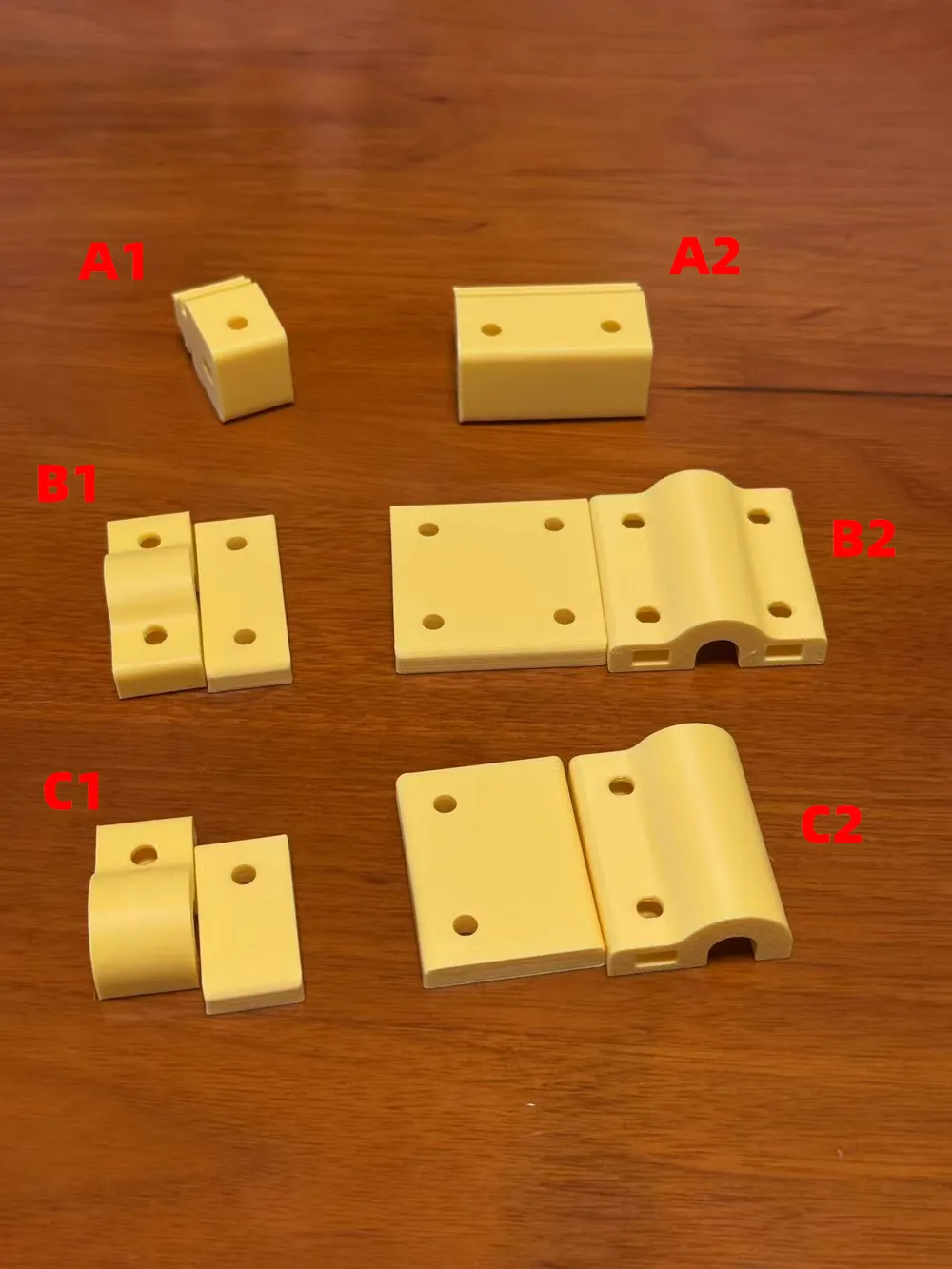

Solution one uses aluminum extrusions at the bottom for edging, only uses modules A and B

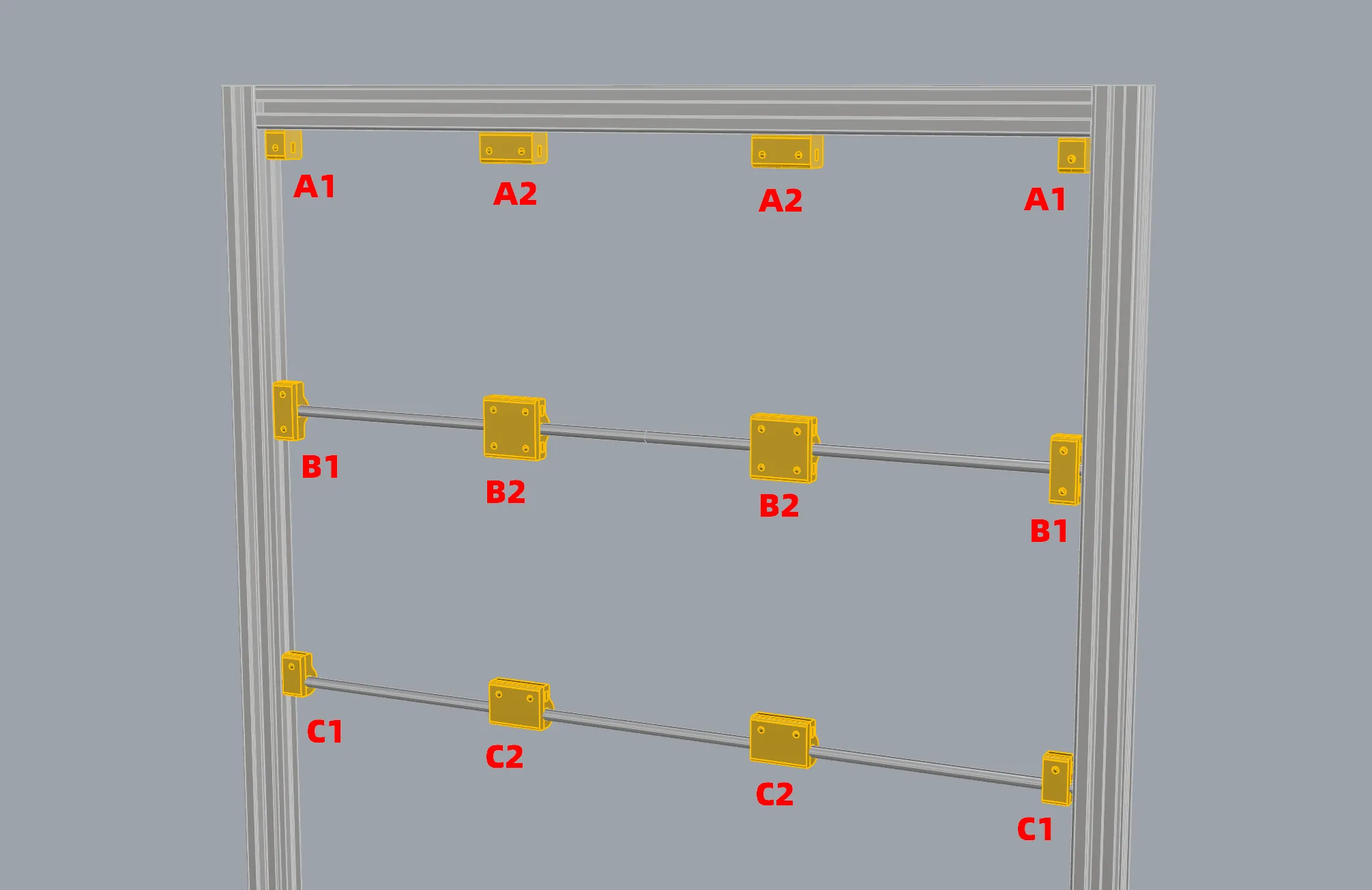

Solution two uses smooth rods at the bottom for edging, uses modules A, B, and C

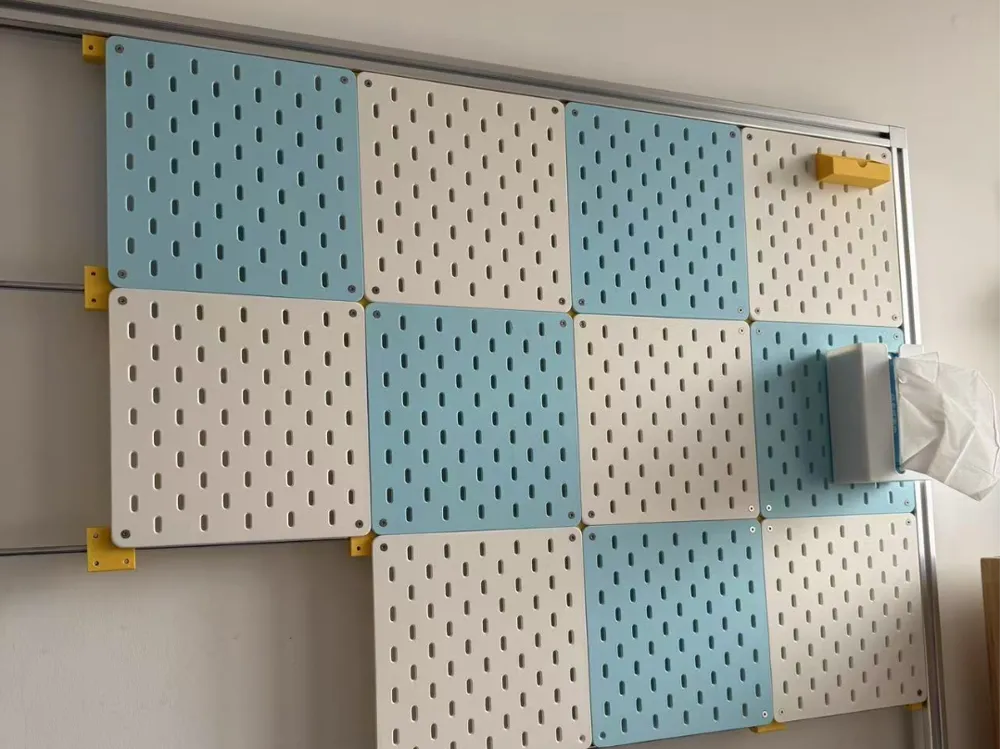

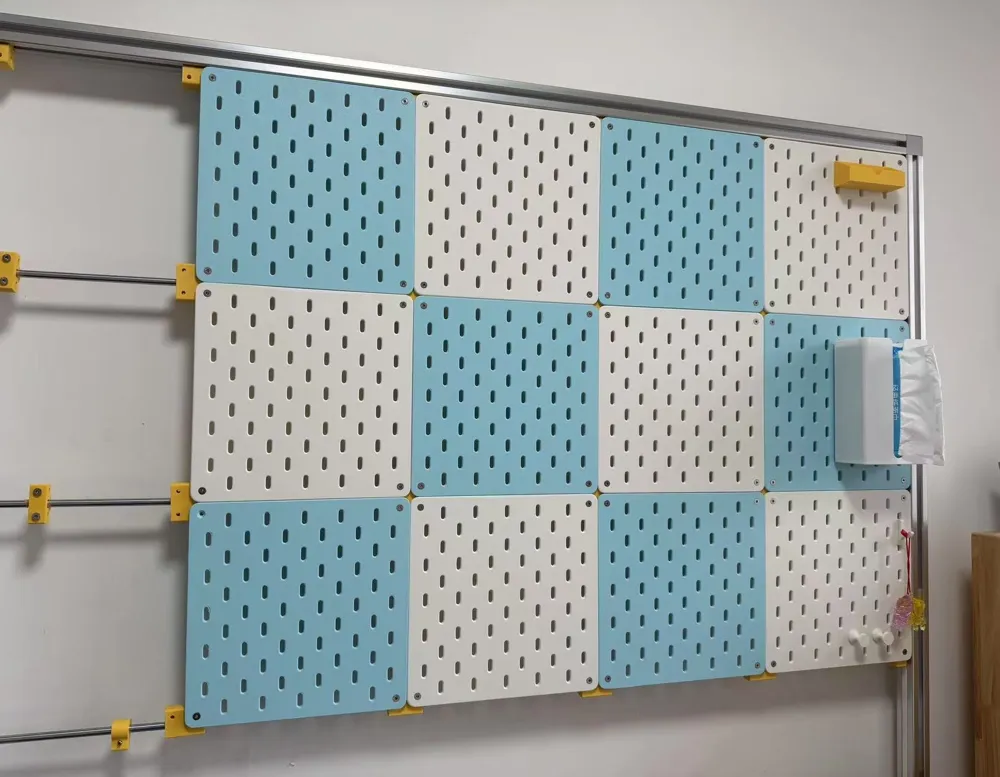

Solution two is used in the photos
2025-07-12: Added model for 2020 aluminum extrusion solution
2025-08-15: Added model for 4040 aluminum extrusion solution
