Aluminum Extrusion End Caps/Support Bars/Positioning Bars
Print Profile(3)
Description
Designed for the European standard aluminum profiles in this link: https://makerworld.com/en/models/1092603

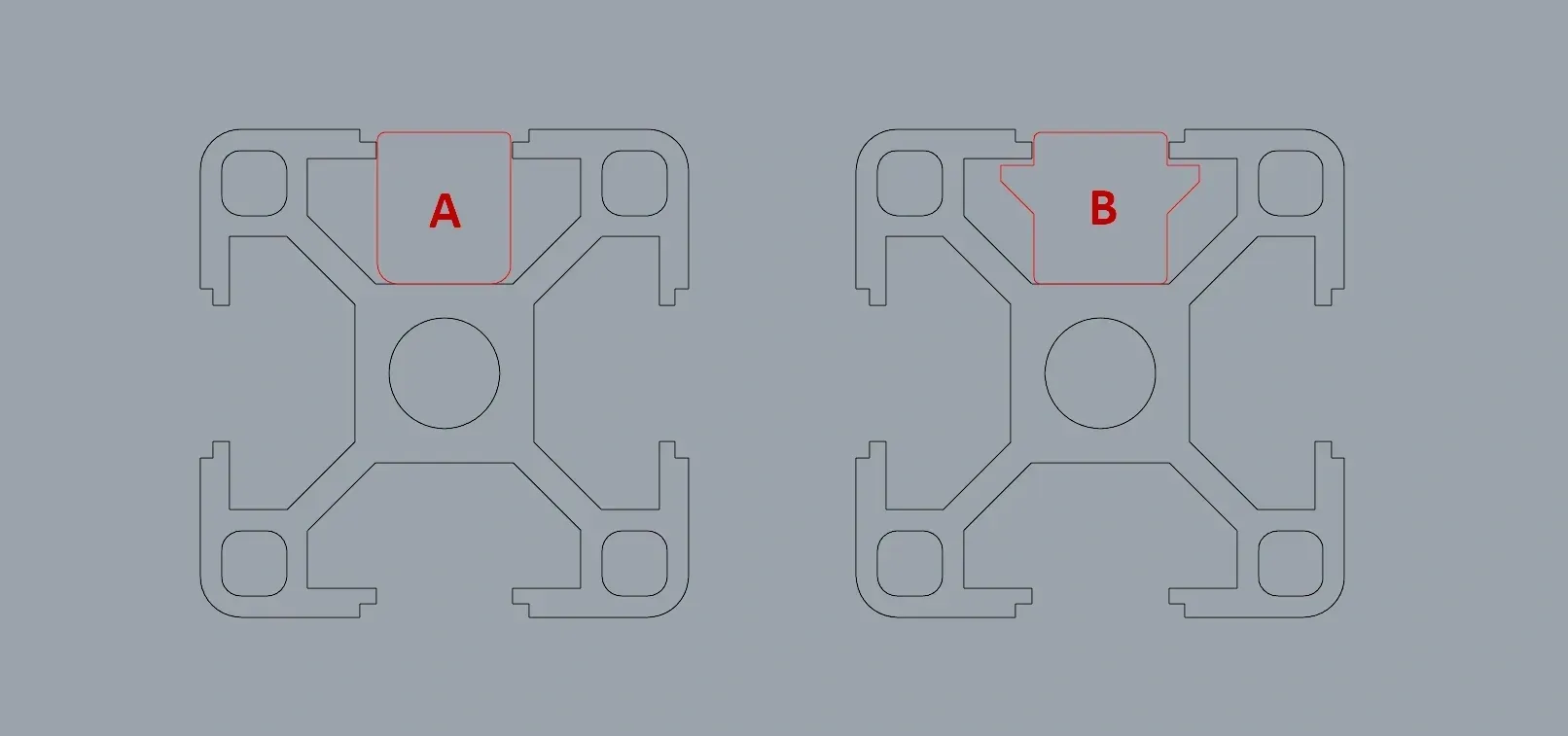

Two designs are provided: A and B.
Type A can be mounted from the side of the aluminum profile, offering flexible and convenient installation, making it a versatile option.
Type B requires pre-installation within the groove, preventing detachment from the side, recommended for vertical aluminum profiles.

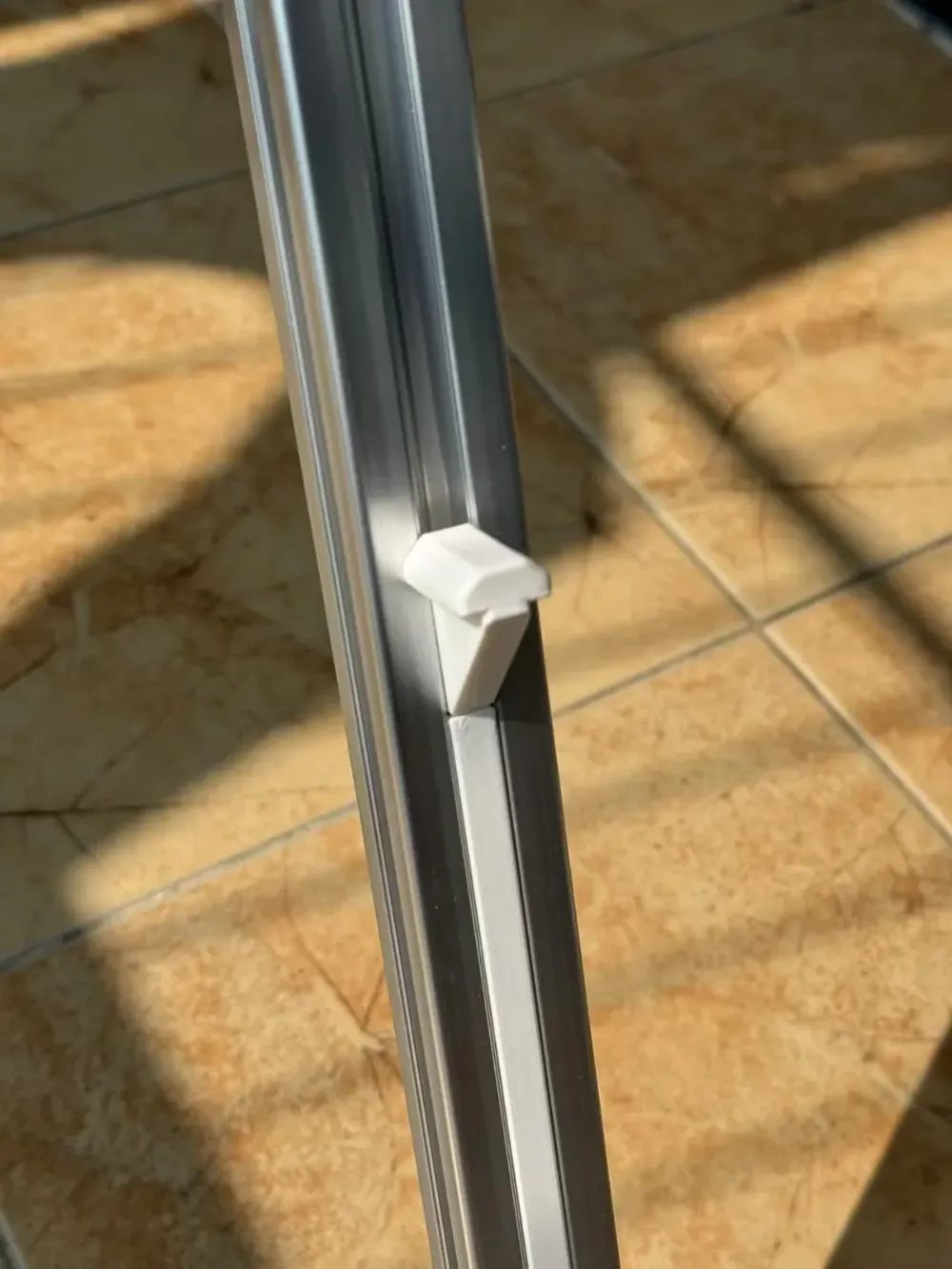

When installed within a vertical aluminum profile, using the “integrated corner groove” provides positioning and support, therefore Type B infill is set to 100%.
To minimize warping and deformation, a brim has been added to the print settings; remove if desired.

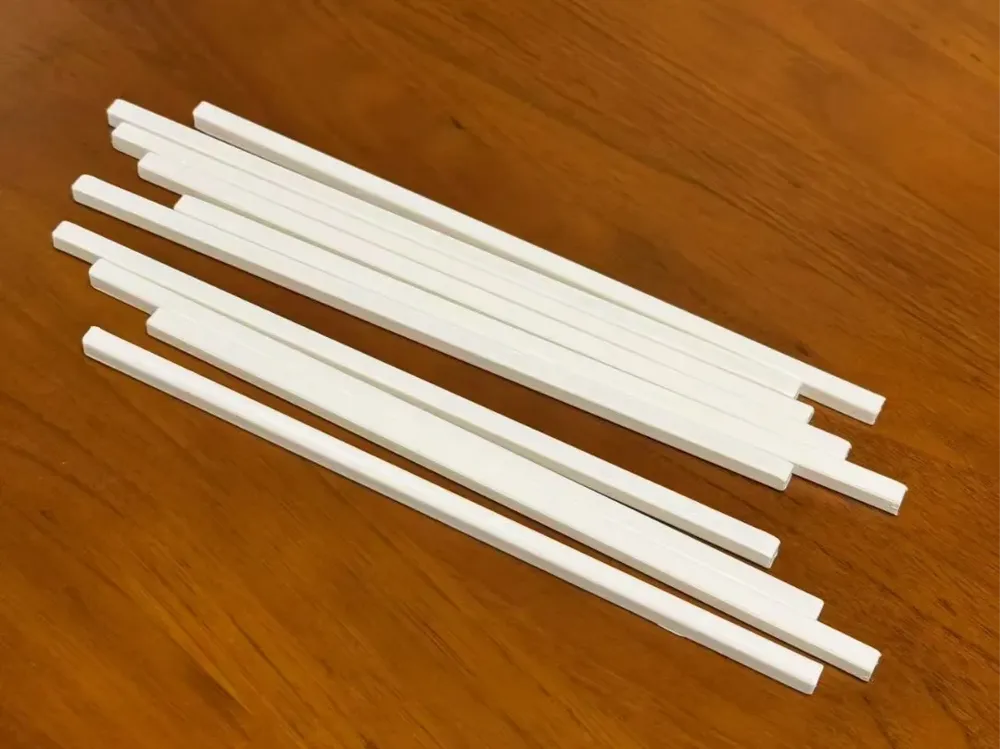

Length is uniformly set to 10mm; download the file and scale the model along the X-axis to your required length.
For more aluminum profile models, browse this collection: https://makerworld.com/en/collections/4907799
