Captain America (No AMS Required)

Updated 2025.2.24

1. The waist section can now be assembled without glue, though it requires a firm hand; consider leveraging a flat surface as with the foot magnets.
2. The shield has been updated, excluding the handgrip.
3. The footwear has been updated for a secure fit with the skeleton.

Modified from the official version 13 by the esteemed soozafone While striving to maintain the original artist's aesthetic, the Captain America likeness primarily draws inspiration from the Marvel Cinematic Universe.

Regarding the supports, I have slightly reduced the size of Shadymilkman's supports, as they were somewhat oversized for my mini; I intend to print four at once.

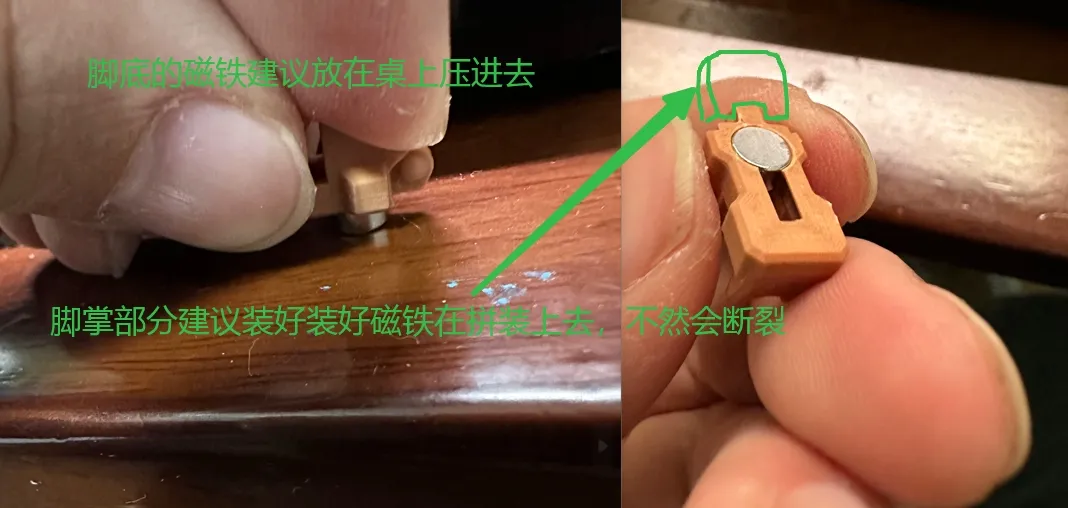

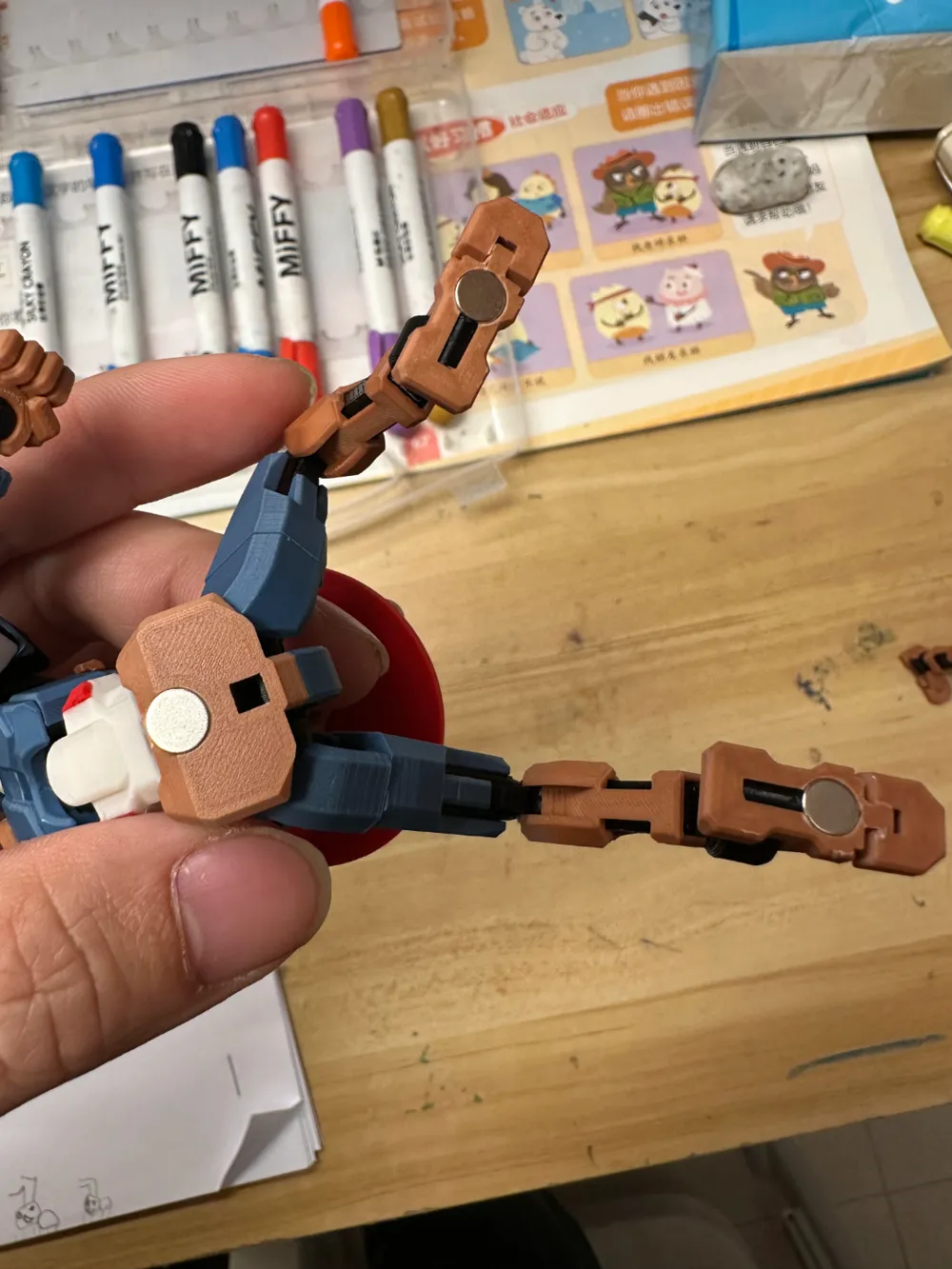

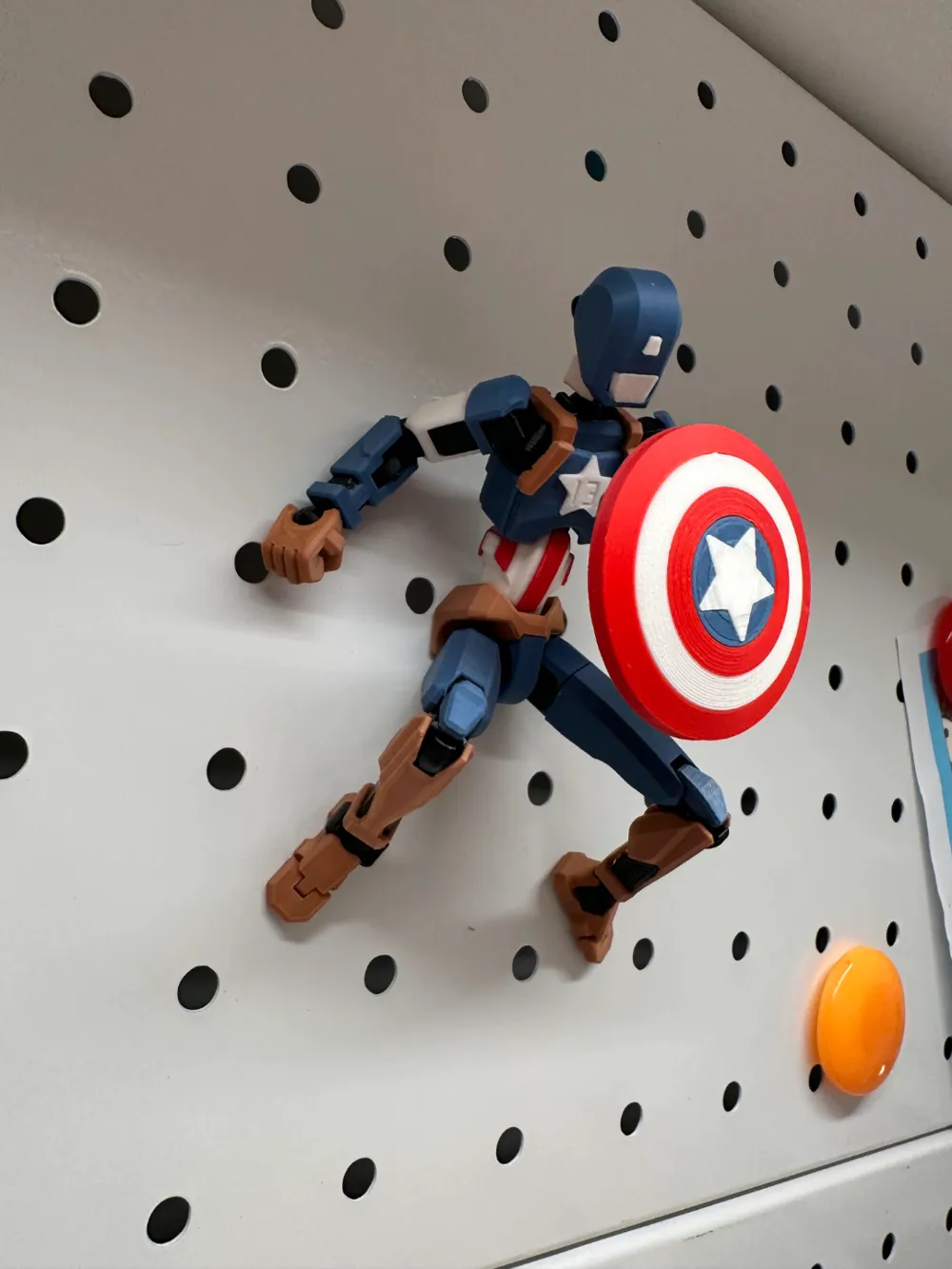

Magnet receptacles are incorporated into both the buttocks and feet. The buttocks utilize 6mm diameter, 3mm high cylindrical magnets, while the feet employ 5mm diameter, 3mm high cylindrical magnets.
I utilized an A1 MINI for printing. The armor components were printed with a 0.2 nozzle at 0.08mm precision, yielding exceptional results. Maintaining the model's print orientation is advised to preserve both aesthetic appeal and component strength.

The skeletal components were printed with a 0.4 nozzle at 0.2mm precision. For certain models, the print order has been adjusted to prioritize outer walls before inner walls.

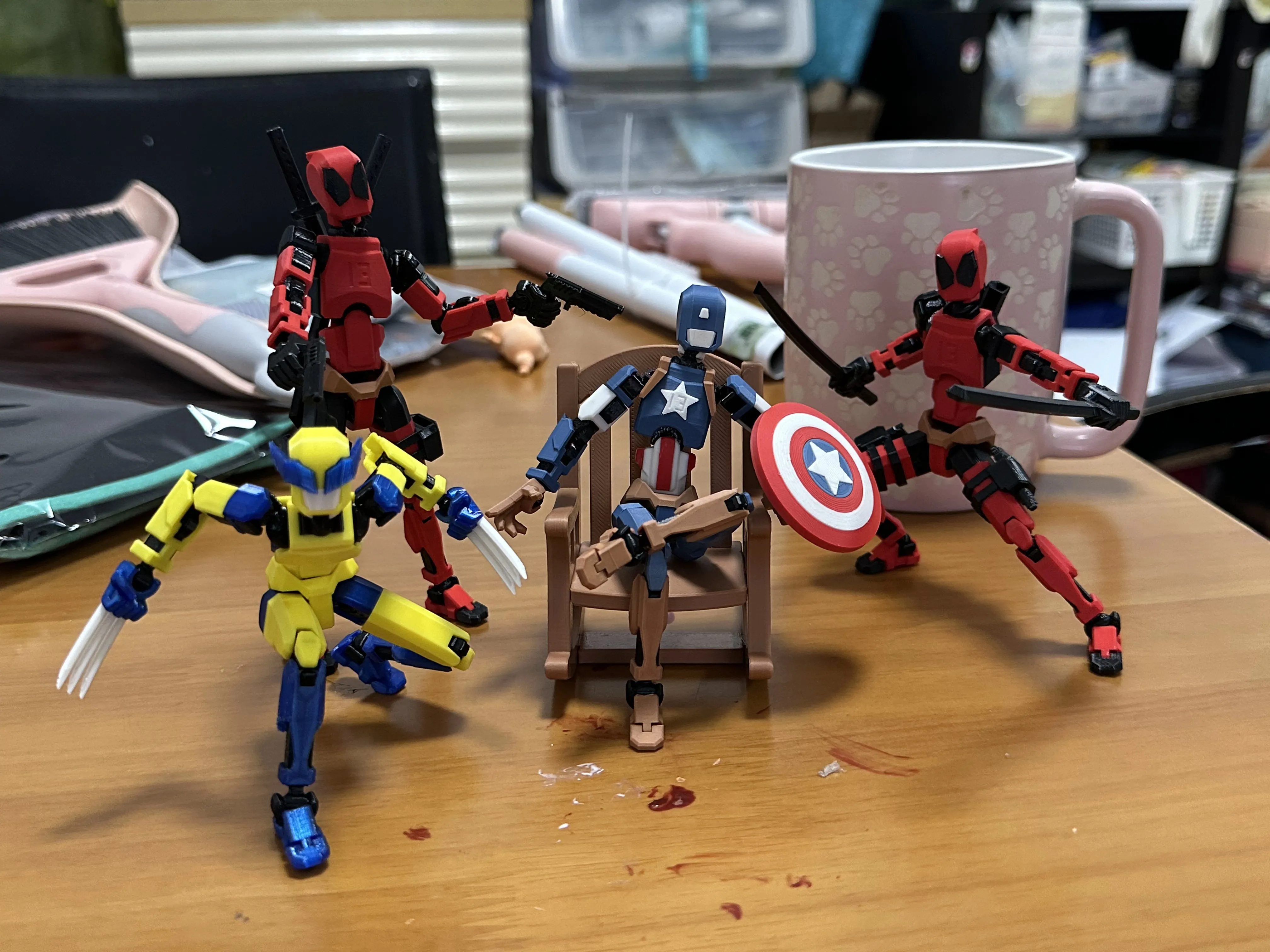

Other Marvel Characters

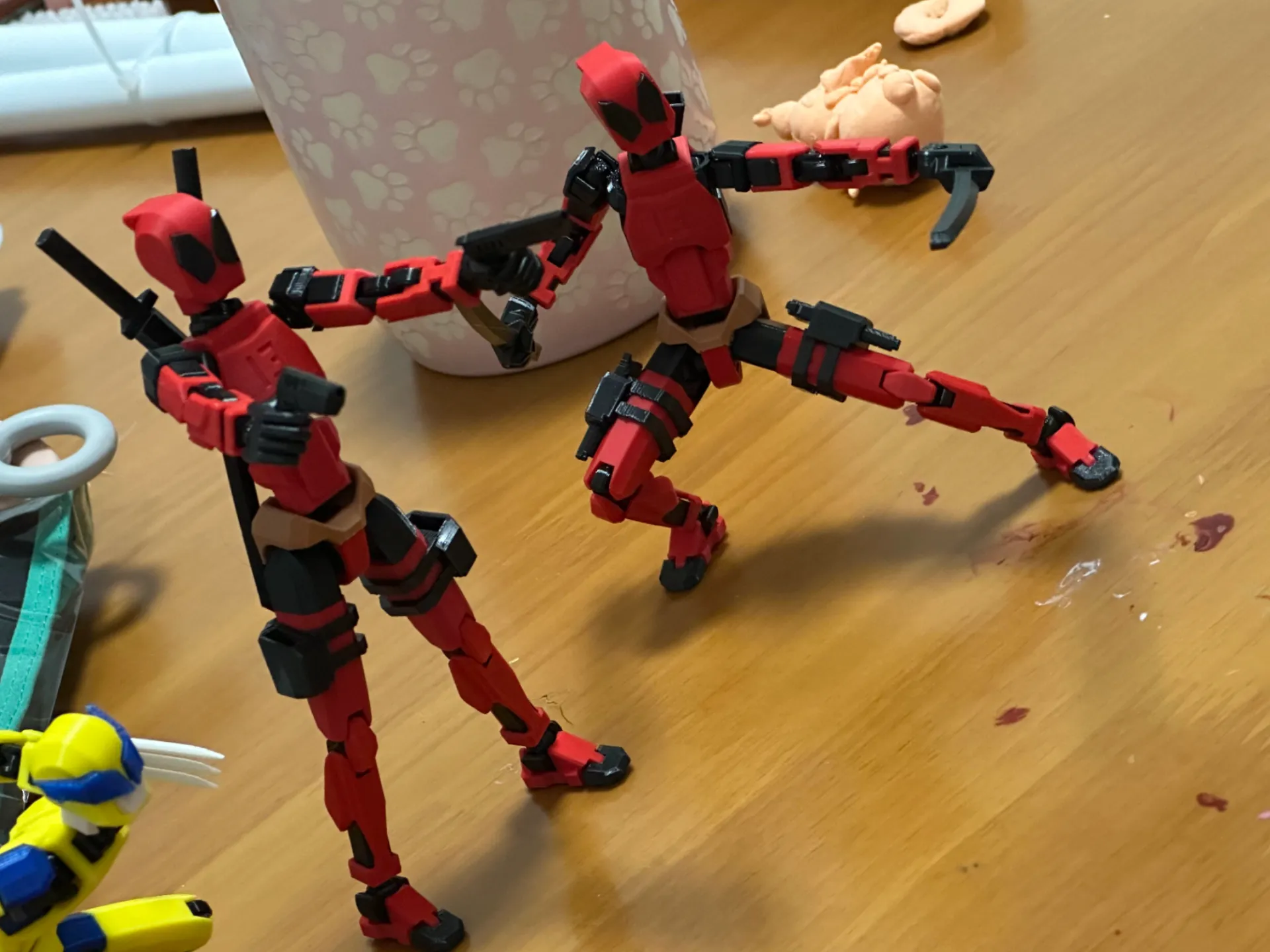

Deadpool 13 - Fan Art by 啪啪侠 - MakerWorld

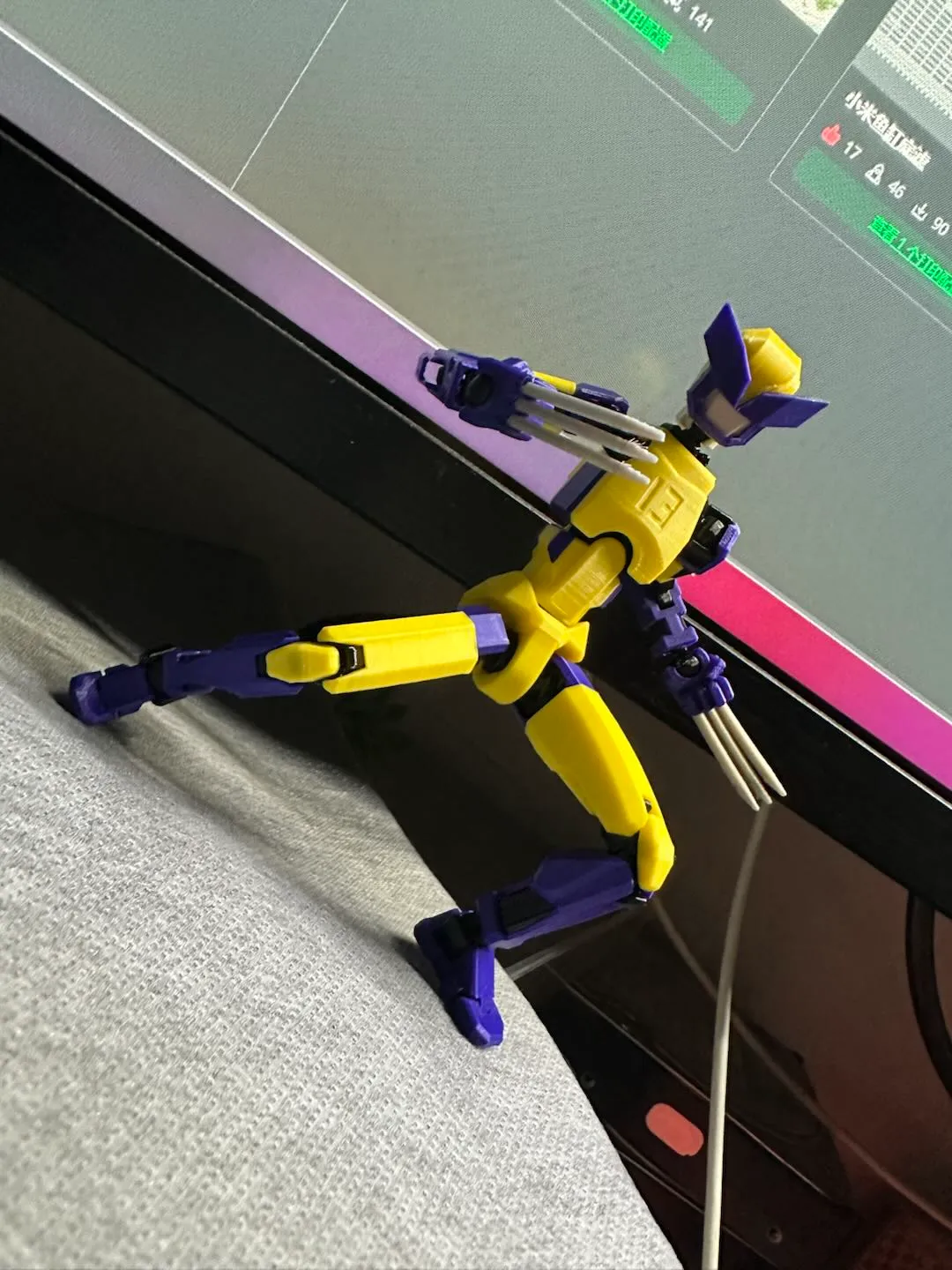

The third character will be Wolverine

Wolverine 13 (No AMS Required) Fan Art by 啪啪侠 - MakerWorld

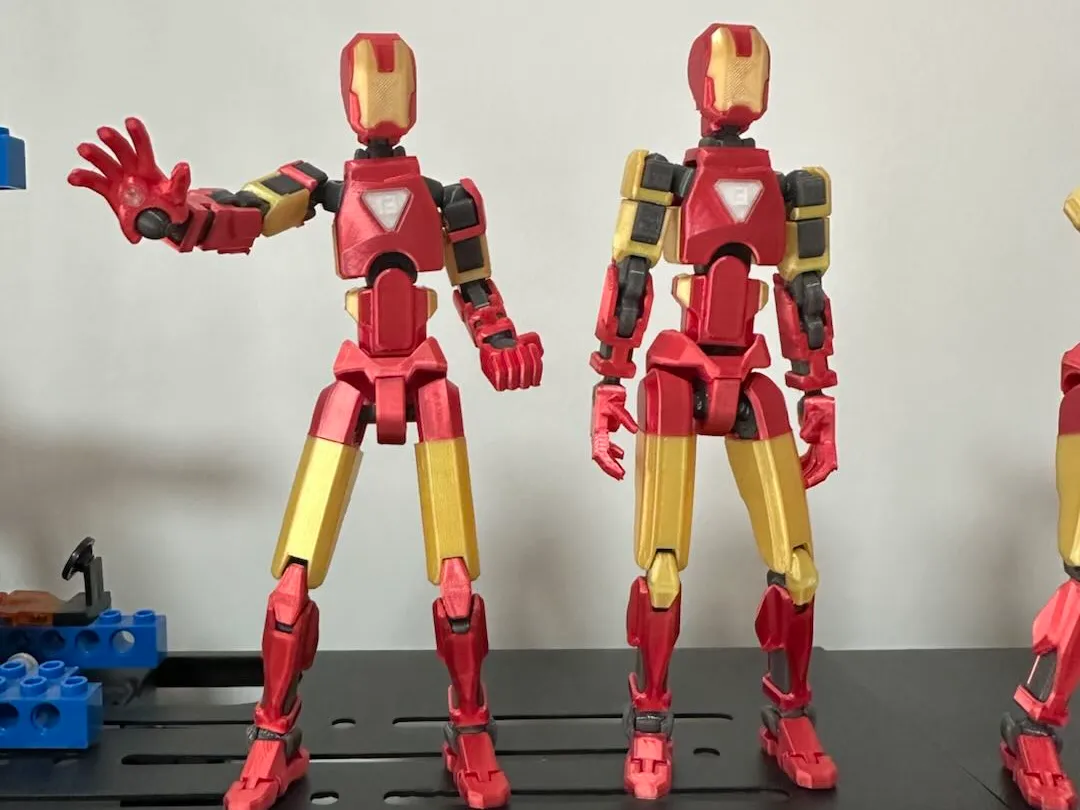

Iron Man 13 (No AMS Required) Fan Art by 啪啪侠 - MakerWorld

Additional Considerations

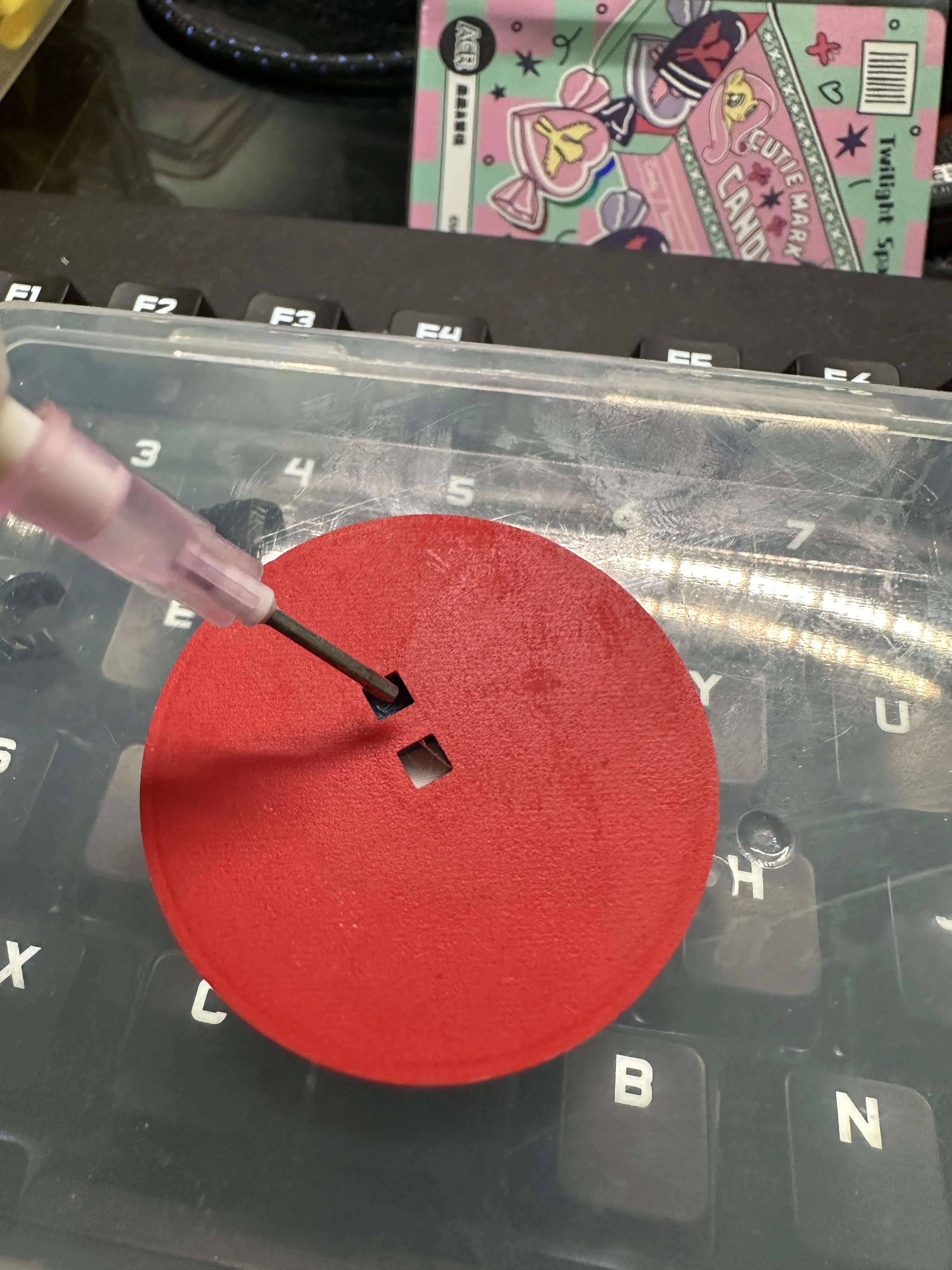

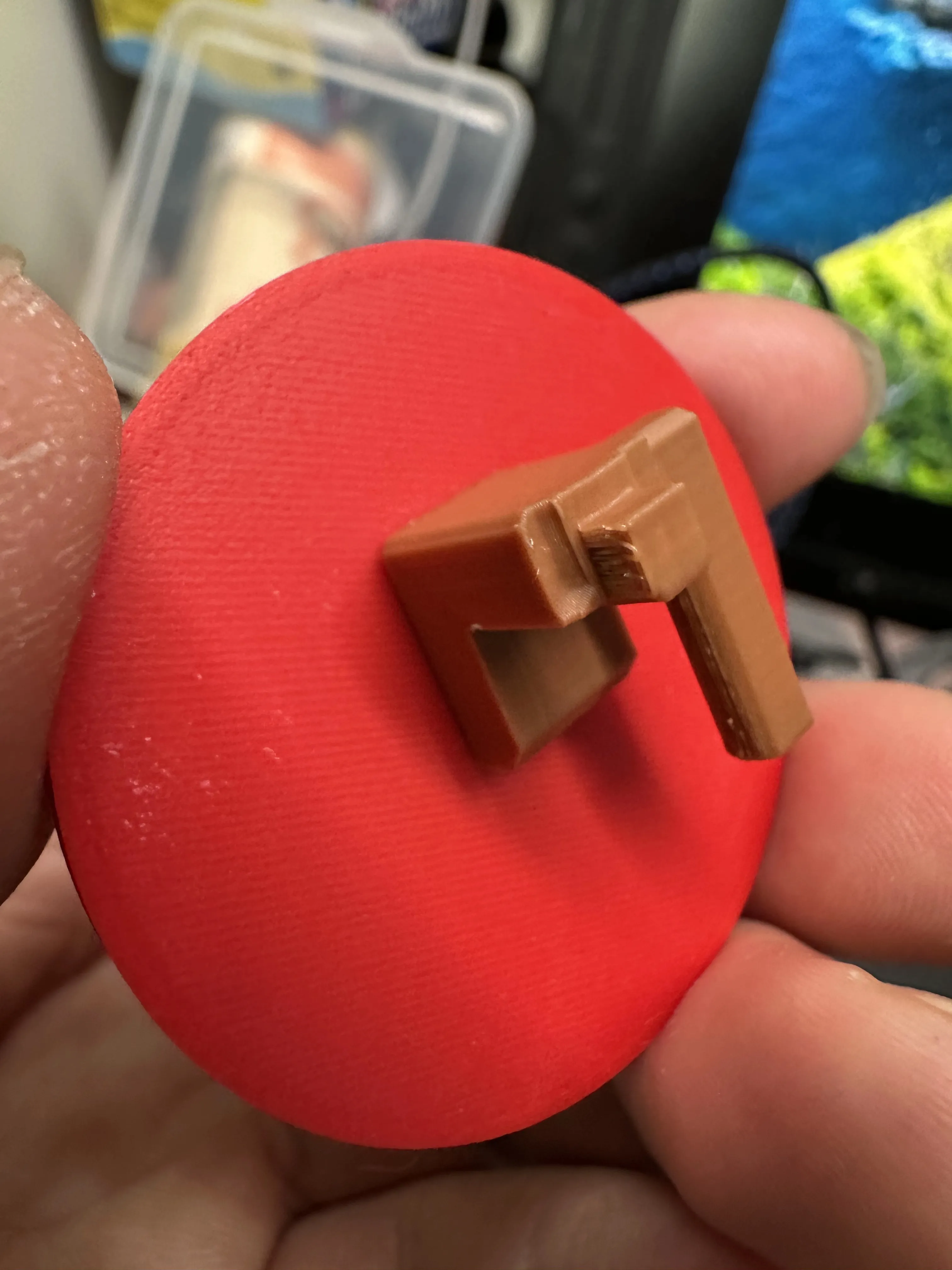

Secure the front shield component before attaching the handle. (A small amount of modeling glue is recommended, as illustrated.)

Applying glue to the red waist component is also suggested. (Glue is no longer necessary for this section. Press the central red section onto a flat surface; a satisfying “click” indicates successful installation.)

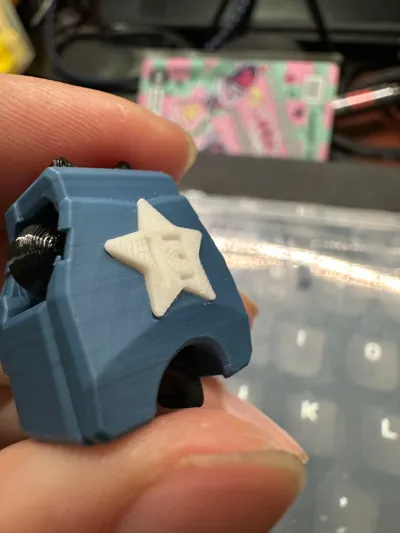

Critically, glue is essential for securing the shoulder straps. The narrower strap is oriented towards the chest.

Glue is required only for the areas mentioned above; other components can be assembled without adhesive.
