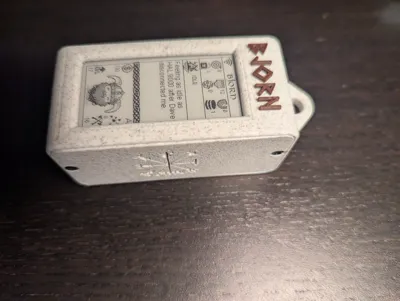

Bjorn Cyberviking Raspberry Pi Zero Case

This is a remake of a pwnagotchi case I have used and that worked quite well.

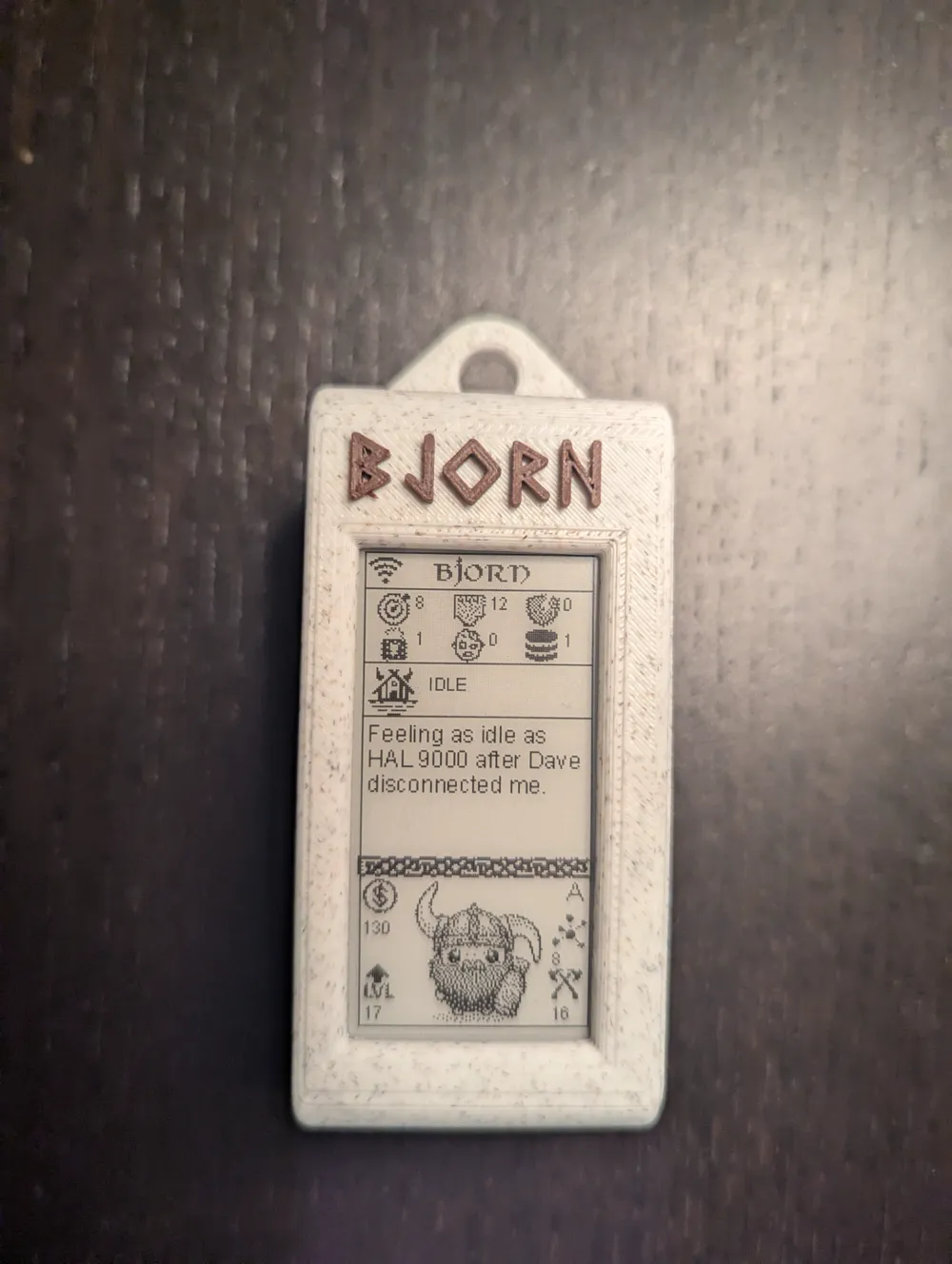

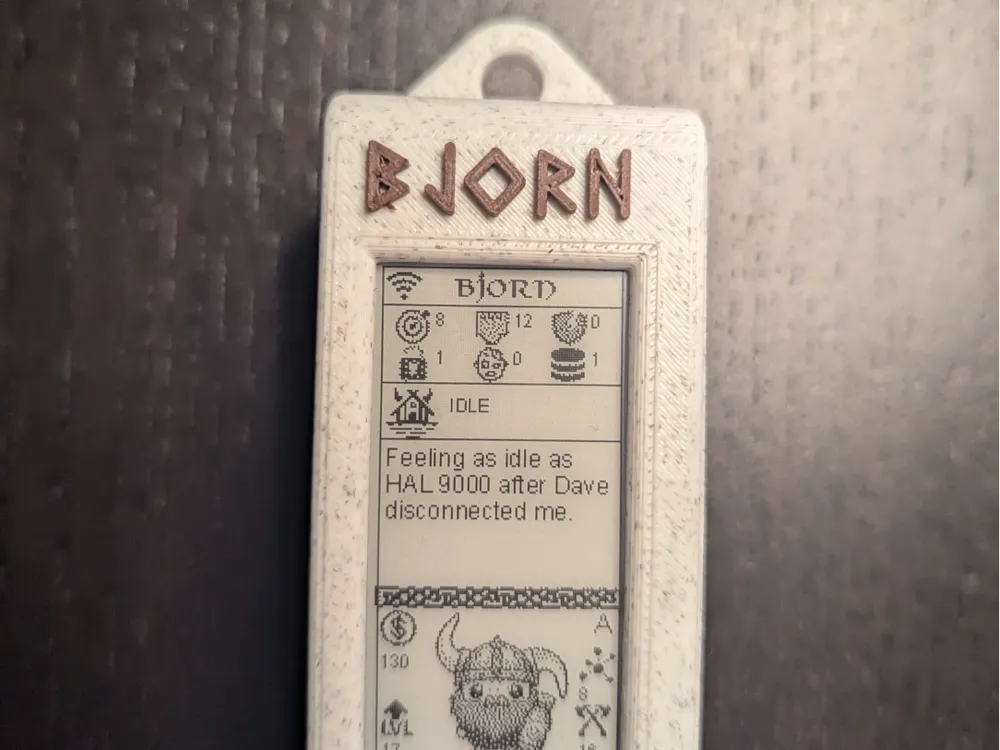

I added a Bjorn name tag at the front and a Vegvisir symbol to the front.

The case was designed for a raspberry pi Zero W in combination with a Waveshare 2.13" eink display as well as a Pisugar 3 power supply.

Printing Instructions & Remarks:

I used Bambu Lab marble PLA filament as well as Bambu Lab dark wood PLA.

• Since I printed the case without AMS I used a different case orientation and had to use (more) tree supports. Also added an auto pause to change the color of the name tag.
• Two tiny parts of the Vegvisir symbol won't stay since they are not connected. (I might rework the 3D model in the future and add a link)

Assembling instructions:

• I used two 2.5x16mm screws (little shortes ones should work as well)
• You have to remove filament from the screw holes first: Use a screw and push these tiny bits of filament from the back through the holes.
• I also used a small transparent piece of packaging plastic and clued it behind the lit with the Vegvisir sign. It's not mandatory but it keeps some dust away from your raspberry when you transport it in your pockets.
• Usually, I use a small 3cm carabiner to attach it to my bag or keys. For this theme cord or leather would look even better.
