K20 CO V2 + All gear ratios

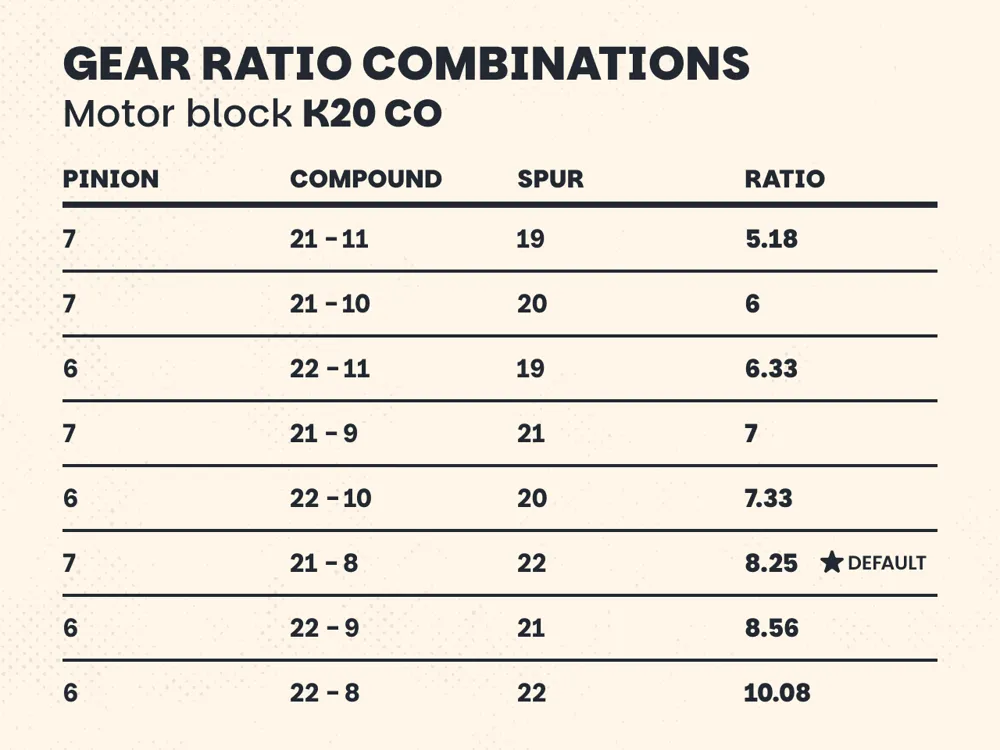

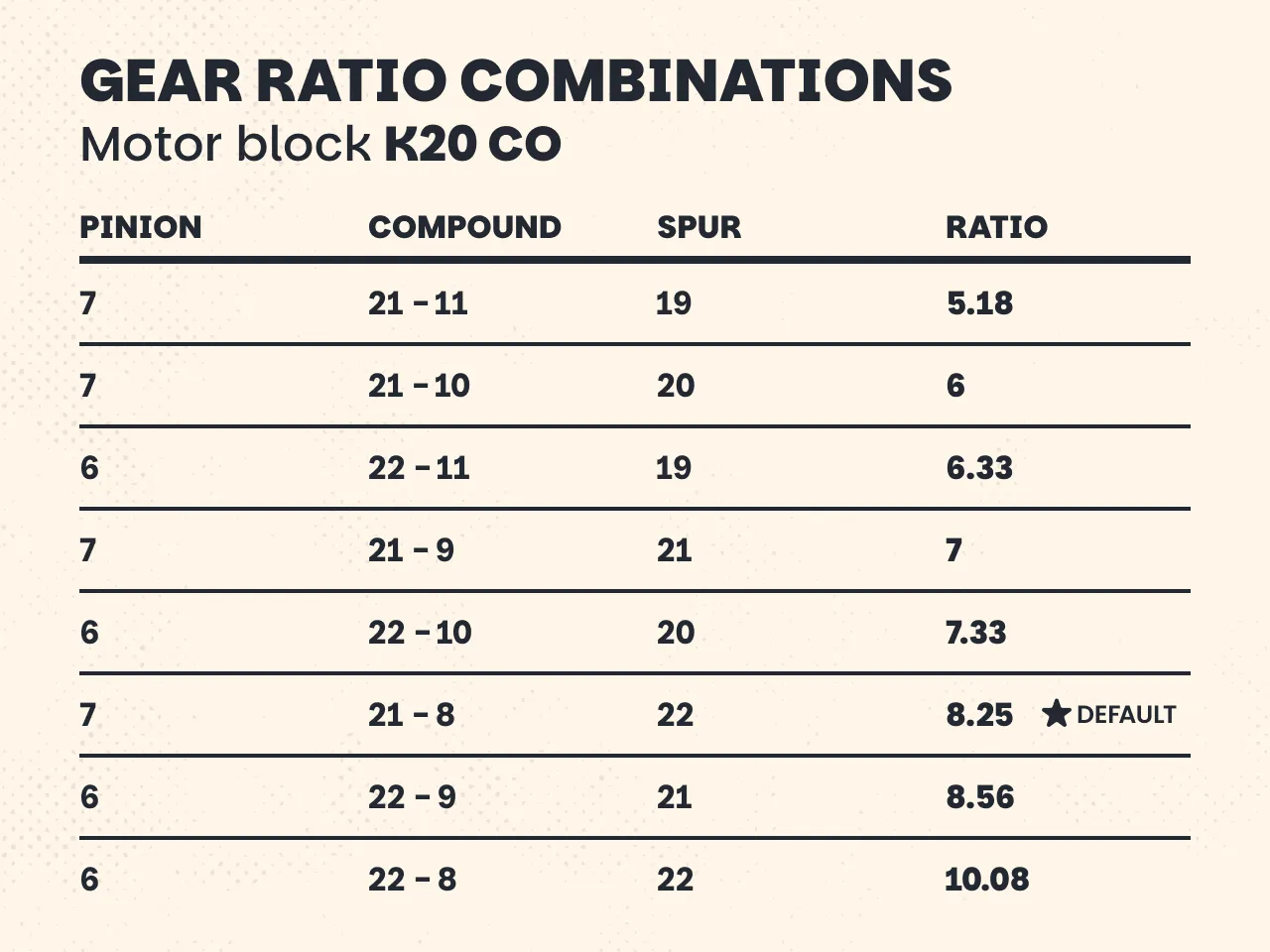

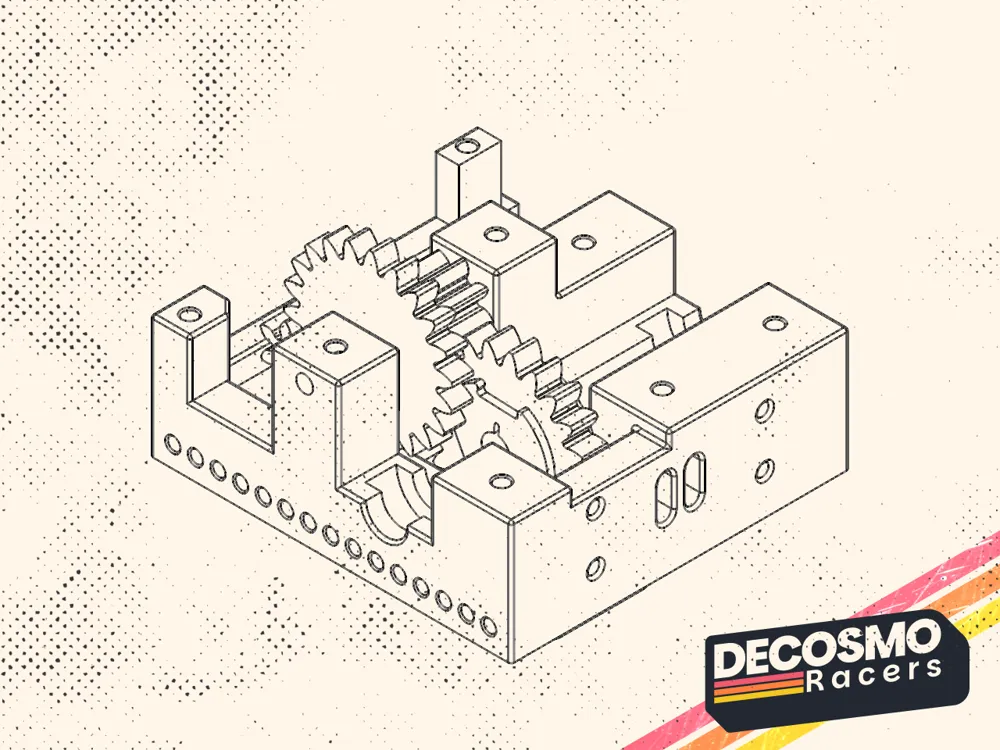

This motor block combo kit for the Noobster includes the K20 CO V2 motor block (also compatible with both gear covers from V1), designed to house all the gears needed for a wide range of gear ratios, from 5:1 to 10:1.

The combo kit includes everything required to experiment and optimize your setup:

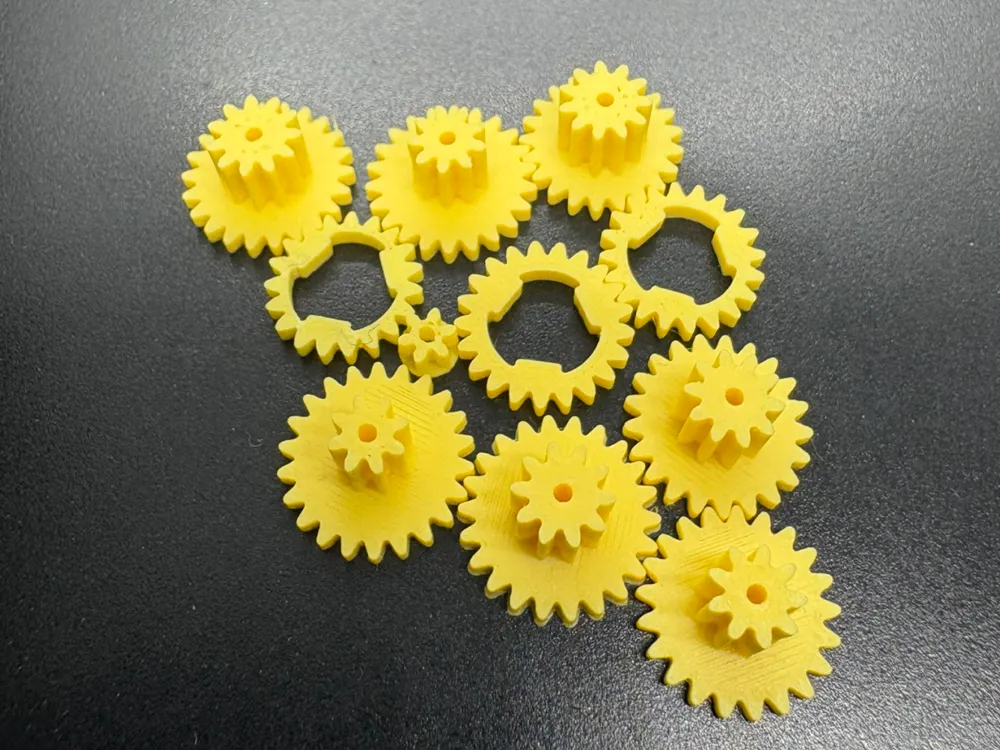

• 2 pinion gears (with 2 tolerance variants)

• 4 spur gears

• 1 spur gear adapter

• 8 compound gears

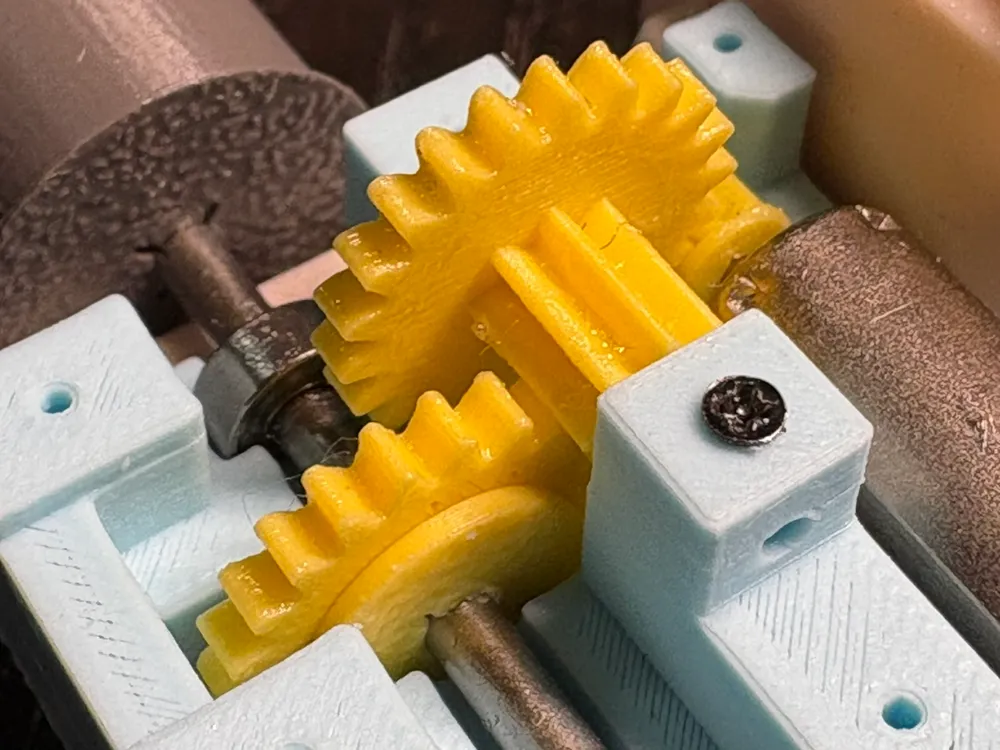

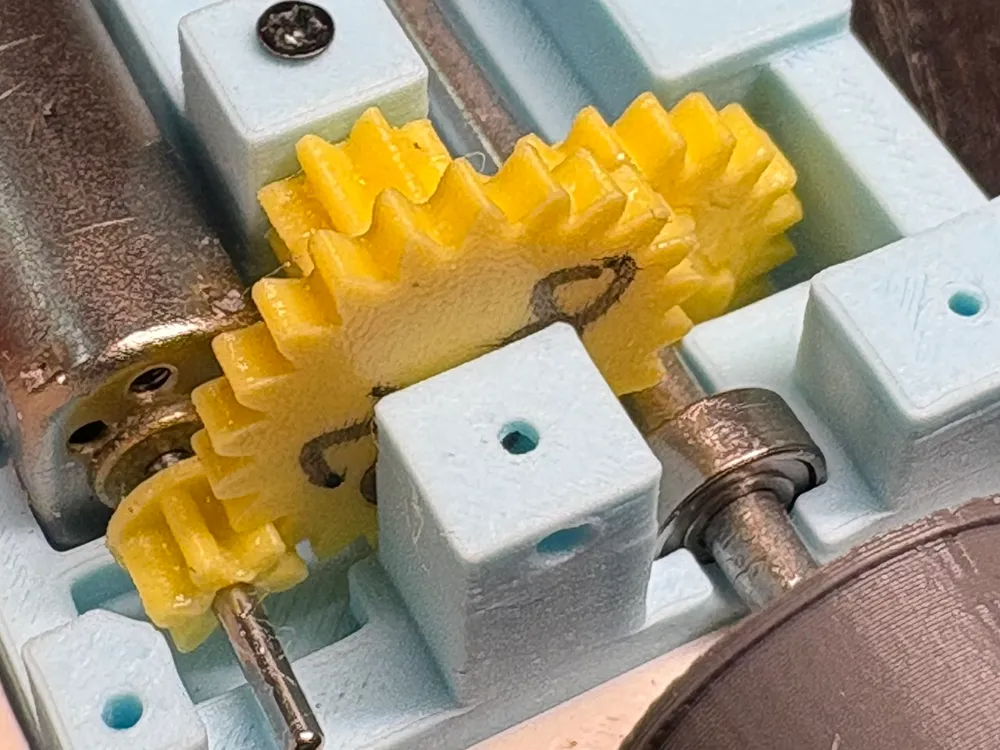

The improved motor block ensures full compatibility with all the included gear combinations, giving you the flexibility to fine-tune your Noobster’s performance for either speed or torque.

If you prefer to get the components individually, here is the list:

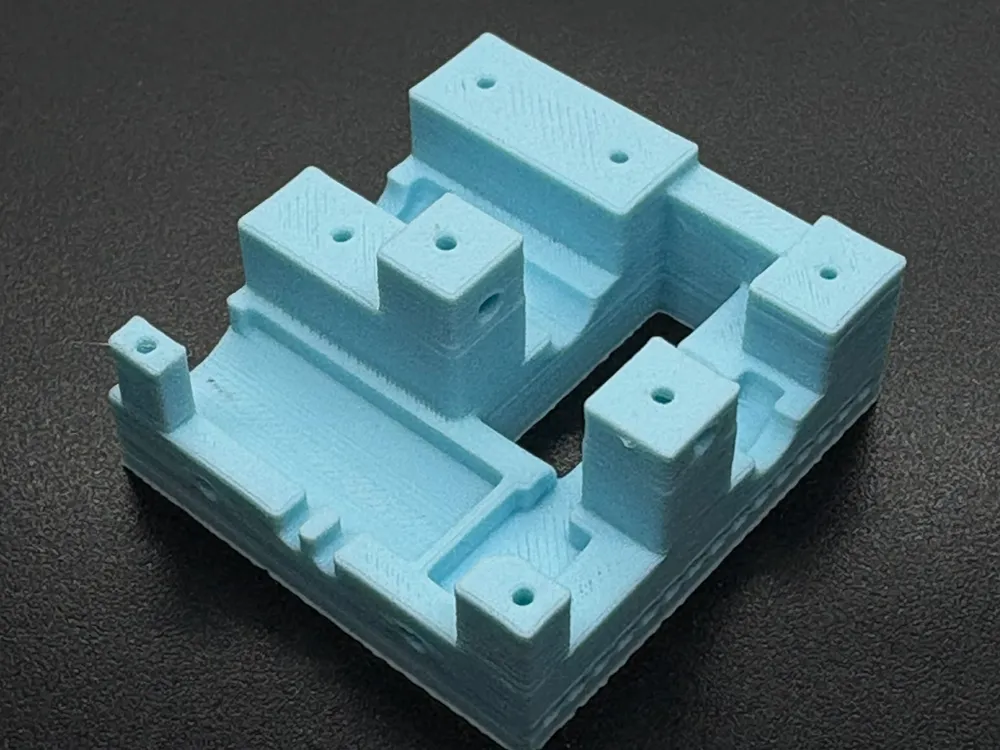

• Lower motor block V2 (MB-NB-LMB_K20CO-V2)

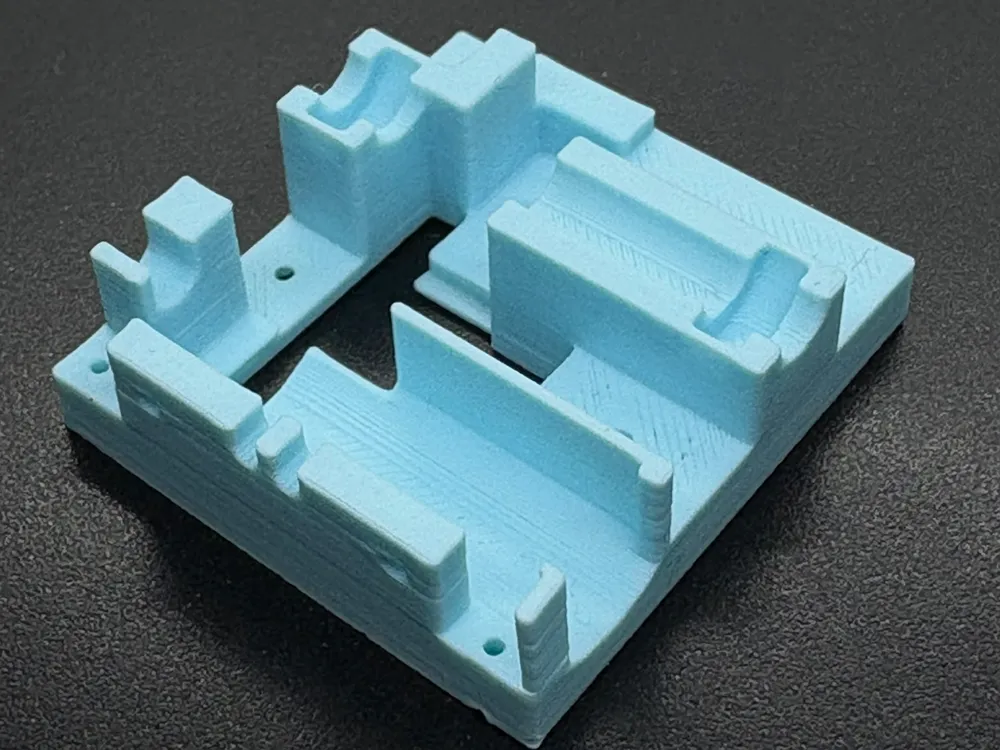

• Upper motor block V2 (MB-NB-UMB_K20CO-V2)
• Lower gear cover (MB-NB-LGC_K20CO-V1)
• Upper gear cover (MB-NB-UGC_K20CO-V1)
• Pinion gear 7T (MB-NB-PG7T-V1)
• Pinion gear 6T (MB-NB-PG6T-V1)
• Spur gear 19T (MB-NB-SG19T-V1)
• Spur gear 20T (MB-NB-SG20T-V1)
• Spur gear 21T (MB-NB-SG21T-V1)
• Spur gear 22T (MB-NB-SG22T-V1)
• Spur gear adapter (MB-NB-SGA_D2-V1)
• Compound gear 8T 21T (MB-NB-CG8T21T-V1)
• Compound gear 9T 21T (MB-NB-CG9T21T-V1)
• Compound gear 10T 21T (MB-NB-CG10T21T-V1)
• Compound gear 11T 21T (MB-NB-CG11T21T-V1)
• Compound gear 8T 22T (MB-NB-CG8T22T-V1)
• Compound gear 9T 22T (MB-NB-CG9T22T-V1)
• Compound gear 10T 22T (MB-NB-CG10T22T-V1)
• Compound gear 11T 22T (MB-NB-CG11T22T-V1)

For more information, you can find the Noobster V1 at this link, including all details and the PDF assembly guide.
