Description
DECOSMO Racers is kicking off with the Noobster, the first in a series of tiny RC cars you can 3D-print for free.
This project is all about making it fun and accessible for anyone to create their own micro RC car.
Regular updates and new models are on the way, and the community is at the heart of it all.
Got ideas for upgrades or accessories? Go for it! Make a remix, create your own versions, and share them—your creativity is what makes this project even cooler.

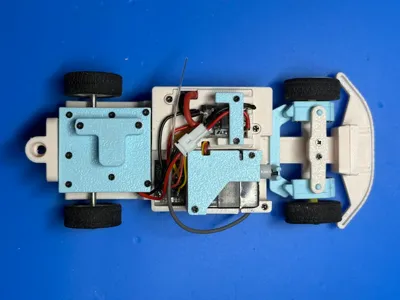

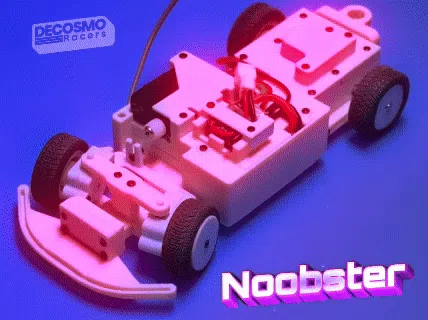

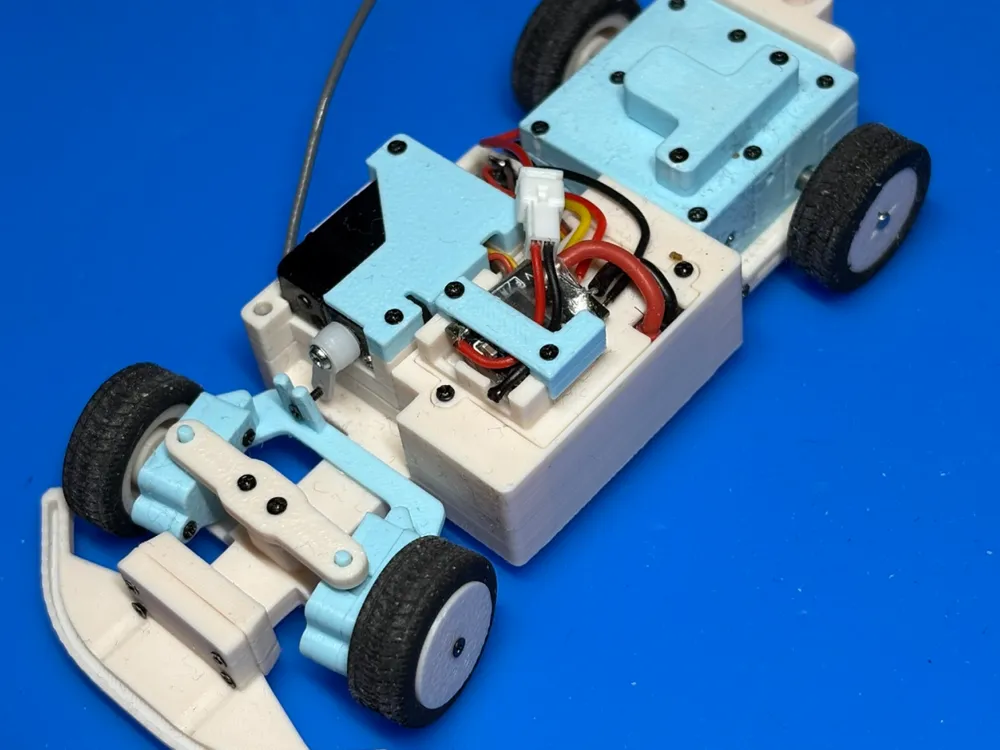

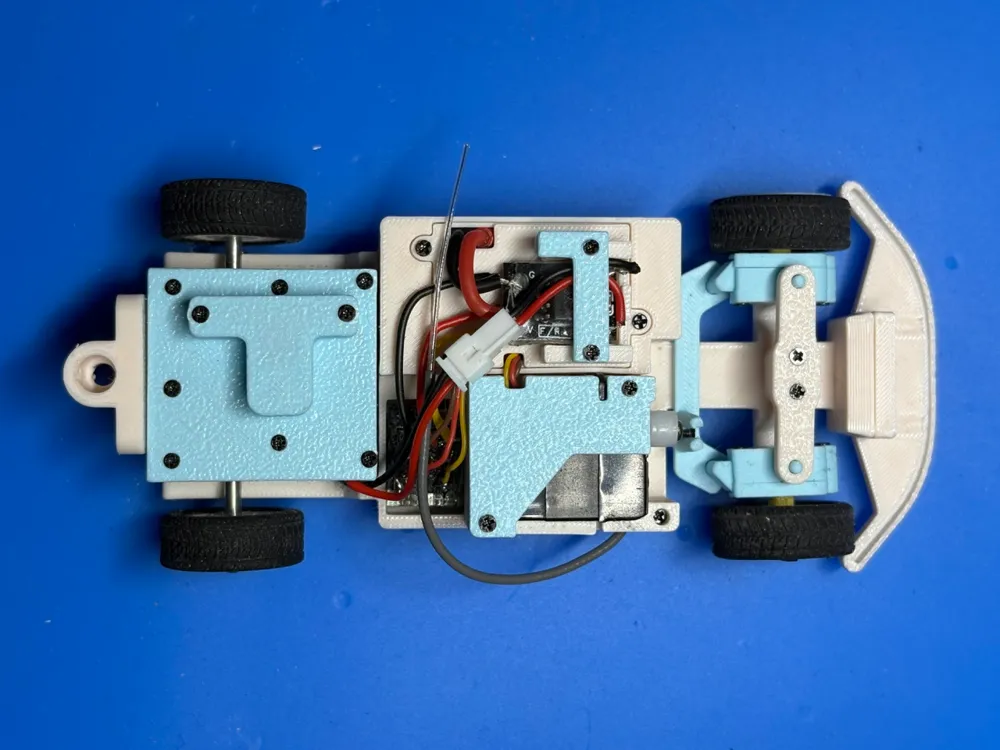

The Noobster is a 1:43 scale RWD entry-level RC car designed for smooth surfaces and flat tracks. Its ultra-low profile makes it perfect for precision driving.
The adjustable motor placement and removable body mounts make it easy to adapt to different body shells and wheelbases.

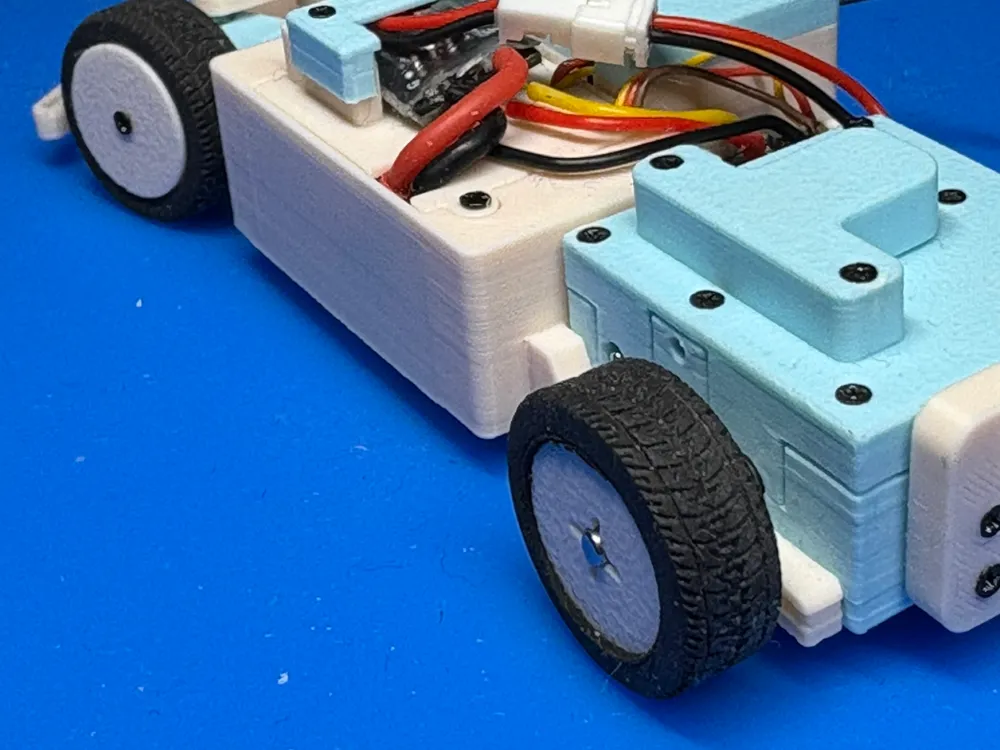

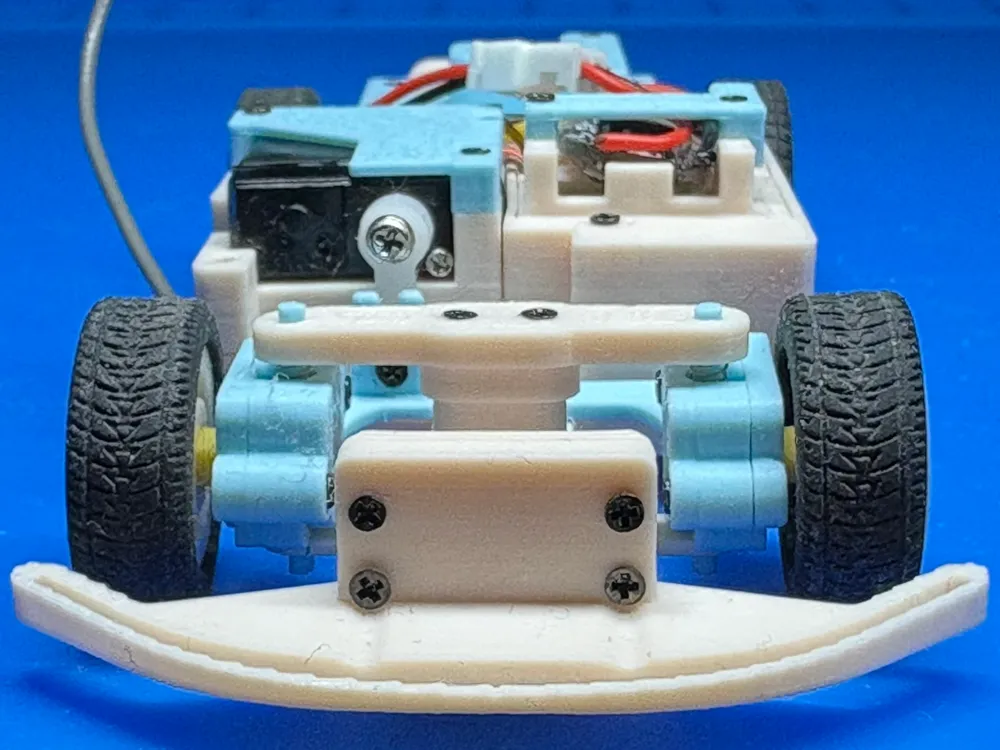

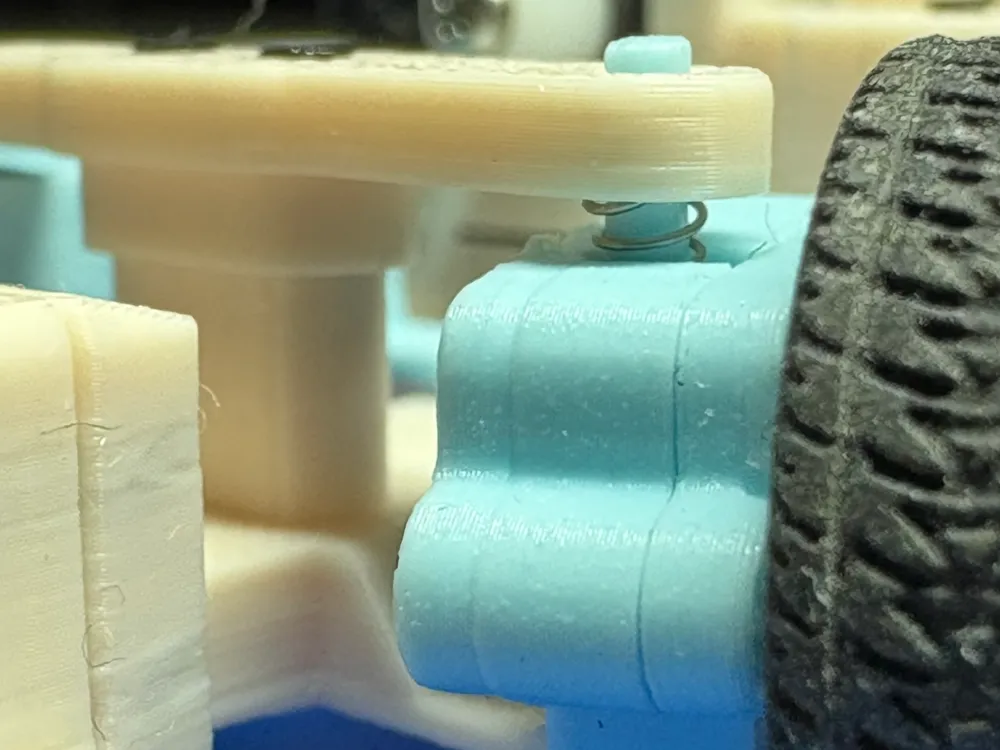

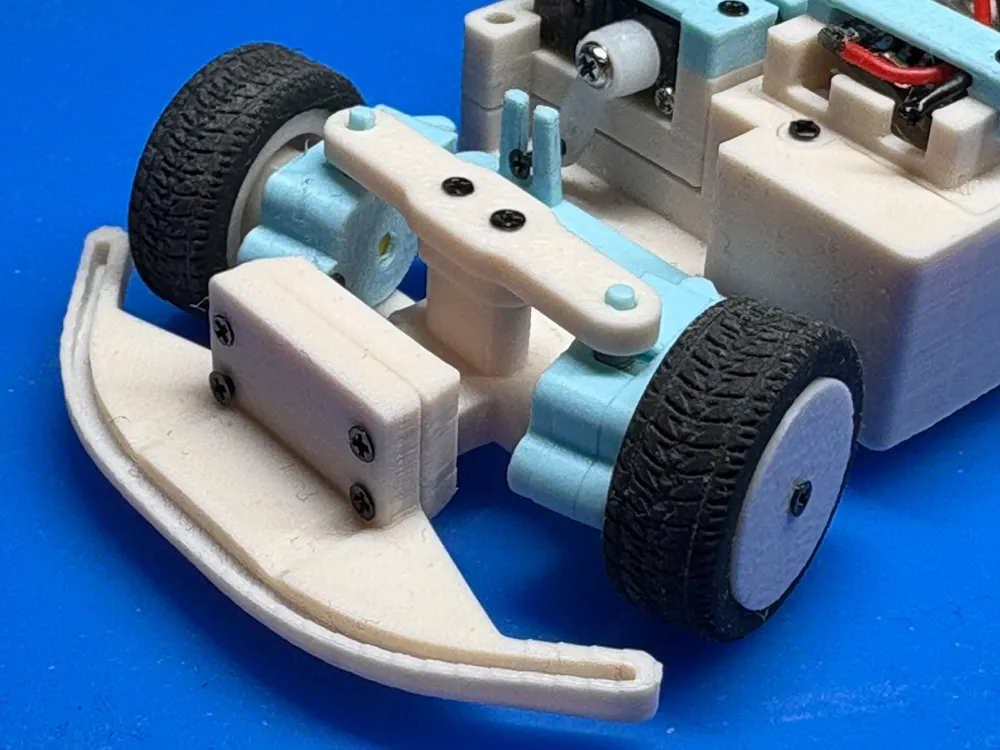

With front suspension, the Noobster handles small bumps with ease, offering better control and agility. Bearings on both the rear axle and front wheels ensure smooth performance for an enjoyable driving experience.
Update – 14 Feb 2025

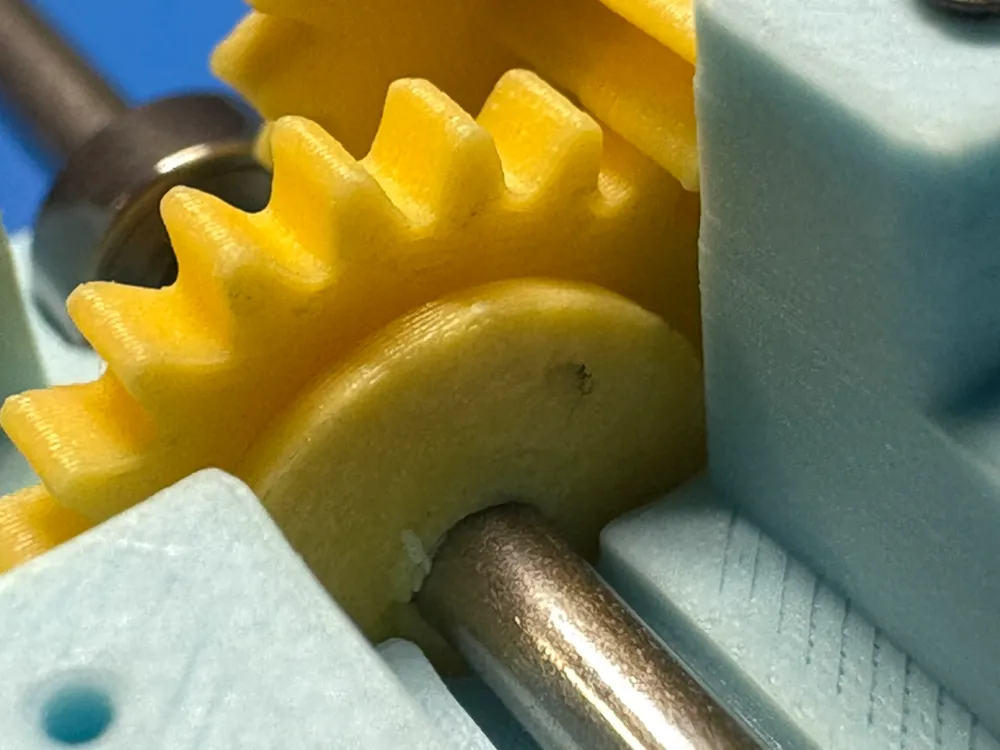

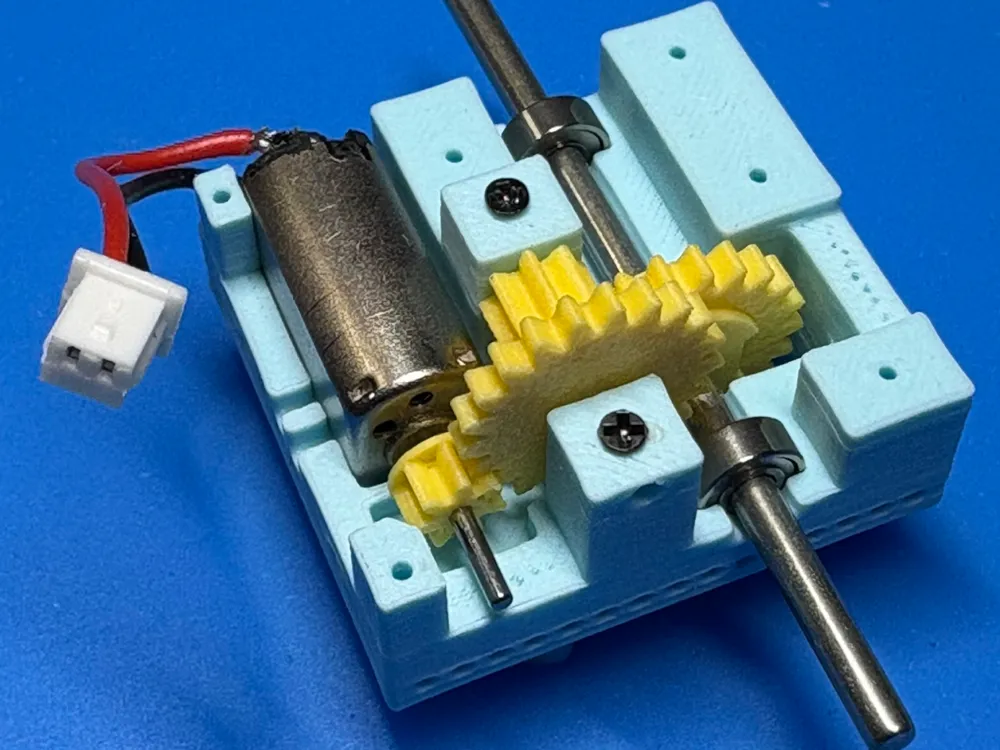

- Motor Block K20 CO V2 – Updated with a new gear set allowing a gear ratio from 5:1 to 10:1 → Here
- 2g Micro Servo Support – Includes Steering bar, Servo mount, and Servo cover
- New Rear Wheels & Tires – Wider for improved grip → Wheel and Tire
- Lola Body – Designed for maximum performance → Here
What’s Included
The build is organized into three plates:
• Two plates for the Noobster’s main parts.
• One plate for the K20 CO motor block and components.
Download, print, and start building your Noobster with no fuss!
Boost Me (for free)
A little boost makes a big difference! Your support helps me keep experimenting and dedicating time to bringing more updates and new models to life. Thanks so much—you’re amazing!
Wheels and tires
When it comes to wheels and tires, you’ve got several possibilities to choose from:
You can start with the base wheels 12x5.6, available here:
Pair these wheels with one of these tire options:
- Tire - 12x16x5.2 (TI-UN-121652-V1): TPU tires designed for a 0.4mm nozzle. Smooth enough for concrete or for drifting on parquet or tiles.
- Turbogrip Tire - 12x16x5.2 (TI-UN-TG_121652-V1): High-grip tires that work almost anywhere. These require 1mm o-rings (with a 13–14mm diameter).
Alternatively, if you already have slot car wheels, you can adapt those!
You can find the NINCO Maserati GT4 (91208) wheels, compatible with other similar slot models, here:
More wheel designs and variants are coming soon to maximize compatibility and adaptability, so stay tuned!
What You’ll Need
To get the Noobster running, you’ll need a few electronic and mechanical components.
You can find the full list of parts and recommendations here.
Gather the pieces, follow the guide, and you’ll be racing in no time!
Stay tuned
The DECOSMO Racers website is constantly being updated with guides, new resources, and even more models. Want to stay in the loop? Sign up for the newsletter to never miss a release!
