Dust Shoe for 65mm CNC Spindles (Low Profile)

Header

Title:

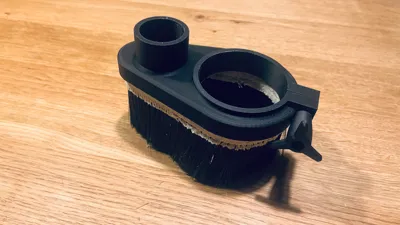

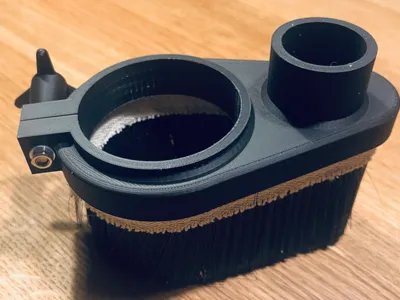

Dust Extraction Adapter for TTC450 - 65 mm Spindle with 32 mm Hose Connection

Description:

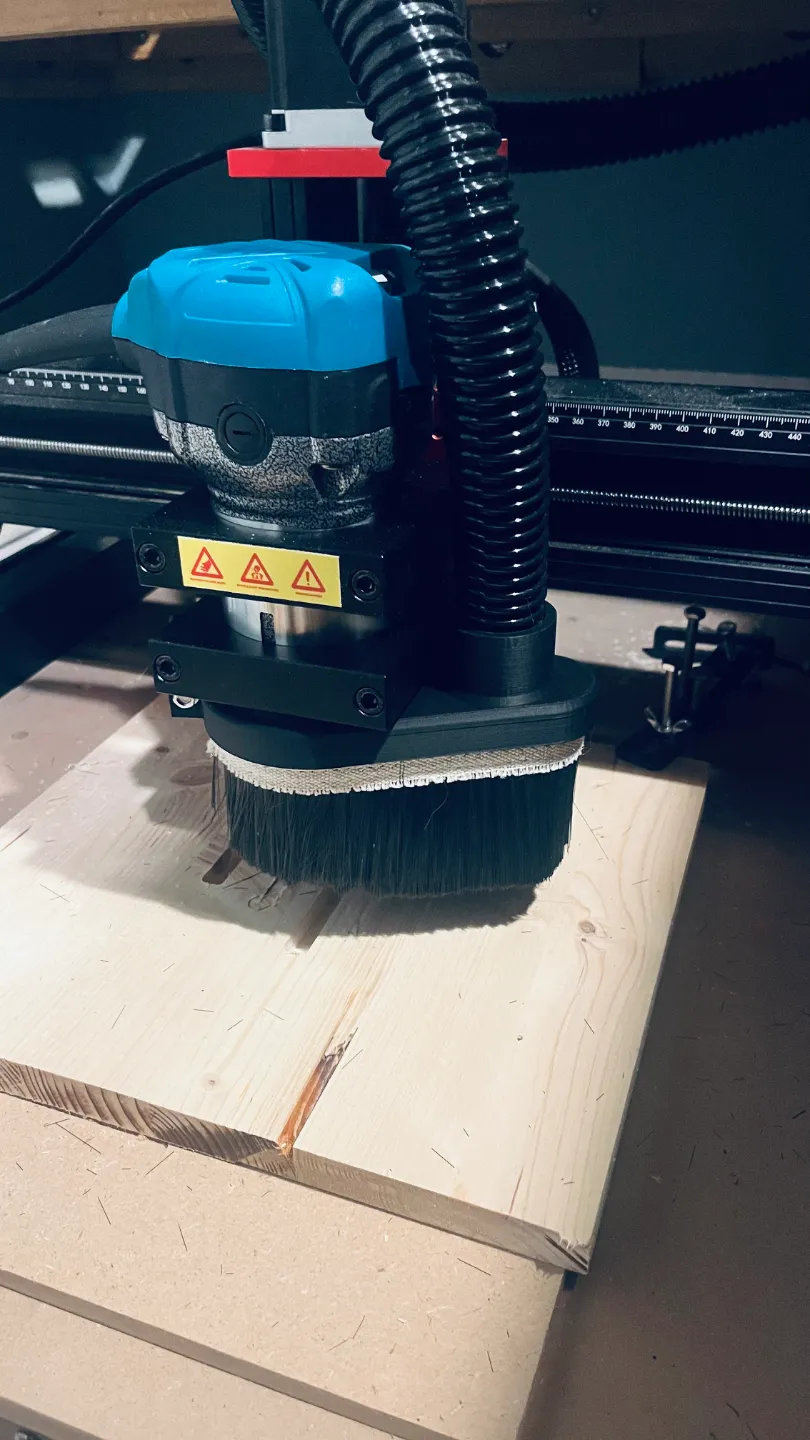

This compact and functional dust extraction adapter is specifically designed for efficient dust and chip removal from the TTC450's 65 mm spindle. Its low profile seamlessly integrates into the confined space between the spindle mount and the work surface. The adapter offers a straightforward connection for a 32 mm hose, ensuring a clean working environment.

The bristles are affixed with hot glue.

Features:

• Precision Fit: Designed for the TTC450's 65 mm spindle.
• Hose Connection: 32 mm inner diameter, ideal for standard extraction hoses.
• Compact Design: Low profile, perfect for tight spaces.
• Print Material: Optimized for PLA – lightweight yet robust.

Recommended Print Settings:

• Material: PLA
• Layer Height: 0.2 mm
• Infill: 20–30 % (for optimal strength and weight)
• Supports: Not required
• Print Orientation: Lay the adapter flat on the print bed for optimal adhesion and dimensional accuracy

Applications:

This adapter is intended for DIY enthusiasts and professional users seeking to enhance their TTC450's efficiency. Ideal for applications demanding cleanliness and precision.

Note:
The adapter's low profile is optimized for the tight space constraints around the spindle mount.
