Raspberry PI CRT TV Style case
Print Profile(1)
Description

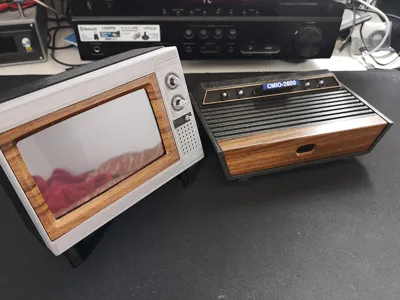

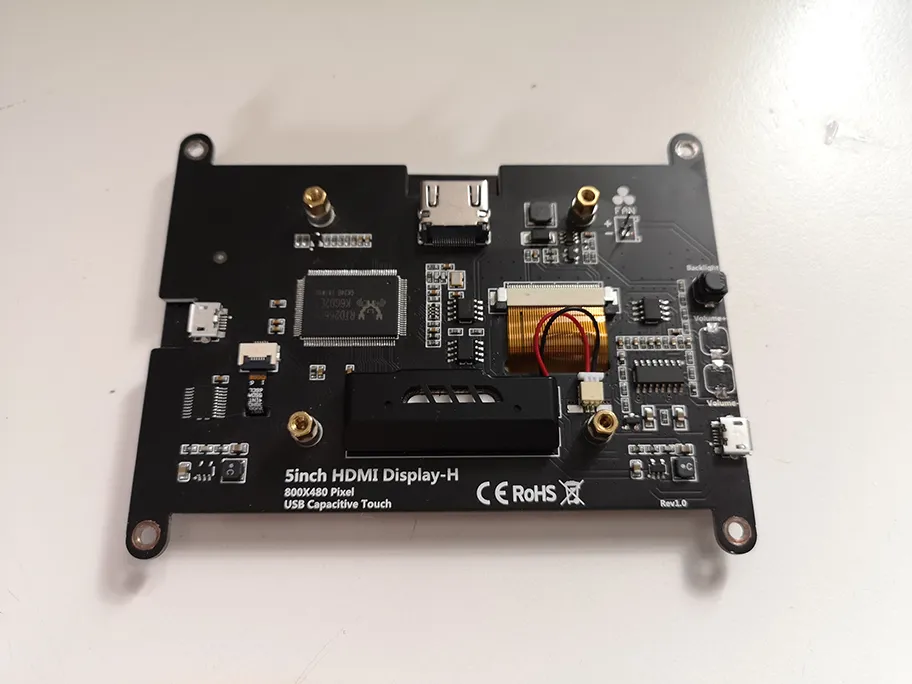

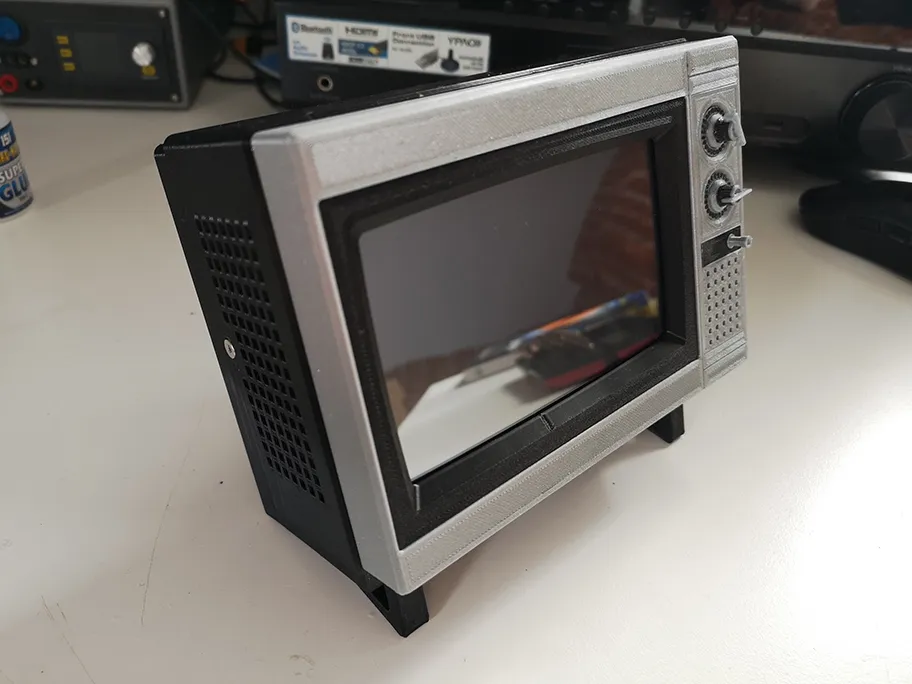

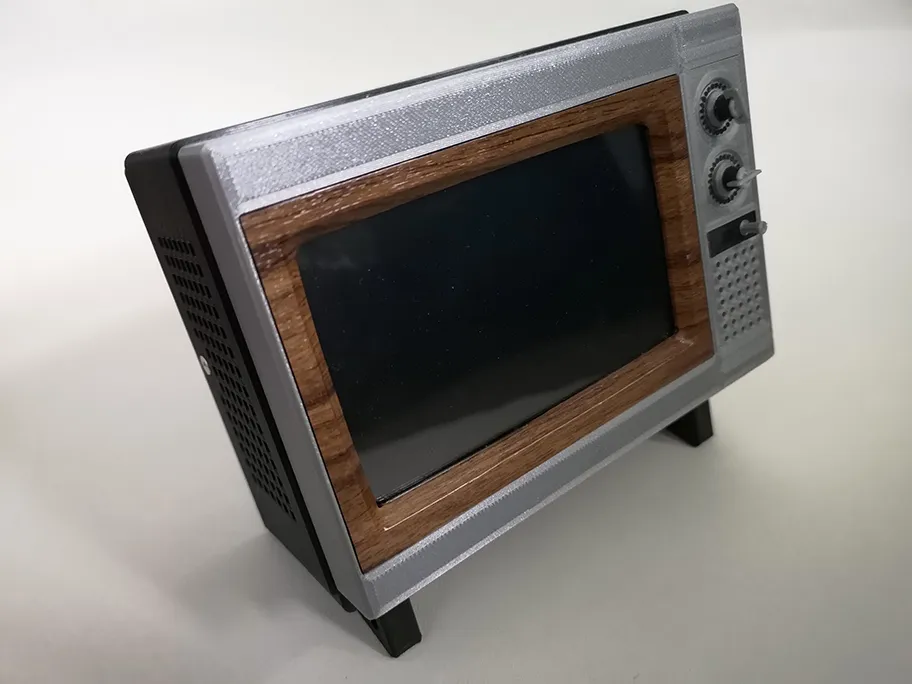

This CRT style case has 2 functions. It can be used as a screen for the retro console case I've also uploaded here (See pics), or it can be a standalone unit. It requires an Elecrow RC050S screen, which is a 5 inch LCD with a built in speaker, mounting points on the rear to screw a Pi4 directly to it, and comes with 180 degree adaptors to hook HDMI and USB up.
The screen can be found on Amazon or Aliexpress. More info is at:
https://www.elecrow.com/rc050s-hdmi-5-inch-800x480-capacitive-touch-monitor-built-in-speaker-with-backlight-control.html

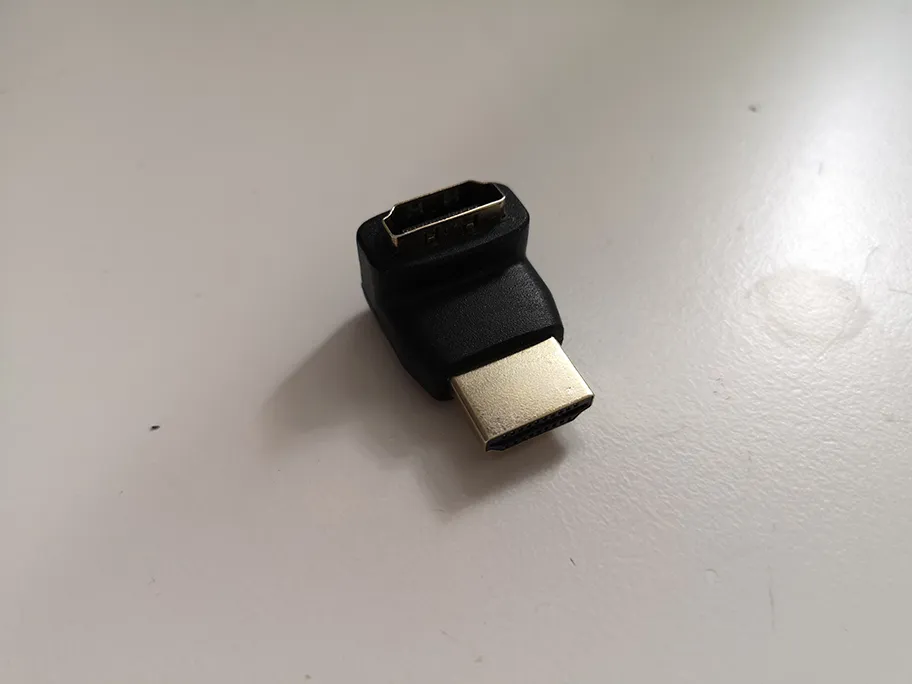

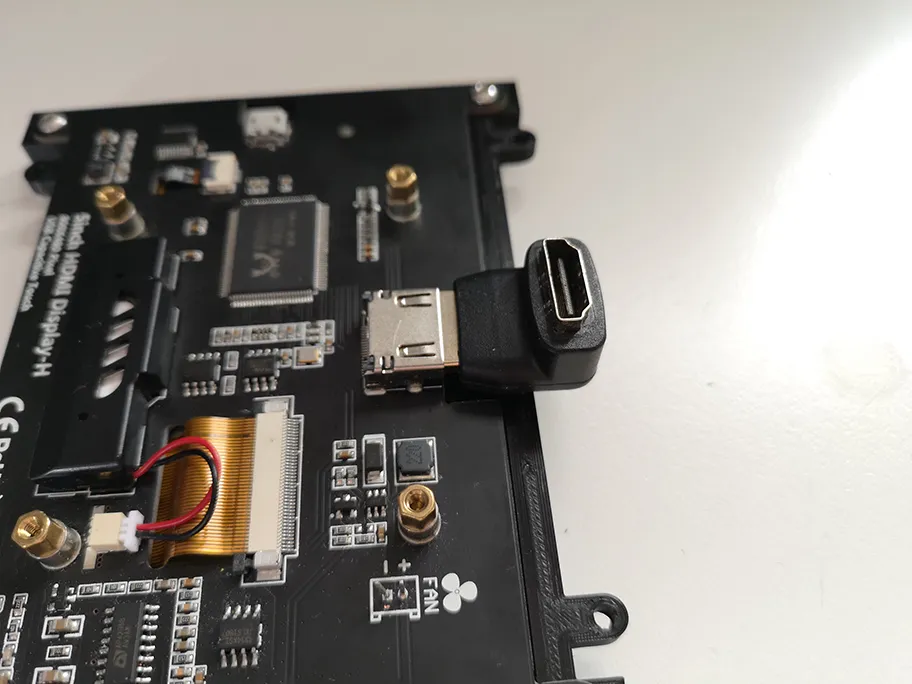

If the case is used as an HDMI screen for connecting any other devices to it, a 90 degree HDMI adaptor will be required. Please see the pictures for an example of the correct orientated adaptor that is required.
Required hardware
Raspberry Pi 4
Elecrow RC050" screen

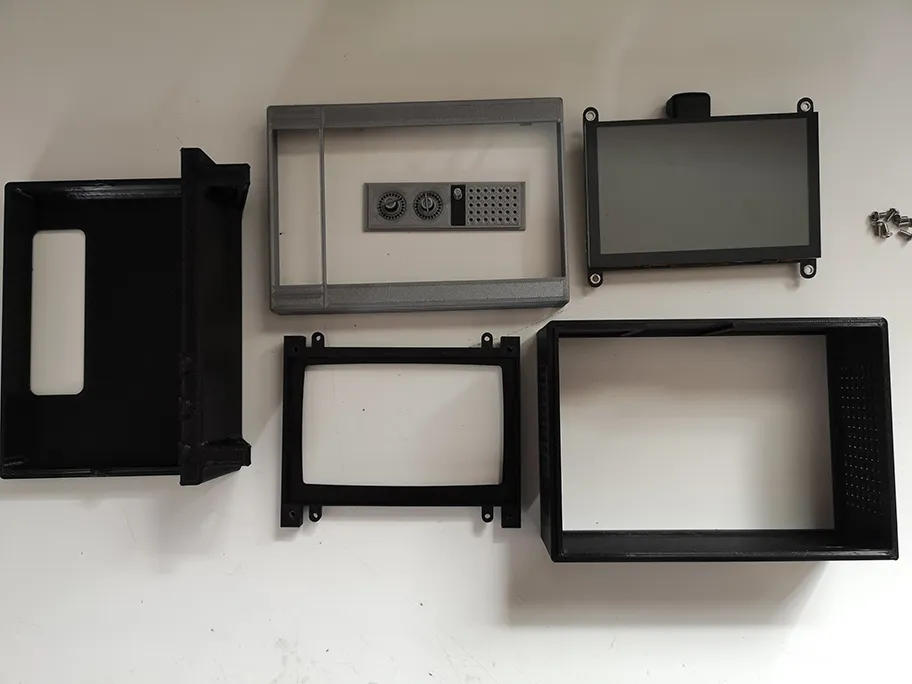

Screws:

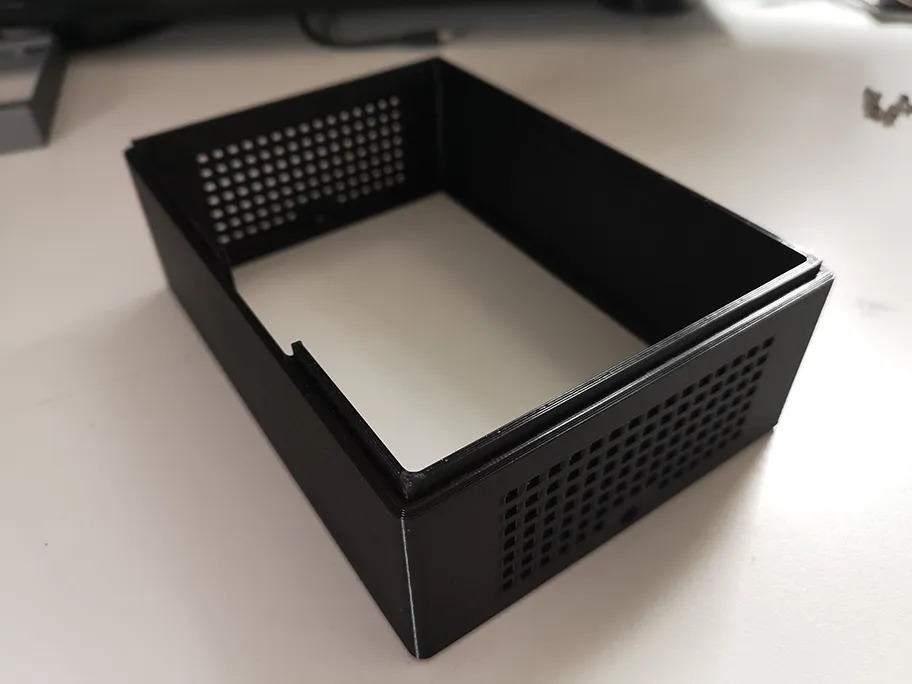

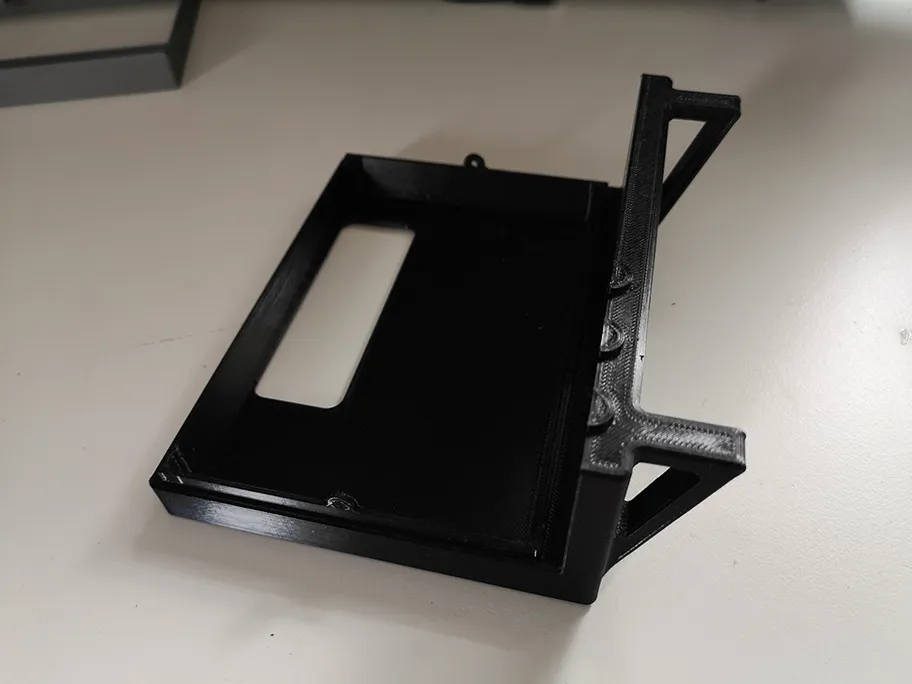

Base to mid_housing: 2 x M3x5 countersunk

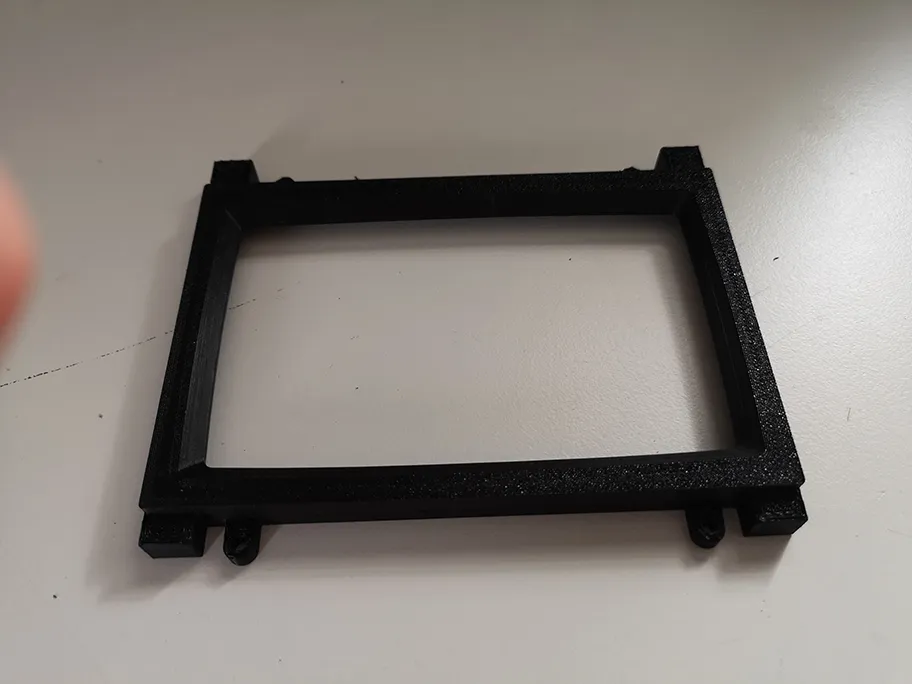

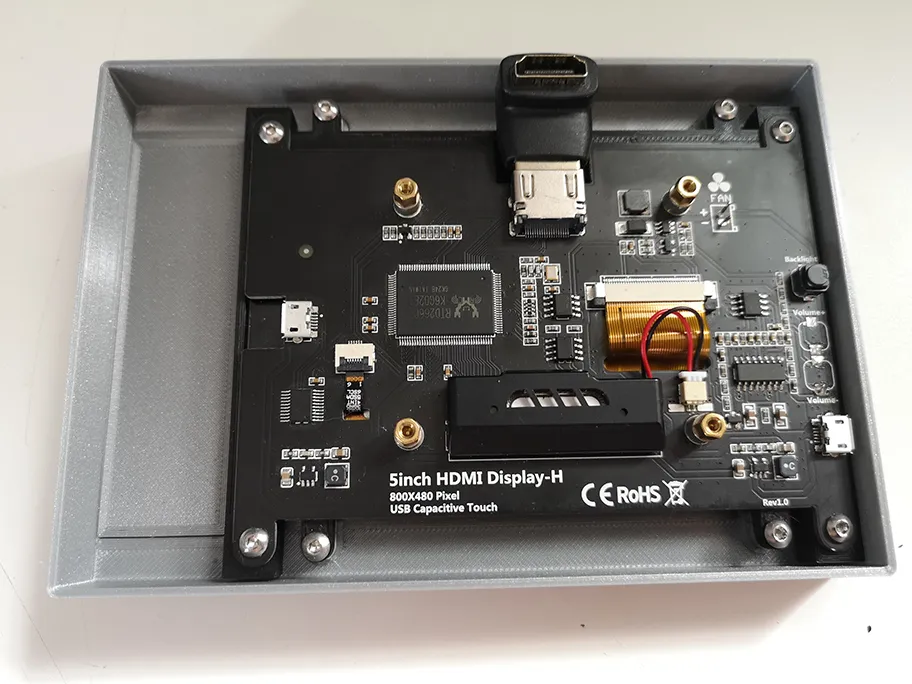

Screen and screen_mount: 4 x M3x6

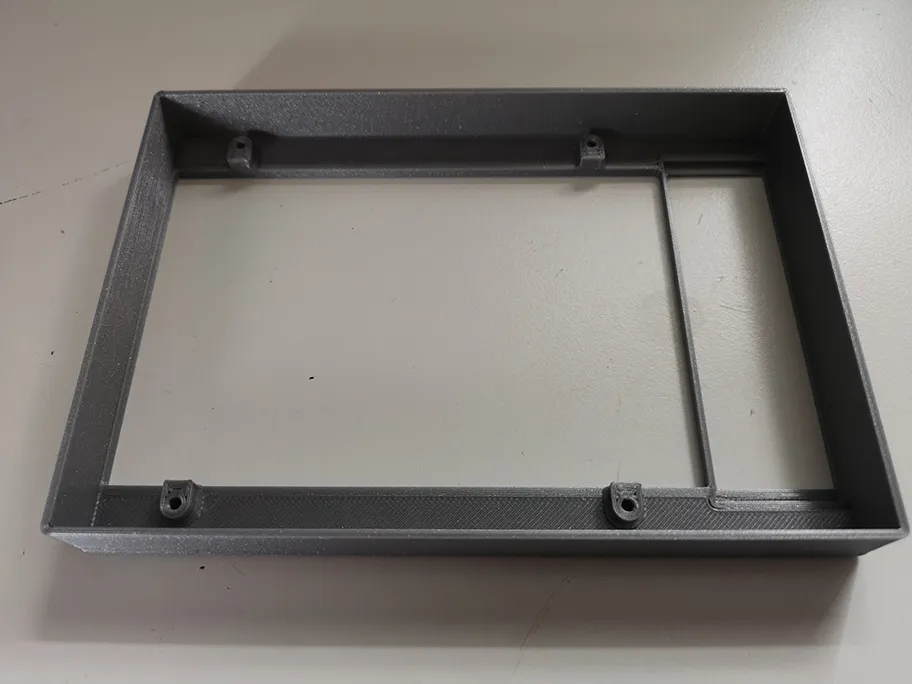

The FrontFace.stl is designed to be a friction fit, but should be glued if you find it's too loose.
