X-Shot Longshot FAMAS Carry V1

EDIT: V2 is now available. https://makerworld.com/en/models/1525298-x-shot-longshot-famas-carry-handle-v2#profileId-1598869

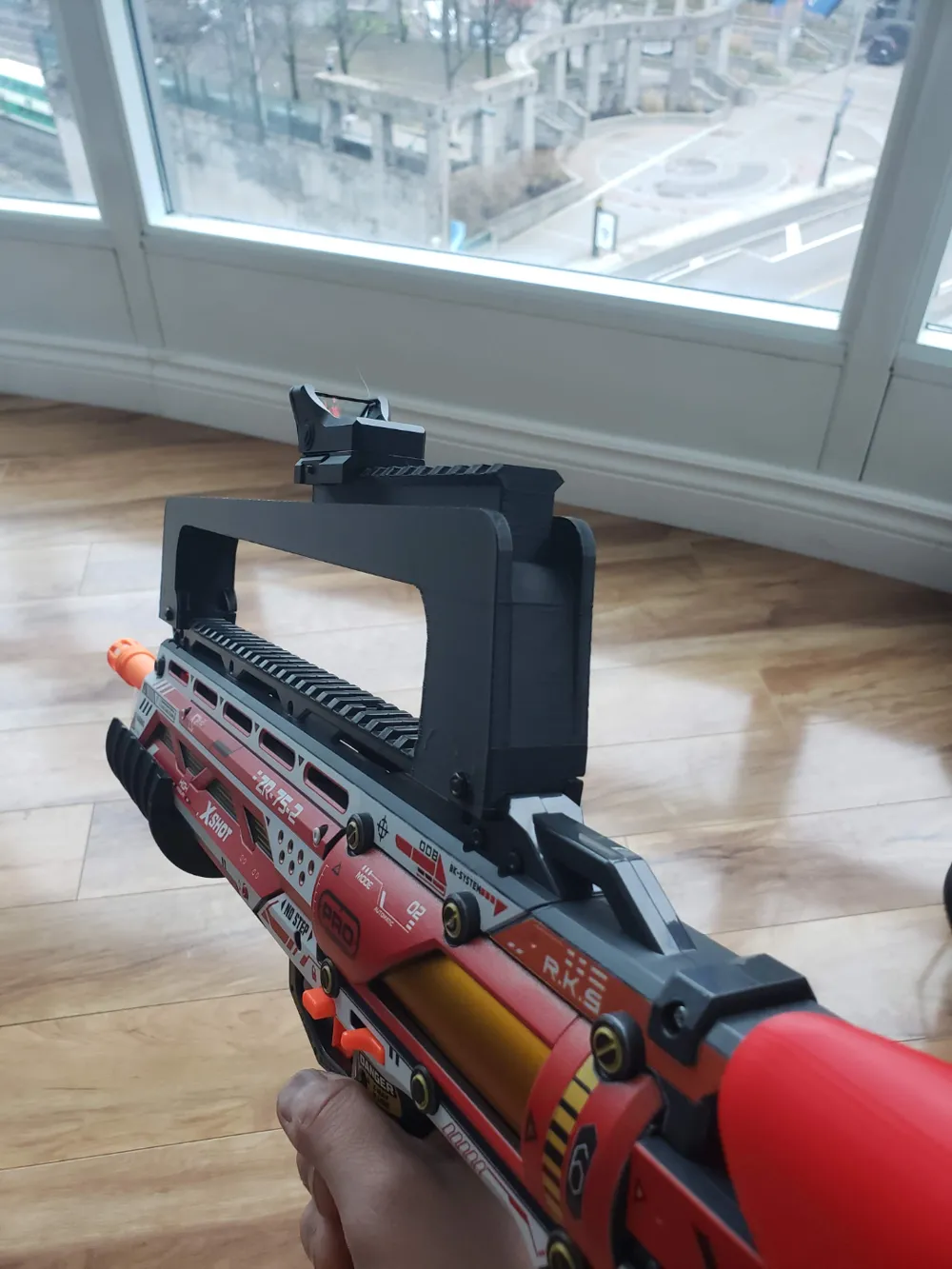

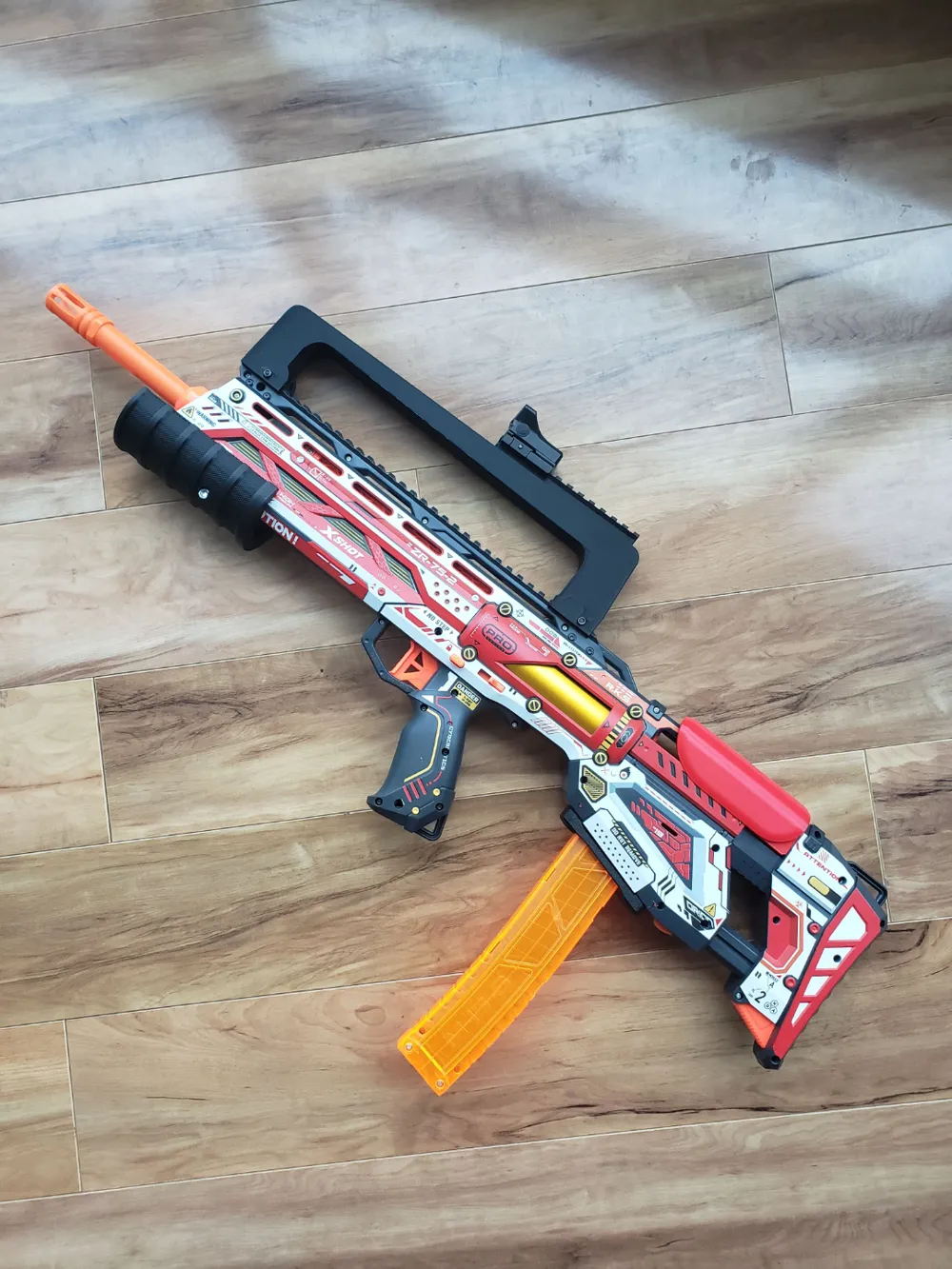

As a certified Metal Gear Solid enjoyer, I designed a FAMAS carrying handle for the X-Shot Longshot. Picatinny ofc (2°).

Since the carrying handle acts as a big riser, I added a 2° angled picatinny rail.

I wanted it to look correct aesthetically, so the sight picture is a tad odd due to the overall height. With both eyes open on a lower profile red dot, your left eye is the one seeing the dot.

Bed size: 256 × 256 × 256 mm

Print Orientation: I printed this diagonally for my bed size.

I printed mine right-side up, which created a lot of support waste. You could try printing it upside down; just be aware that the rail is on an angle.

EDIT: 2025-02-07 I suggest printing the carry handle in two parts, dovetailing it at the picatinny rail. This allows you to print it side down, costing less support material and also getting a more optimal print orientation for stronger mount on the carry handle.

Mounts can be printed with the flat side down.

Infill: 5 walls, 40%

Hardware: 2x M3x30 , 2x M3 nuts

Note: I haven't tested this at an event yet, so I'm not sure how strong the mounts are.
