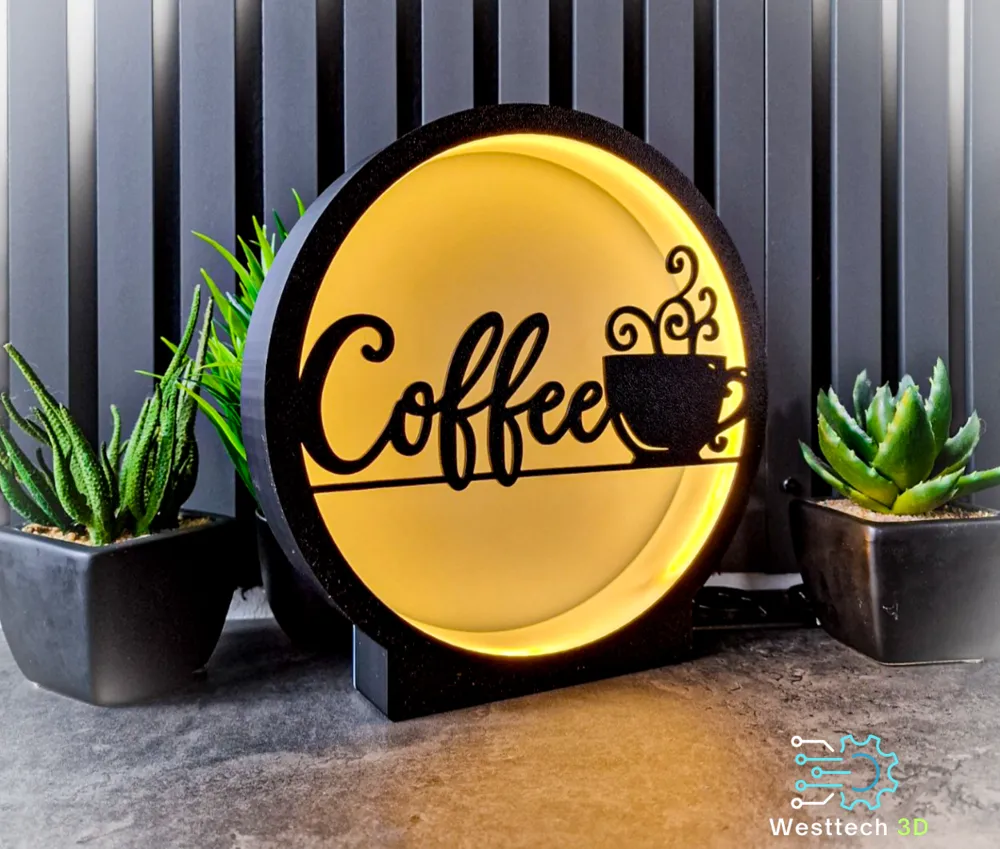

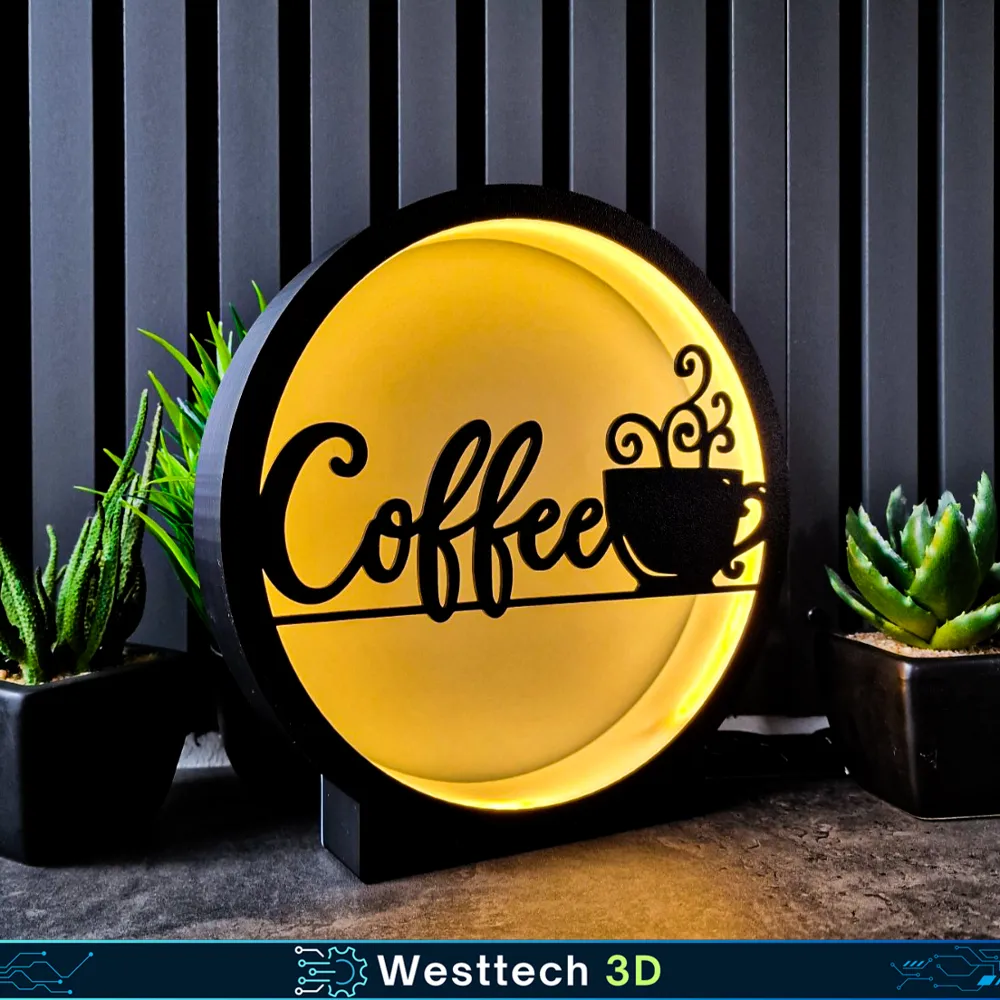

Coffee LED Lamp for the Kitchen

Coffee Lamp – Stylish & Easy to 3D Print Yourself

Here you'll find a stylish lamp that you can easily print yourself – perfect for creating an atmospheric ambiance at home
Two versions are available:

🧷 Version 1: Glued

🔩 Version 2: Screwed

______________________________________

🛠️ Recommended Print Settings:

🔲 Main Body

• Optimal Layer Height: 0.16 mm for fine details
• Time-saving Alternative: up to max 0.20 mm

🪵 Back Panel with Diffuser

• Recommended: 0.20 mm
• Maximum: 0.24 mm
• This ensures a particularly soft, pleasant light – ideal for a cozy atmosphere

💡 Note on the Back Panel:

• The back panel is intentionally a bit looser, as I glue it before shipping
  If you want a tighter fit, you can enlarge the back panel in the slicer by 0.5% to 1% – just try out what works best for you

🔧 Details for the Glued Version

• LED Holder: This should be secured with some plastic adhesive

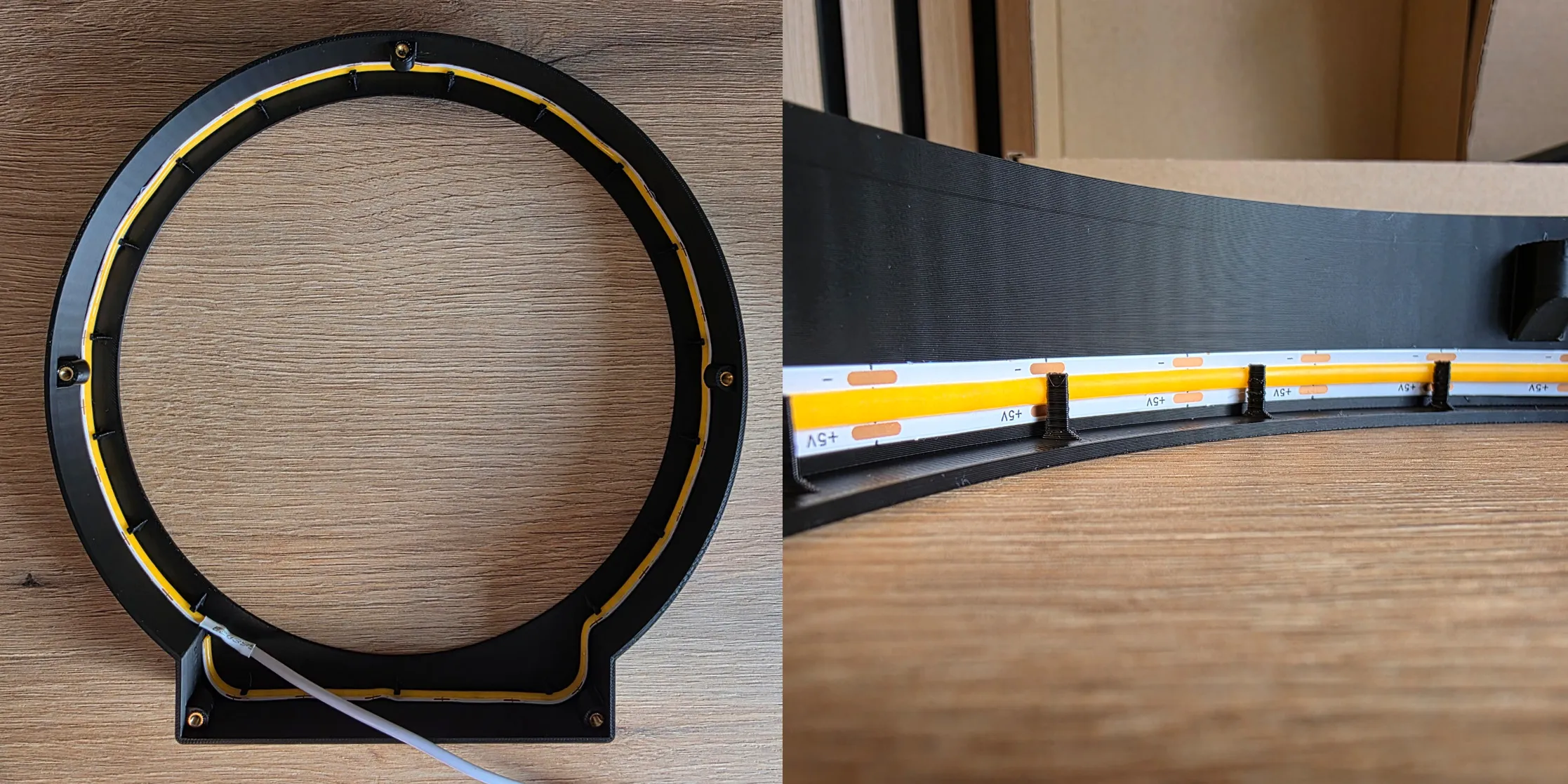

• LED Strip: Simply insert – they usually hold well due to the adhesive surface on the back

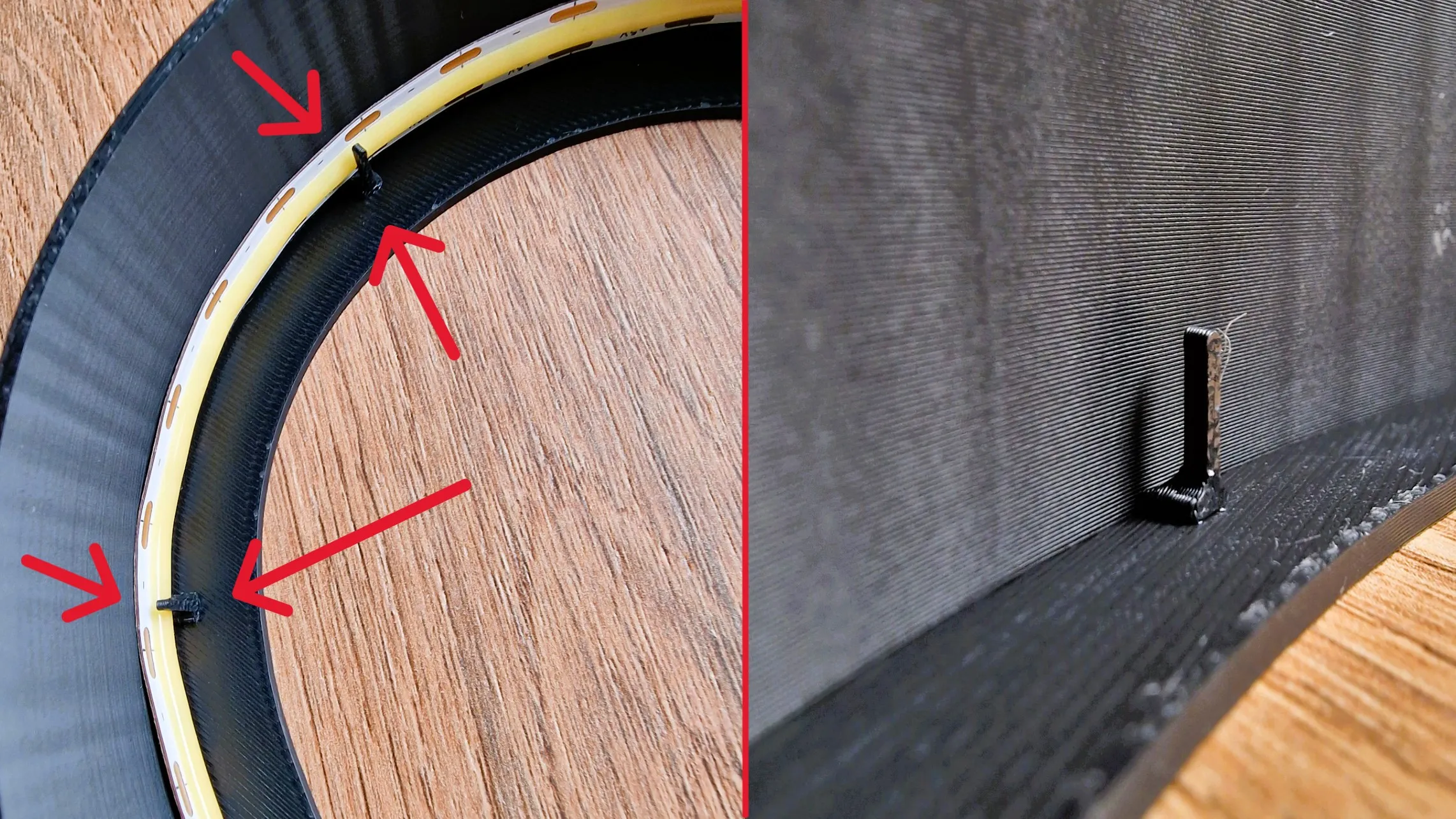

  The printed support prevents the strips from detaching when heated (e.g. by COB LEDs)

• Recommended LED Strip Length: at least 74 cm



🔩 Details for the Screwed Version 🔩🪛

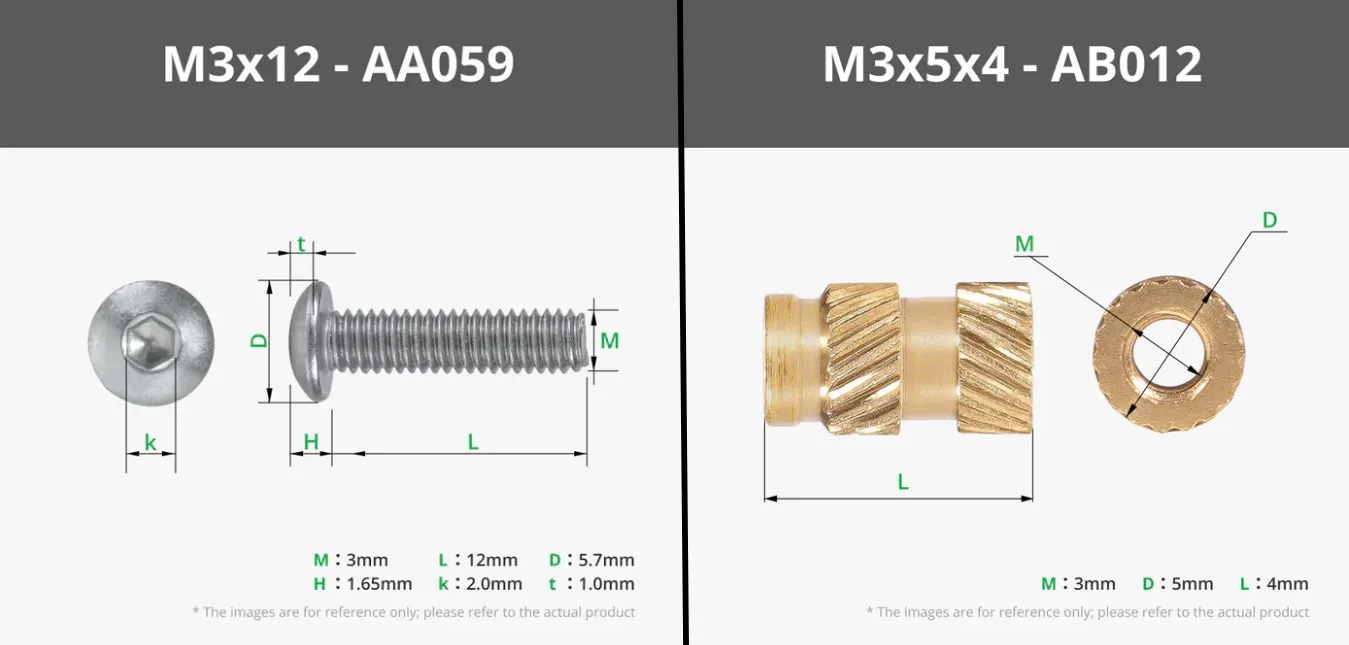

• Required Accessories:

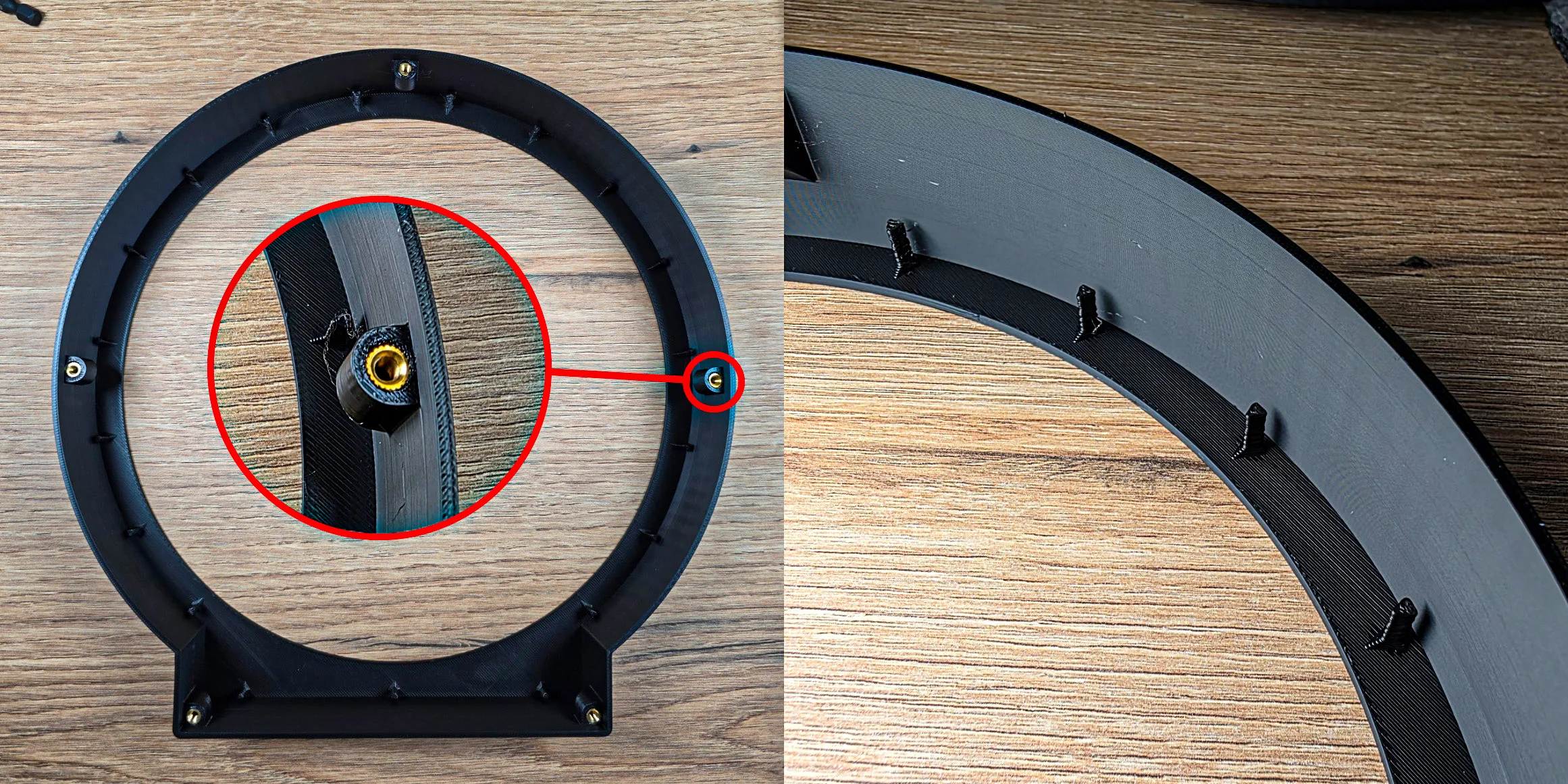

  • 5x M3x6 heat-set threaded inserts
  • 5x M3x12 screws

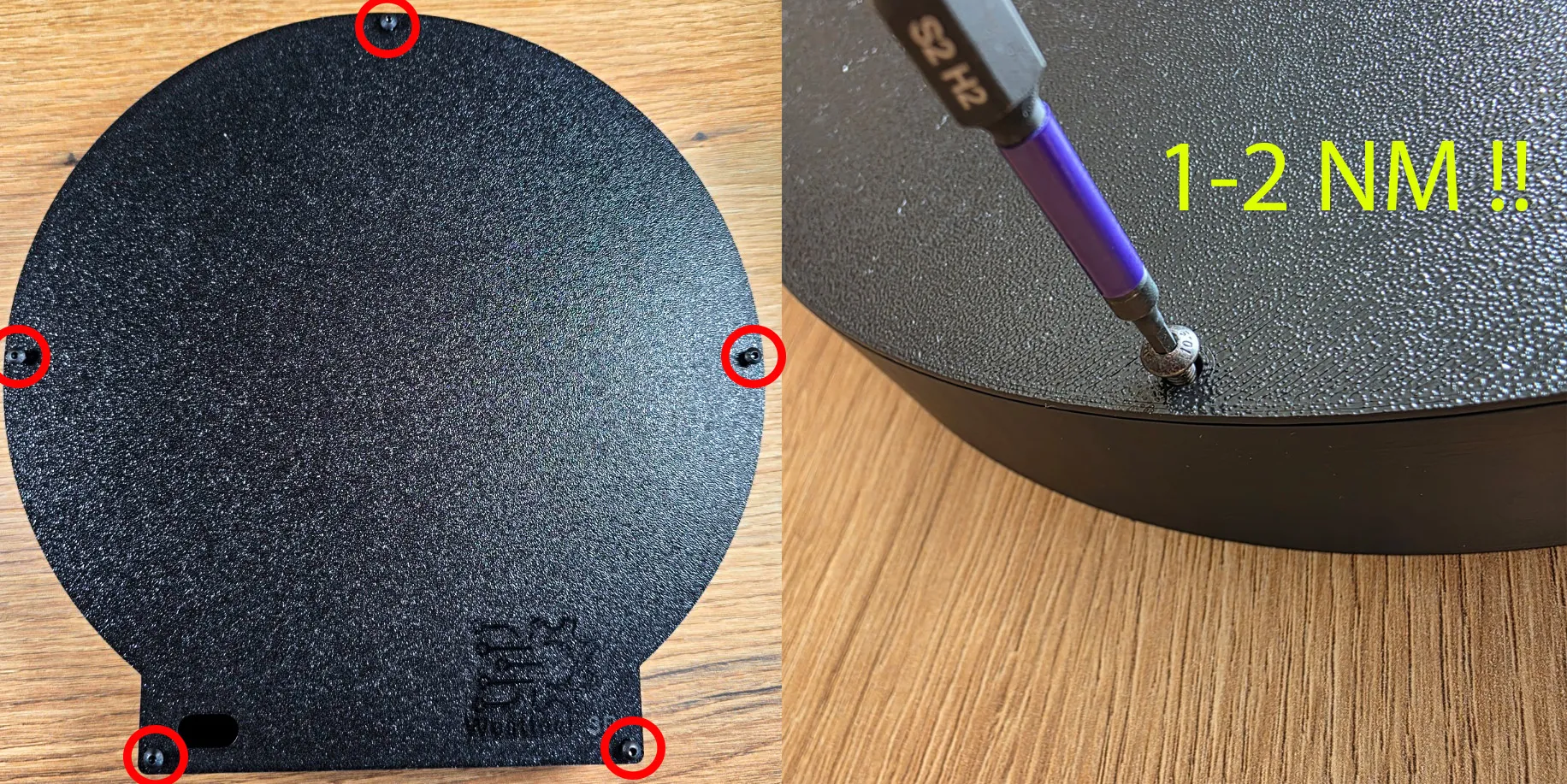

• 🔧 Tip: Please do not overtighten the screws to avoid damage

I wish you much joy with printing and crafting! If you have questions or want to share your result, I look forward to your feedback!
Happy Printing!
