Gridfinity Shadow Tray-M12 Soldering Iron 2488-20

Description

My students and I are developing gridfinity shadow trays to organize the tools. Some fit better than others and most of them are setup for a 1in tool pocket depth. There will be more posted soon.

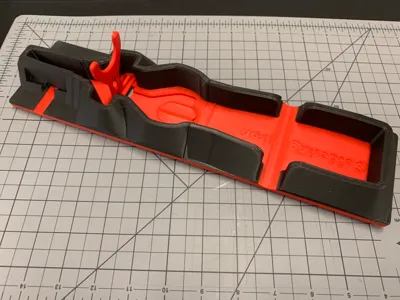

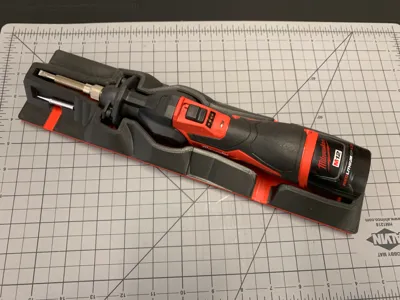

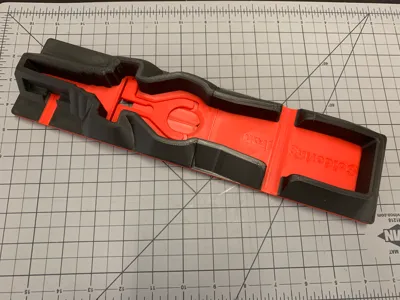

Here is a tray for the M12 Soldering Iron 2488-20.

There is only one version at this time:

-30 Degree Drafted top: Uses less filament, weighs less in the travel box.

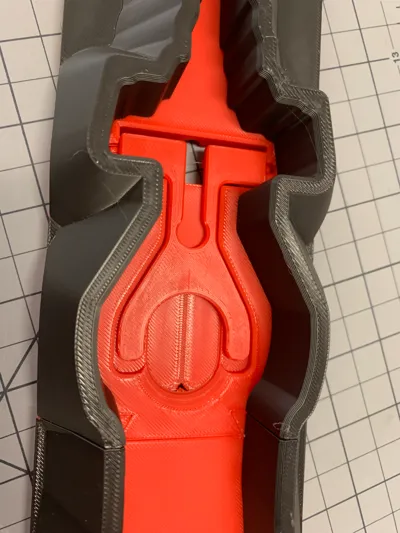

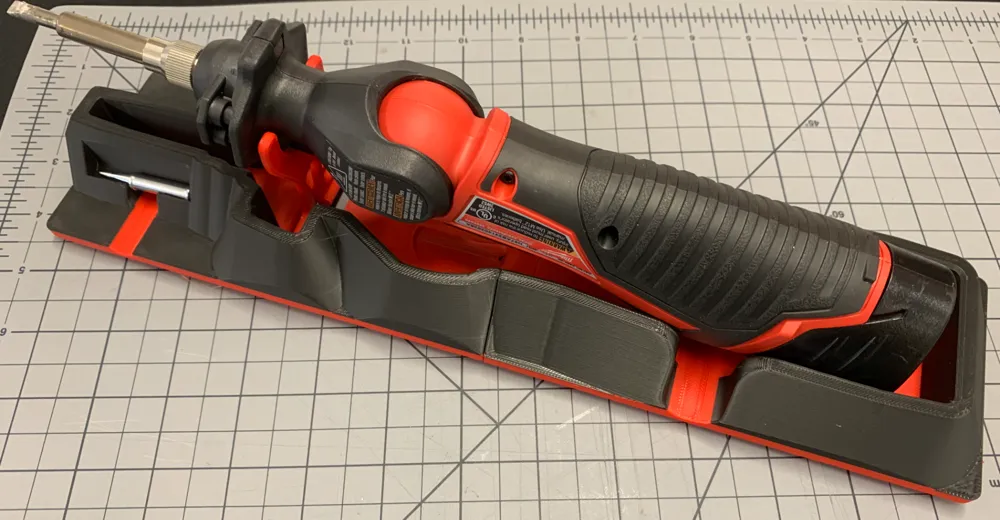

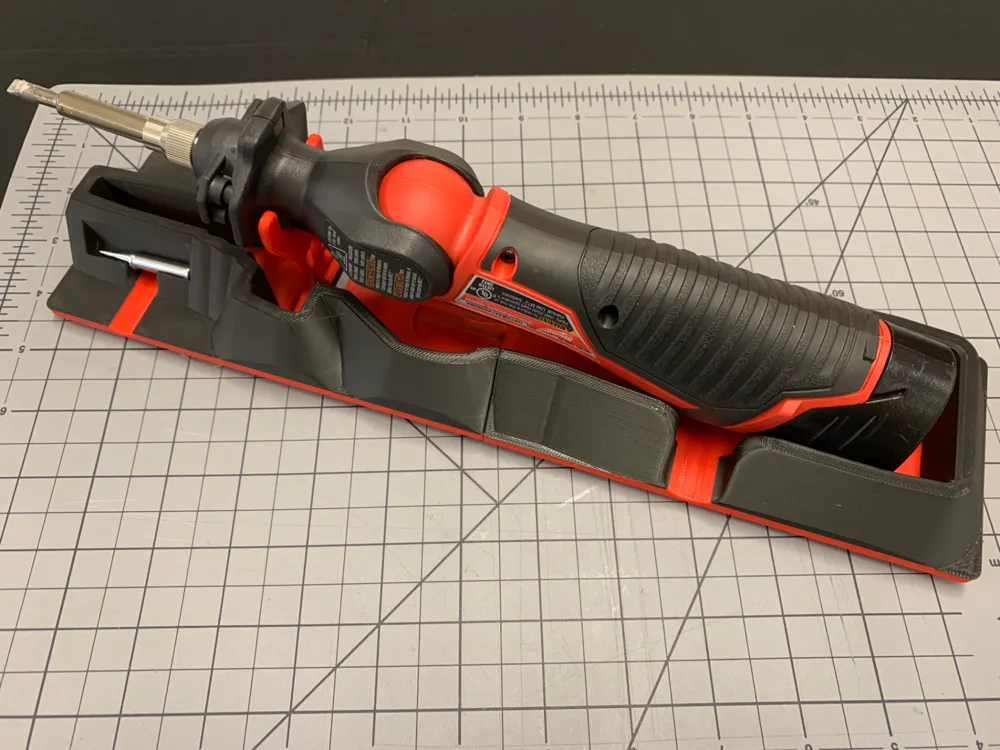

This shadow tray has the unique feature of providing an integrated soldering stand so that the tool can be rest on it while the tip cools down. It also has a small pocket on the side for the spare soldering tip.

I printed these on a Bambu X1C with basic PLA filament, .28mm layer height, no supports.

Feel free to use them as you see fit.
