F-16 falcon R/C Jet Fighter – 64mm EDF
Print Profile(2)
Bill of Materials
Description
Boost Me (for free)
FOR COOL PIRNTS
IMPORTANT: IT IS ADVISED TO USE A CATAPULT FOR THE LAUNCH

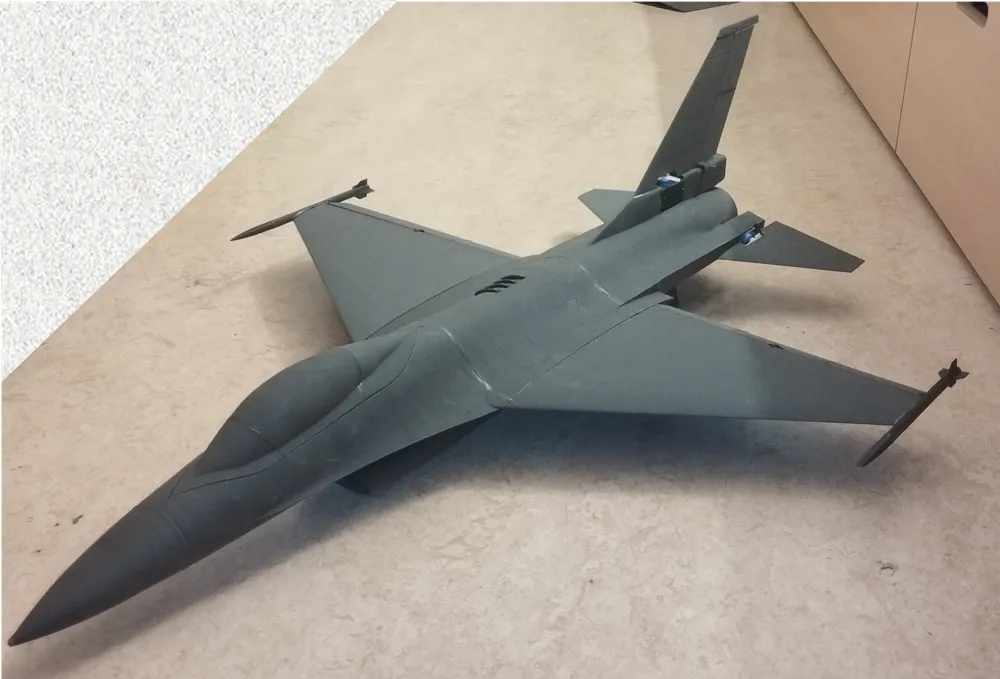

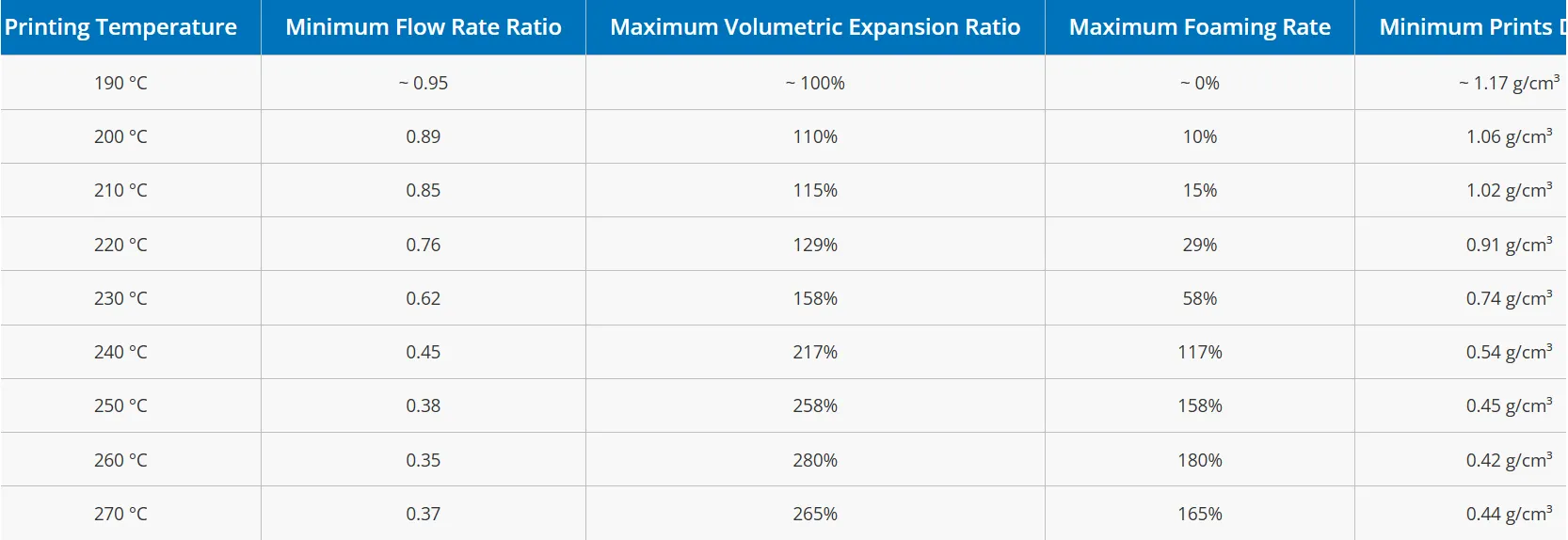

Introducing my FREE 1:13 scale F16 fighting falcon 64mm EDF VERSION RC fighter jet! Optimized for LW-PLA with 0.4mm nozzle, 0.2mm layer height, 0.6 to 0.5 flow and 245 to 265°C temp (fix your flow rate according to the table below).
Tech description:
- Wingspan: 894 mm
- Length: 1170 mm
- Height: 344 mm
- Weight: 900g
- Maximum take-off weight: 1200g (including 3000 mAh 4s Lipo battery)
- Flight speed range: 12 m/s - 40 m/s (50 km/h - 150 km/h)
Controls: ailerons/elevators/rudder (5 servos).
most of the parts are printed with gyroid infill 2%
BOM:
1x EDF 64mm
1x 80A ESC
Lipo 4S 3000mah
5x 9g metal gear servo FROM BAMBULAB SHOP
600g PLA aer or ASA aero and 60g PLA
servo vable extentions (nearly 2m in total)
8mmx6mmx380mm carbon fiber rod (OPTIONNAL) but will get in the way of the turbine's intake airflow
5x 80mm 1.2mm steel rods
5X push rod attachment
8 magnets 10x3mm FROM BAMBULAB SHOP
20cm Velcro FROM BAMBULAB SHOP
M3x25mm Machine screws + nuts FROM BAMBULAB SHOP
CA-Glue
CENTER OF GRAVITY (or cog) should be around 6cm from the front trailing edge of the wing (not proven yet, i will do the maiden in a couple of days due to bad weather conditions, maiden video coming soon)
assembly:
L stands for left
R stands for right
A stands for aileron
E stands for elevator
R stands for rudder
T stands for top
B stands for bottom

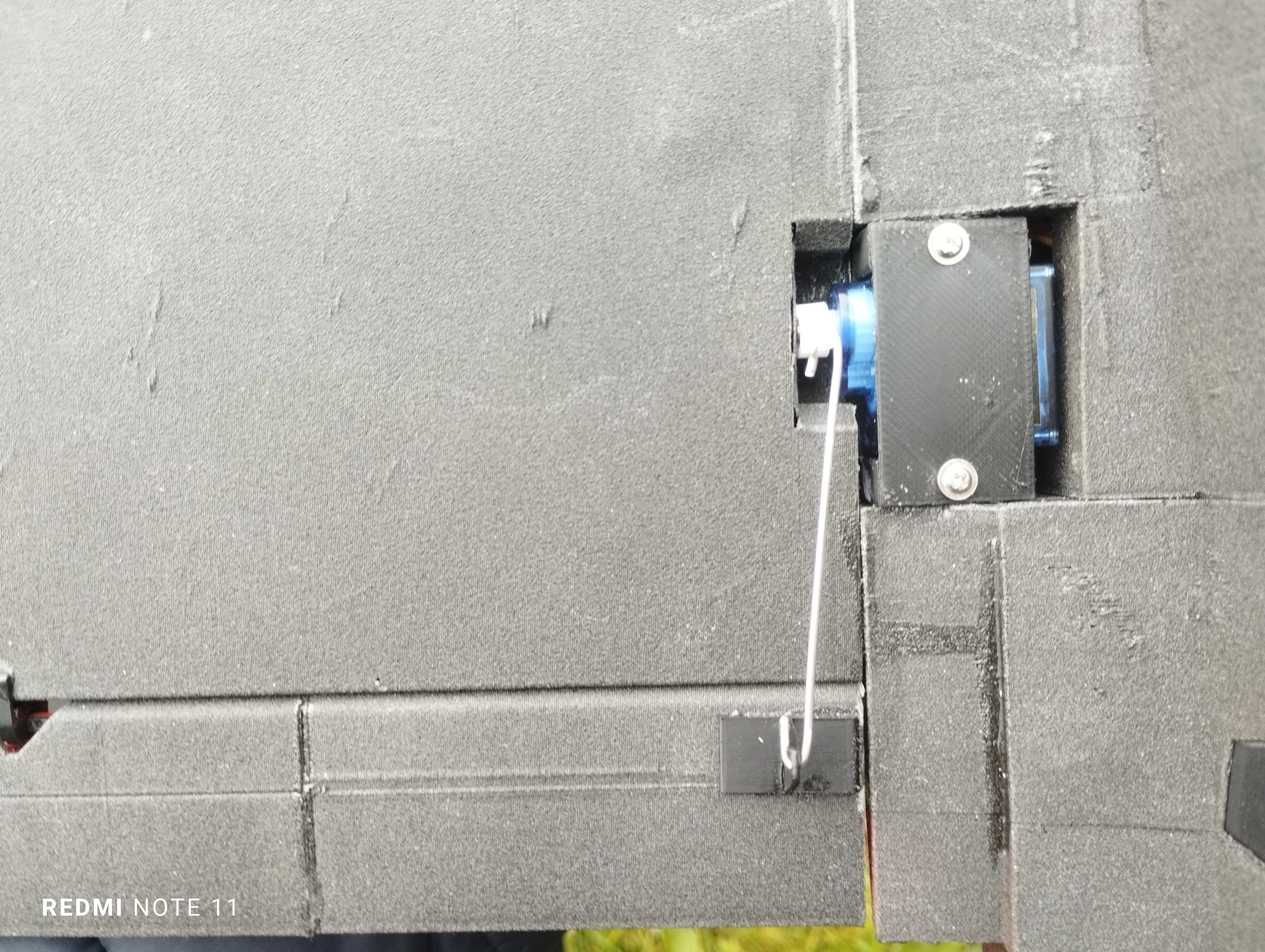

- glue the servo mounts in place with the letters as reference
- you can start by wiring the servos and fixing them in place because the wiring management is kind of bad as there is no much space over the turbine (note that the esc will be placed in the right section of the wiring management tunnel so try to put the rest of the servo wires from the other side and only the right aileron cables alongside the esc) if you dont have a space, break gently and slowly walls to pass the cables through
- glue the fuselage parts together with CA glue or super glue
- glue the control surfaces together (ailerons right 1+2+3, ailerons left 1+2+3 and rudder 1+2) then glue the hinges onto them

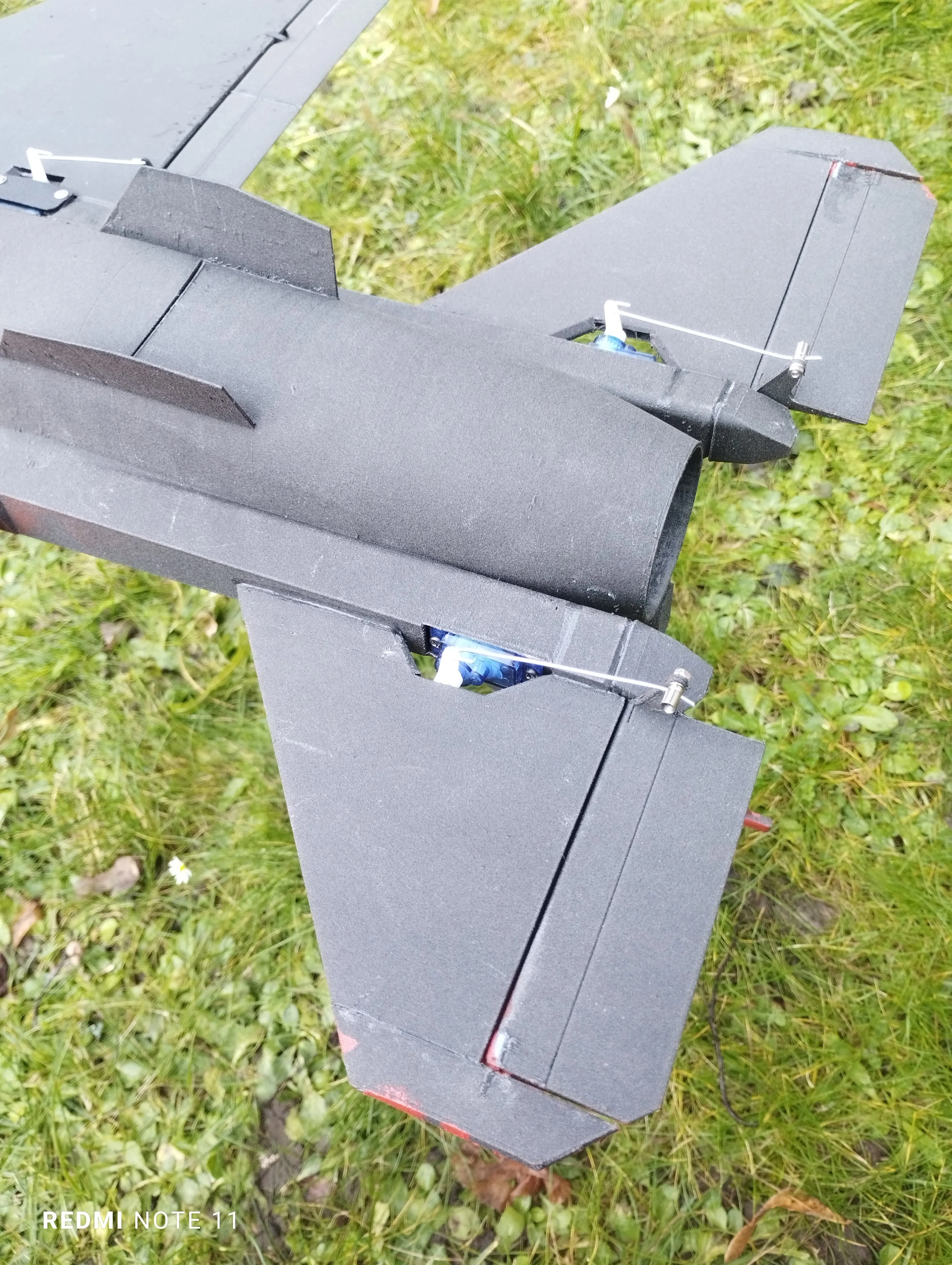

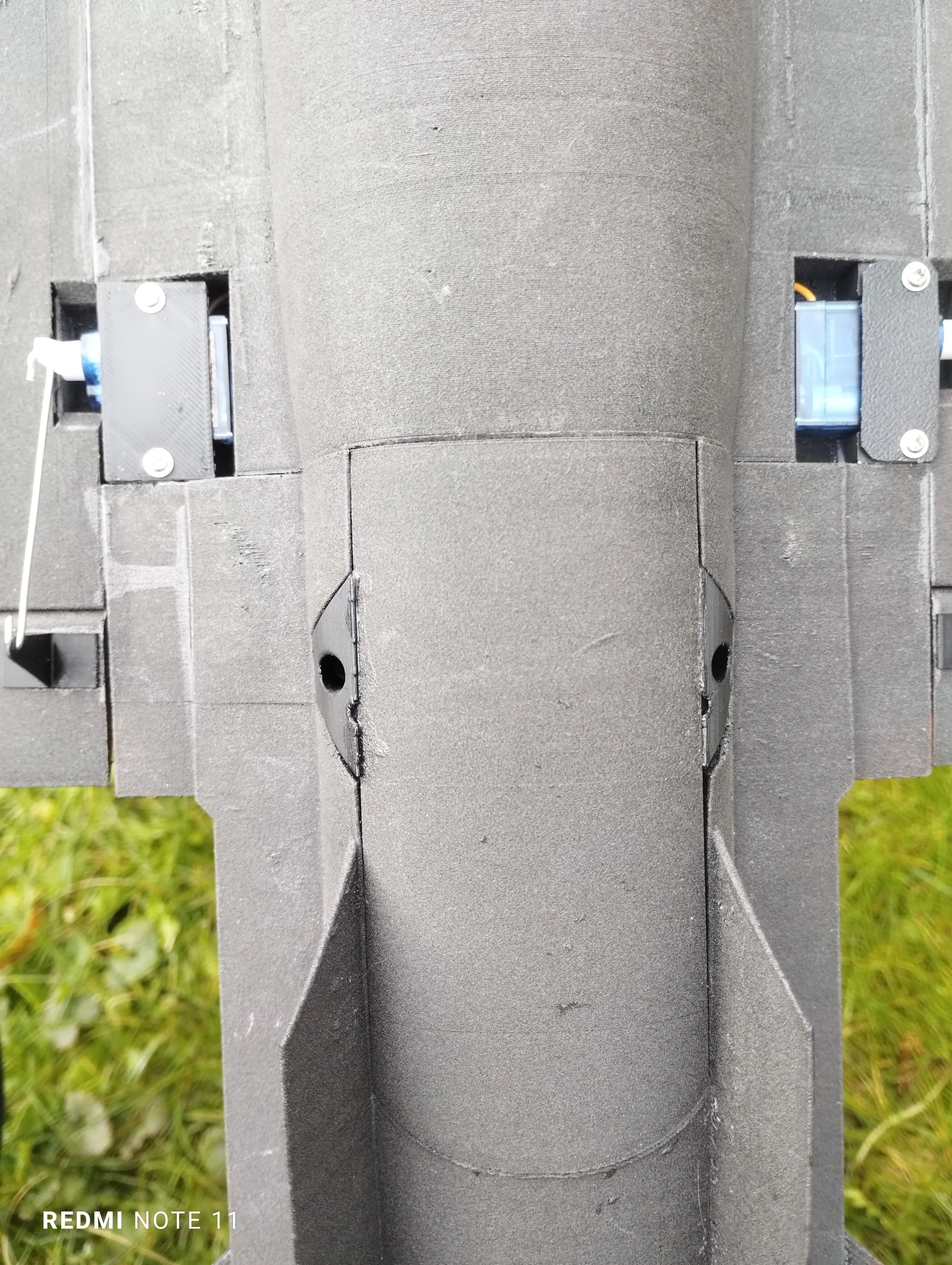

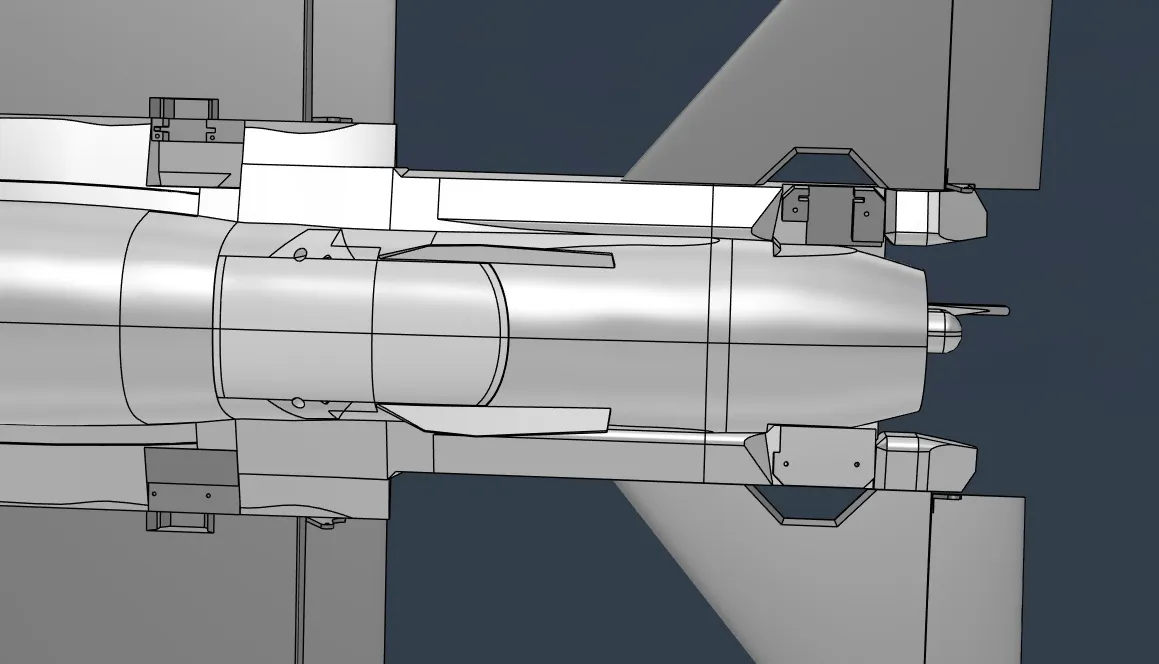

you will find 10 short hinges for the control surfaces linkages and 2 long hinges for the ailerons middle attachement point - glue the horisontal and vertical stabilizers in place then glue the two little triangular shaped fuselage rear extention with hinge holes in the back. careful that the angle of the parts having hinge holes in it is -8° and not +8°

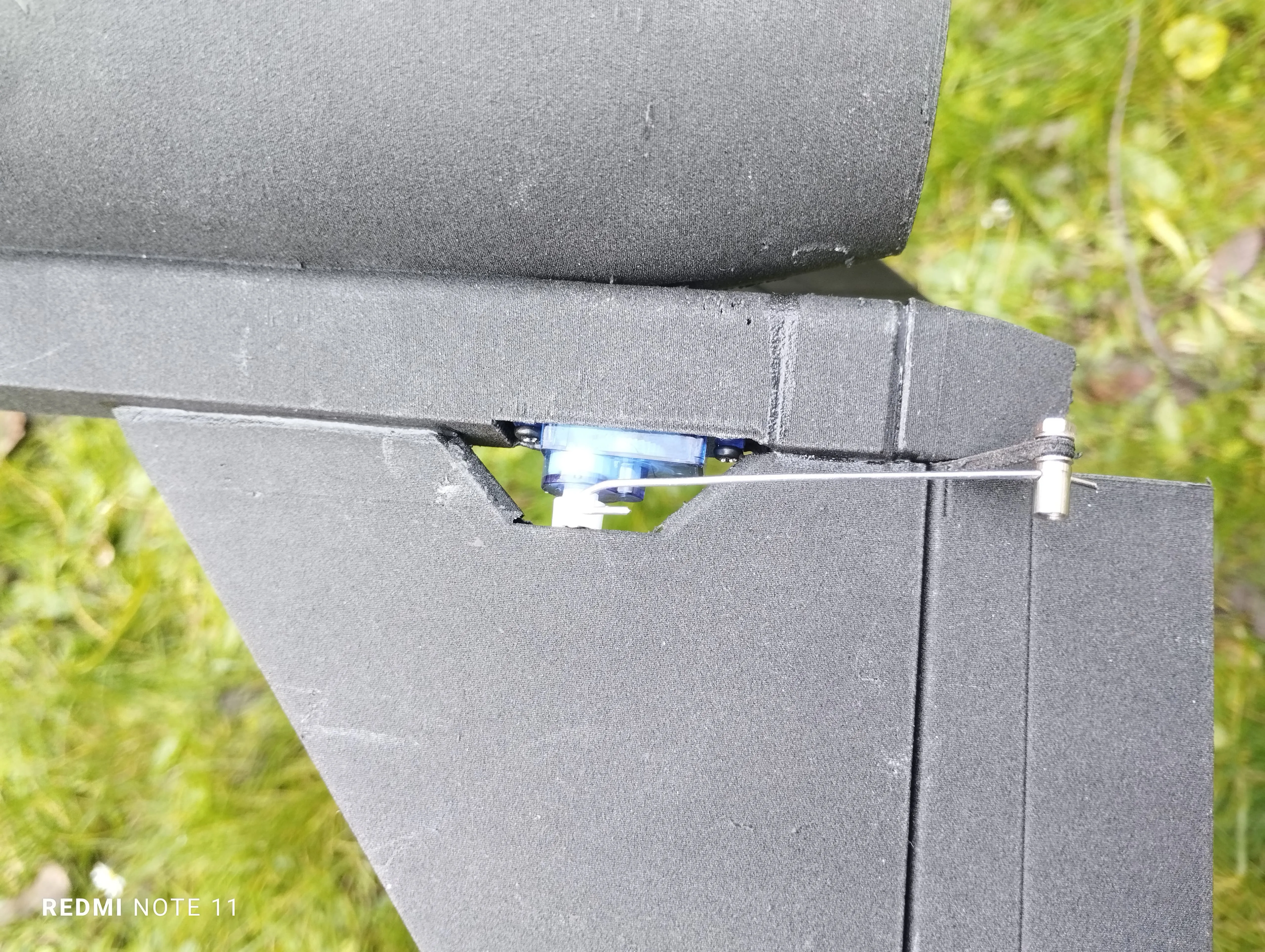

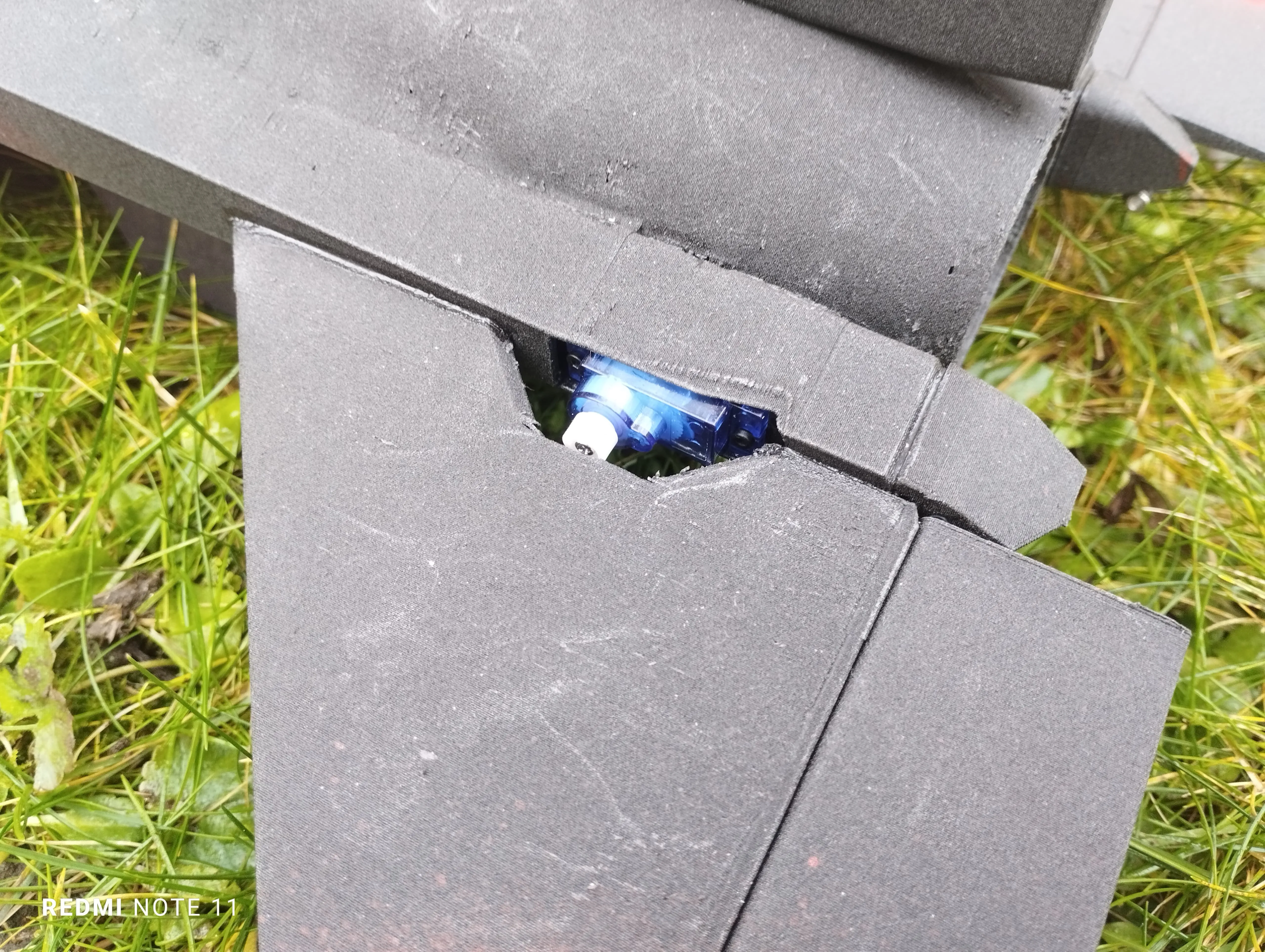

- place the control surfaces then close them by glueing the stabilizers tips from the sides. make sure they rotate smoothly the whole time so they are free form super glue (if the pins attached to the control surfaces are difficult to turn once you insert them, then turn theme manually until they loosen up the light wight pla)
- OPTIONNAL: place the CF rod in the fuselage then glue it in
- glue the longs midle aileron hinges in the ailerons with the pla hinge holder put in it

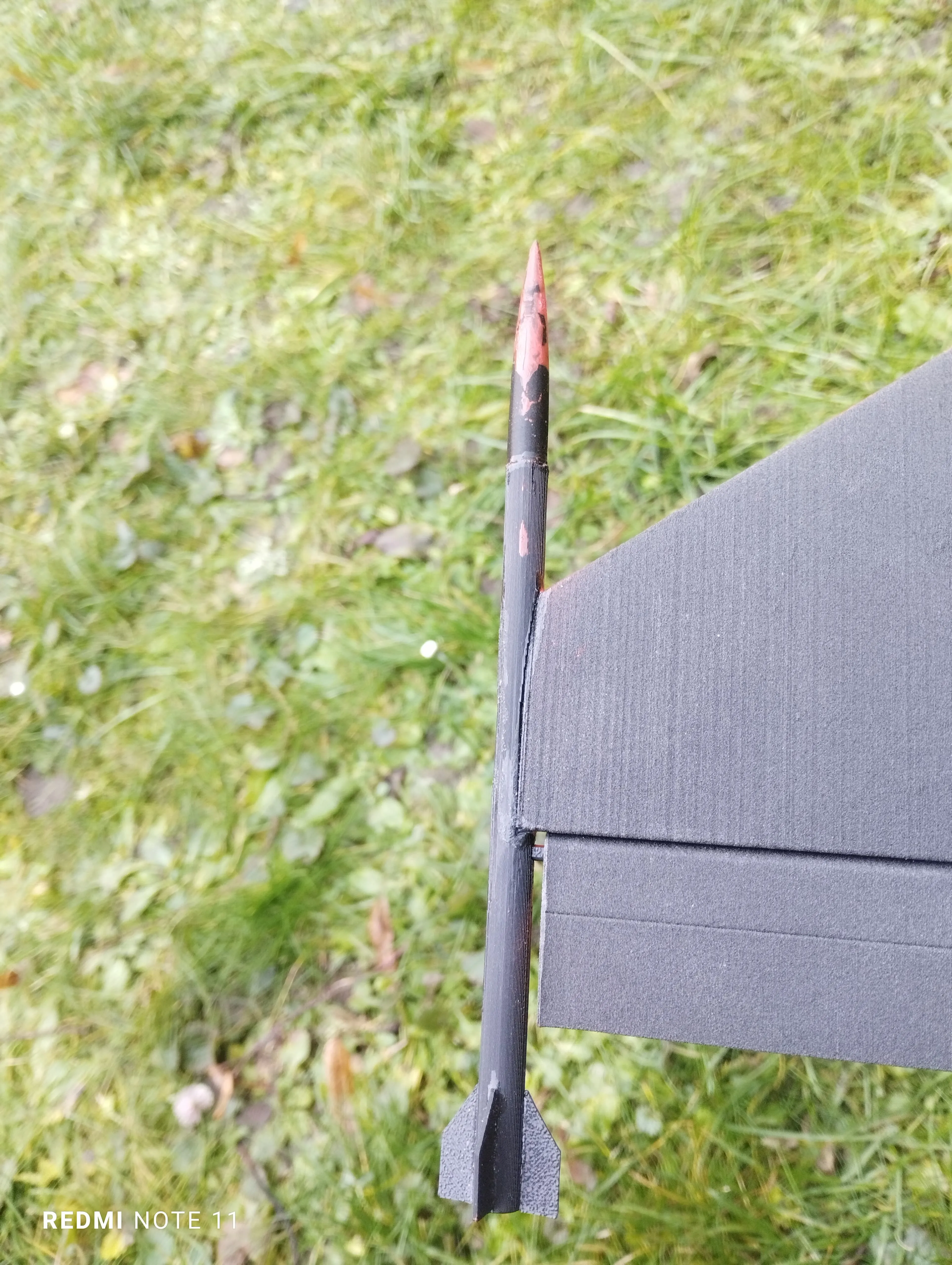

- glue the wing in place then place the ailerons (hinges rotating in the fuselage holes) then glue the tip of the wing with the rockets (closing the hinges in place) make sure no glue reaches the hinges
- glue the middle hinge holder to the wing
- glue the canopey parts together
- glue two magnets on each egde of the canopey and glue 2 magnets on each side of the fuselage's canopey place
- make 2 openings on the fuselage area near the turbine to enable you to connect and disconnect the esc wires to the turbine (cut it with a raozr sharp blade or just with the bed scaper from bambulab)
- glue magnets to the cut part to reinstall it as shown below

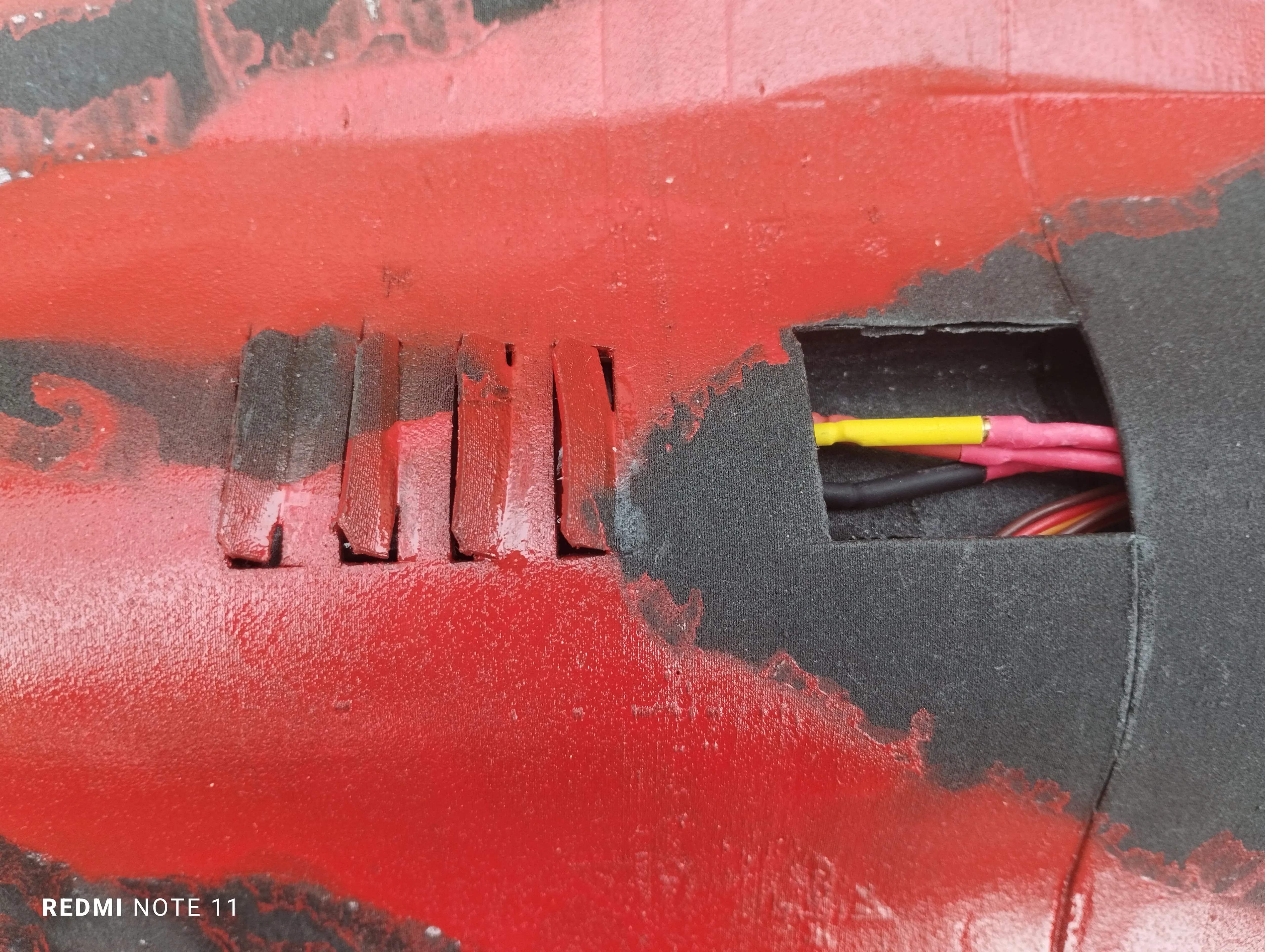

- cut ventillation section over the esc (cut narrow U shapes, bend them upwards and glue them im place) to avoid overheating

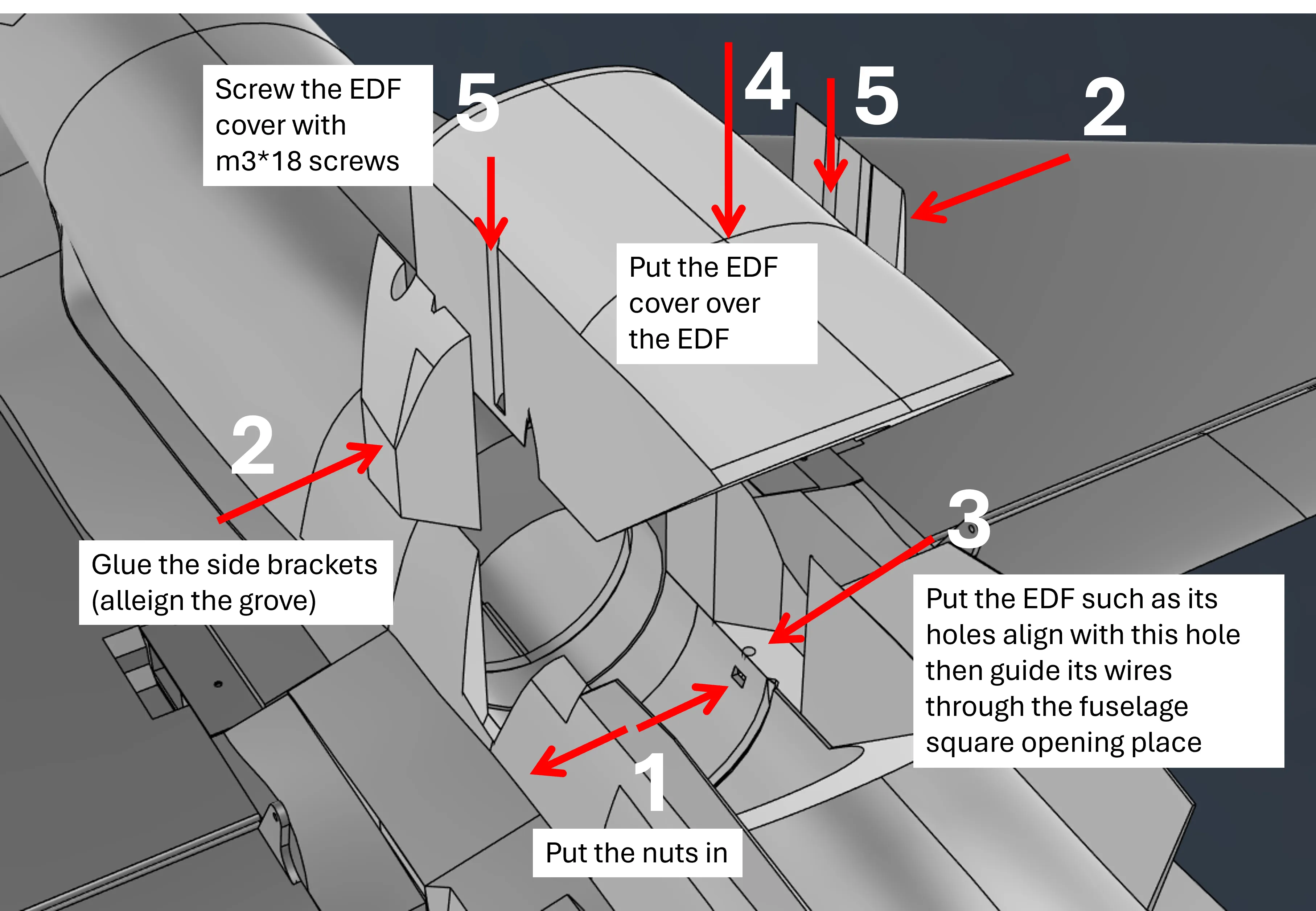

- put the 2 nuts in the turbine mount base and glue it in place
- install the turbine, with the wires passed through the hole to the fuselage then install the cover
- put a tiny bit of glue on the brackets (with screw holes) attatched to the turbine cover and let dry. avoid putting much glue and gluing the whole cover in place
- pull the cover out and glue the brackets firmly
- glue the front fuselage tip
- stick the velcro in place and tune the center of gravity so it alligns with the marks found under the wing
if you made it this far, congratulations, you finished bulding your plane! feel free to paint it in creative ways! and dont hesitate to share your build and feedback here!
If you have any questions, please contact me, I will try to answer them as soon as possible!

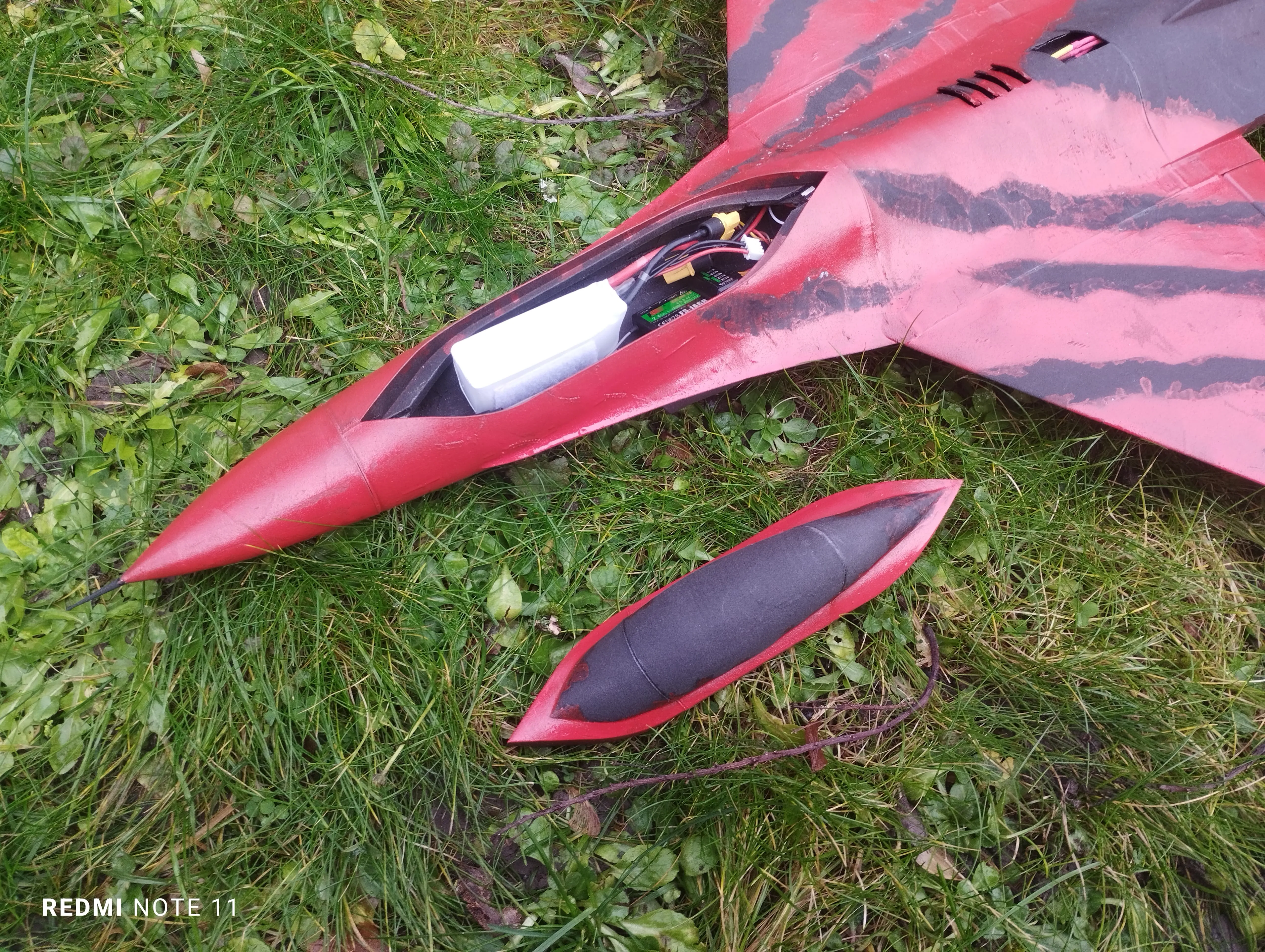

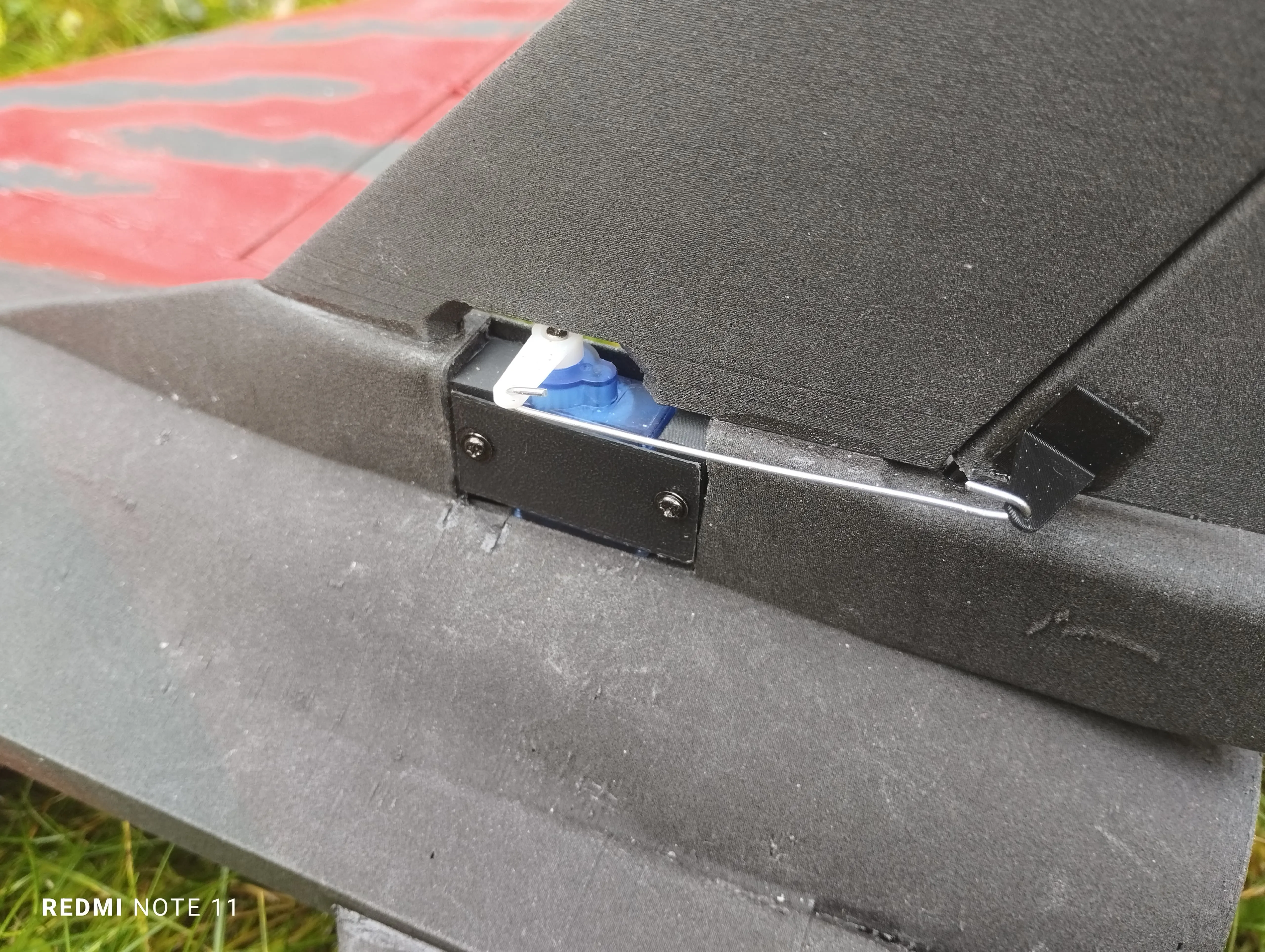

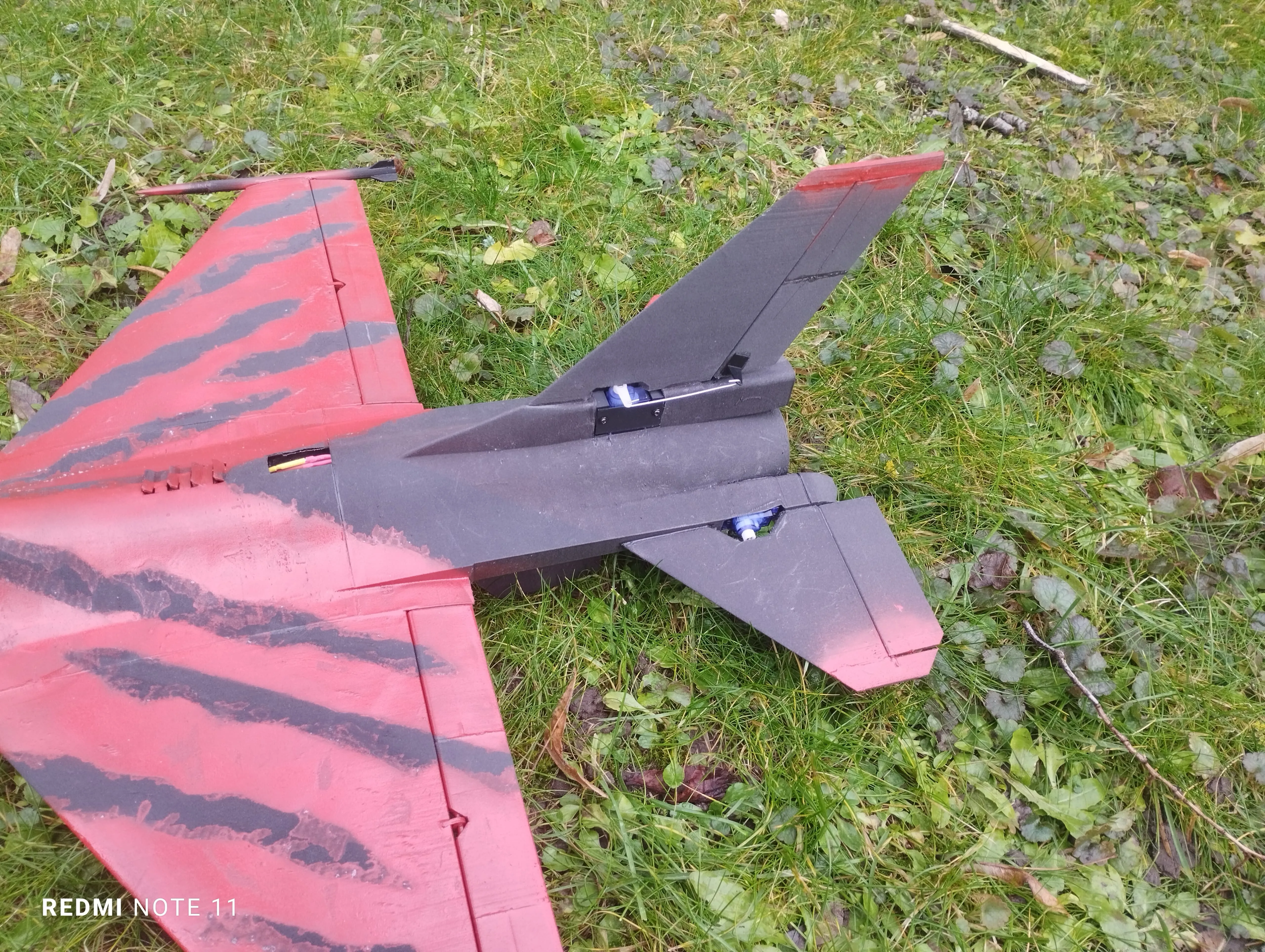

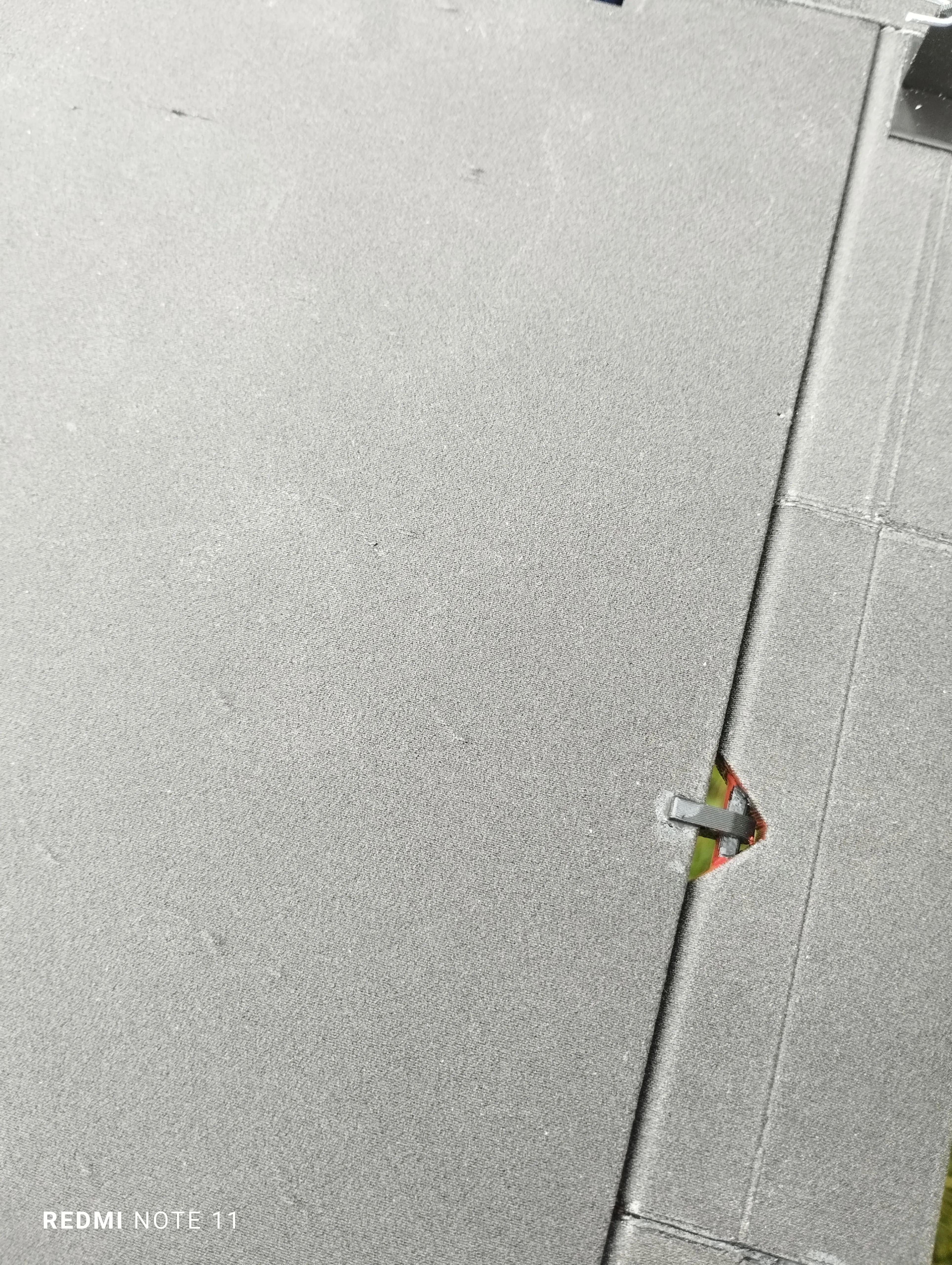

THE PICTURES BELOW ARE FROM THE 50MM VERSION AS THEY SHARE THE SAME STEPS
Center of gravity placement:

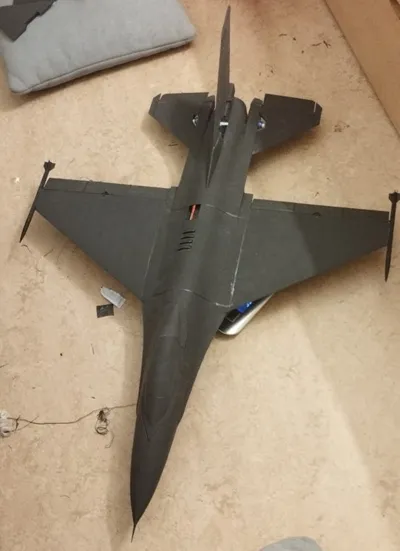

these marks under the wings show the rough position of the COG
