Description

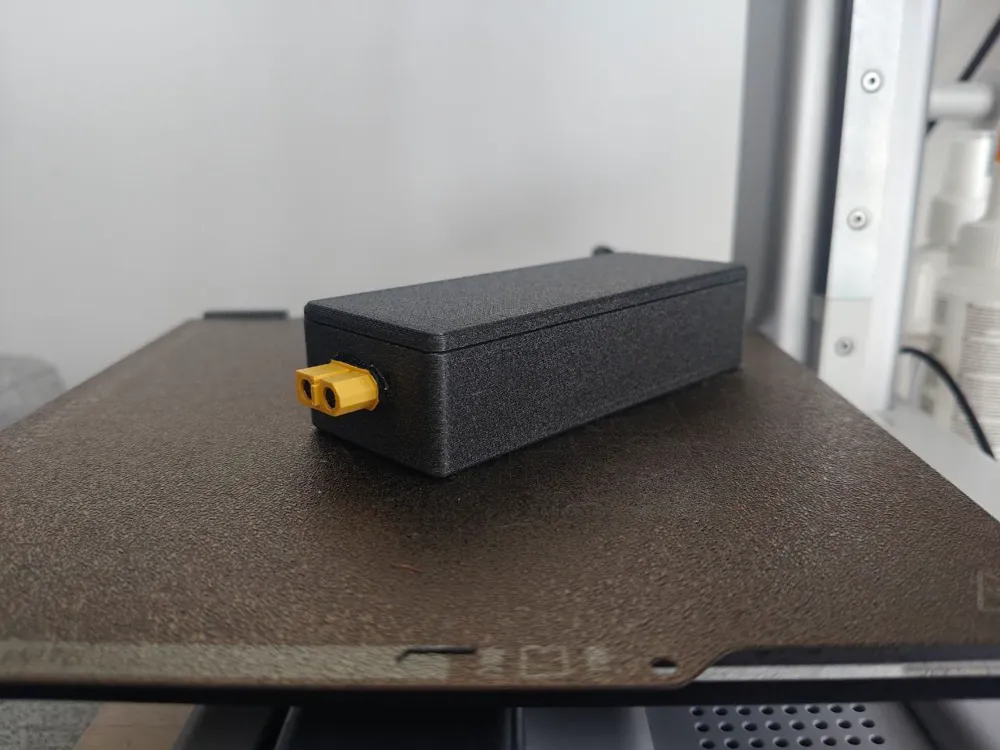

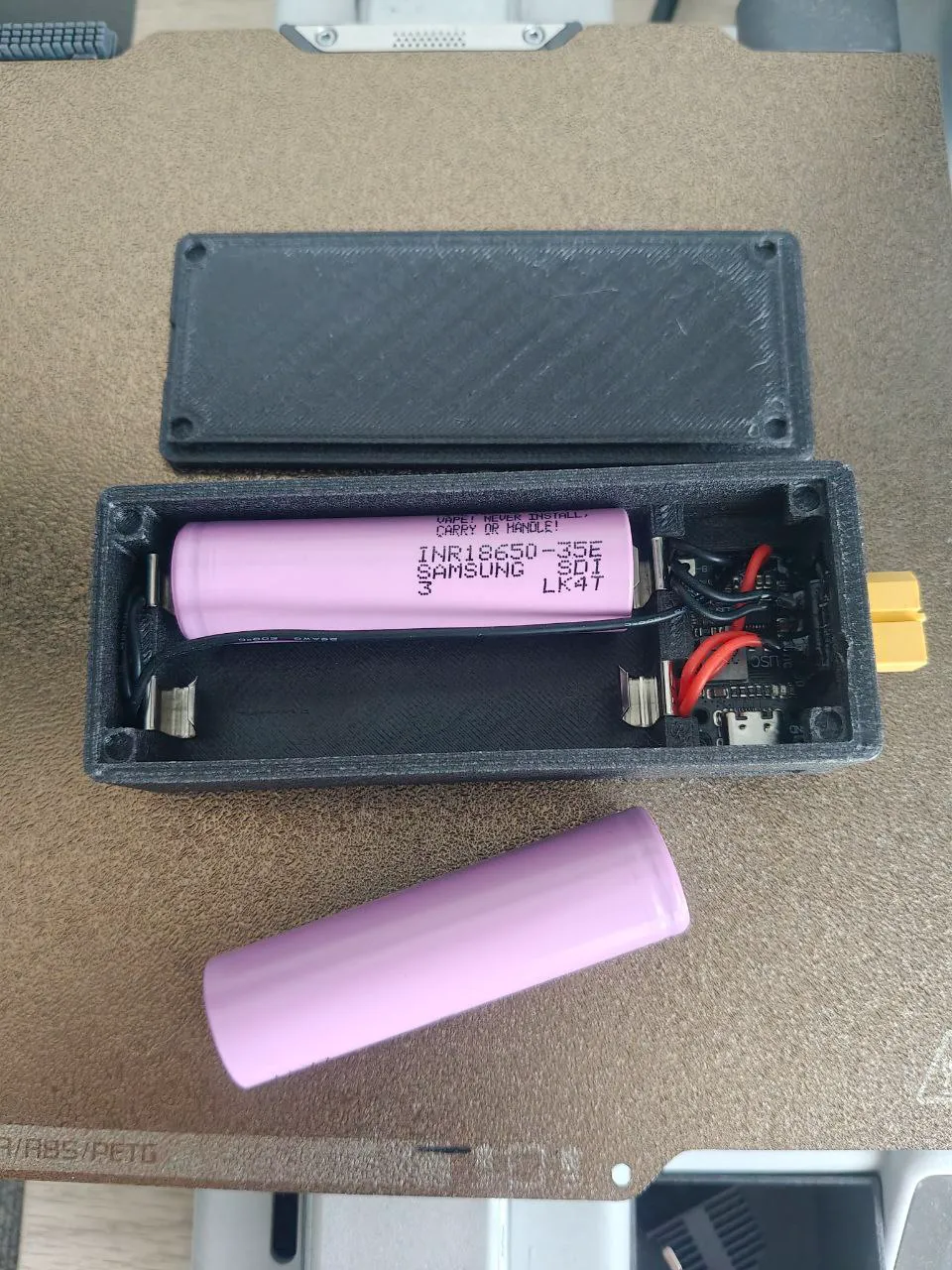

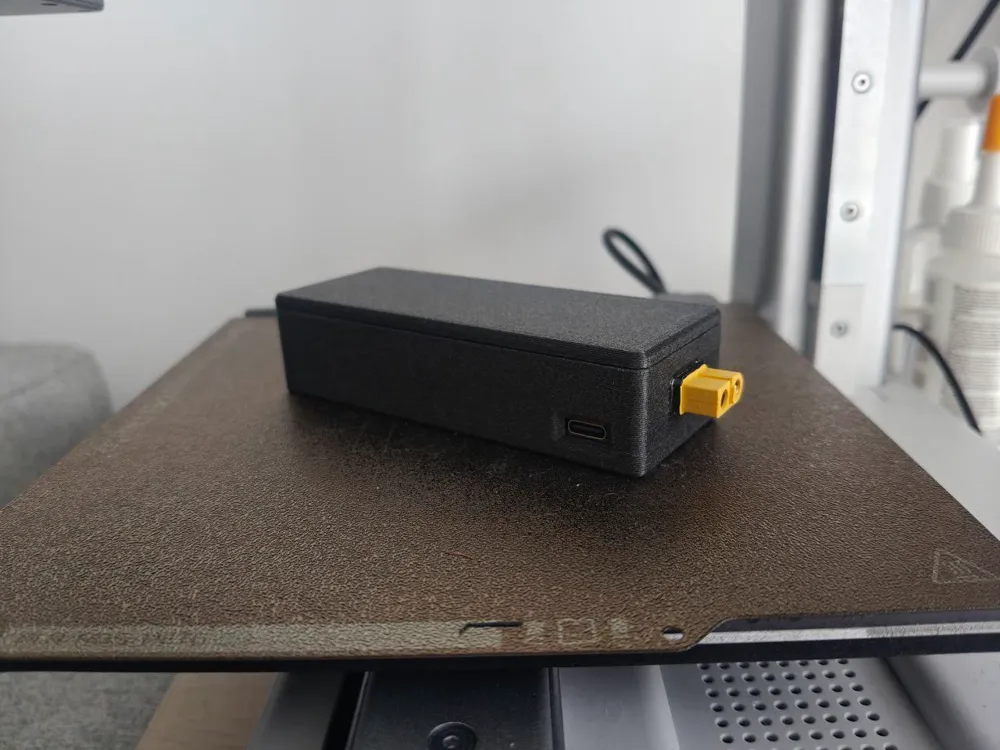

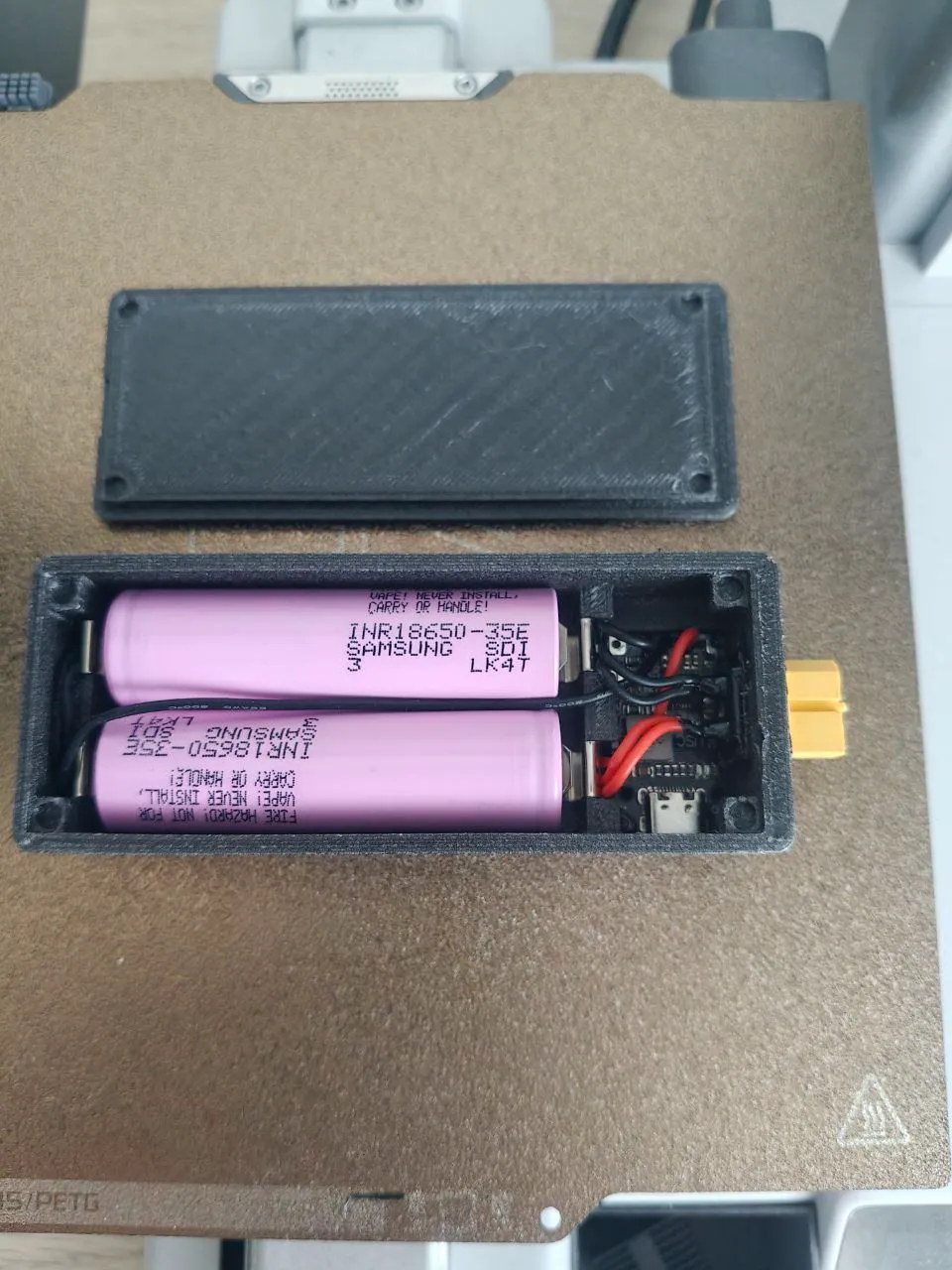

Simple supply box for walksnail goggles with bulit-in usb-c charger. 18650 cells are replacable. 3000mAh samsung batteries used are enough for about 2h of work. Connected in series 7.4V.

Parts:

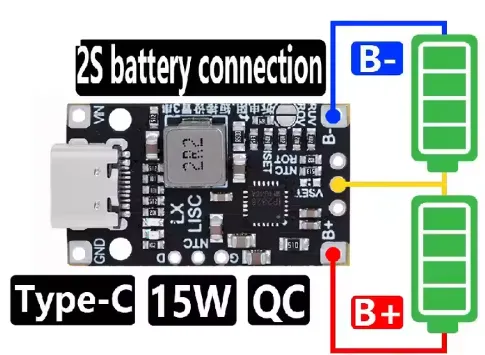

charging module use 2s IP2328 charger: link
18650 contacts use Keystone 209 link
You can use 8x 3x1.5mm magnets link or print top box case named top_tight so you dont need magnets

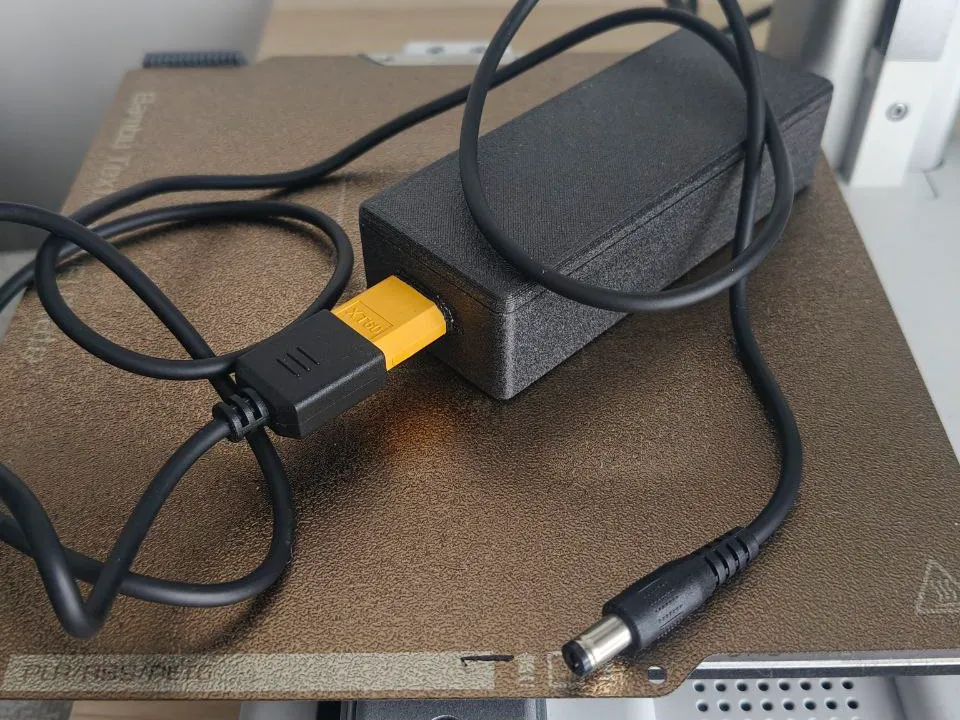

XT60 connector you need to glue
