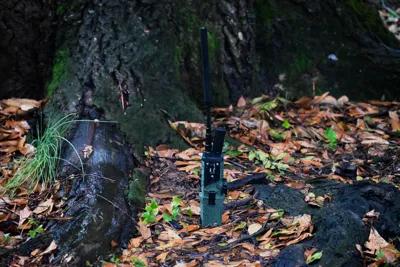

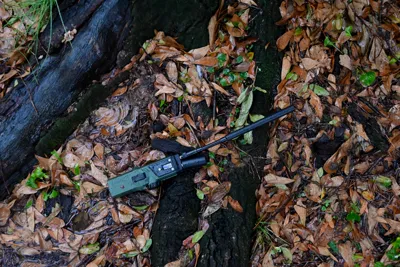

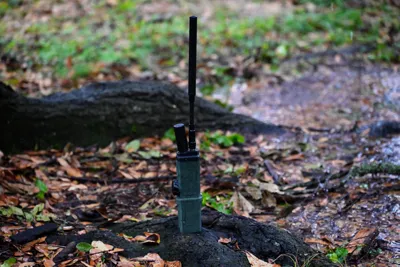

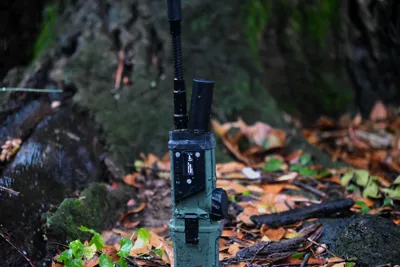

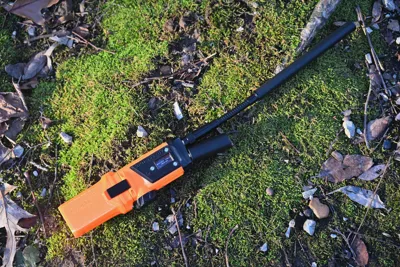

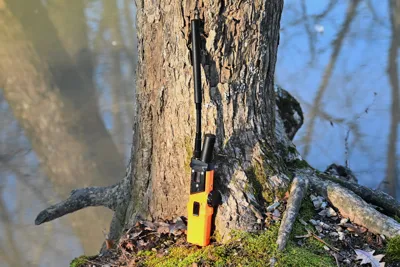

Aux Arc One - Rugged Meshtastic Radio w/ Display

This has been in the works for a long time.  This is my second Watertight Meshtastic Radio enclosure.  It's about two and a half times the size of the previous one and very similar in size to a Baofeng radio.  Current battery design is twin 18650s, which is an insane amount of runtime and good for pretty nearly any hike.  Coming soon, I'm hoping to have a charging station for the battery packs but for the time being, they'll need to be charged through the radio.

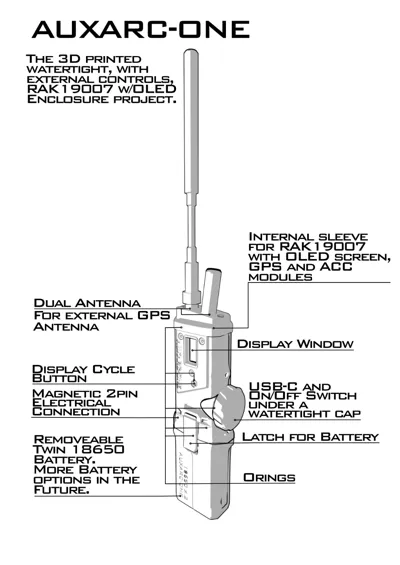

 Primary features are:

 - Display port

 - Display cycle button

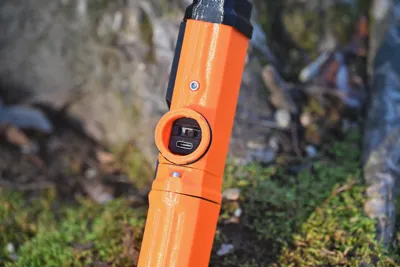

 - USB Charging and On/Off switch accessible from the exterior

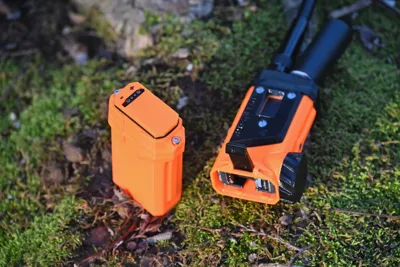

 - Removeable battery pack
 - Watertight (Don't swim with it but, you can hike in the rain if you're weird like that.)
 - Dual external antennas if desired.
 - Multiple battery pack sizes and included files for you to adjust sizes yourself if desired.

UPDATE 1/10/25

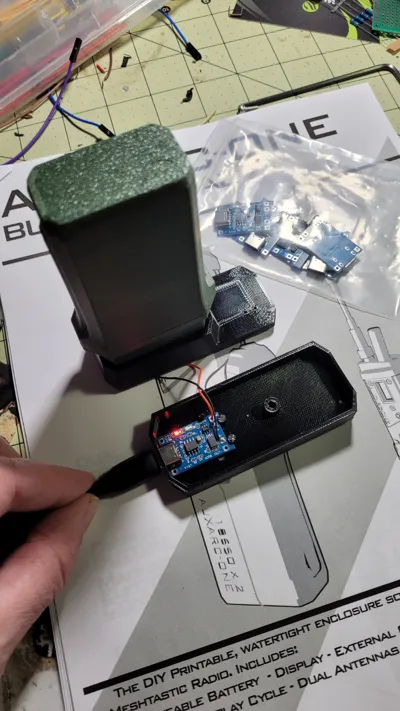

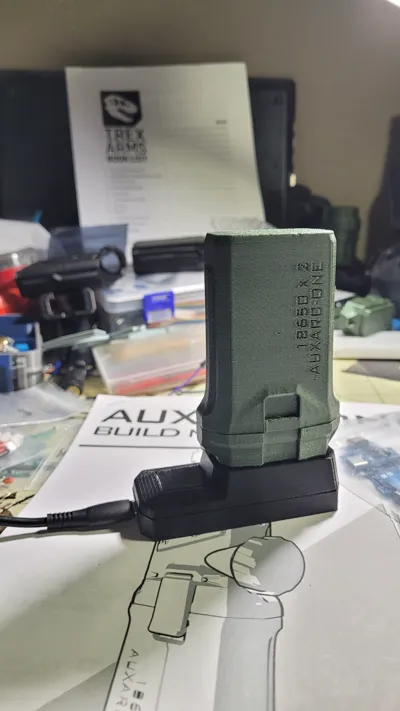

- Charger Station has been added.  Designed to work with the AuxArc-One battery case cap, using the TP4056 charging board.  Now your AuxArc-One loose batteries can be charged without needing to be plugged into the radio.  Assembly is detailed in the attached updated manual.

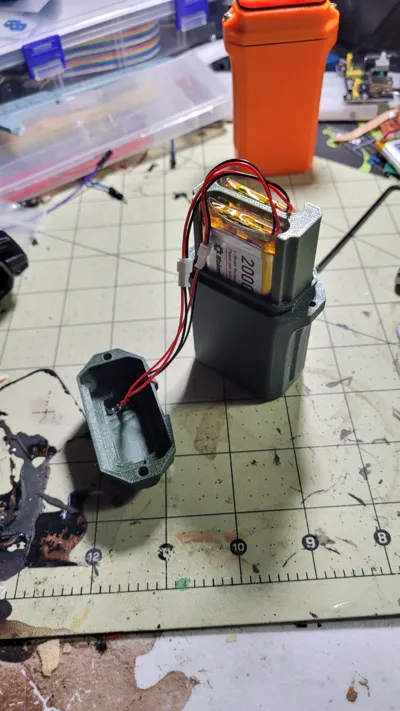

- New battery sleeve.  Will hold (2) 2000MAH flat pack style batteries inside the shorter battery case.

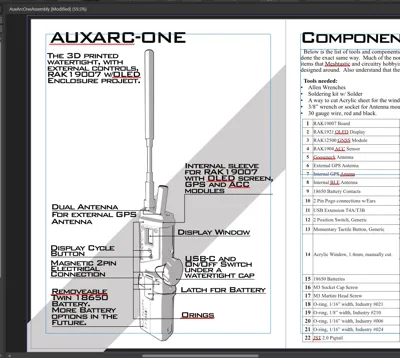

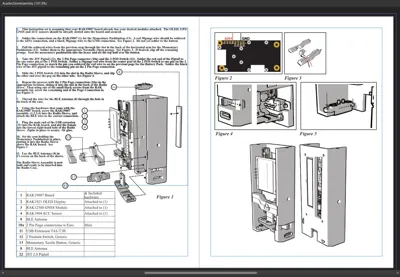

 There's a lot of components required to make this work.  I've written a detailed manual, as pictured in the photos above, and I've also done this video to try and walk you through the radio portion.

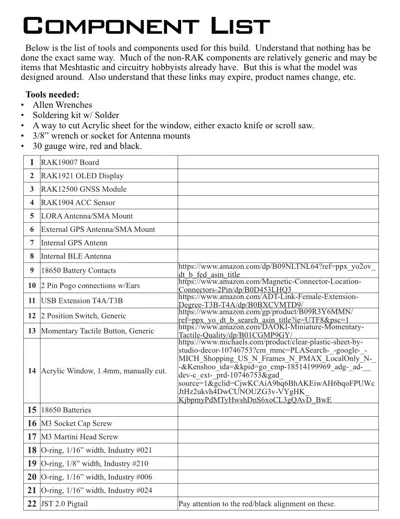

Component list:

18650 Battery Contacts: https://www.amazon.com/dp/B09NLTNL64?ref=ppx_yo2ov_dt_b_fed_asin_title

2 pin Pogo connectors: https://www.amazon.com/Magnetic-Connector-Location-Connectors-2Pin/dp/B0D453LHQ3

ADT USB extension, model T4A/T3B: https://www.amazon.com/ADT-Link-Female-Extension-Degree-T3B-T4A/dp/B0BXCVMTD9/

2 POS Switch, Generic: https://www.amazon.com/gp/product/B09R3Y6MMN/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

1.4mm acrylic sheet for the window: https://www.michaels.com/product/clear-plastic-sheet-by-studio-decor-10746753?cm_mmc=PLASearch-_-google-_-MICH_Shopping_US_N_Frames_N_PMAX_LocalOnly_N-_-&Kenshoo_ida=&kpid=go_cmp-18514199969_adg-_ad-__dev-c_ext-_prd-10746753&gad_source=1&gclid=CjwKCAiA9bq6BhAKEiwAH6bqoFPUWcJtHz2ukvh4DwCUNOUZG3v-VYgHK_KjbpmyPdMTyHwshDnS6xoCL3gQAvD_BwE

Orings needed:

Industry #021 (2)

Industry #210 (1)

Industry #006 (1)

Industry #024 (1)

  Any corrections, modifications, feel free to reach out to me here!  Hope you enjoy.
