Technics SL1200 SL1210 Tone Arm Bearing Holder

Print Profile(1)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
A1 mini
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

PLA 0.2mm layer, 6 walls, 25% infill
PLA 0.2mm layer, 6 walls, 25% infill
Designer
45 min
1 plate

Open in Bambu Studio
Boost
1
4
1
0
2
0
Released

Description

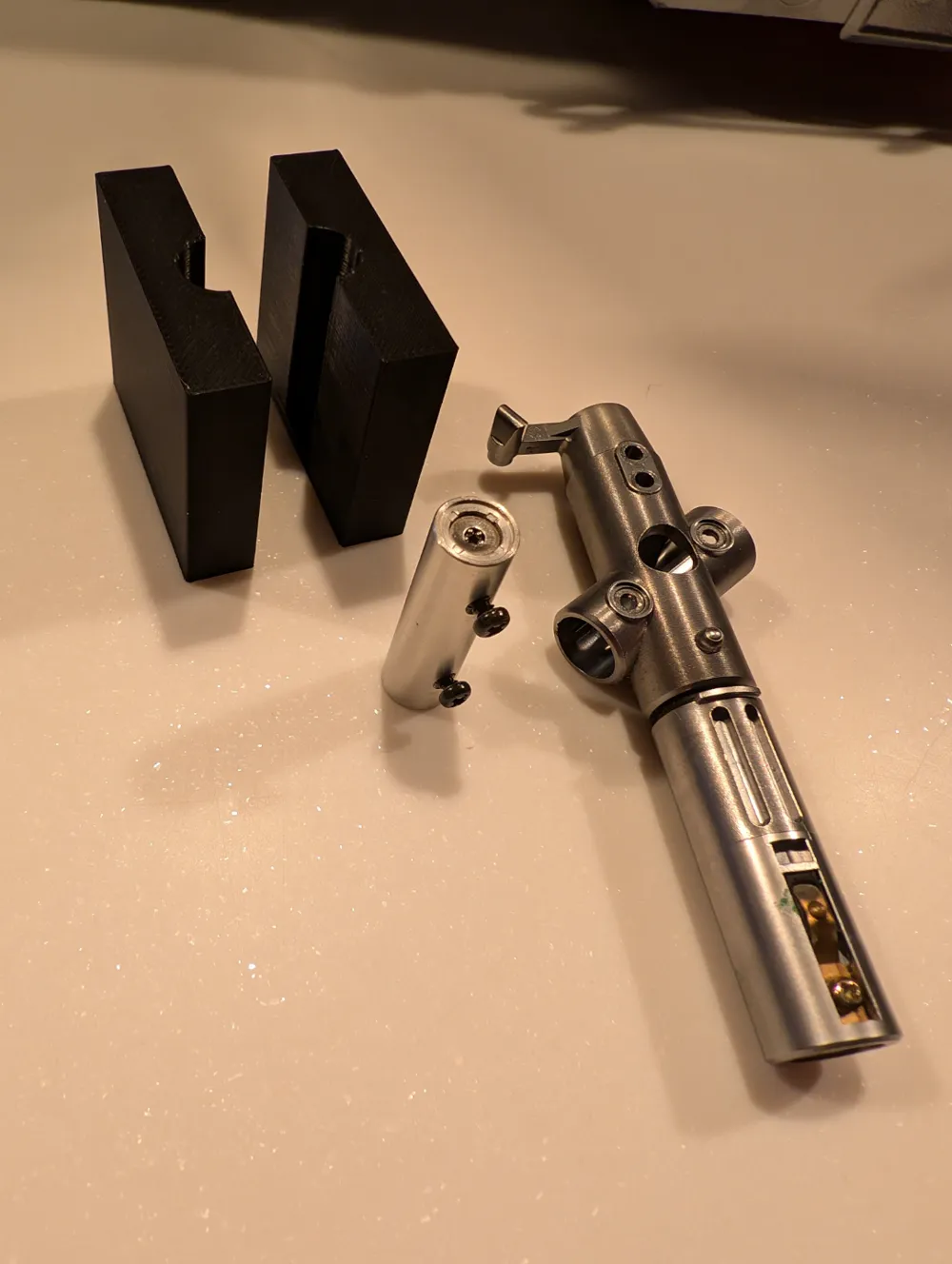

I have designed this as have to replace the tone arm bearings on a SL1200, and don't have any way to hold the tube for the horizonal bearings in a vice.



I am going to use it with a 7mm end mill, to machine a hole to take a totally different bearing.

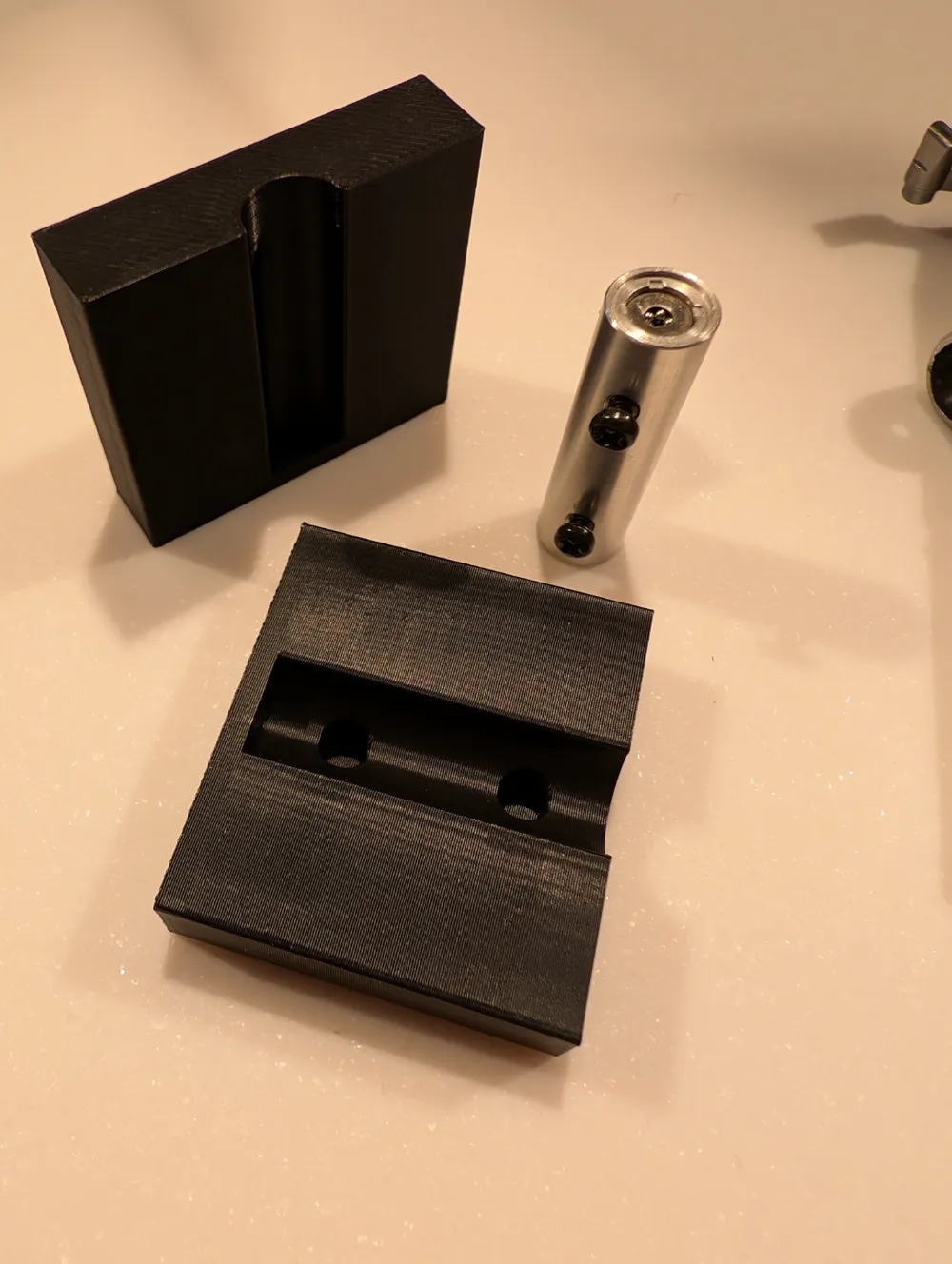

Included two small pockets, which if you pop the two screws in the tube, will stop the tube from spinning if you are going to use it will a drill press or milling machine.

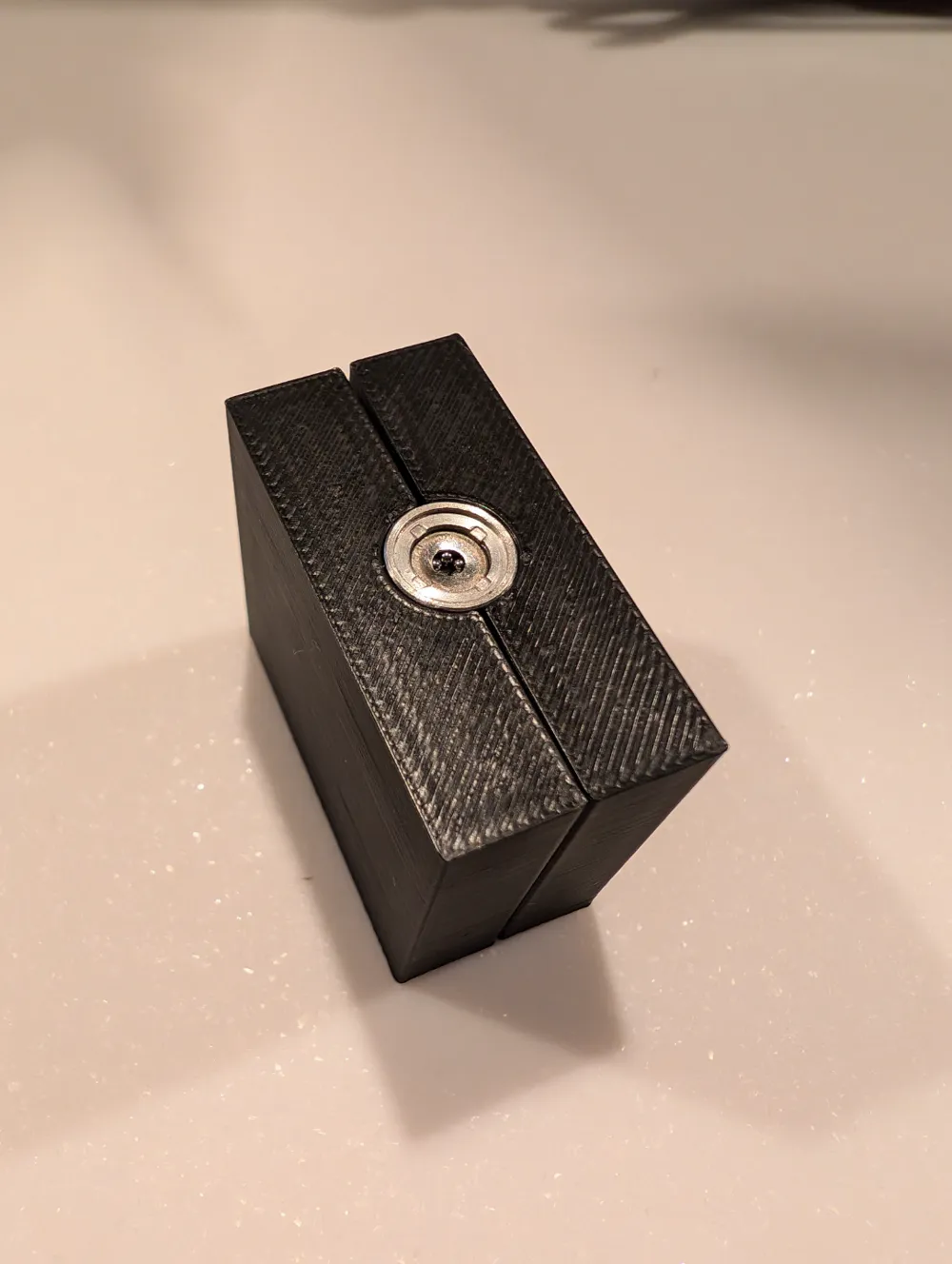

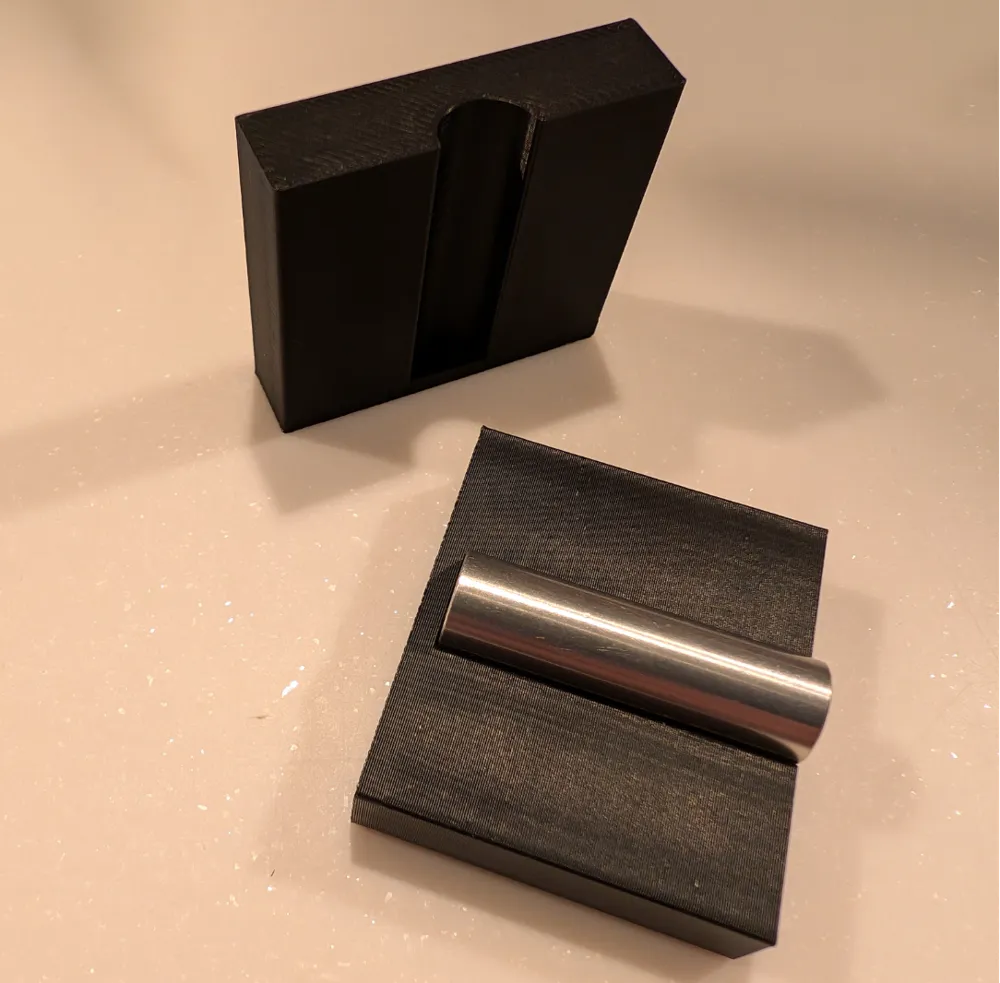

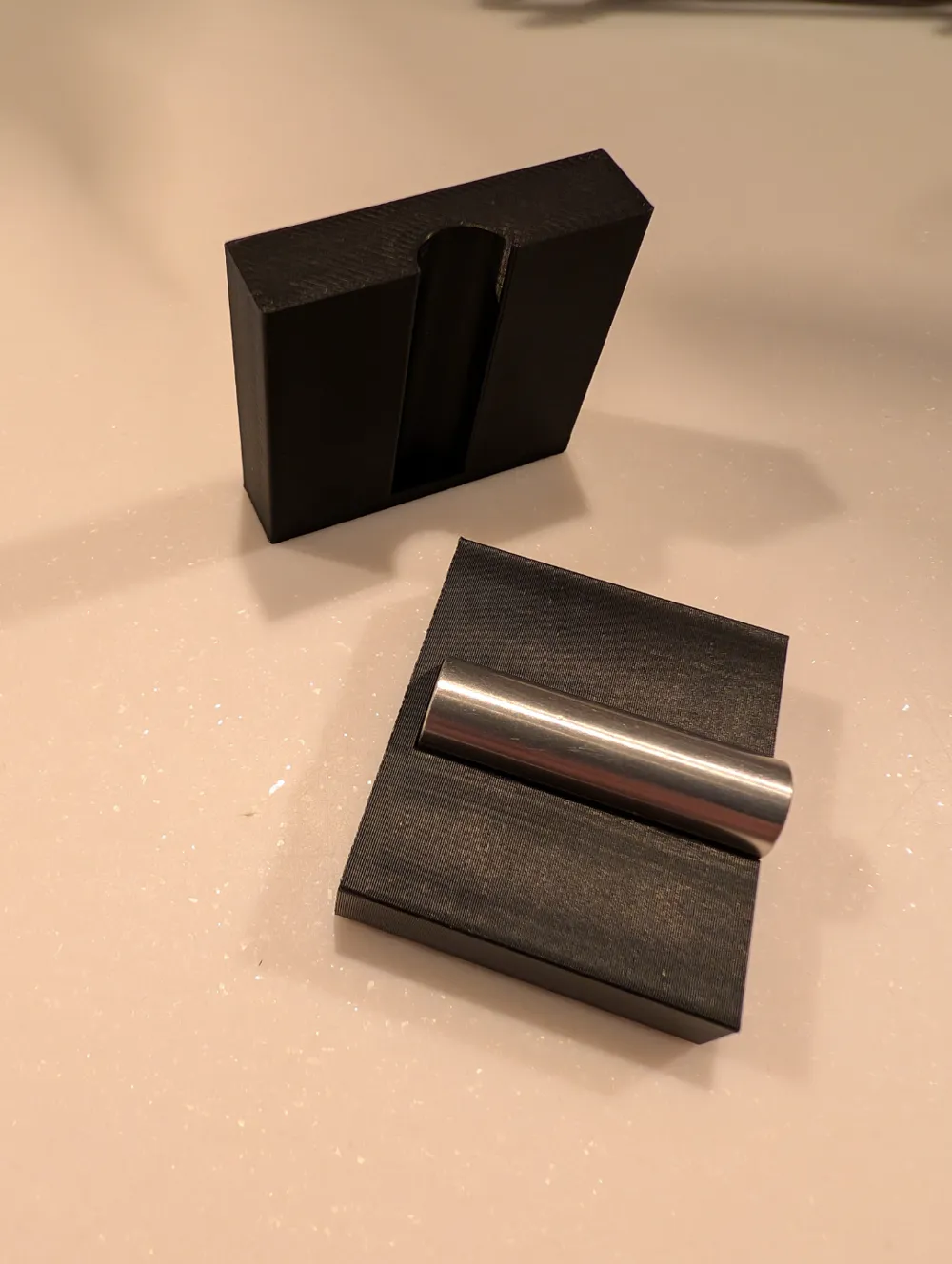

I have made it ever so slightly undersize, so there is a paper width gap between the two halves when assembled, so it clamps on the tube when placed in a vice.
