Traxxas Sledge JR/Futaba/Servo Connector Mount

Summary

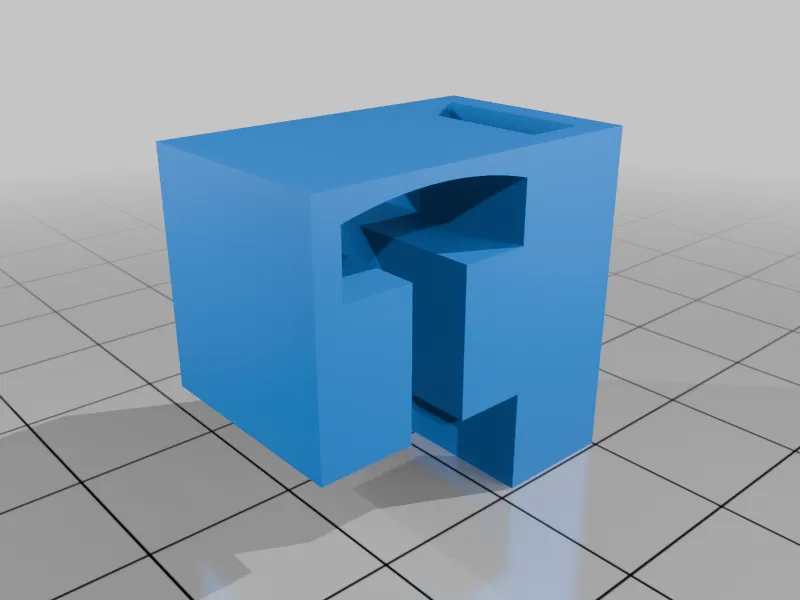

This is a nice mount to install a JR power connector into the Traxxas Sledge. I designed it so I could easily connect and disconnect my custom light kit. It slides firmly onto the T-bar and you can install a male JR connector into it using a light touch of glue.

Print Settings

Printer Brand:

ELEGOO

Printer:

ELEGOO NEPTUNE 4 Pro

Rafts:

No

Supports:

Yes

Resolution:

0.20

Infill:

100

Filament: Elegoo PLA Pro
Black


Notes:

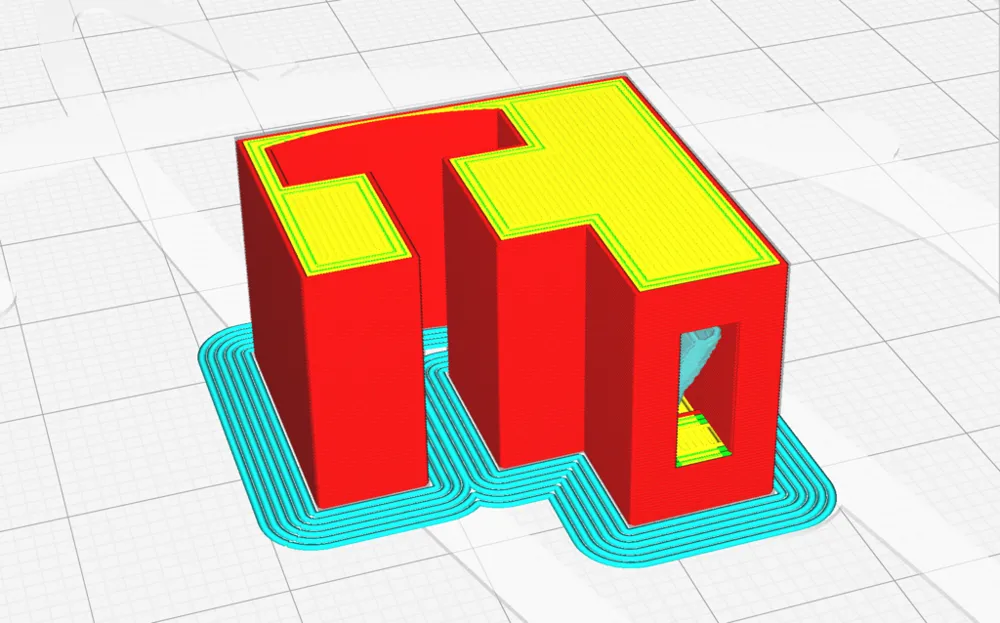

Print in the same direction as the photo and use tree supports.

Post-Printing

Installation

First, find the correct length JR connector for what you're trying to do and make sure it works. Then, slide the male end through the connector mount.
You may want to put a very small amount of glue (if needed) onto the mount walls. and then you can pull the female end all the way into the slot, wiping off any excess glue that might come out.

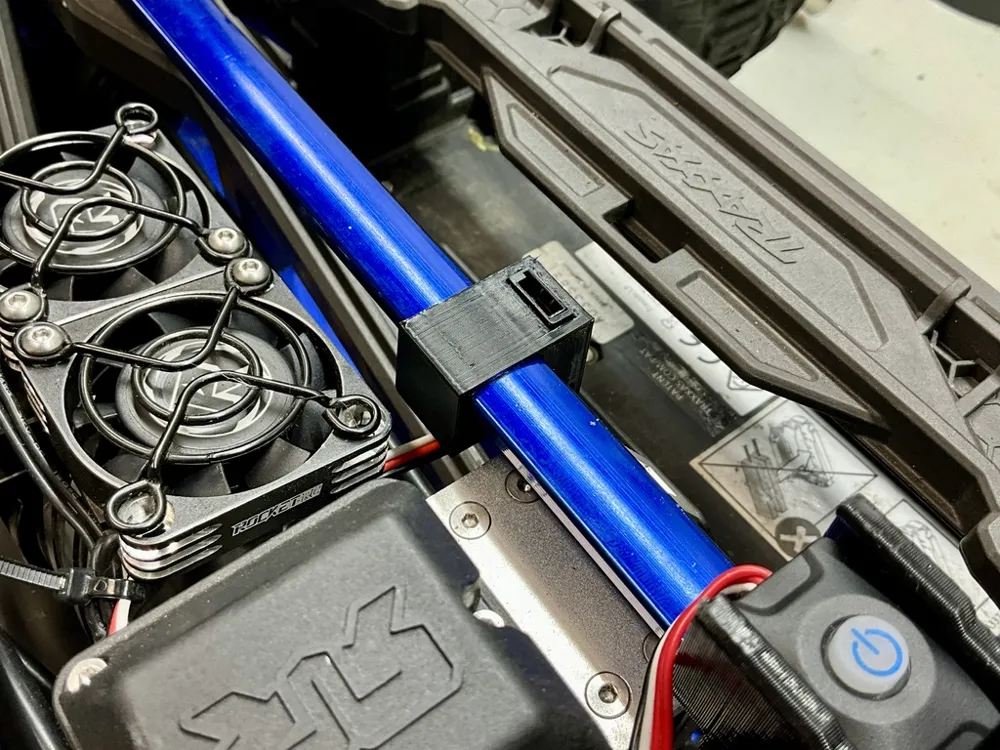

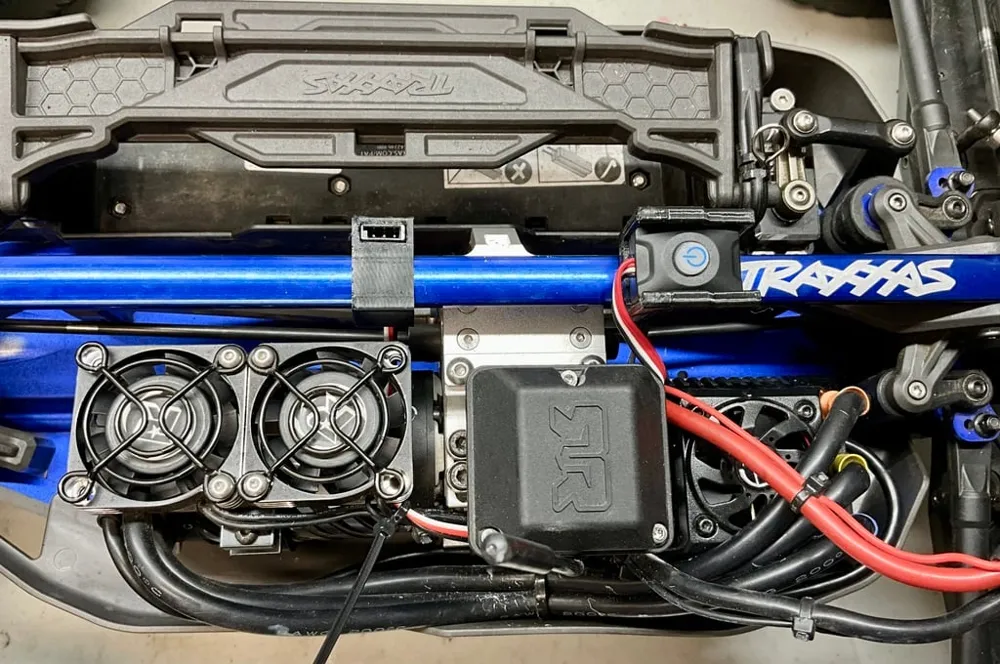

Next, grab your Sledge and remove the two T-Bar screws (one in the very front, one in the very back) and lift the T-Bar straight out of the Sledge. Then, slide the connector mount onto the T-Bar to wherever you want it. Then, slide the T-Bar back in place and reinstall the screws.
