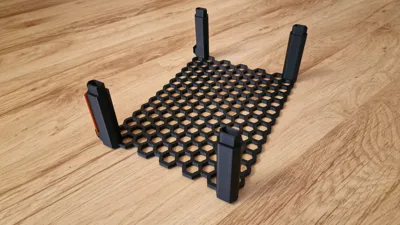

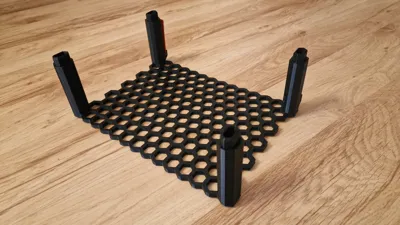

Filament spool roll storage rack with label
Print Profile(15)
Description
Easy way to store Filament. Modular structure expandable.
4 different types:
Spool max sizes:
Diameter: 207 mm
Height(thickness): 70 mm
Little rack spool max sizes:
Diameter: 155 mm
Height(thickness): 40 mm
for Bambulab filament box:
Width: 221 mm
Height(thickness): 75,5 mm

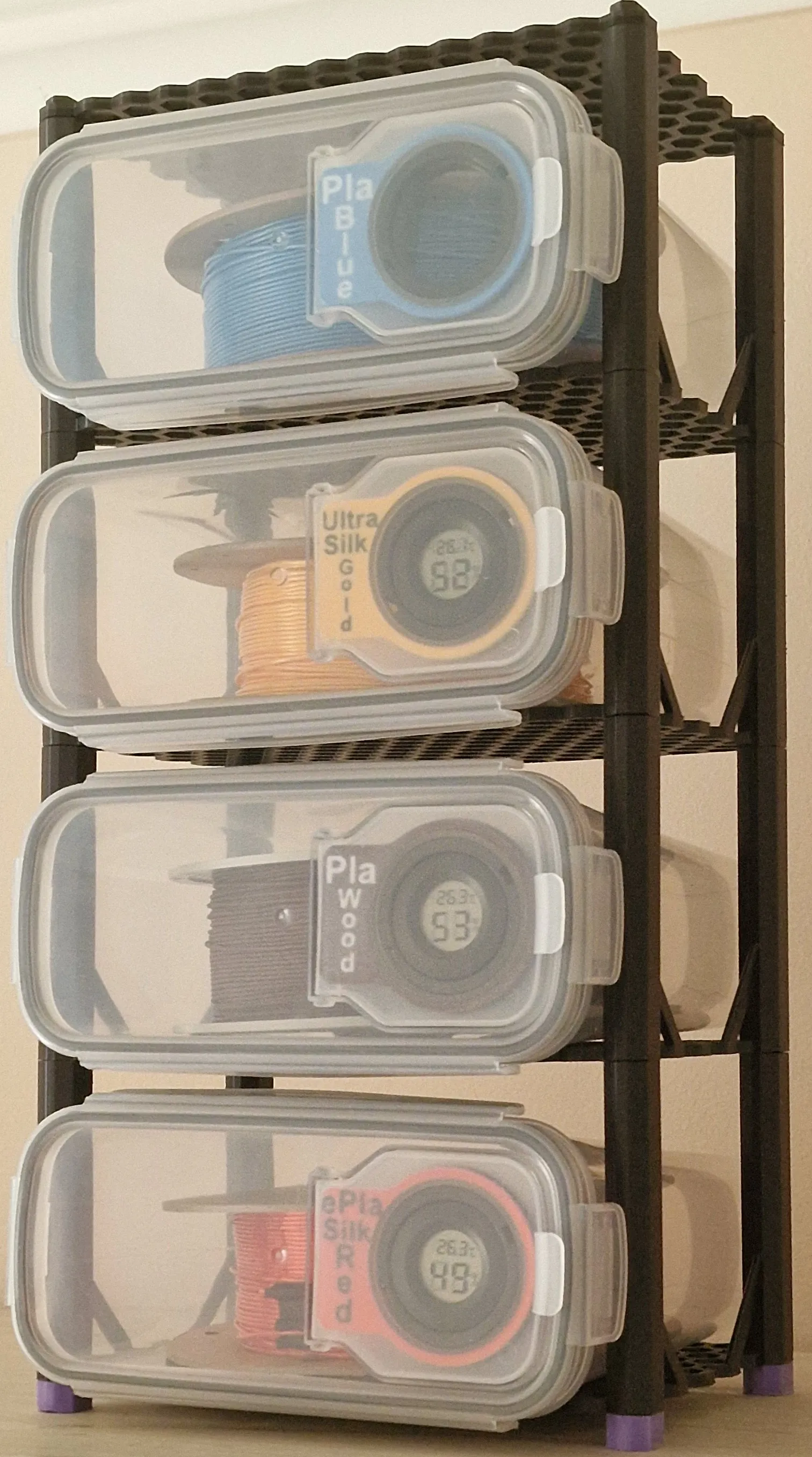

with 4l container jar
Filament-storage-rack-with-4l-container-jar

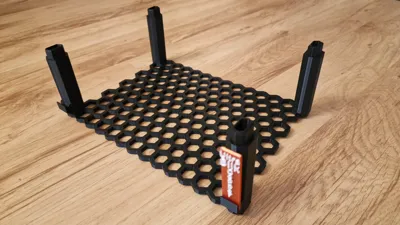

Label:
- In Bambu Studio you can customize the text.
- or customize here in 2 different types: ams or no ams
Leg extension:
If your spool or box is extra tall: +12mm extension.
Wall mount:
The distance from the wall can be 5 types:
- 5 mm
- 10 mm
- 20 mm
- 30 mm
- 40 mm
The hole size is 4 mm but can be used with a bigger screw.
Distance between the holes 63mm
Clips:
If there are many racks next to each other, 2 different types of clips can be used to provide stability.

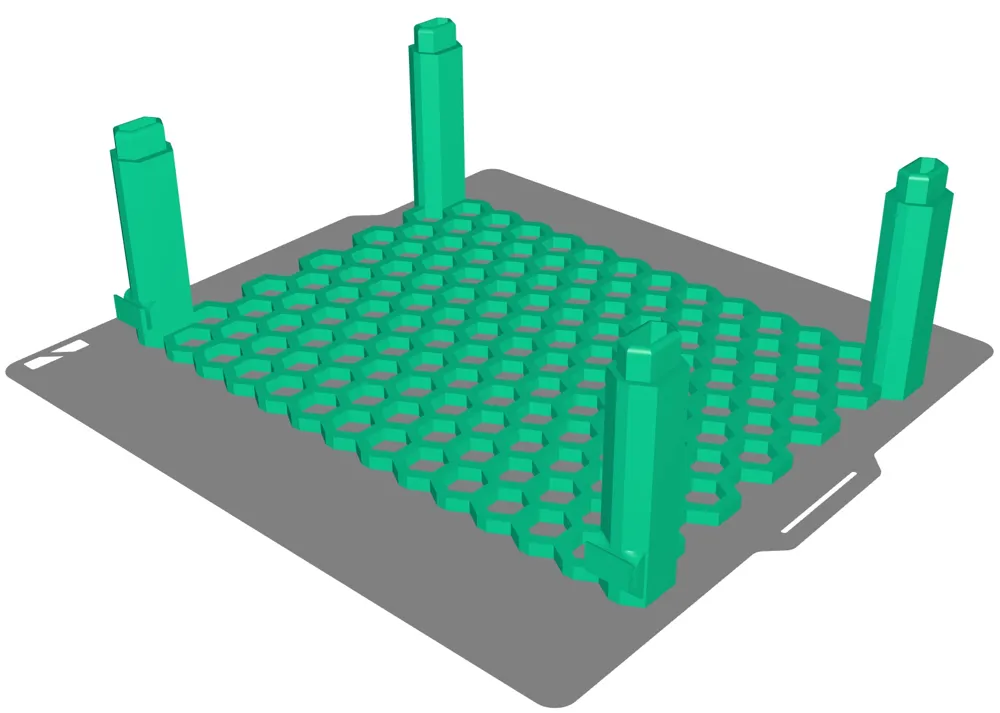

Print without support
Update:
2025.02.01
I added a print profile if your spool is extra tall; +12mm extension.
2025.02.09
I added another print profile to close the top which is of course also suitable for storage and fits into this design.
2025.04.08
I added print profile from the Little rack top cover
2025.05.13
I designed and added two different types of clips that can be used to provide stabilization between the racks
2025.05.28
Now you can customize the filament label here.
2025.06.06
New rack for bambulab filament boxes.
2025.06.11
New version with 4l container boxes
2026.02.16
New print profile: wall mount
