Towel hooks, robe and bath hooks up to 10cm wall

Coat hooks for partition walls up to 10cm thick!

There are countless door hooks available, but constantly hanging two bathrobes and several garments puts undue stress on the door.

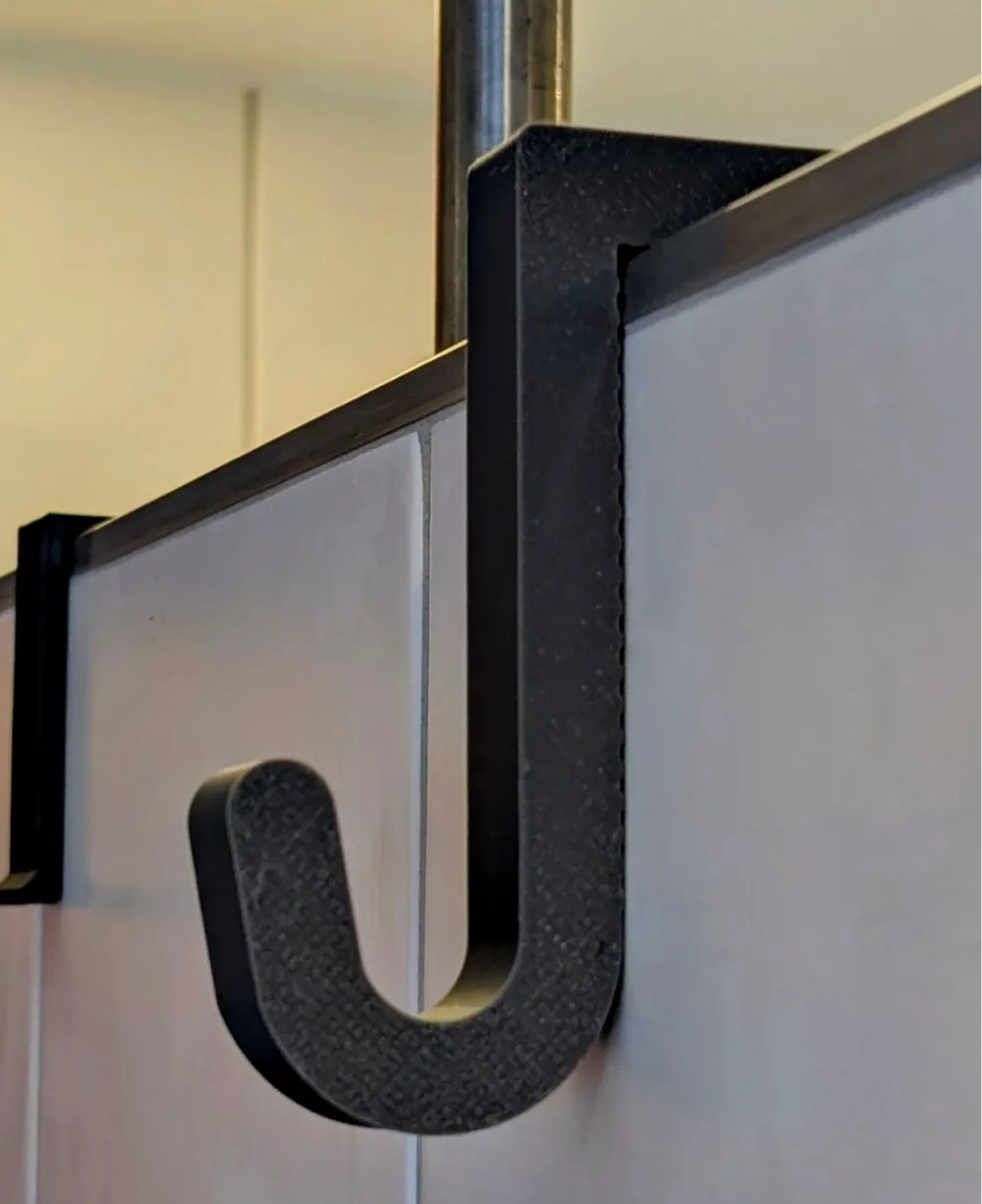

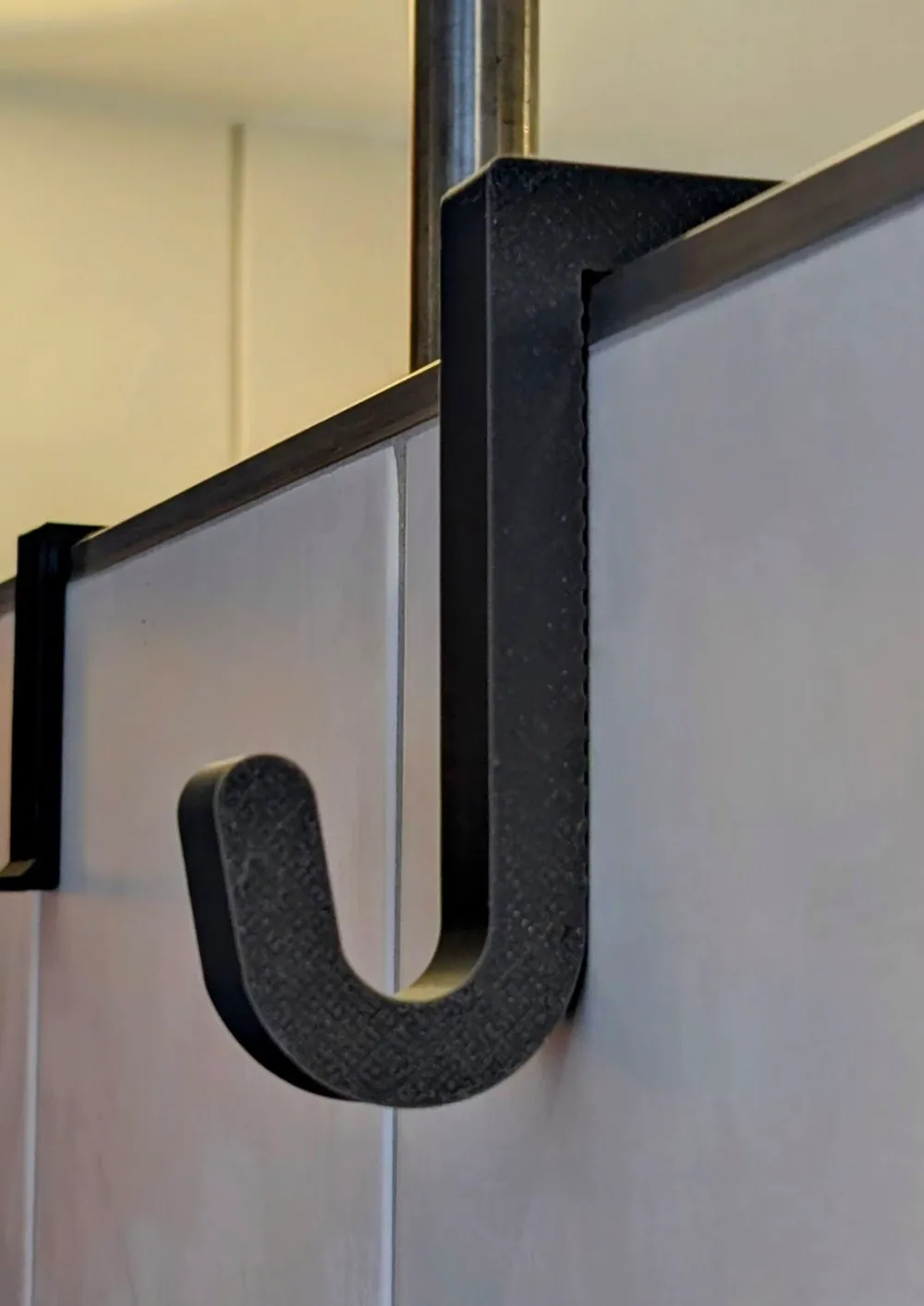

Therefore, I designed a hook for the partition wall to the shower.
This is a brick wall measuring 10cm in thickness.

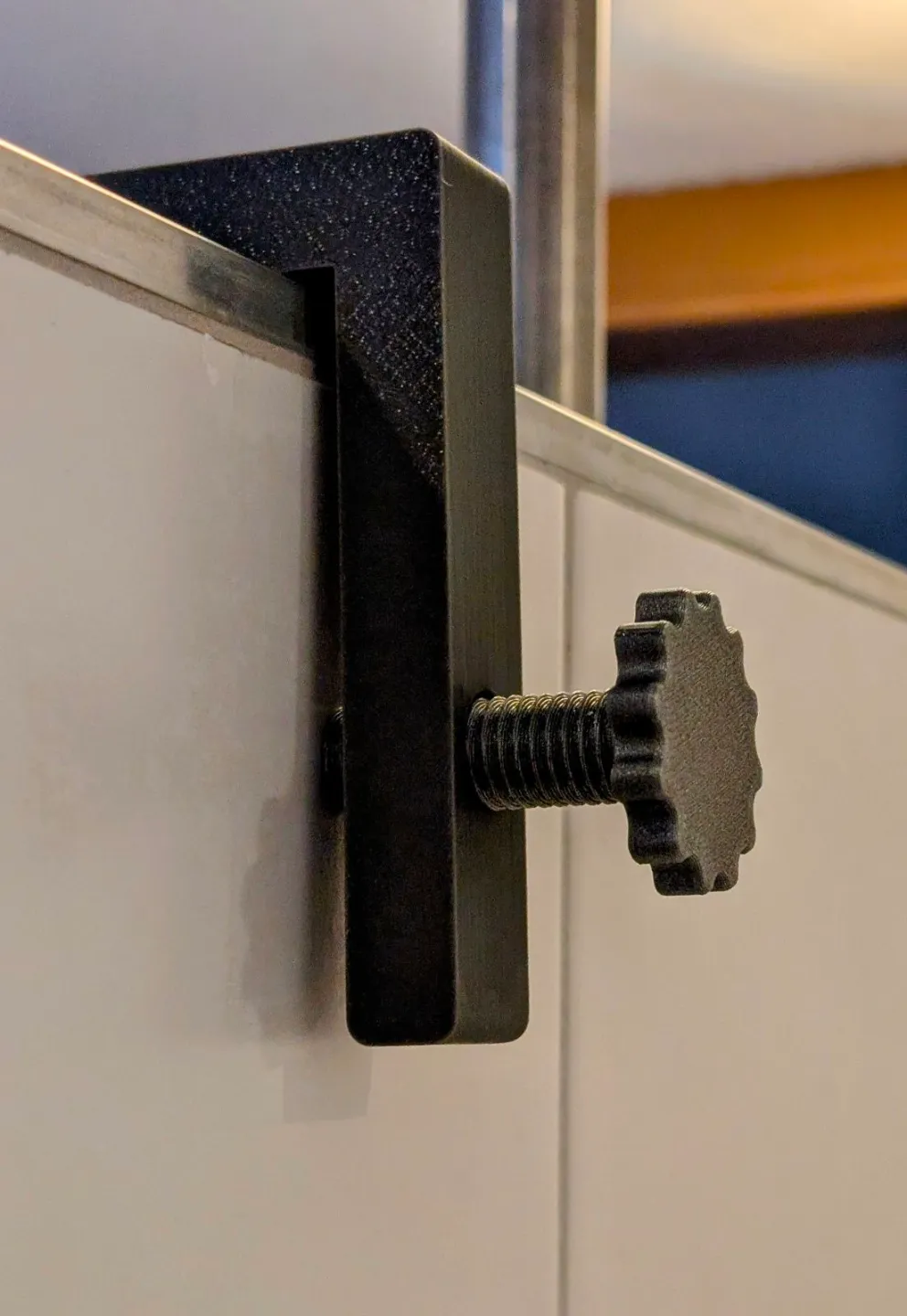

The hook is equipped with a clamping screw, making it suitable for wall thicknesses of approximately 8-10cm.

Several versions are included; simply measure, print, and experiment.

Leverage principle: the higher the clamping screw, the better the grip. Therefore, I prefer the version with the screw at the TOP.
However, this is not always feasible, hence the versions with the screw lower down.

Exercise caution during tightening: The screw generates considerable force, which can quickly cause the hook to deform!

Therefore, print with numerous perimeter lines and substantial infill—this will naturally increase printing time.
Those who only intend to hang T-shirts and underwear can also print the thinner versions.

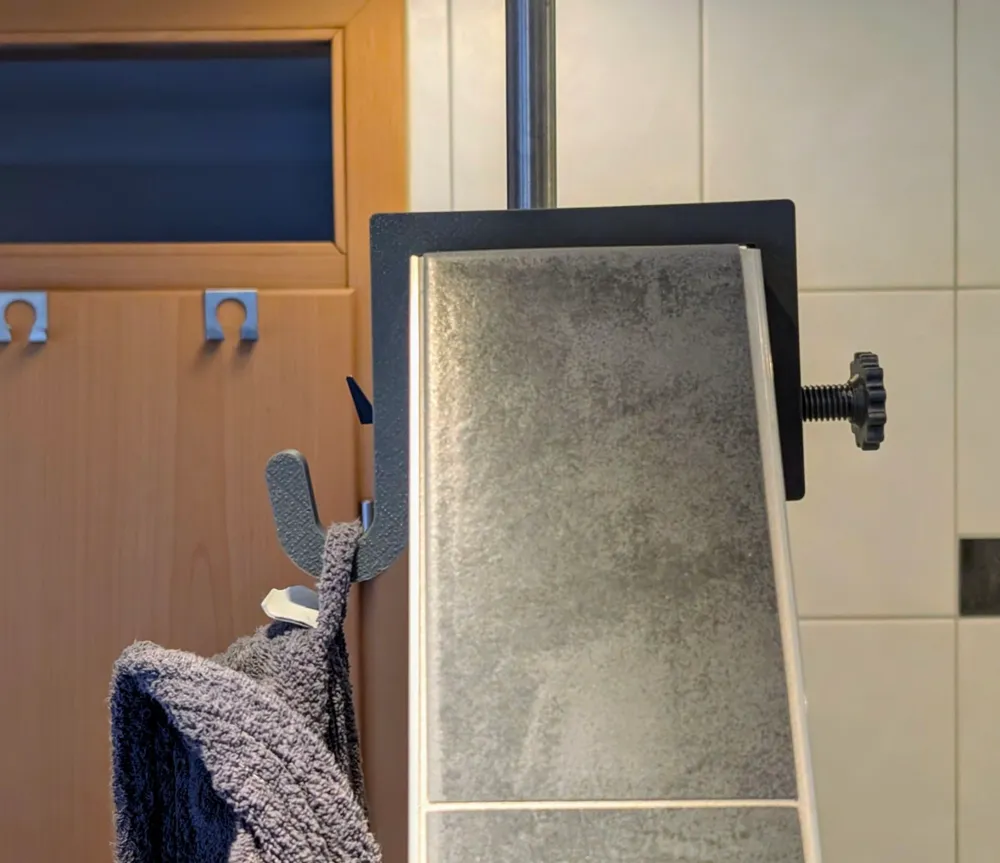

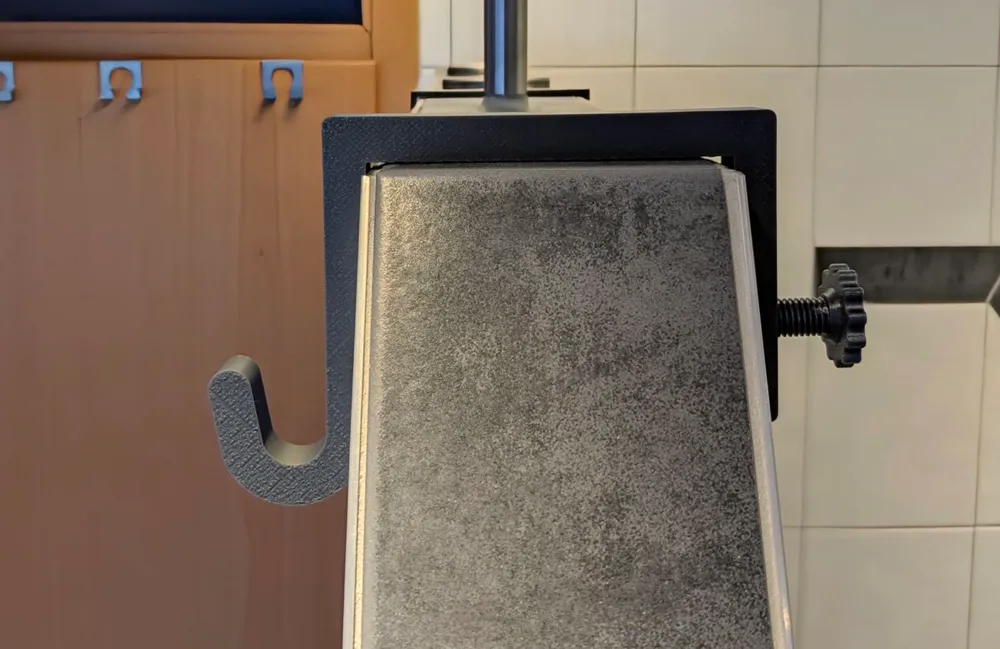

The pressure plate is optional. It distributes pressure more effectively and provides enhanced stability and security against slippage.
However, it reduces the usable depth of the hook (then only suitable for wall thicknesses up to approximately 8cm)
