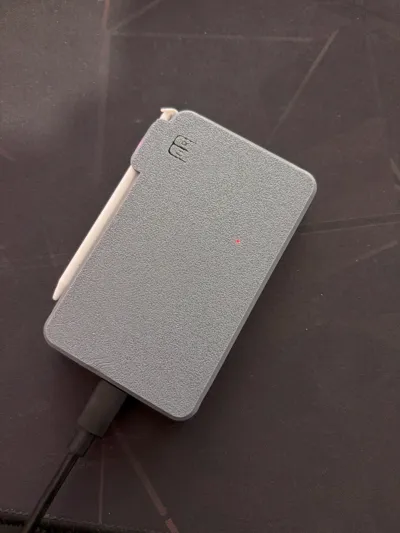

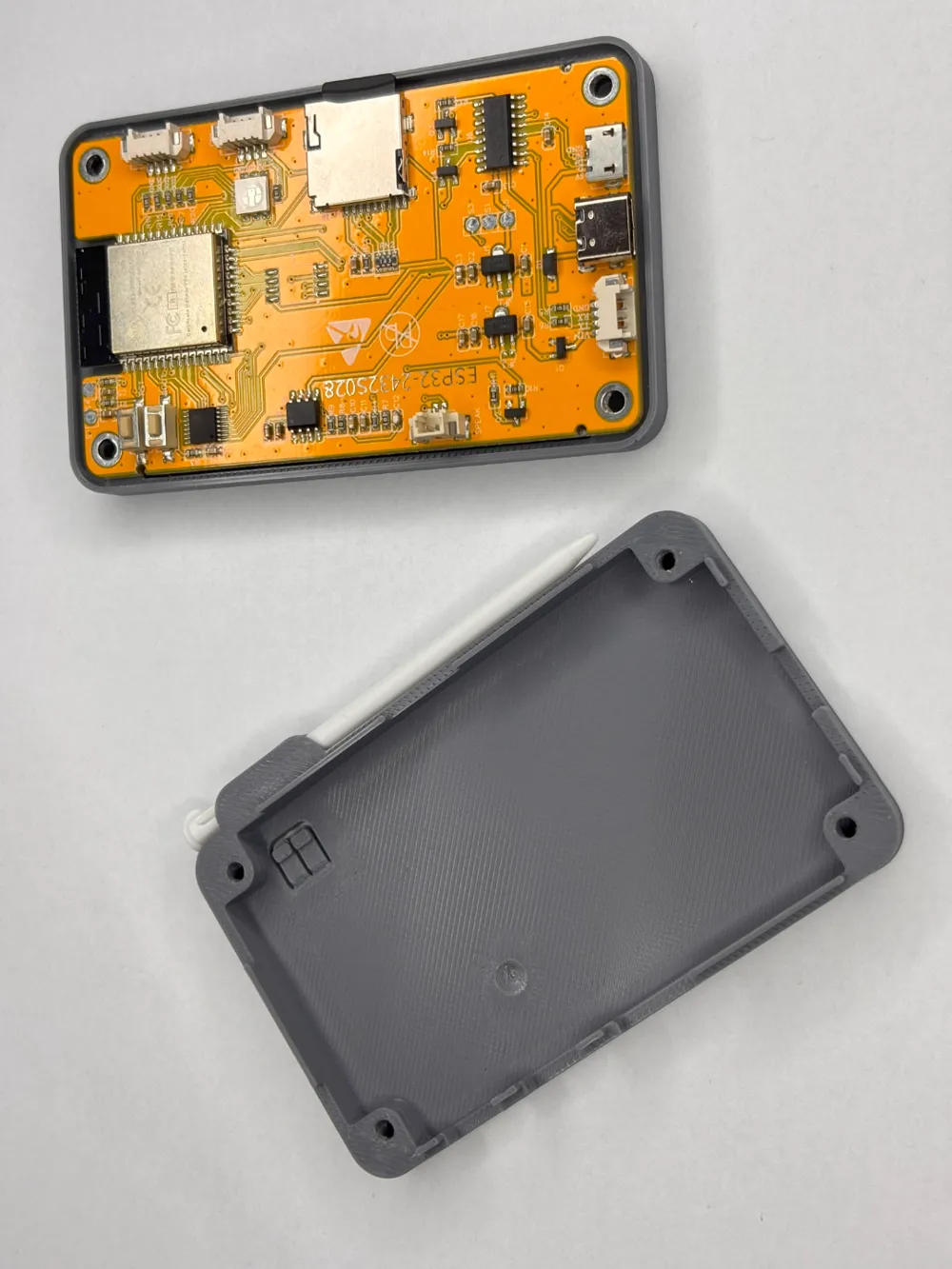

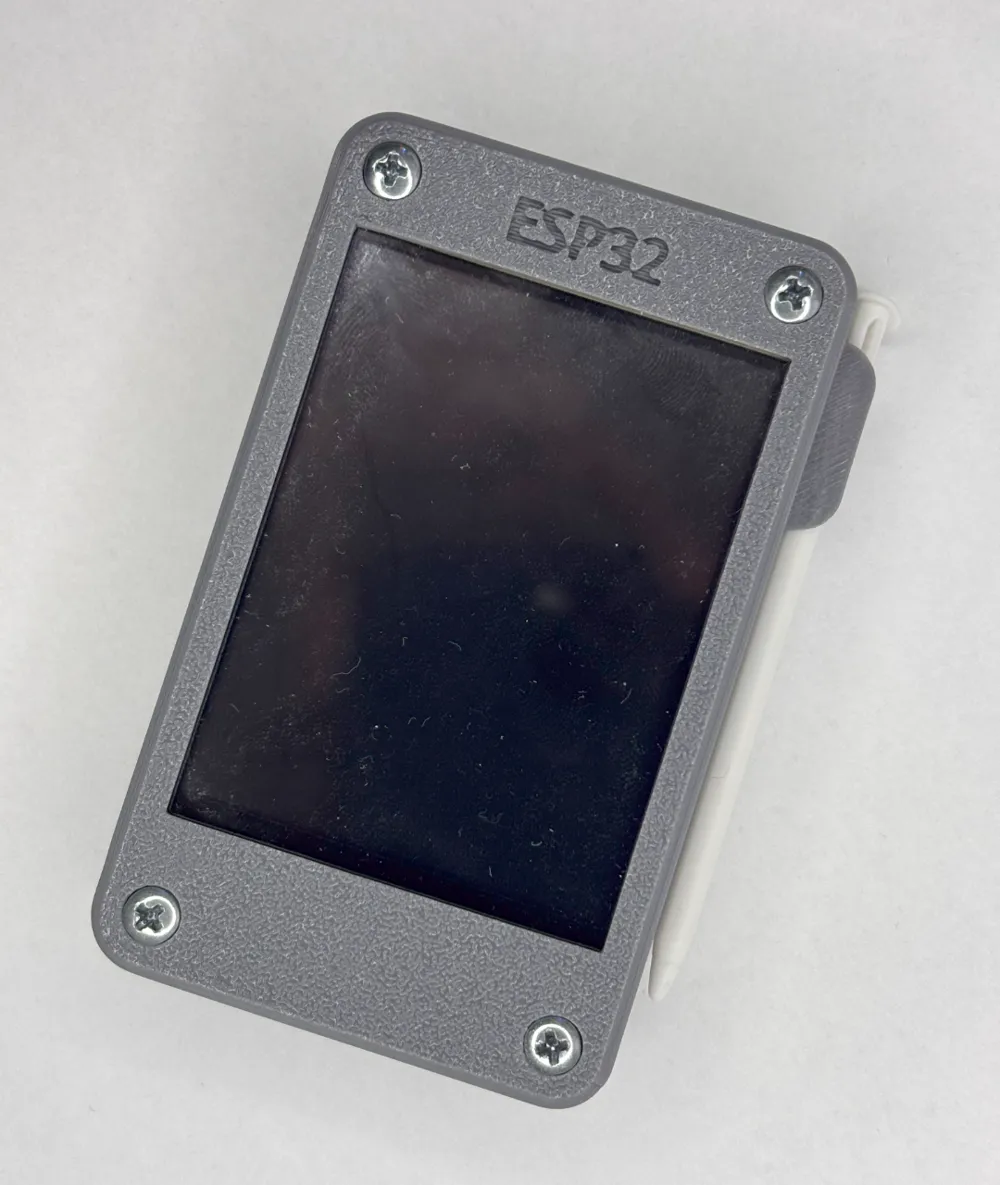

The case has been designed with both aesthetics and functionality in mind for the ESP32-2432S028 module. It features the following characteristics:

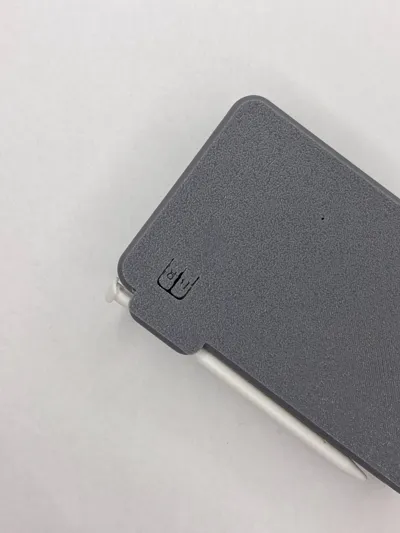

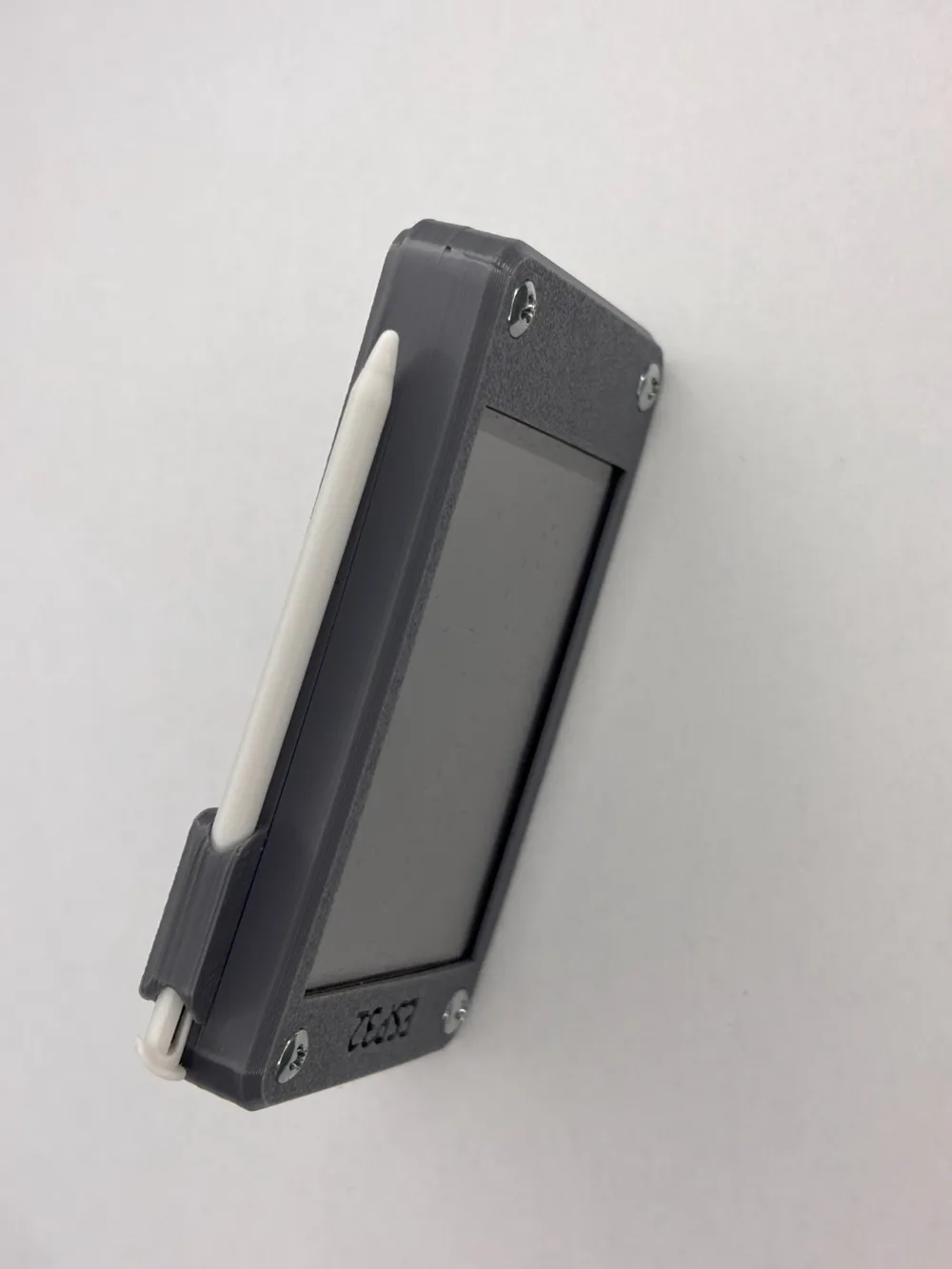

- Dedicated stylus holder: On the side of the case, there is a protruding, custom-fit compartment that allows for convenient storage of the stylus.

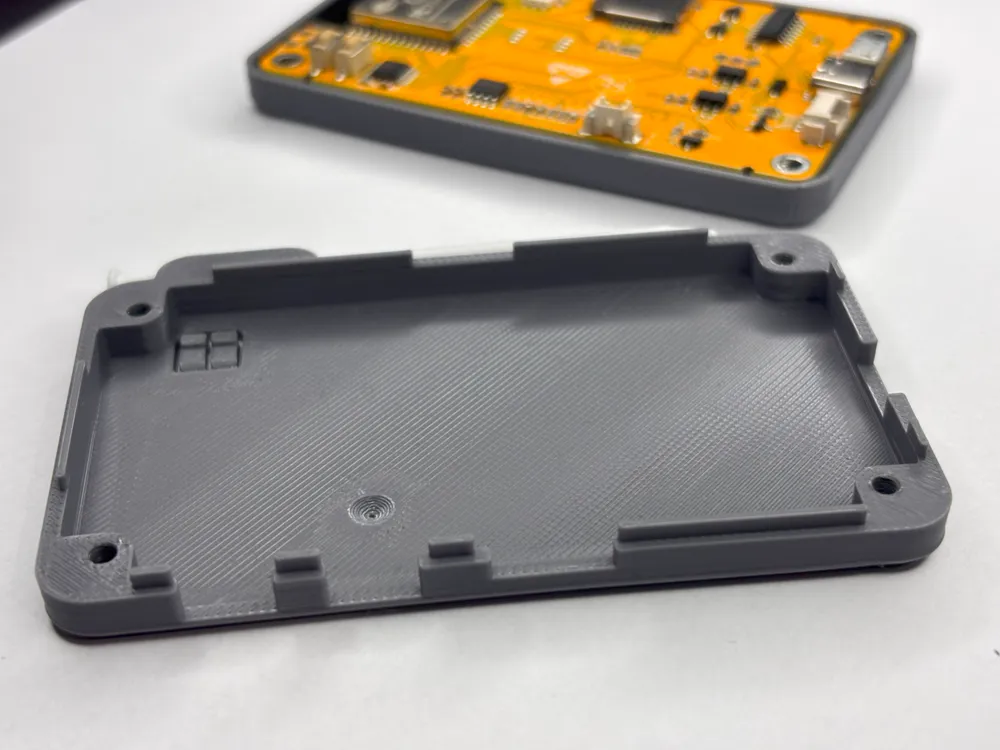

- Side openings: The design includes openings on the side, enabling the connection of additional modules and a memory card.
- USB-C port at the bottom: The opening at the bottom of the case provides easy access to the USB-C port.
- Reset and boot buttons: The reset and boot buttons are located at the back of the case, which is useful during programming and operation of the device.
- LED light hole: A small hole in the case allows visibility of the LED indicator, signaling the device's status.
Link to the ESP32-2432S028 module [CLICK]
When designing this case, I was inspired by [CLICK]. It's similar but mine is more functional.
