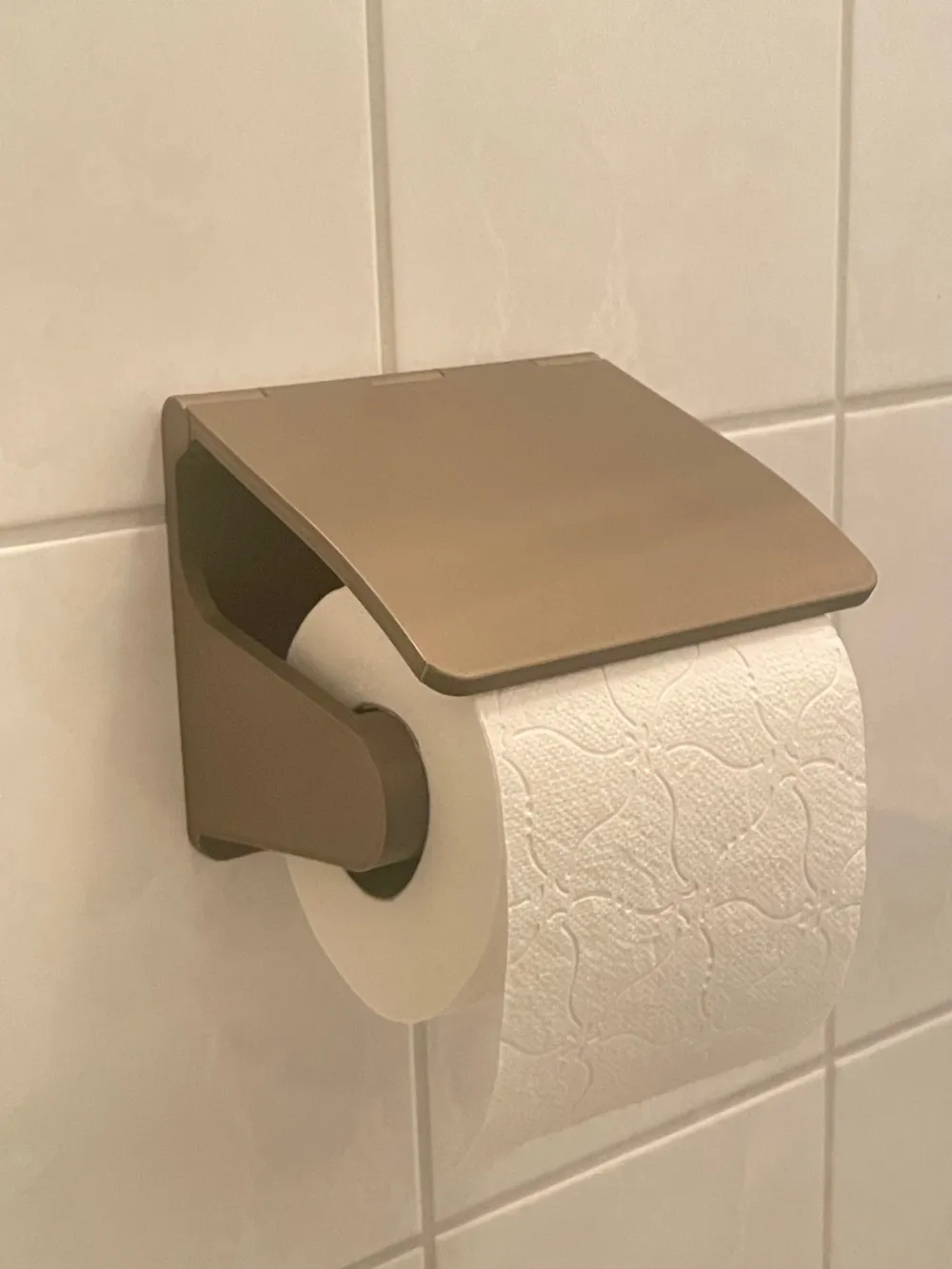

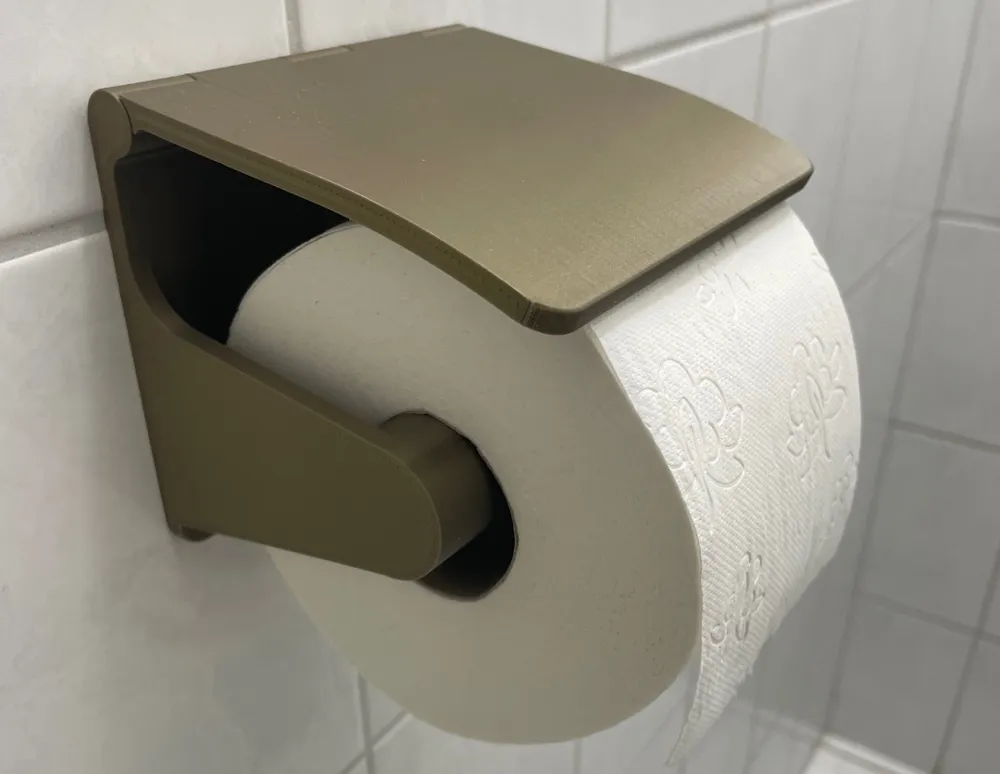

Modern toilet paper roll holder

Frustrated that my previous store bought toilet roll holder failed, i designed this one to my liking.

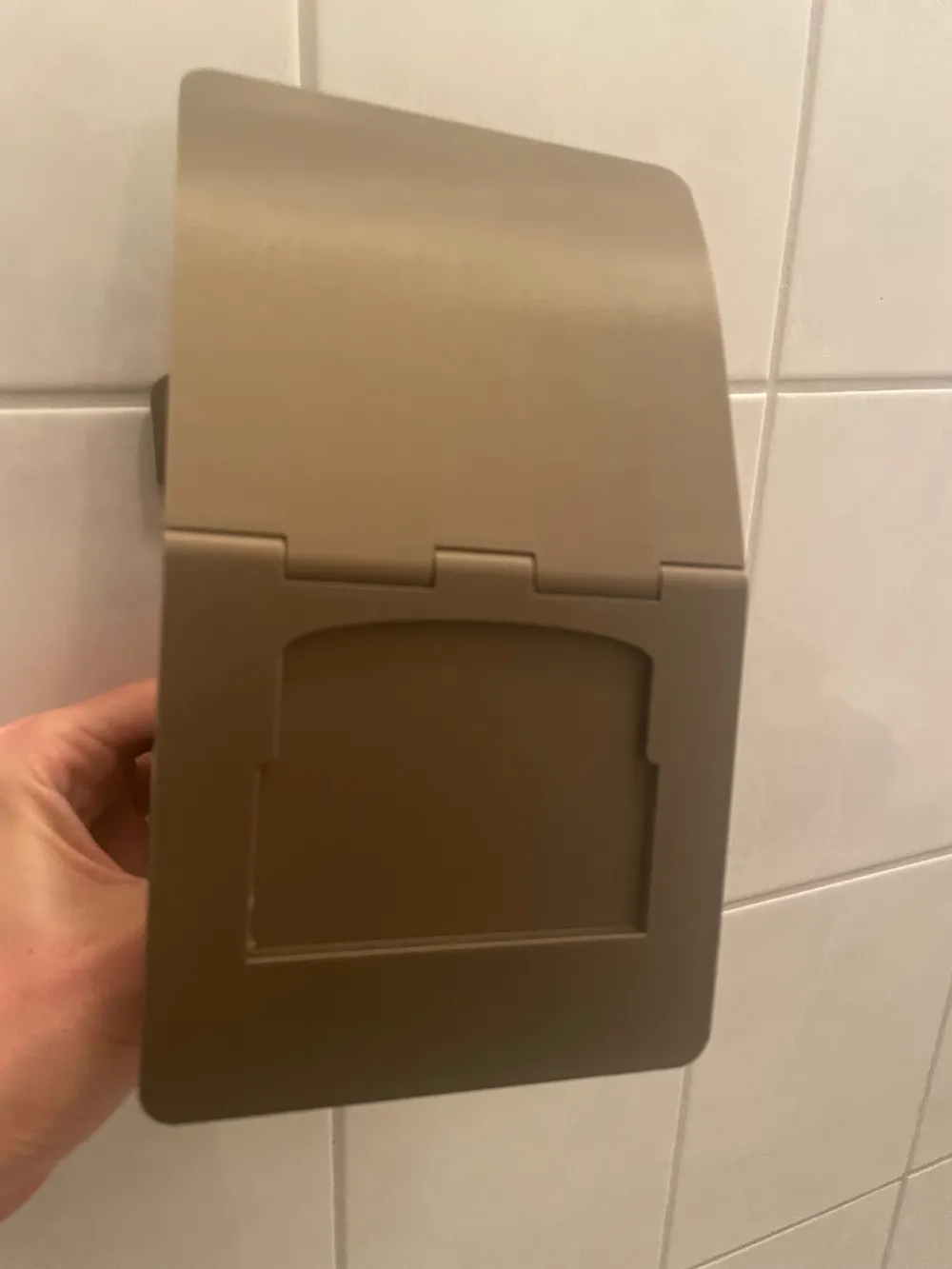

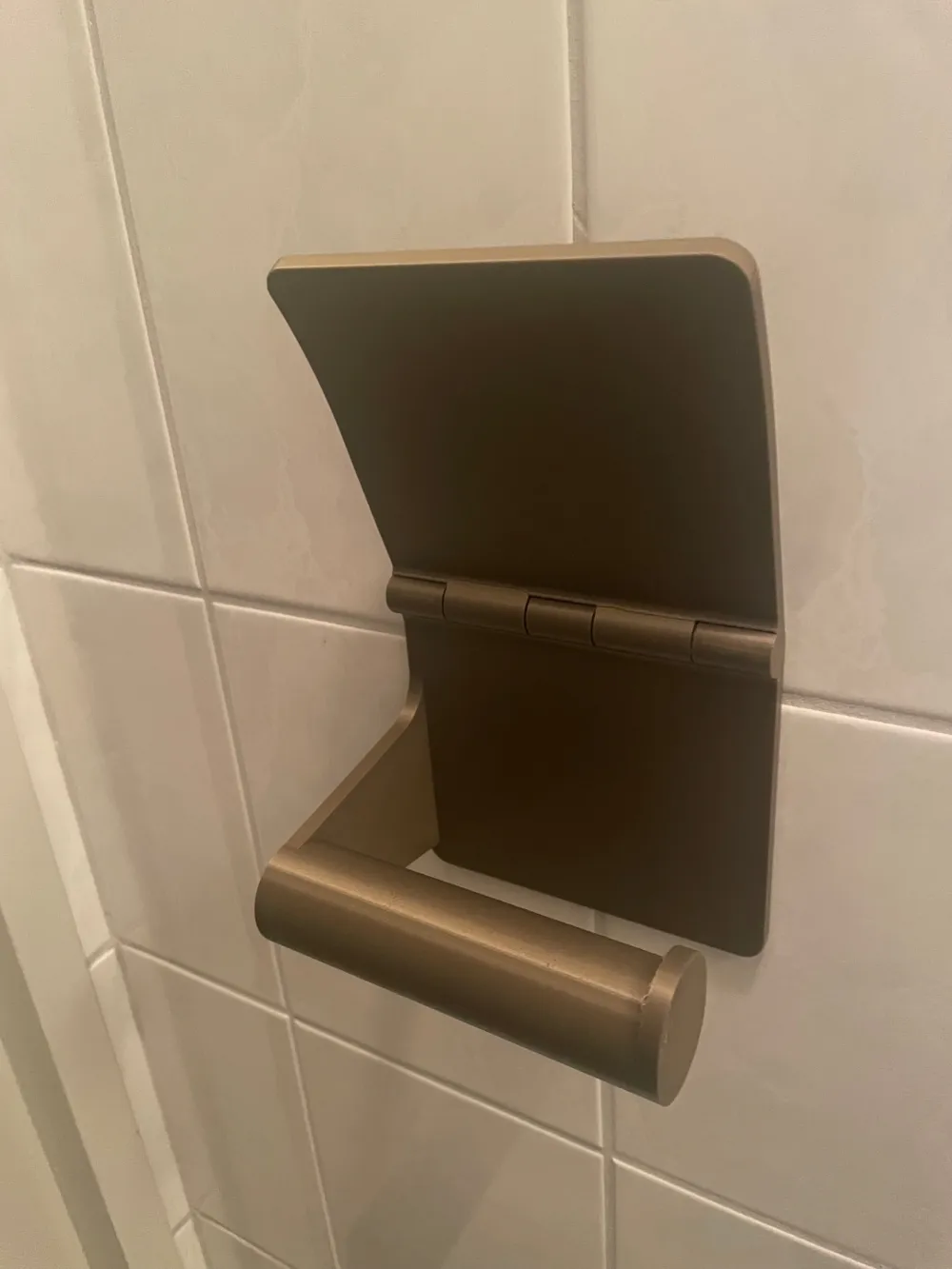

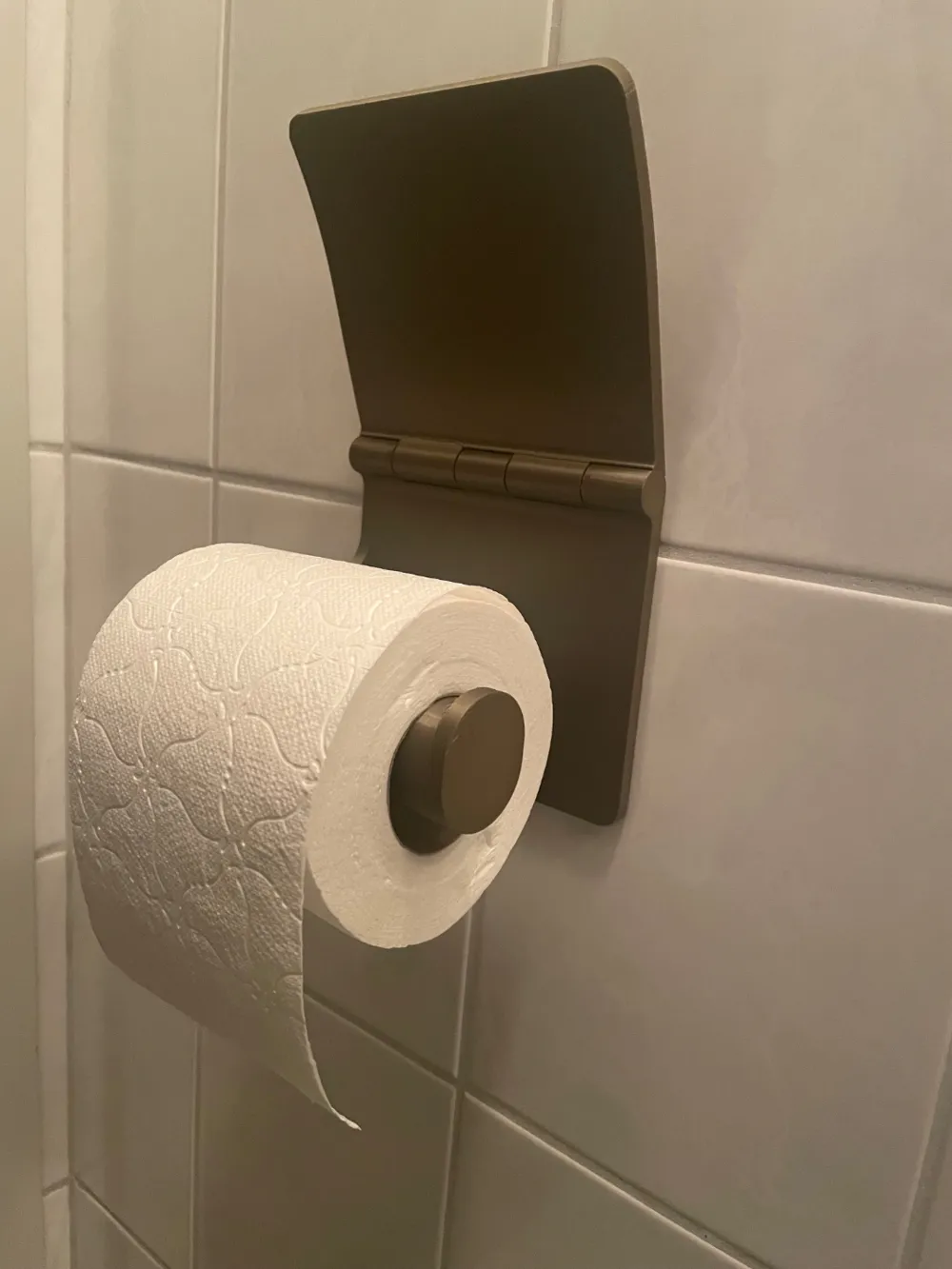

It has a functional hinge and mounts on a backplate that can be attached with screws.

The model is designed specifically for 3d printing so that it is strong enough, and the hinge prints easily.
Use the wallbrackets and two screws (max 45 mm apart) to mount the holder.

Print instructions:

Use the supplied profile or consider:
Print with a layer height of 0.16 mm. Higher layer height can cause the hinge to stick together.
Use a brim on the extremities to prevent warping.
