with a hole in the handle

Designer

1.6 h

1 plate

4.6(24)

optimized rigidity - less material required

Designer

1.5 h

1 plate

5.0(5)

Original version

Designer

1.5 h

1 plate

5.0(2)

Open in Bambu Studio

Boost

364

600

323

Released

Description

Content has been automatically translated.

Show original

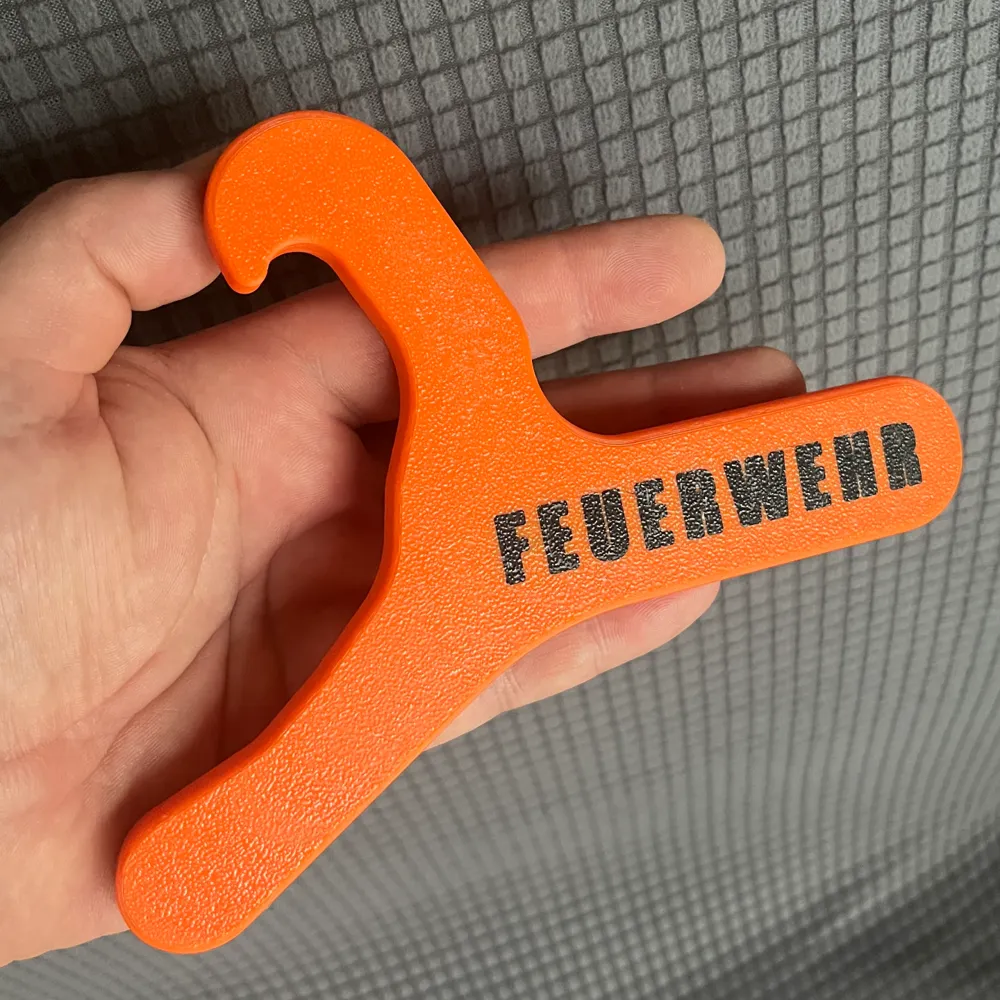

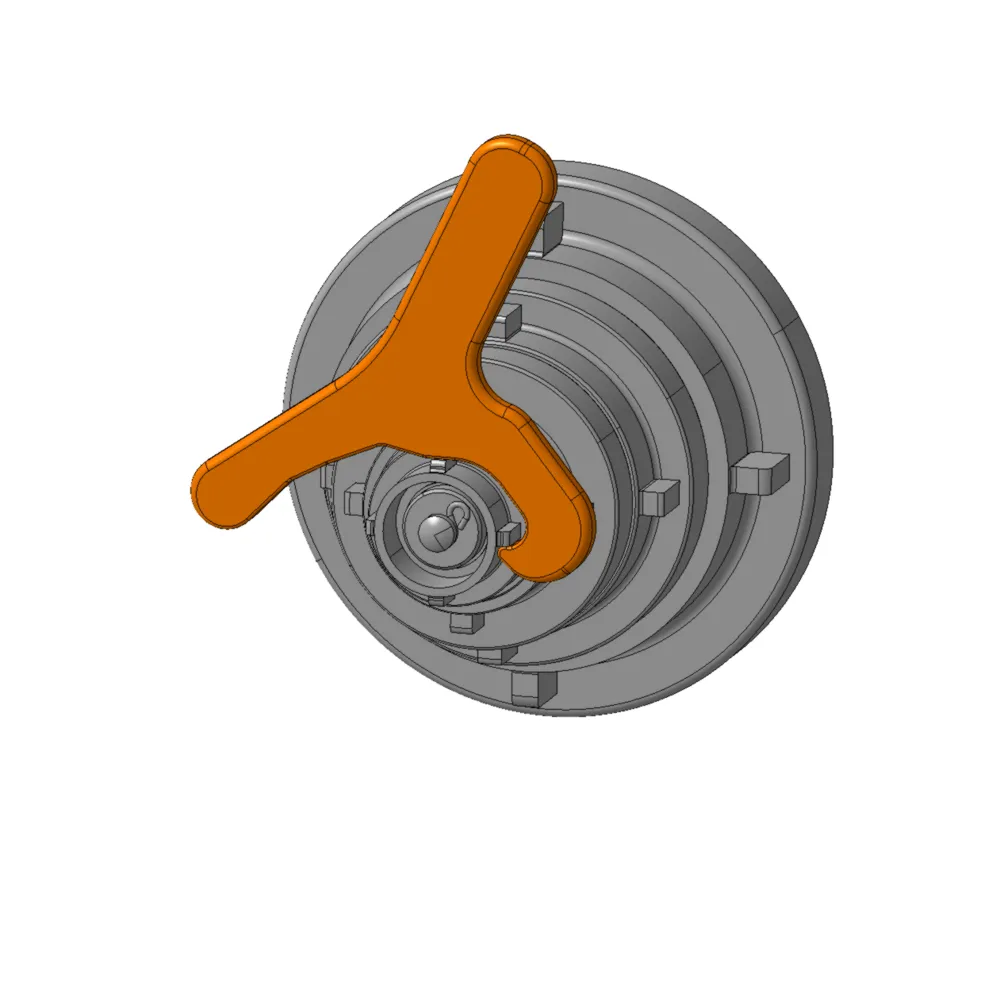

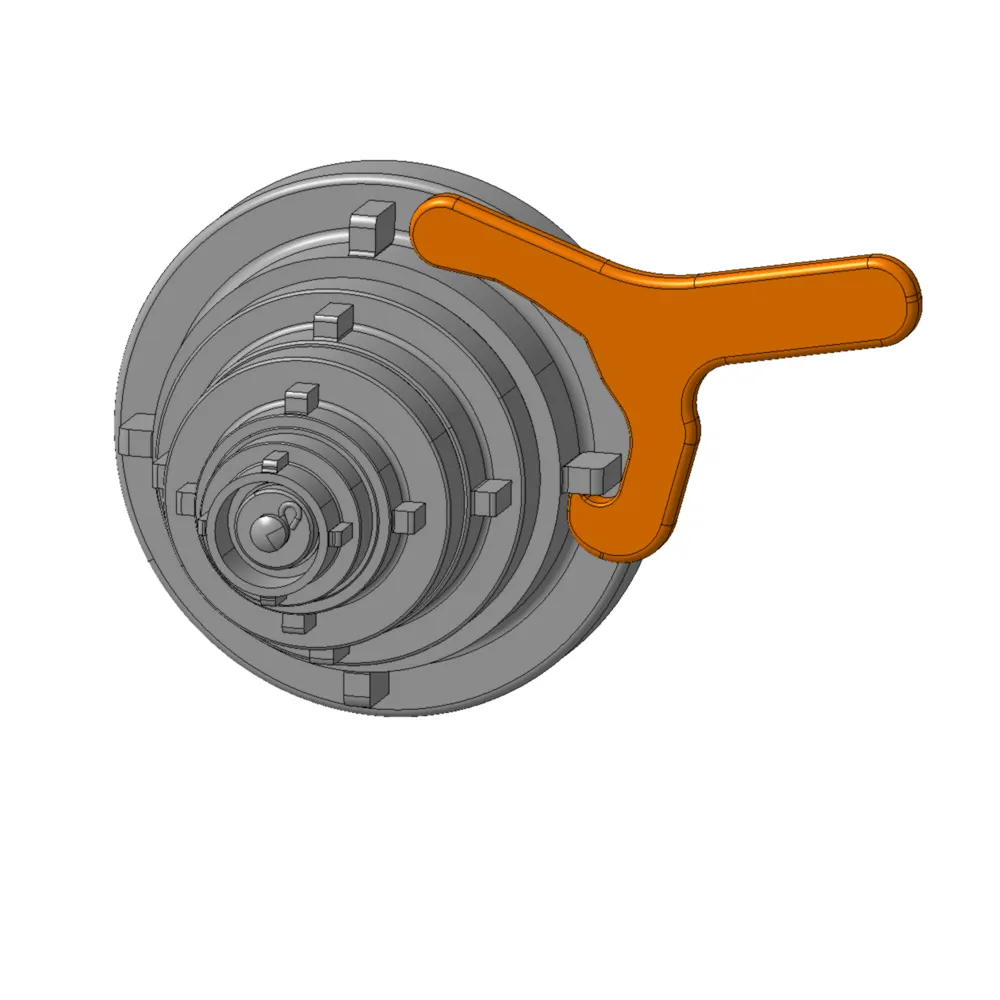

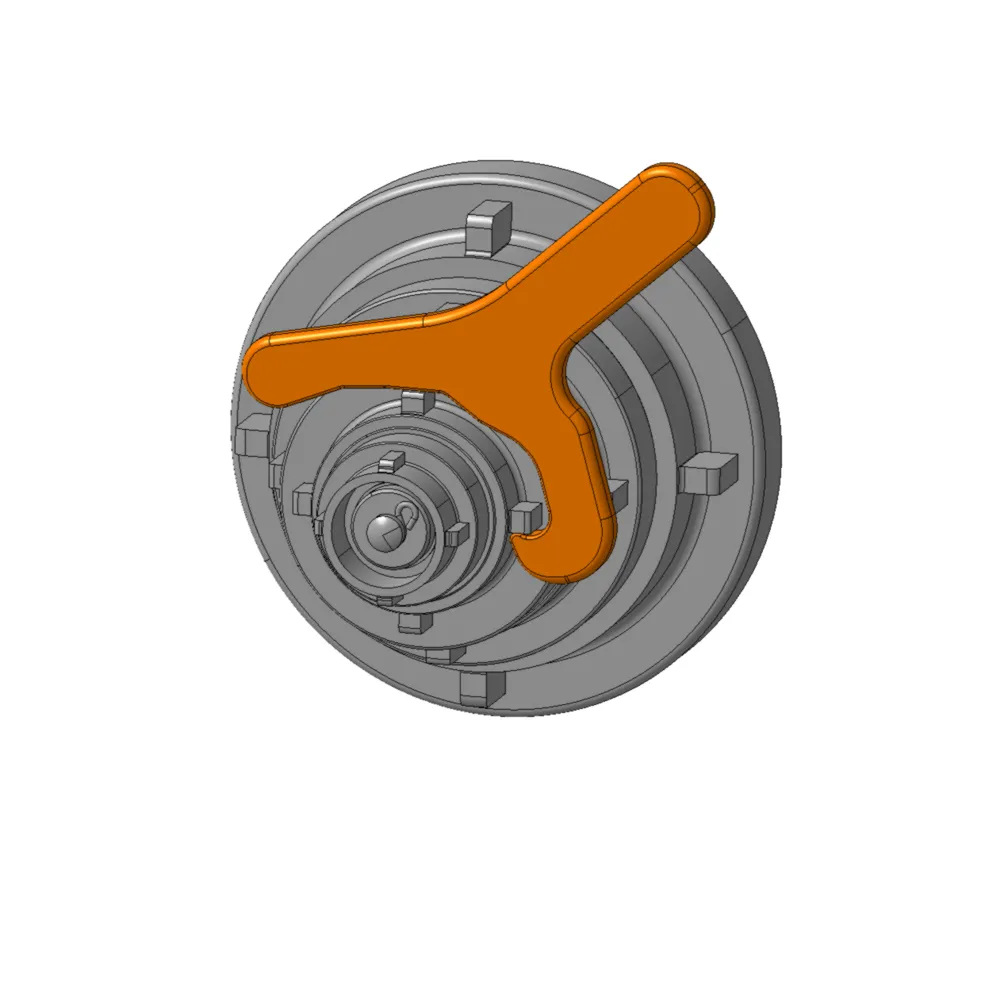

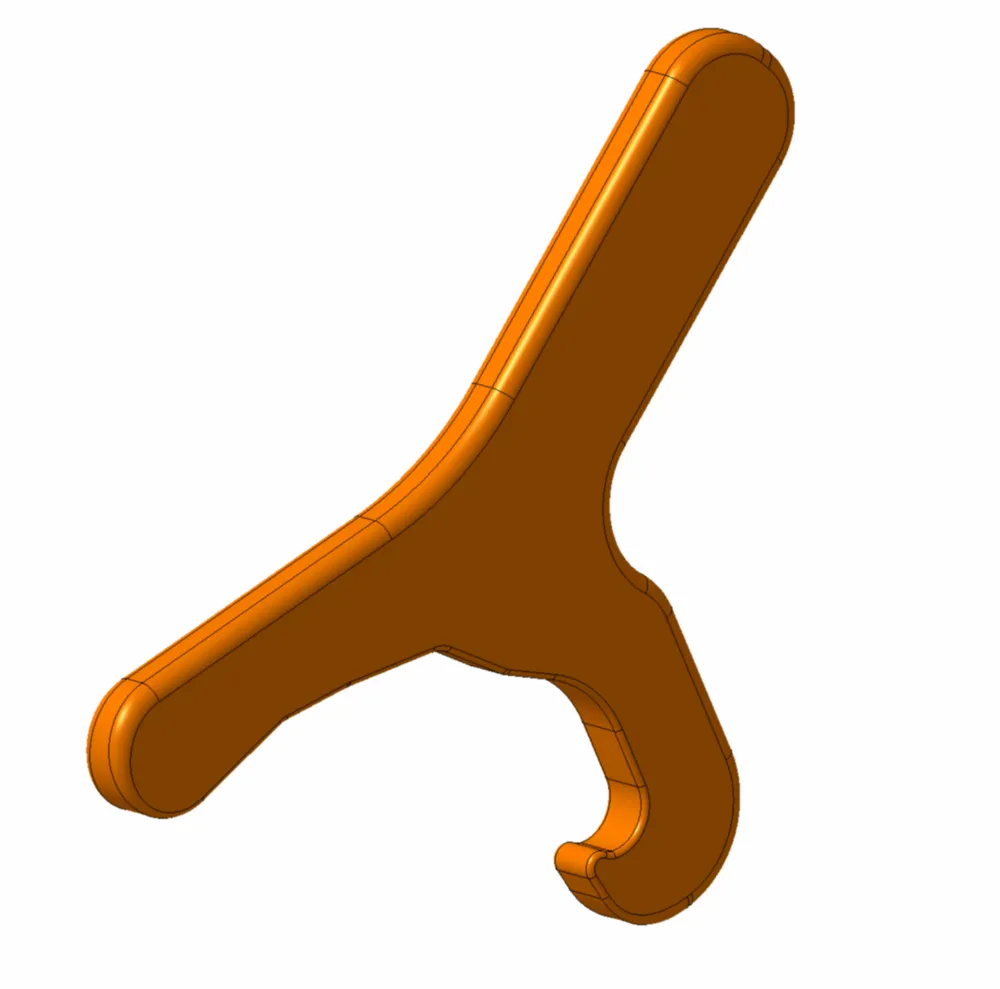

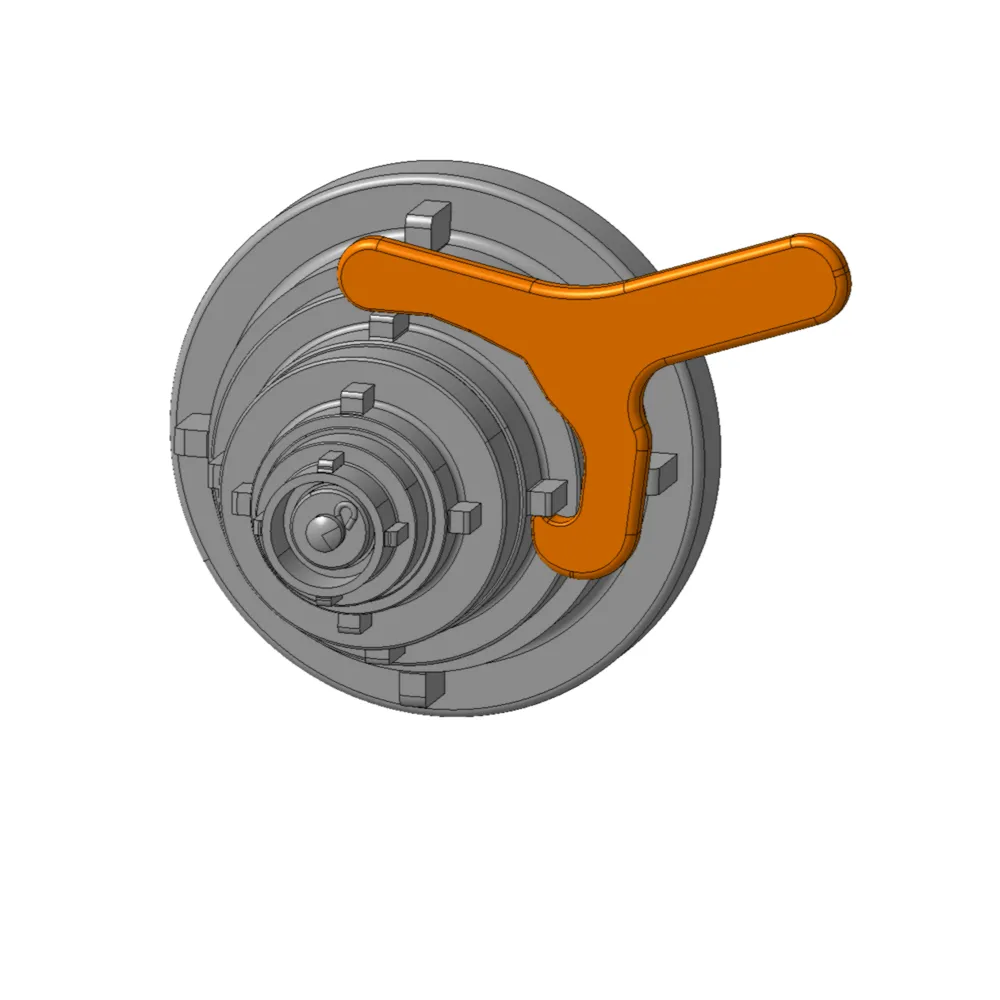

I have developed a miniature coupling wrench for Storz couplings. We have tested various ones at our fire department, and none were entirely satisfactory. It was intended as a pocket-sized tool to assist with difficult coupling maneuvers.

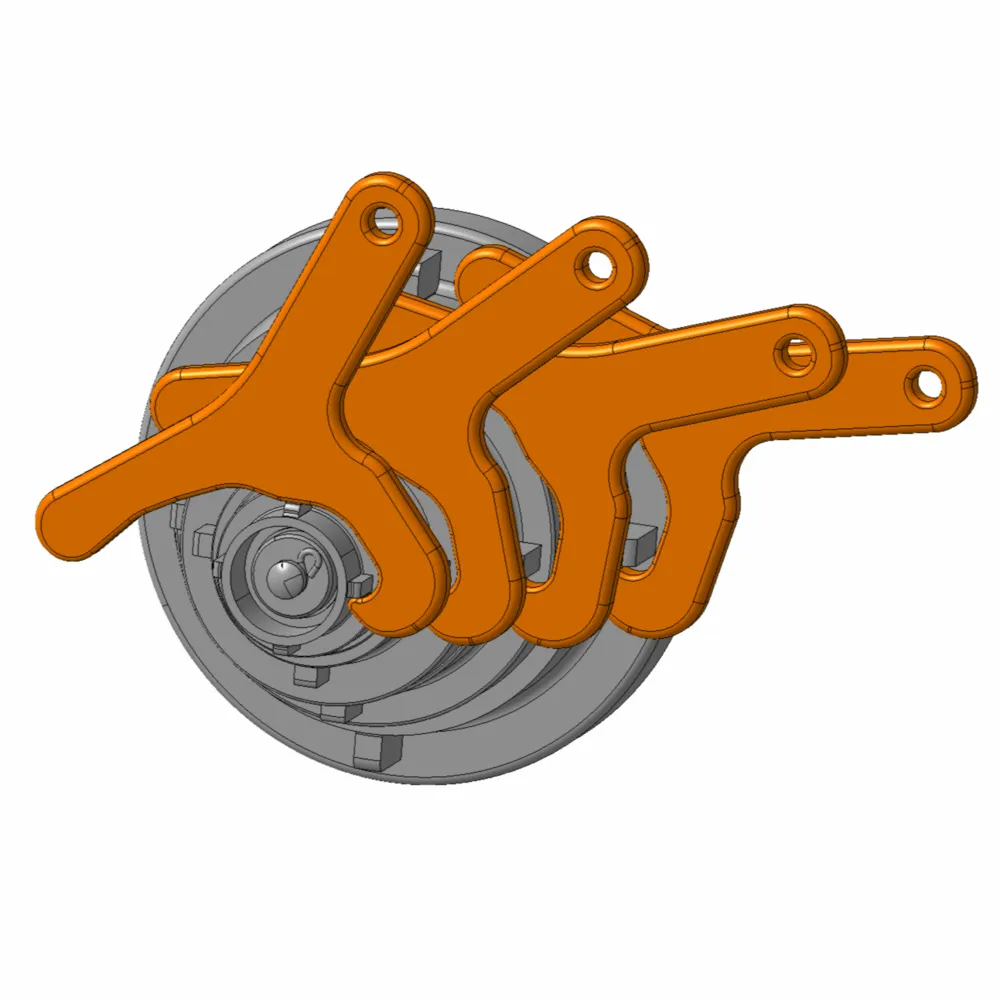

Upon request, I have also created a version with a hole in the handle. This allows the tool to be attached to a jacket or trousers.

This is my first model that I am making available here, and therefore I still have much to learn regarding this platform.

fire department

storz

tool

Comment & Rating (51)

@user_33228467

It is a good gadget, unfortunately it broke on an A-Storz that was a bit tighter

The designer has replied

Show original

@DeMeesterer

Hi, yes I can imagine that well. With seized or very stiff couplings, there comes a point where it's over. We always have a few as spares in the equipment shed or on the fire engines for such cases. One more question, what material was the broken key made of

Show original

@user_33228467

Replying to @DeMeesterer :

I used ABS, ... it worked quite well. I don't know if it makes any difference if you fill it completely with filament 🤷‍♂️

Show original

@dreiDGera

Print Profile

with a hole in the handle

Thank you!

Show original

@Mixel3105

Hello would it be possible to add the different holes as well

Show original

@MihaP.

Print Profile

with a hole in the handle

The profile uploader has replied

@DeMeesterer

looks good 😀👍🏼

Show original

@user_2791750709

Print Profile

with a hole in the handle

does not work with pla

The profile uploader has replied

Show original

@DeMeesterer

Hello and thank you for your review. However, it is not justified. Because if you use the weakest possible material, it cannot work

(Edited)

Show original

@user_2791750709

Replying to @DeMeesterer :

I agree with you that PLA is weak, but the file should also be printable with PLA

Show original

@Feldpower

Replying to @user_2791750709 :

Printing with PLA is of course possible, but it goes without saying that it does not offer the necessary stability. Therefore, with PLA only as a test print or as decoration ^^

Show original

@skissal

Hi I would like to print the key for our fire department However it would be useful to have a hole in the handle to attach the key to the jacket Would it be possible for you to send me the file

The designer has replied

Show original

@DeMeesterer

Hi, I'll see if I can upload another version with a hole tomorrow

Show original

@skissal

Replying to @DeMeesterer :

Perfect Thank you :)

Show original

@BlueAngel1982

Print Profile

optimized rigidity - less material required

Very good model Printed cleanly with PETG and 0.4mm The first test is next week :-)

Show original

@Kalle96

and? how was it

Show original

@Schmidti83

Boosted

Great part, thanks. Printed with PETG

Show original

@Schmidti83

Boosted

Print Profile

with a hole in the handle

Print without problems with PETG

Show original

@borkralj

Print Profile

optimized rigidity - less material required

Great design, printed out of Bambu lab silver ABS, my print warped on one side, but that is my fault. Brims would have helped definitely. We will see how long it lasts.
